2017 NISSAN LEAF Navigation Manual

[] Each time [] is touched, the
repeat mode changes.
“Changing play mode”
(page 4-23)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to pause the track.
[
] Touch to play the track.
[
] Touch to select the next tack. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
“Changing play mode”
(page 4-23)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
USB memory device player operation
Activation and playing:
Connecting the USB memory device into the
port will activate the USB mode.
USB memory device can also be played by
selecting the source on the audio source menu
screen.
“Selecting audio source” (page 4-12)
To pause playing the USB memory device, touch
[
]. To resume playing, touch [].
Skipping tracks:
To skip the tracks, push ,
touch [
]/[] on the screen, or tilt up/down
<>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Changing folders:
To change folders, touch [USB Menu] and touch
[Folder List].
“USB Menu” (page 4-23)
Fast-forwarding/rewinding:
To rewind or fast-forward the track, push and
hold , touch and hold
[
]/[], or tilt and hold <>/<>on
the steering wheel.
Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode as follows.
[All] ?[1 Track] ?[1 Folder] ?[All]
Random mode
Touch [
] on the screen to change the random
mode as follows.
(off) ?[1 Folder] ?[All] ?(off)
USB Menu
Touch [USB Menu] on the USB screen to display
the USB Menu screen.
The following items are available.
4-23
4. Audio system

[Now Playing] Touch to display the USB screen.
[SCAN] Touch to scan the tracks in theUSB memory device. During
scanning, the first several sec-
onds of all the tracks will be
played. Touching [Scan] again will
cancel the scanning mode and
the USB memory device will
return to play normally from the
track which is playing.
[Folder List]* Touch to display the folder list. Touch an item on the list to select
the folder.
Touch [
] and go back to the
previous screen to select tracks in
the folder.
[Album Art-
work] Touch to turn on/off the album
artwork display on the USB
screen.
Track List A list of the tracks in the USB is displayed. Touch an item on the
list to select the track.
*: Displayed only when available.
iPodŠPLAYER
Connecting iPod
Š
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
. Do not grab the USB port cover (if so
equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port. Connect the iPod
Što the USB port.“USB (Universal Serial Bus) Connection
Port and AUX (auxiliary) input jack”
(page 1-5)
The battery of the iPod
Šwill be charged while the
device is connected to the vehicle if the iPodŠ
supports charging via a USB connection.
Depending on the device and firmware version of
the iPod
Š, the display on the iPodŠshows a
NISSAN or Accessory Attached screen when
the connection is completed. When the iPod
Šis
connected to the vehicle, the iPodŠmusic library
can only be operated by the vehicle audio
controls.
Compatibility:
Made for
. iPod
Š(5th generation)
. iPod touch
Š(4th generation)
. iPod touch
Š(3rd generation)
. iPod touch
Š(2nd generation)
. iPod touch
Š(1st generation)
. iPod touch
Š
.iPod classicŠ(80G/160GB)
4-24
4. Audio system

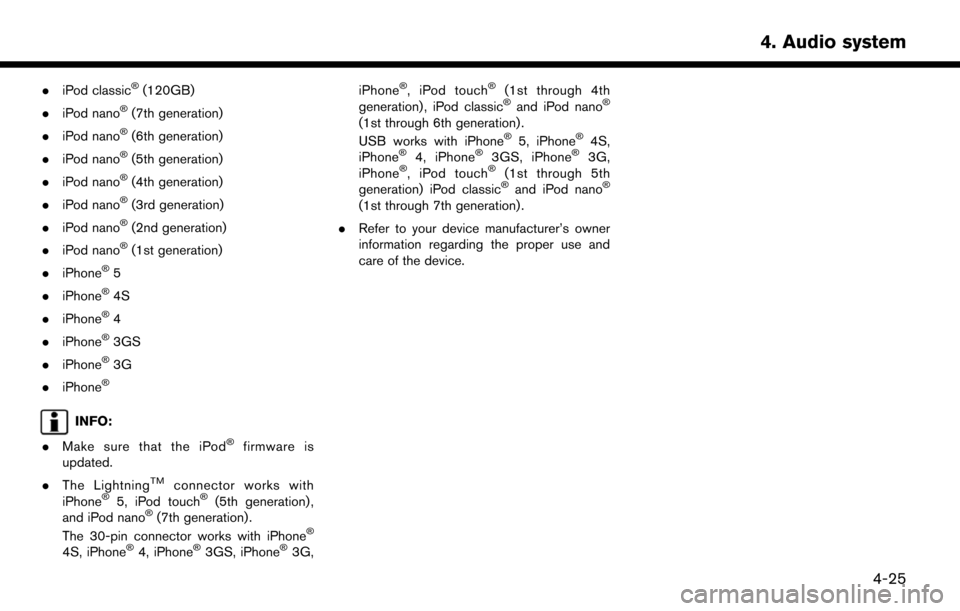

.iPod classicŠ(120GB)
. iPod nano
Š(7th generation)
. iPod nano
Š(6th generation)
. iPod nano
Š(5th generation)
. iPod nano
Š(4th generation)
. iPod nano
Š(3rd generation)
. iPod nano
Š(2nd generation)
. iPod nano
Š(1st generation)
. iPhone
Š5
. iPhone
Š4S
. iPhone
Š4
. iPhone
Š3GS
. iPhone
Š3G
. iPhone
Š
INFO:
. Make sure that the iPod
Šfirmware is
updated.
. The Lightning
TMconnector works with
iPhoneŠ5, iPod touchŠ(5th generation) ,
and iPod nanoŠ(7th generation) .
The 30-pin connector works with iPhoneŠ
4S, iPhoneŠ4, iPhoneŠ3GS, iPhoneŠ3G, iPhone
Š, iPod touchŠ(1st through 4th
generation) , iPod classicŠand iPod nanoŠ
(1st through 6th generation) .
USB works with iPhoneŠ5, iPhoneŠ4S,
iPhoneŠ4, iPhoneŠ3GS, iPhoneŠ3G,
iPhoneŠ, iPod touchŠ(1st through 5th
generation) iPod classicŠand iPod nanoŠ
(1st through 7th generation) .
. Refer to your device manufacturer’s owner
information regarding the proper use and
care of the device.
4-25
4. Audio system

How to view iPodŠscreen*1[iPod Menu]:
Touch to display the iPodŠMenu screen.“iPodŠMenu” (page 4-27)
*2[Source]:
Touch to switch to the source list screen.
“Selecting audio source” (page 4-12)
*3Track information:
Track information such as the song title,
artist name and album name are displayed.
*4Audio source indicator:
Indicates that iPodŠis currently selected
among available sources.
*5Album artwork/Turn direction indicator:
Image of an album artwork is displayed
when available if the setting is turned on.
“iPodŠMenu” (page 4-27)
When the album artwork display setting is
turned off, the turn direction and the
distance to the next turn are displayed when
a route is set with the navigation system.
*6Play time and progress bar:
The play time of the track is displayed. The
progress bar indicates the progress in
playing the current track.
*7iPodŠoperation keys:
Touch an icon for operations.
4-26
4. Audio system

[] Each time [] is touched, the
mode changes.
“Changing play mode”
(page 4-27)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to pause the track.
[
] Touch to play the track.
[
] Touch to select the next tack. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
mode changes.
“Changing play mode”
(page 4-27)
*8Track number:
Indicates the track number and the total
number of tracks.
iPodŠplayer operation
Activation and playing:
Connecting iPod
Što the vehicle via USB cable
will activate the iPodŠmode.
The iPodŠcan also be played by selecting the
source on the audio source menu screen.
“Selecting audio source” (page 4-12) Selecting search method:
A list of search methods is displayed in the iPod
Š
menu.
Touch [iPod Menu] to display the iPodŠmenu.
Touch and select an item to play the iPodŠin your
preferred settings.
Skipping tracks:
To skip the tracks, push ,
touch [
]/[] on the screen, or tilt up/down
<>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Fast-forwarding/rewinding:
To fast-forward or rewind the track, push and
hold , touch and hold
[
]/[], or tilt and hold <>/<>on
the steering wheel. Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode as follows.
(off) ?[One] ?[All] ?(off)
Random mode
Touch [
] on the screen to change the random
mode as follows.
(off) ?[Songs] ?[Albums] ?(off)
iPodŠMenu
Touch [iPod Menu] on the iPodŠscreen to
display the iPodŠmenu screen.
The following items are available.
4-27
4. Audio system

[Now Play-
ing]Touch to display the iPodŠscreen.
[Current
List]Touch to display the menu list
which was displayed most recently.
[Album Art-
work] Touch to turn on/off the album
artwork display on the iPod
Šscreen.
[Playlists] Touch to display the playlist and
touch an item on the list to select
the playlist.
[Artists] Touch to display the artist list and touch an item on the list to select
the artist.
[Albums] Touch to display the album list and touch an item on the list to select
the album.
[Songs] Touch to display the song list and touch an item on the list to select
the song.
[Podcasts] Touch to display the podcast list and touch an item on the list to
select the podcast.
[Genres] Touch to display the genre list and touch an item on the list to select
the genre.
[Compo-
sers] Touch to display the composer list
and touch an item on the list to
select the composer. [Audio-
books]
Touch to display the audiobook list
and touch an item on the list to
select the audiobook.
INFO:
On the list screen, touch and hold [
]or[]
on the right side of the screen to jump by letter
for faster scrolling.
BLUETOOTHŠAUDIO
Your vehicle is equipped with BluetoothŠAudio.
If you have a compatible BluetoothŠdevice with
streaming audio (A2DP profile) , you can set up a
wireless connection between your Bluetooth
Š
device and the in-vehicle audio system. This
connection allows you to listen to the audio from
the Bluetooth
Šdevice using your vehicle speak-
ers. It also may allow basic control of the device
for playing and skipping audio files using the
AVRCP Bluetooth
Šprofile. Not all BluetoothŠ
devices have the same level of controls for
AVRCP. Please consult the manual for your
Bluetooth
Šdevice for more details.
Wireless LAN (Wi-Fi) and the BluetoothŠfunc-
tions share the same frequency band (2.4 GHz) .
Using the Bluetooth
Šand the wireless LAN
functions at the same time may slow down or
disconnect the communication and cause un-
desired noise. It is recommended that you turn off the wireless LAN (Wi-Fi) when using the
Bluetooth
Šfunctions.
Connecting BluetoothŠaudio device
A BluetoothŠaudio device must be connected to
the vehicle before operation.
“Connecting BluetoothŠdevice”
(page 1-19)
4-28
4. Audio system

How to view BluetoothŠaudio screen*1[BT Menu]:
Touch to display the BluetoothŠaudio menu
screen.
“BT Menu” (page 4-31)
*2[Source]:
Touch to switch to the source list screen.
“Selecting audio source” (page 4-12)
*3Track information:
Track information such as the song title,
artist name and album name are displayed.
*4Audio source indicator:
Indicates that BluetoothŠaudio is currently
selected among available sources.
*5Turn direction indicator:
When a route to the destination is set, the
turn direction and the distance to the next
turn are displayed.
*6Play time and Progress bar:
The play time of the track is displayed. The
Progress bar indicates the progress in
playing the current track.
*7BluetoothŠaudio operation keys:
Touch an icon for operations.
4-29
4. Audio system

[]Each time [] is touched,
the repeat mode changes.
“Changing play mode”
(page 4-30)
[
] Touch to return to the be-
ginning of the current track.
Touch again to select the
previous track. Touch and
hold to rewind the current
track.
[
/] Touch to play and pause the track.
[
] Touch to select the next
track. Touch and hold to
fast-forward the track.
[
] Each time [] is touched,
the random mode changes.
“Changing play mode”
(page 4-30)
*8Track number and device name:
Indicates the track number and the selected
Bluetooth
Šdevice name.
INFO:
Depending on the audio device that is connected
to the vehicle, track information may not be
displayed.
BluetoothŠaudio operation
The ability to pause, change tracks, fast forward,
rewind, randomize and repeat music may be
different between devices. Some or all of these
functions may not be supported on each device.
INFO:
Depending on the Bluetooth
Šaudio device that
is connected, it may not be possible to perform
audio operations or a time lag may occur before
music is played back.
Activation and playing:
A Bluetooth
Šaudio device can be played by
selecting the source on the audio source menu
screen.
“Selecting audio source” (page 4-12)
To pause playing the BluetoothŠaudio, touch
[/]. Touch again to resume playing.
Skipping tracks:
Push , touch [
]/[]on
the screen, or tilt up/down <>/<>on the steering wheel briefly to skip to the next or the
previous track.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Changing folders:
To change folders, touch [BT Menu] and touch
[Folder List].
“BT Menu” (page 4-31)
Fast-forwarding/rewinding:
To fast-forward or rewind the track, push and
hold , touch and hold
[
]/[], or tilt and hold <>/<>on
the steering wheel.
Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode.
Random mode
Touch [
] on the screen to change the random
mode.
4-30
4. Audio system
