2017 NISSAN GT-R ESP


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

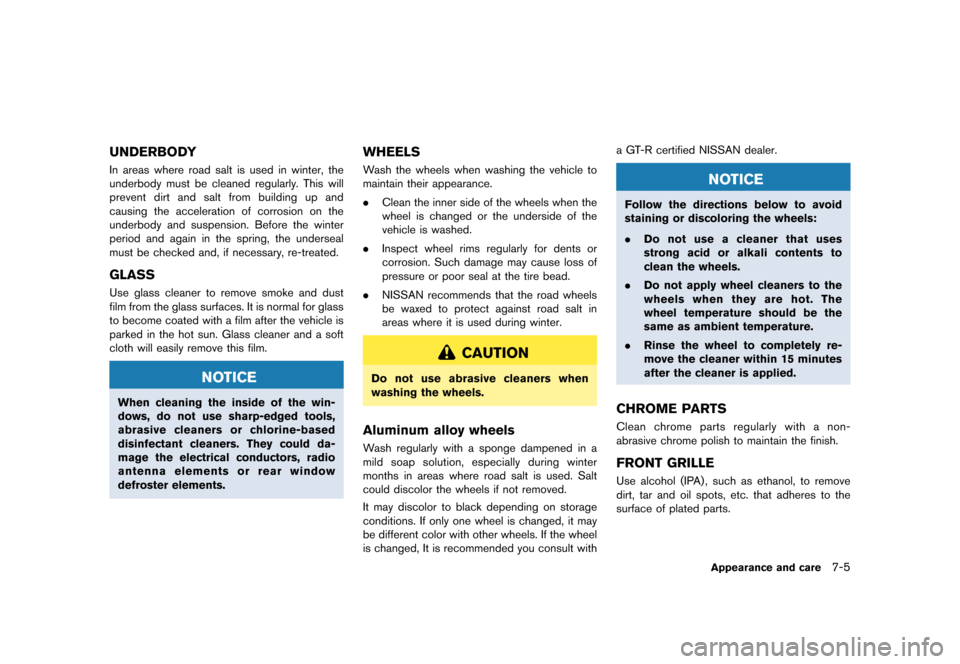

UNDERBODYGUID-BDA9763C-38AC-4528-87E4-128C0B6D452CIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASSGUID-184112B2-6F39-43A6-9E3E-DD1003B9EDDDUse glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
NOTICE
When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based
disinfectant cleaners. They could da-
mage the electrical conductors, radio
antenna elements or rear window
defroster elements.
WHEELSGUID-28739CF5-4632-465E-BA7F-F71C3AD66616Wash the wheels when washing the vehicle to
maintain their appearance.
.Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
. Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
. NISSAN recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.
CAUTION
Do not use abrasive cleaners when
washing the wheels.
Aluminum alloy wheelsGUID-B4D09F8E-EBC4-4DFB-9705-8567963D0E60Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
It may discolor to black depending on storage
conditions. If only one wheel is changed, it may
be different color with other wheels. If the wheel
is changed, It is recommended you consult with a GT-R certified NISSAN dealer.
NOTICE
Follow the directions below to avoid
staining or discoloring the wheels:
.
Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSGUID-9406EE2F-3E00-4D47-86BD-642FFE0097C7Clean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
FRONT GRILLEGUID-225A8329-C8C2-4692-AC87-B76F4E73C578Use alcohol (IPA) , such as ethanol, to remove
dirt, tar and oil spots, etc. that adheres to the
surface of plated parts.
Appearance and care7-5


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

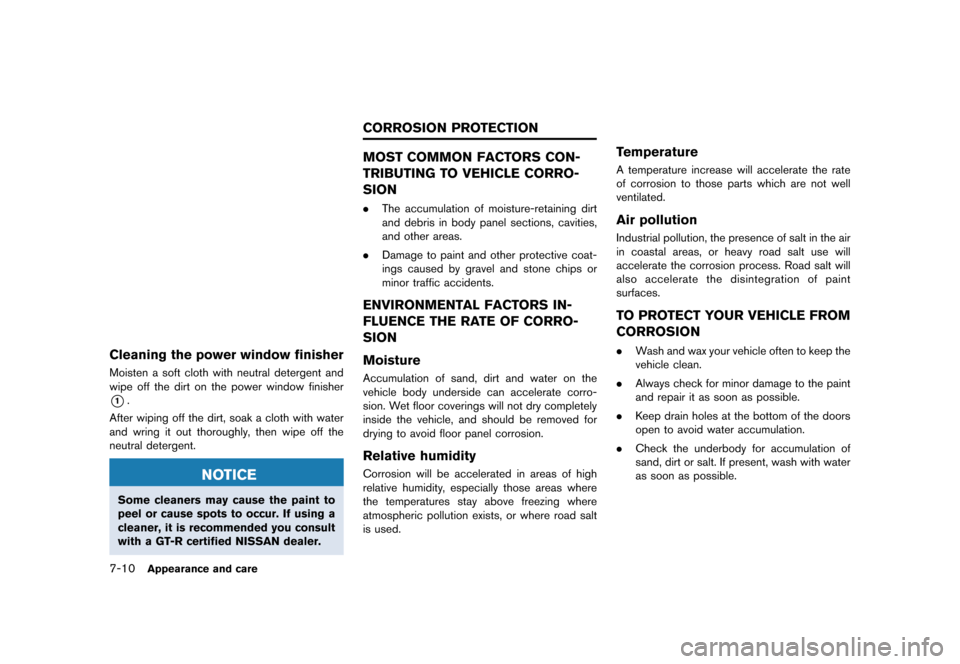

7-10Appearance and care
GAC0005
Cleaning the power window finisherGUID-4406CA4F-B330-470C-ABAE-D90A3334ABDDMoisten a soft cloth with neutral detergent and
wipe off the dirt on the power window finisher
*1.
After wiping off the dirt, soak a cloth with water
and wring it out thoroughly, then wipe off the
neutral detergent.
NOTICE
Some cleaners may cause the paint to
peel or cause spots to occur. If using a
cleaner, it is recommended you consult
with a GT-R certified NISSAN dealer.
GUID-B970C1C5-D3A1-4C15-B518-E922FCEE496C
MOST COMMON FACTORS CON-
TRIBUTING TO VEHICLE CORRO-
SION
GUID-7A151D9E-D588-4251-8D20-4D2F2E257DA9. The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS IN-
FLUENCE THE RATE OF CORRO-
SION
GUID-277B6C42-E46B-4C04-95B8-D0C538E853B3
MoistureGUID-C93C1A17-821D-4EF7-9691-D9EF6CDDA506Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityGUID-B625B9E1-0536-4B11-99A9-97A1EADE7CE6Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureGUID-5221CCD2-9768-41EB-AFE4-BE246D0DDF1AA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionGUID-243E0D12-D57A-49A3-B55A-3CEEA95DB4A3Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
GUID-9315A8F3-048A-4979-8020-1AD6BA90A7BA.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CORROSION PROTECTION


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-E98D7125-8032-452B-B9FF-1B3C53BBB5F2Some day-to-day and regular maintenance is
essential to maintain your vehicle good mechan-
ical condition, as well as its emission and engine
performance.
It is the owner's responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCEGUID-E0B2C09A-66B6-476D-8575-FB97D809FEBDFor your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your NISSAN Service and
Maintenance Guide. You must refer to that guide
to ensure that necessary maintenance is per-
formed on your vehicle at regular intervals.
GENERAL MAINTENANCEGUID-D2D0708D-C35D-4699-82DB-19B77AAFBDACGeneral maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a fewgeneral automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
GT-R certified NISSAN dealer.
WHERE TO GO FOR SERVICEGUID-DB69589D-3B24-4601-8C17-D768974E2FF3GT-R certified NISSAN dealers are required to
have additional training and equipment and are
the only NISSAN dealers authorized to perform
warranty work on key vehicle performance
systems such as engine, transmission, suspen-
sion and brakes.
If maintenance service is required or your vehicle
appears to malfunction, it is recommended that
you have the systems checked and serviced by a
GT-R certified NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealer information systems. They are
completely qualified to work on NISSAN vehi-
cles
before work begins.
You can be confident that a GT-R certified
NISSAN dealer's service department performs
the best job to meet the maintenance require-
ments on your vehicle.
To find a GT-R certified NISSAN dealer near
you, call 1-866-668-1GTR in the US or 1-800- 387-0122 in Canada, or go to www. gtrnissan.
com/.
Maintenance and do-it-yourself8-3
MAINTENANCE REQUIREMENTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-5CDBD9E9-FB85-4823-9549-A4D0ED081C01
GMD0019
CHECKING ENGINE OIL LEVELGUID-1AFFF17E-8288-42ED-A659-0753FA09A56B1. Park the vehicle on a level surface and applythe parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait at least 5
minutes for the oil to drain back into
the oil pan before checking the oil.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
*1. If the
oil level is below
*2, remove the oil filler cap and pour recommended oil through the
opening.
Do not overfill
*3.
6. Recheck oil level with the dipstick.
NOTE:
. It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the
severity of operating conditions. More
engine oil is consumed by frequent
acceleration/deceleration especially
when the engine rpm is high. If your
rate of oil consumption increases sud-
denly or without explanation, NISSAN
recommends that you have your vehicle
inspected by a GT-R certified NISSAN
dealer.
. When the vehicle is delivered, the
engine oil is set to 0.39 in (10 mm)
below the H mark for optimal high
performance driving. The engine oil can
be filled up to the H mark if perfor-
mance driving is not engaged.NOTICE
.Mobil 1 (0W-40) (100% synthetic) is
the factory fill oil. The VR38 engine
with its plasma-sprayed bores was
developed using this oil. NISSAN
cannot ensure proper engine opera-
tion and durability if other 0W-40
synthetic oil is used. If Mobil 1 (0W-
40) is not available, Mobil 1 (10W-
40) (100% synthetic) may be used;
however, some performance loss
may be noticed.
. Oil level should be checked regu-
larly. Operating the engine with an
insufficient amount of oil can da-
mage the engine. See the 2017
NISSAN GT-R Warranty Information
Booklet for details including applic-
able exclusions.
Maintenance and do-it-yourself8-13
ENGINE OIL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-24Maintenance and do-it-yourself
dry road, especially after washing the vehicle or
driving in rain. Contact a GT-R certified NISSAN
dealer if the noise and vibration continue.
Frequent hard braking may cause scorching of
the brake pads. This will require the brake pads
to be replaced, even if the wear limit has not
been reached. Have the brake pads and disc
rotors inspected at the regular vehicle inspec-
tions.
For more details, contact a GT-R certified
NISSAN dealer.
REPLACING THE BRAKE PADSGUID-799EFC95-74BE-45AD-A4A4-EBD670C885BCNISSAN generally recommends to replace all
four sets of brake pads and disc rotors at the
same time to maintain maximum brake perfor-
mance.
However, replacing only the brake pads may be
allowed in some cases (four wheels or only front
wheels depending on the conditions) . A GT-R
certified technician must inspect the vehicle and
determine that only the brake pads need to be
replaced. In this case, replacing all brake pads
and disc rotors as a set is not necessary.
Note that the replacement of brake pads and the
disc rotors as a set on all four wheels should be
performed when a GT-R certified technician
determines that this is the correct repair.If the inside of the disc rotors are cold during the
winter and the surface becomes hot due to a
heavy force being applied repeatedly to the
brakes, cracks may occur near the coolant hole
on the surface of the disc rotor. Cracks may also
occur due to a heavy force being repeatedly
applied to the brakes during high performance
driving. In these cases it may be necessary to
replace the disc rotors or brake pads depending
on the condition of the crack. Contact a GT-R
certified NISSAN dealer for replacement.
GUID-FC3BF33C-AF4F-426F-86B5-716FFFD54679
GIE0007
ENGINE COMPARTMENTGUID-7D201790-E48B-49CA-AA55-D88112FA94E8
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
FUSES


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GIE0025
Getting the toolsGUID-E381EF01-A3AB-41AC-98C7-A79C755F90C6
NOTE:
A jack, jack lever and rod are not equipped
as standard with this vehicle. These parts
are dealer options. It is recommended you
contact a GT-R certified NISSAN dealer
about acquiring a jack, jack lever and rod.
You can store a jack, jack lever and rod in
the floor in front of the passenger's seat.
CAUTION
After using the tools, put them back in
their original places. An accident may
occur if you leave them in the car
unsecured.
Jacking up the vehicle and removing
the tire
GUID-32994668-8DC8-448D-9C67-1CA8A7E791B7
WARNING
.Never get under the vehicle while it
is supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use the correct jack-up points.
Never use any other part of the
vehicle for jack support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the
jack.
. Do not start or run the engine while
vehicle is on the jack, as it may
cause the vehicle to move. This is
especially true for vehicles with limited slip differentials.
. Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached
to the jack body and the following instruc-
tions.
Maintenance and do-it-yourself8-45


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-6Technical and consumer information
label MMT content, not all do, so you may have
to consult your gasoline retailer for more details.
Aftermarket fuel additivesGUID-E35DB2CE-4B2A-43A8-8EFC-14E1686FBCF2
NOTICE
NISSAN does not recommend the use
of any aftermarket fuel additives (Ex-
ample: fuel injector cleaner, intake
valve deposit removers, etc.) which are
sold commercially. Many of these ad-
ditives intended for gum, varnish or
deposit removal may contain active
solvent or similar ingredients that can
be harmful to the fuel system and
engine.
Octane rating tipsGUID-AB3A7D1F-9988-4771-A998-C4AEF3B5353FUsing unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, it is recommended you havea GT-R certified NISSAN dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, it is recommended you have your
vehicle checked at a GT-R certified NISSAN
dealer or other competent service facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-4317BD1E-00A6-497E-8826-BE6B395FF1EE
Selecting the correct oilGUID-878F1CD4-7741-4A11-ABA4-AA924EE0D79CIt is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance.
(
ªCapacities and recommended fluids/lu-
bricantsº page 9-2)
Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and
durability if other 0W-40 synthetic oil is used.
If Mobil 1 (0W-40) is not available, Mobil 1
(10W-40) (100% synthetic) may be used;
however, some performance loss may be
noticed.
NOTICE
Using an engine oil other than that
specified could adversely affect the
engine. See the 2017 NISSAN GT-R
Warranty Information Booklet for de-
tails and exclusions.
Oil additivesGUID-74B2A1BE-EF2D-49ED-86BB-0BA5671DA592NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityGUID-A93C5DED-BCB7-4F12-A432-606D02BBE8D6The engine oil viscosity or thickness changes
with temperature. Because of this, it is important


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-D3CBB553-D938-4B24-8492-830DDEF71EABIf you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle's engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.GUID-B0892AFD-8234-4354-812A-F84889EEA0CC
GTC0013
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-2D0BF39B-5FBD-4573-B3D6-B6AE2FF151B9The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
JVT0022X
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-039A5BF4-55DD-4B34-81C7-EC4F2EB87BBAThe number is stamped as shown in the engine
compartment.
Technical and consumer information9-11
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
