2017 MINI Hardtop 2 Door Owner's Manual

Climate
controlVehicle
features
and
op

Climate
control
functions
in
detail
Switching
the
system
on/off Switching
on
Set any air volume.
Switching
off Turn wheel for air quantity to the
left until the control switches off.
Temperature
Concept
The system provides heat depending on the desired temperature.
Settings Turn the ring to set the desired
temperature.
Air
conditioning
Concept
The air in the vehicle's interior will be cooled and dehumidified and, depending on the tem~ perature setting, warmed again.
The vehicle's interior can only be cooled with
the engine running.
Switching
on/off Press button.
Air conditioning is switched on or off.
Depending on the weather, the windshield may
fog up briefly when the engine is started.The air conditioner produces condensation wa~
ter, refer to page 174, that will exit from below
the vehicle.
Recirculated-air
mode Concept
You may react to unpleasant odors or pollu~ tants in the immediate environment by tempo~ rarily suspending the supply of outside air. The
system then recirculates the air flow within the
vehicle.
Operation Press button repeatedly to select anoperating mode:'

The air flow from the air conditioner may be re~duced automatically to save battery power.
Controlling
the
air
distribution
manually
Concept
The air distribution for climate control can be adjusted manually.
Operation Turn the wheel to select the de~
sired program or the desired in~ termediate setting.'

Automatic
climate
control1Temperature, left2Display3Air flow, AUTO intensity4AUTO program5Air distribution, manual6Display7Temperature, right8Seat heating, rightps539Maximum cooling10Air conditioning11Recirculated-air mode12Rear window defroster13Windshield defroster14Defrosting windows and removing conden~
sation15Seat heating, leftps 53Climate
control
functions
in
detail
Switching
the
system
on/off Switching
on
Set any air volume.Switching
off
Turn wheel for air quantity to the
left until the control switches off.
Temperature Concept
The automatic climate control achieves the set temperature as quickly as possible, if necessarySeite 148CONTROLSClimate
control148
Online Edition for Part no. 01 40 2 915 044 - X/16

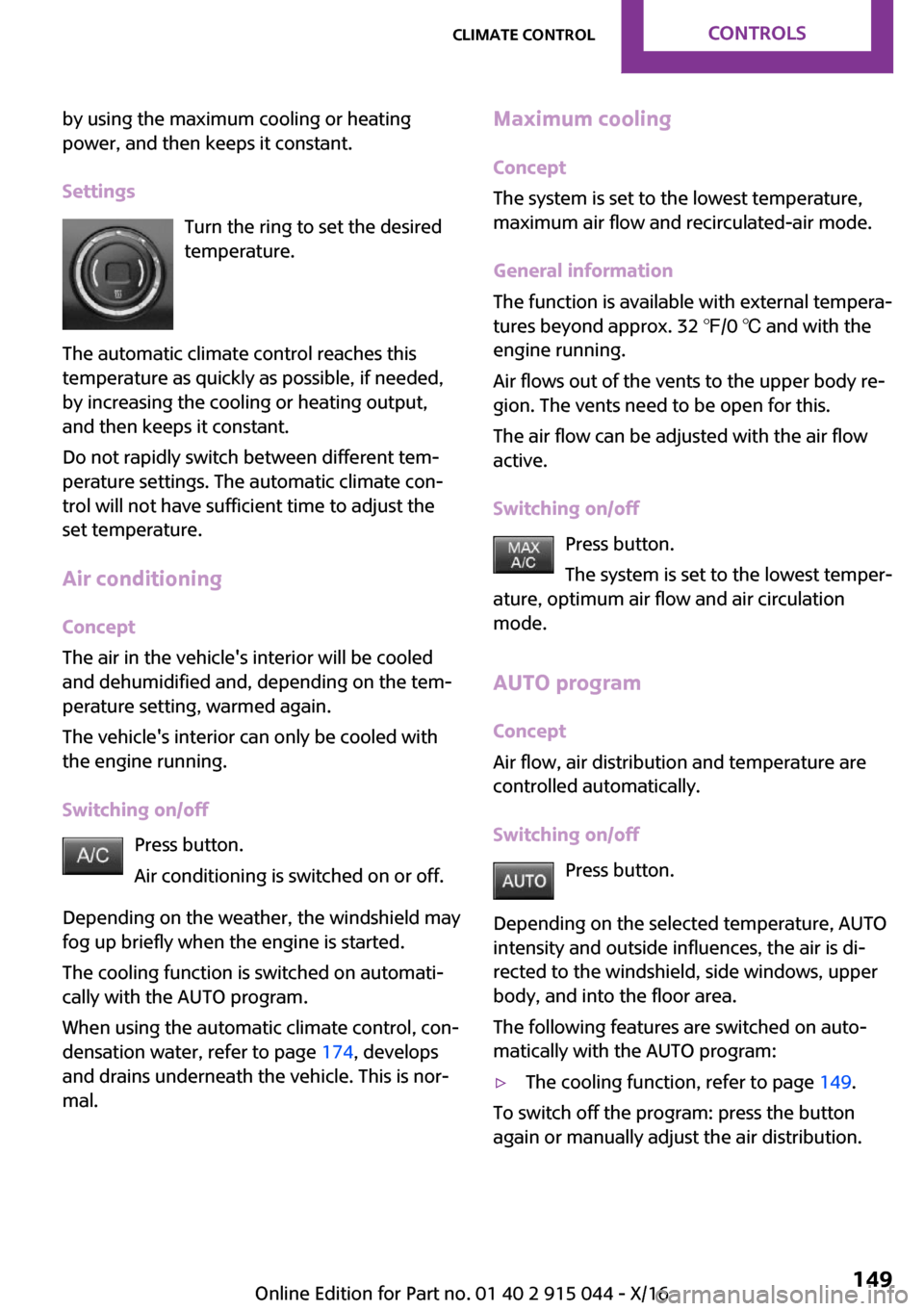

by using the maximum cooling or heating
power, and then keeps it constant.
Settings Turn the ring to set the desired
temperature.
The automatic climate control reaches this temperature as quickly as possible, if needed,
by increasing the cooling or heating output, and then keeps it constant.
Do not rapidly switch between different tem~
perature settings. The automatic climate con~
trol will not have sufficient time to adjust the
set temperature.
Air
conditioning
Concept
The air in the vehicle's interior will be cooled
and dehumidified and, depending on the tem~
perature setting, warmed again.
The vehicle's interior can only be cooled with
the engine running.
Switching
on/off Press button.
Air conditioning is switched on or off.
Depending on the weather, the windshield may
fog up briefly when the engine is started.
The cooling function is switched on automati~ cally with the AUTO program.
When using the automatic climate control, con~
densation water, refer to page 174, develops
and drains underneath the vehicle. This is nor~
mal.Maximum
cooling
Concept
The system is set to the lowest temperature,
maximum air flow and recirculated-air mode.
General
information
The function is available with external tempera~
tures beyond approx. 32

Intensity
With the AUTO program activated, the auto~
matic intensity control can be changed.
Turn the ring to set the desired
intensity from soft to intensive.
The set intensity is displayed via the position of the illuminated LED segment.
Recirculated-air
mode
Concept
You may react to unpleasant odors or pollu~
tants in the immediate environment by tempo~
rarily suspending the supply of outside air. The
system then recirculates the air flow within the
vehicle.
Operation Press button repeatedly to select an
operating mode:'

Switching
on/offPress button.
The LED is illuminated with the system
switched on.
Ice and condensation are quickly removed from the windshield and the front side win~
dows.
The air flow can be adjusted with the air flow
active.
If the windows fog over, also switch on the cooling function or press the AUTO button.
Windshield
defroster Press button.
The front window defroster switches
off automatically after a certain period of time.
Rear
window
defroster Press button. The LED lights up.
The rear window defroster switches off
automatically after a certain period of time.
When GREEN Mode is activated, the heater out~put is reduced.
Microfilter/activated-charcoal
filter In external and recirculated-air mode the mi~crofilter/activated charcoal filter filters dust,
pollen, and gaseous pollutants out of the air.
Have this filter changed during vehicle mainte~ nance, refer to page 218.
Ventilation
Setting The air flow directions can be individually ad~
justed:'

The symbol on the automatic climate con~
trol flashes if the system is switched on.
Preselecting
the
activation
time
Via the onboard monitor:1. "Settings"2."Climate"3."Timer 1:" or "Timer 2:"4.Set the desired time.
Activating
the
activation
time Via the onboard monitor:
1. "Settings"2."Climate"3."Activate timer 1" or "Activate timer 2"
The symbol on the automatic climate con~
trol lights up when the switch-on time is acti~
vated.
The symbol on the automatic climate con~
trol flashes when the system has been switched
on.
The system will only be switched on within the next 24 hours. After that, it needs to be reacti~
vated.
Seite 152CONTROLSClimate
control152
Online Edition for Part no. 01 40 2 915 044 - X/16
