2017 MAZDA MODEL CX-5 Smart Start Guide (in English)

First Edition • March 2017 • Printed in U.S.A. • 9999 95 050C 17SS
© MAZDA NORTH AMERICAN OPERATIONS
SMART START GUIDE
M{ZD{CX-5
2364256 17a CX-5 SSG 030117.indd 23/1/17 5:47 PM

This easy-to-use SMART START GUIDE provides important information about some unique features and functions of your new vehicle. Additional features are available at mymazda.com and the MyMazda app -> VEHICLE HOW TO. Complete information on
features and functions is available in your Owner’s Manual.
2364256 17a CX-5 SSG 030117.indd 33/1/17 5:47 PM

TABLE OF CONTENTS
m{zd{ CX-5
3 Driver's View
5 Advanced Keyless Entry
6 Starting The Engine
7 Tire Pressure Monitoring System
8 Multi-Information Display
9 Power Liftgate
10 Rear Seat
11 Seat Warmers
12 Heated Steering Wheel

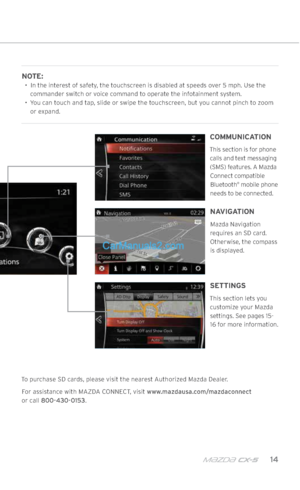

13 Mazda Connect Infotainment System
17 Bluetooth
®
19 Navigation System
22 Active Driving Display

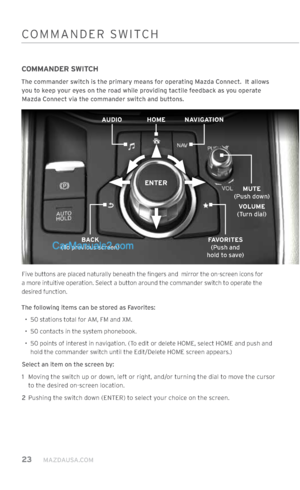

23 Commander Switch
24 Voice Control
25 Mazda Radar Cruise Control

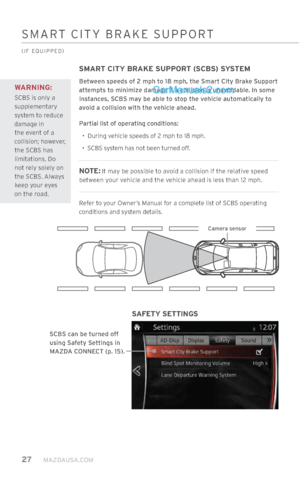

27 Smart City Brake Support
28 Smart Brake Support
29 Lane-keep Assist / Lane Departure Warning System
31 Distance Recognition Support System

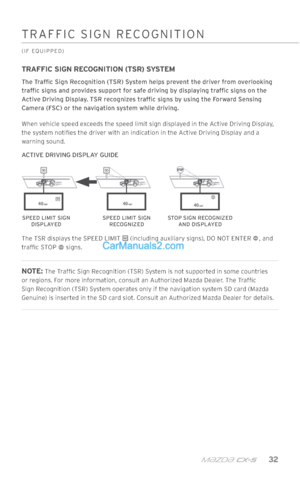

32 Traffic Sign Recognition
33 Blind Spot Monitoring System
34 Rear Cross Traffic Alert
35 Lighting / Turn Signals
36 Wiper / Washer Control
37 Adaptive Front-Lighting System
38 High Beam Control
39 Audio Controls
41 Audio USB and AUX Inputs
43 Automatic Climate Control
45 Instrument Cluster
47 Automatic Transmission
49 Auto-Dimming Mirror

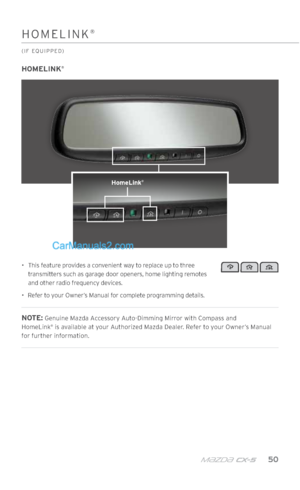

50 HomeLink
®
51 Electric Parking Brake / AUTOHOLD
52 Personalize Your CX-5
2364256 17a CX-5 SSG 030117.indd 43/1/17 5:48 PM

3 MAZDAUSA.COM
B
C
1
This indicator light illuminates to remind you that the front passenger’s
front/side airbags and seat belt pretensioner will not deploy during a
collision. The reason for this is that the weight in the seat is less than approximately 66 lbs. Always wear your seat belt, and if a front-facing
child seat must be used, you must deactivate the passenger's airbag. See the Owner’s Manual for important information on this safety feature.
DRIVER’S VIEW
A
DI
G
H
F
E
2364256 17a CX-5 SSG 030117.indd 33/1/17 5:48 PM

m{zd{ cx-5 4
A Power Liftgate Switch 9
B Traction Control System 45
Lane-keep Assist /
Lane Departure Warning 29
C Fuel Filler Lid /
Hood Release —
STEERING COLUMN
D Lighting / Turn Signals 35
E Bluetooth
® Hands-Free /
Audio Control 17
Voice Control 24
F Tilt / Telescoping
Steering Wheel Lever —
G Instrument Cluster
and Indicator Lights 45
H Cruise Control 25
I Wiper / Washer Control 36
CENTER CONSOLE
J Start / Stop Engine 6
K Mazda Connect
Infotainment System 13
L Hazard Warning —
M Passenger's Airbag
OFF Indicator
1 3
N Front Seat Warmers 11
0 Heated Steering Wheel 12
P Climate Control 43
Q Drive Selection 47
R Electric Parking Brake
(EPB) / AUTOHOLD 51
S Commander Switch 23
DRIVER’S VIEW
J
K
L
N
P
Q
RS
N
M
O
2364256 17a CX-5 SSG 030117.indd 43/1/17 5:48 PM

5 MAZDAUSA.COM
ADVANCED KEYLESS ENTRY SYSTEM
This system allows you to lock and unlock the doors without taking the key out of your pocket or purse.
While Carrying the Advanced Key…•
Unlock the driver’s door by pushing
the driver’s door request switch once.
•
Unlock all doors by pushing the
driver’s door request switch once or twice (depending on personalization
setting, p. 15) OR by pushing the passenger’s door request switch once.
•
Lock all doors (and liftgate) by
pushing any request switch once.
NOTE: Only vehicles equipped with the
Advanced Keyless Entry System allow you to lock and unlock the doors with the
door request switches (without taking the key out of your purse or pocket).
Vehicles equipped with the Keyless Entry System do not have request switches on the doors/liftgate. To lock and unlock
the doors, the corresponding transmitter button must be pushed.
Refer to your Owner’s Manual for additional
details about “Personalization Features”.
CAUTION:
The RED KEY indicator light
may illuminate on the instrument
cluster (p. 45) if the advanced key is placed in the
cup holder. The key may not be
detected in the
cup holder.
CAUTION:
Make sure the
engine is OFF and take the key with
you when leaving the vehicle.
When locking the doors using
the inside door
switches, be
careful not to leave the key
inside the vehicle
to prevent lock-out.
ADVANCED KEYLESS ENTRY
(IF EQUIPPED)
Door Request Switch
Lock
Unlock
Power
Liftgate
Panic
Alarm
2364256 17a CX-5 SSG 030117.indd 53/1/17 5:48 PM

m{zd{ cx-5 6
S TA RTING THE ENGINE
WITH ACCELERATED WARM-UP SYSTEM (AWS)
The CX-5 is equipped with SKYACTIV combustion
technology. This technology includes AWS (Accelerated
Warm-up System) for optimal emission performance during
cold starting conditions.
While Carrying the Advanced Key… •
START THE ENGINE by pushing the START/STOP ENGINE
button while pushing the brake pedal.
•
WHAT WILL YOU NOTICE? On start-up, the engine speed
and sound are elevated (1500 RPM) for less than one minute to quickly bring the catalyst to efficient operating temperature. The RPM will reduce to idle once the temperature is achieved.
This is normal engine operation under cold-start conditions.
•
WHAT DOES THIS DO? This reduces emissions and allows Mazda to improve efficiency.
•
SHUT THE ENGINE OFF by making sure the vehicle is in Park and setting the electric
parking brake, then push the START/STOP ENGINE button.
•
ACTIVATE ACCESSORIES (ACC) by pushing the START/STOP ENGINE button once
without pushing the brake pedal.
•
TURN THE IGNITION TO THE ON POSITION by pushing the START/STOP ENGINE button
twice without pushing the brake pedal.
EMERGENCY ENGINE STOP
Pushing and holding the START/STOP ENGINE button or repeatedly pushing the START/
STOP ENGINE button while the engine is running will turn the engine OFF. Use only in case
of an emergency.
NOTE: The engine may not start if the key cannot be detected. The key indicator light
may flash RED or “Key not detected” may be displayed if the key is placed in the
cup holder.
If the START/STOP ENGINE button indicator light flashes AMBER, this could indicate a
problem with the engine starting system. You may not be able to start the engine or
switch the ignition to ACC or ON. Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible.
START/STOP ENGINE BUTTON
STARTING THE ENGINE
2364256 17a CX-5 SSG 030117.indd 63/1/17 5:48 PM

7 MAZDAUSA.COM
TIRE PRESSURE MONITORING SYSTEM (TPMS)
For your safety, the CX-5 is equipped with TPMS that detects low tire pressure in one
or more tires. If the tire pressure starts getting low in one or more tires, the system
alerts the driver by turning on a light in the instrument cluster (pp. 45-46) and sounding an alarm.
WHAT TO DO? Don’t ignore the TPMS warning light. Stop and check your tire pressure for all tires (when tires are cold) and inflate
the tires to the proper air pressure. Properly inflated tires
are safer, last longer, and increase fuel economy.
NOTE: Drastic changes in temperature or altitude can affect the air pressure in the
tires, and may cause the TPMS warning light to turn on.
TIRE PRESSURE MONITORING SYSTEM
TPMS
INDICATOR
