2017 MAZDA MODEL CX-3 language

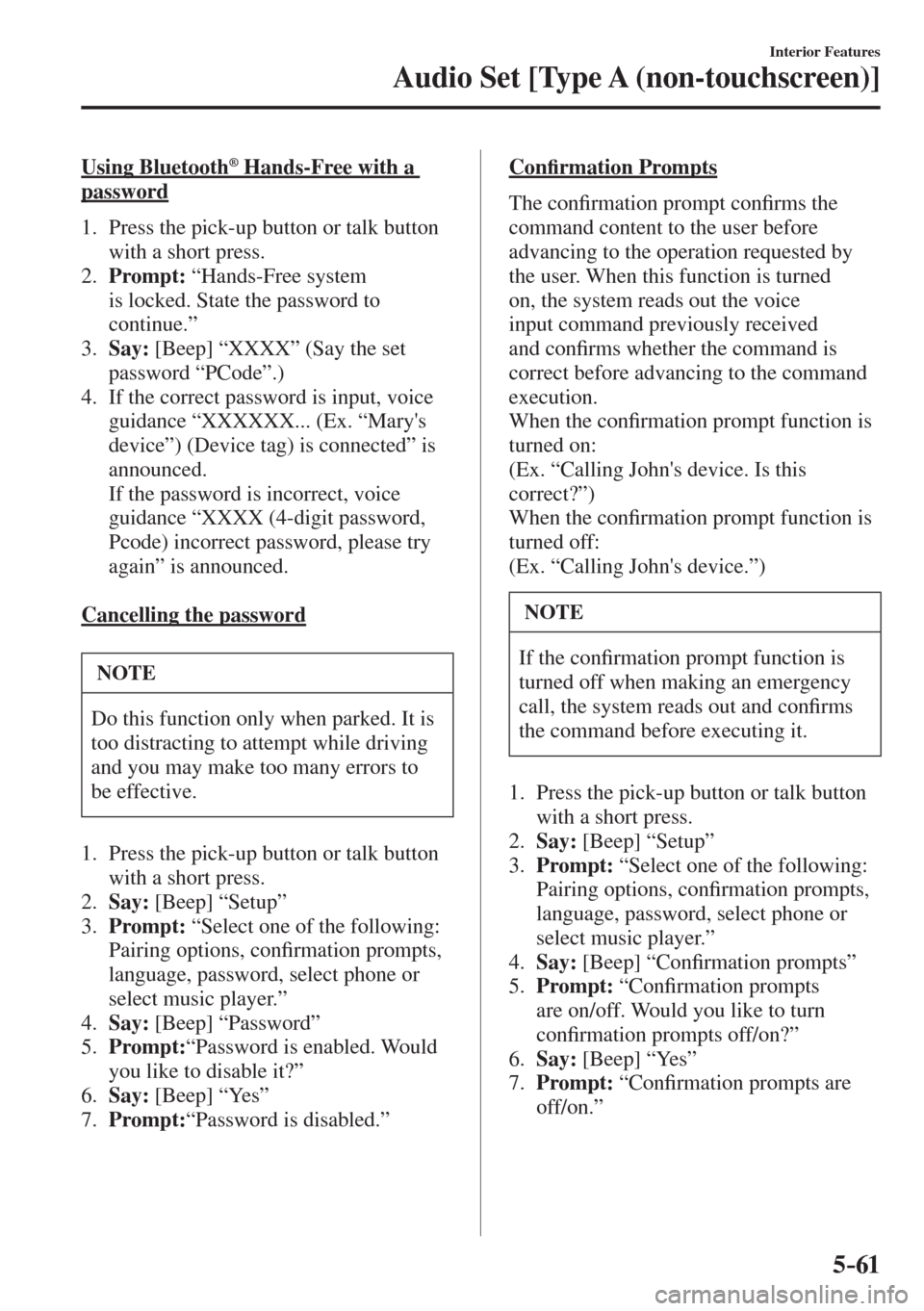

5–61
Interior Features
Audio Set [Type A (non-touchscreen)]
Using Bluetooth ® Hands-Free with a
password
1. Press the pick-up button or talk button
with a short press.
2. Prompt: “Hands-Free system
is locked. State the password to
continue.”
3. Say: [Beep] “XXXX” (Say the set
password “PCode”.)
4. If the correct password is input, voice
guidance “XXXXXX... (Ex. “Mary's
device”) (Device tag) is connected” is
announced.
If the password is incorrect, voice
guidance “XXXX (4-digit password,
Pcode) incorrect password, please try
again” is announced.

Cancelling the password
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to
be effective.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Password”
5. Prompt: “Password is enabled. Would
you like to disable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Password is disabled.”

C o n¿ rmation Prompts
The con¿ rmation prompt con¿ rms the
command content to the user before
advancing to the operation requested by
the user. When this function is turned
on, the system reads out the voice
input command previously received
and con¿ rms whether the command is
correct before advancing to the command
execution.
When the con¿ rmation prompt function is
turned on:
(Ex. “Calling John's device. Is this
correct?”)
When the con¿ rmation prompt function is
turned off:
(Ex. “Calling John's device.”)
NOTE
If the con¿ rmation prompt function is
turned off when making an emergency
call, the system reads out and con¿ rms
the command before executing it.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Con¿ rmation prompts”
5. Prompt: “Con¿ rmation prompts
are on/off. Would you like to turn
con¿ rmation prompts off/on?”
6. Say: [Beep] “Yes”
7. Prompt: “Con¿ rmation prompts are
off/on.”

5–79
Interior Features
Audio Set [Type A (non-touchscreen)]
Other problems
Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the device The indication method is different
between the vehicle and the device. —
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appear The number has not been registered
into the phonebook. If the number has been registered
into the phonebook, the incoming/
outgoing call record is updated by
the name in the phonebook when the
engine is restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call record Some types of cell phones do not
synchronize automatically. Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is
required. —

5–85
Interior Features
Audio Set [Type B (touchscreen)]
Home screen

Icon Function

Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.

Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the icon displayed at the bottom of the screen.

Communication
Bluetooth ® related functions are available.

Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or travelling
at a slow speed.

Settings
Overall setting menu (Such as display, sound, Bluetooth ® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.

5–114
Interior Features
Audio Set [Type B (touchscreen)]
*Some models.
Available Language *
The language can be changed.
Refer to Settings on page 5-139 .
NOTE
Depending on the language, it may only
be available for the screen display, but
not for the voice recognition.
Bluetooth ® Audio
Applicable Bluetooth ® speci¿ cation
(Recommended)
Ver. 1.1/1.2/2.0
EDR/2.1 EDR/3.0
(conformity)
Response pro¿ le




 A2DP (Advanced Audio Distribution
Pro¿ le) Ver. 1.0/1.2




 AVRCP (Audio/Video Remote Control
Pro¿ le) Ver. 1.0/1.3/1.4


A2DP is a pro¿ le which transmits only
audio to the Bluetooth
® unit. If your
Bluetooth ® audio device corresponds
only to A2DP, but not AVRCP, you
cannot operate it using the control panel
of the vehicle's audio system. In this
case, only the operations on the mobile
device are available the same as when a
portable audio device for a non-compliant
Bluetooth
® device is connected to the
AUX terminal.

Function A2DP AVRCP
Ver. 1.0 Ver. 1.3 Ver. 1.4
Playback X X X X
Pause X X X X
File (Track)
up/down — X X X
Reverse — — X X
Fast-forward — — X X
Text display — — X X
Repeat — —
Depends
on device Depends
on device
ShufÀ e — — Depends
on device Depends
on device
Scan — — Depends
on device Depends
on device
Folder up/
down — — — Depends
on device
X: Available
—: Not available

5–134
Interior Features
Audio Set [Type B (touchscreen)]
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.



3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.

Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.

Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.

NOTE
  Select the icon to change the
language.
  Select the icon to switch between
capitalized and lower-case
characters.
  Select the icon to return to the
previous screen without storing the
edit.

5–14 0
Interior Features
Audio Set [Type B (touchscreen)]
Tab Item Function
System Tool Tips Turns button explanations ON/OFF.
Language Changes the language.
Temperature Changes the setting between Fahrenheit and
Celsius.
Distance Changes the setting between miles and
kilometres.
Music Database Update Used to update Gracenote
® . Gracenote is used
with USB Audio, and provides:
1. Supplementary music information (Such as
song name, artist name)
2. Voice recognition assistance for Play Artist
and Play Album
Gracenote can be downloaded from the Mazda
Handsfree Website.
Refer to Gracenote Database on page 5-105 .
Factory Reset Memory and settings are initialized to the
factory settings.
The initialization launches by selecting the

button.
About Agreements and
Disclaimers Verify the disclaimer and agree.
Version Information Can verify the current audio unit OS version
and Gracenote Database version.

5–14 5
Interior Features
Audio Set [Type B (touchscreen)]
Other problems
Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the device The indication method is different
between the vehicle and the device. —
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appear The number has not been registered
into the phonebook. If the number has been registered
into the phonebook, the incoming/
outgoing call record is updated by
the name in the phonebook when the
engine is restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call record Some types of cell phones do not
synchronize automatically. Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is
required. —

5–155
Interior Features
Appendix
NOTE
  Video data (DVD-Video/DVD-VR
¿ les) written to DVD/DVD-R/
DVD
R/DVD-RW/DVD RW can
be played.
  This unit is compatible for playback
of dual-layer DVD/DVD-R.
  Regional number for this unit is [3].
 DVD-Video/DVD-VR ¿ les written
under speci¿ cations other than the
indicated speci¿ cation may not play
normally or ¿ les or folder names
may not display correctly.
Mark indicating on disc
Marks indicated on discs or packages are
as follows:

Mark Meaning
PA L Indicates a colour TV
system.

Indicates the number of
audio tracks.
The number indicates
the number of audio
recordings.

Indicates the number of
subtitled languages.
The number indicates
the number of recorded
languages.

Number of angles.
The number indicates
the number of recorded
angles.


Indicates the screen
modes which can be
selected.
“16:9” indicates a
wide screen and “4:3”
indicates a standard
screen.
Mark Meaning

Indicates the region code
for which a disc can be
played.
ALL indicates global
applicability, and
a number indicates
applicability based on
region.

Glossary
DVD-Video
DVD-Video is a video image storing
standard determined by the DVD forum.
“MPEG2”, a global standard in digital
compression technologies, has been
adopted which compresses on average
about 1/40th of the image data and stores
it. In addition, a variable-rate coding
technology, which changes the assigned
information amount according to the shape
of the screen image, has been adopted.
Audio information can be stored using
Dolby digital instead of PCM (Pulse Code
Modulation) and more realistic sounding
audio can be enjoyed.
In addition, various, supplementary
functions such as multi-language
availability are provided for enhanced
enjoyment.
DVD-VR
DVD-VR is short for DVD Video
Recording Format; video image storing
standard determined by the DVD forum.
Multi-angle
One of the DVD player's functions.
Because scenes can be recorded in
multiple angles (camera position), users
can choose a desired angle.
