2017 MAZDA MODEL CX-3 display

4–26
When Driving
Instrument Cluster and Display
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is ¿ lled.

When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption. NOTE
  (Vehicles with type B audio)  If the fuel economy data is reset
using the fuel economy monitor,
or trip A is reset using the trip
meter when the function which
synchronizes the fuel economy
monitor and the trip meter is on, the
fuel economy data and trip A are
reset simultaneously.
 Refer to Fuel Economy Monitor on
page 4-91 .
  Only the trip meters record tenths of
kilometres (miles).
  The trip record will be erased when:



 The power supply is interrupted
(blown fuse or the battery is
disconnected).



 The vehicle is driven over 9999.9
km (mile).

4–27
When Driving
Instrument Cluster and Display
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Ty p e A

*1The range varies depending on the type
of gauge.*
1Striped zone
*
1Red zone

Ty p e B

*1The range varies depending on the type
of gauge.*
1Striped zone
*
1Red zone

NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
Fuel Gauge
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.


Full
1/4 Full
Empty

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning Lights on page 4-36 .

4–28
When Driving
Instrument Cluster and Display
NOTE
  After refuelling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.
  The display indicating a quarter
or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.
  The direction of the arrow ( )
indicates that the fuel-¿ ller À ap is on
the left side of the vehicle.
(SKYACTIV-D 1.5)
If inconsistency in engine performance
or stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Instrument Panel Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
NOTE
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-59 .
The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.



 The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



 The brightness increases by rotating the
knob to the right.


Dim
Bright

4–29
When Driving
Instrument Cluster and Display
Function for cancelling illumination
dimmer
The illumination dimmer can be
cancelled by rotating the instrument panel
illumination knob to the right until a beep
sound is heard while the instrument cluster
is dimmed with the ignition switched
ON. If the instrument cluster's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
NOTE
  When the illumination dimmer is
cancelled, the instrument cluster
cannot be dimmed even if the
position lights are turned on.
  When the illumination dimmer is
cancelled, the screen in the centre
display switches to constant display
of the daytime screen.
Outside Temperature Display
When the ignition is switched ON, the
outside temperature is displayed.



NOTE
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



 Signi¿ cantly cold or hot
temperatures.



 Sudden changes in outside
temperature.



 The vehicle is parked.



 The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display (Vehicles
with Type B audio)
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
centre display screen.
Refer to Personalisation Features on page
9-13 .
NOTE
When the temperature unit indicated
in the outside temperature display is
changed, the temperature unit indicated
in the engine coolant gauge display
changes in conjunction with it.

4–30
When Driving
Instrument Cluster and Display
*Some models.
Outside Temperature Warning *
When the outside temperature is low, the
indication À ashes and a beep sound is
heard to warn the driver of the possibility
of icy roads.
If the outside temperature is lower than
about 4 °C (39 °F), the outside temperature
display and the
mark À ashes for about
ten seconds and a beep sound is heard
once.
NOTE
If the outside temperature is lower than
-20 °C (-4 °F), the beep sound does not
operate. However, the
mark
illuminates.
Cruise Control Set Vehicle Speed
Display *
The vehicle speed preset using the cruise
control is displayed.



Adjustable Speed Limiter (ASL)
Display *
The setting status of the adjustable speed
limiter (ASL) is displayed.




Trip Computer and INFO Switch
The following information can be selected
by pressing the INFO switch with the
ignition switched ON.



 Distance-to-empty mode



 Average fuel economy mode



 Current fuel economy mode



 Average vehicle speed mode



 Vehicle speed alarm mode *
If you have any problems with your trip
computer, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.
(European model)


(Except European model)

4–31
When Driving
Instrument Cluster and Display

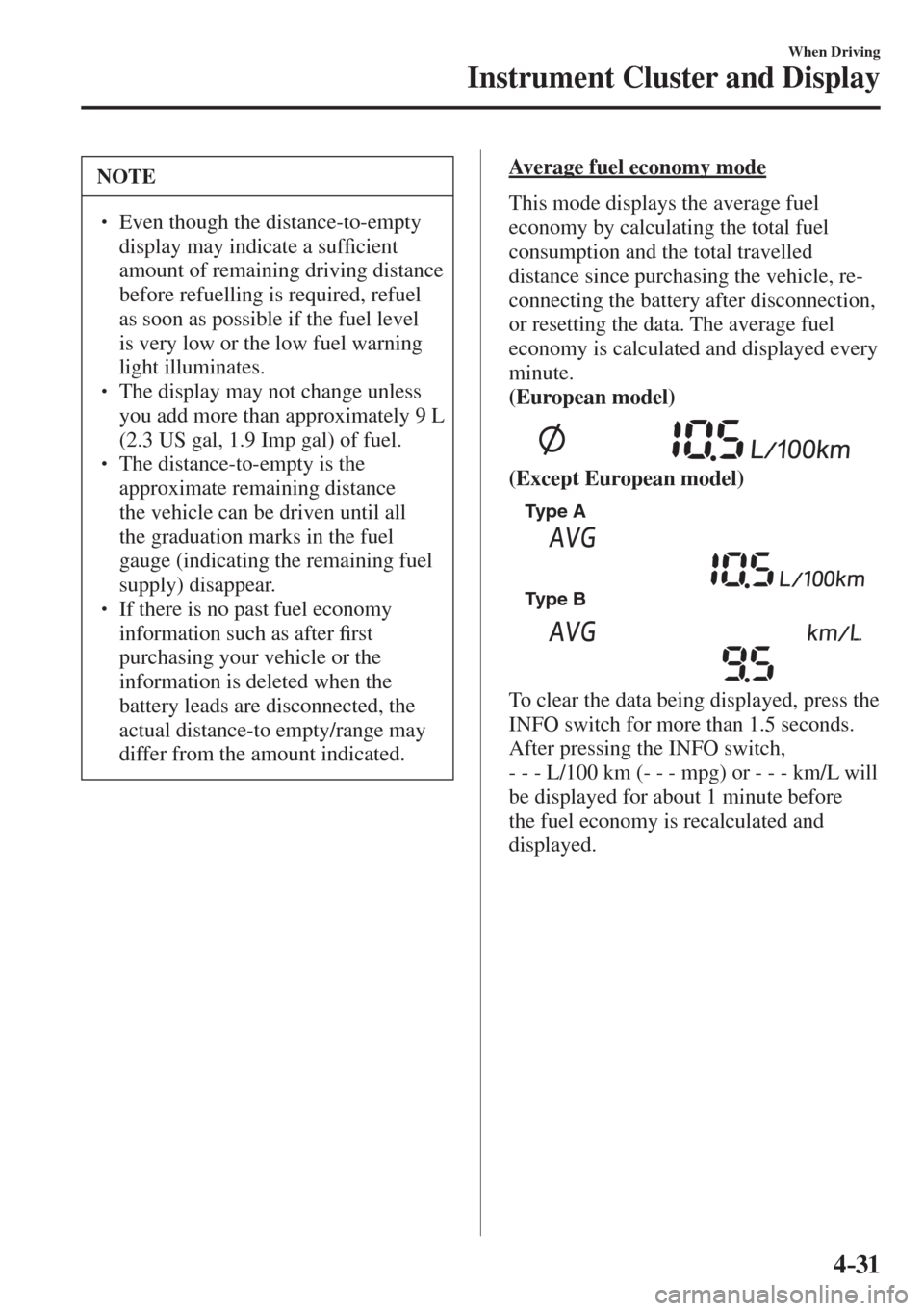

NOTE
  Even though the distance-to-empty
display may indicate a suf¿ cient
amount of remaining driving distance
before refuelling is required, refuel
as soon as possible if the fuel level
is very low or the low fuel warning
light illuminates.
  The display may not change unless
you add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.
  The distance-to-empty is the
approximate remaining distance
the vehicle can be driven until all
the graduation marks in the fuel
gauge (indicating the remaining fuel
supply) disappear.
  If there is no past fuel economy
information such as after ¿ rst
purchasing your vehicle or the
information is deleted when the
battery leads are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total travelled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.
(European model)


(Except European model)
Type A
Type B

To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch,
- - - L/100 km (- - - mpg) or - - - km/L will
be displayed for about 1 minute before
the fuel economy is recalculated and
displayed.

4–32
When Driving
Instrument Cluster and Display
*Some models.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.

Current fuel economy will be calculated
and displayed every 2 seconds.
(European model)


(Except European model)
Type A
Type B

When you have slowed the vehicle to
about 5 km/h (3 mph), - - - L/100 km
(- - - mpg) or - - - km/L will be displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time travelled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
(European model)


(Except European model)


To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.

Vehicle speed alarm mode *
In this mode, the current setting for the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.
NOTE
The vehicle speed alarm display is
activated at the same time the beep
sound is heard. The set vehicle speed
À ashes several times.


The vehicle speed alarm can be set using
the centre display.
NOTE
  Always set the vehicle speed
according to the laws and regulations
of the country/city in which the
vehicle is driven. In addition, always
verify the speed of the vehicle using
the speedometer.
  The vehicle speed alarm function can
be set between 30 and 250 km/h (20
and 150 mph).

4–33
When Driving
Instrument Cluster and Display
*Some models.
Active Driving Display *

Optical receiver Mirror
Combiner

WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.
CAUTION
  Do not try to adjust the angle or open/close the active driving display manually.
Fingerprints on the display will make it dif¿ cult to view and using excessive force
when operating it could cause damage.
  Do not place objects in the vicinity of the active driving display. The active driving
display may not operate or any interference with its operation could cause damage.
  Do not place beverages near the active driving display. If water or other liquids are
splashed on the active driving display, it could cause damage.
  Do not place objects above the active driving display or apply stickers to the dust-
proof sheet/optical receiver as they will cause interference.
  A sensor is integrated to control the display's luminosity. If the optical receiver is
covered, the display's luminosity will lower making the display dif¿ cult to view.

 Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
