2017 MAZDA MODEL CX-3 set clock

5–1*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.

Air-Conditioning System .................... 5-4
Operating Tips ................................ 5-4
Vent Operation ............................... 5-5
Manual Type .................................. 5-7
Fully Automatic Type ................... 5-13

Before Using the Audio System ........ 5-17
Audio Control Switch .................. 5-17
AUX/USB mode .......................... 5-19
Aerial ............................................ 5-23

Audio Set
[Type A (non-touchscreen)] .............. 5-24
Power/Volume/Sound Controls .... 5-24
Clock ............................................ 5-26
Operating the Radio ..................... 5-28
Operating the Compact Disc (CD)
Player
* .......................................... 5-32
How to use AUX mode ................ 5-36
How to use USB mode ................. 5-38
How to use iPod mode ................. 5-42
Error Indications .......................... 5-44
Bluetooth
® * ................................... 5-45
Bluetooth® Preparation * ............... 5-48
Available Language * .................... 5-59
Security Setting * ........................... 5-60
Bluetooth® Audio * ........................ 5-62
Bluetooth® Hands-Free * ............... 5-65
Voice Recognition * ....................... 5-72
Voice Recognition Learning Function
(Speaker Enrolment)
* ................... 5-74
Troubleshooting * .......................... 5-76
Audio Set [Type B (touchscreen)] .... 5-80
Basic Operation Method .............. 5-80
Home screen ................................. 5-85
Volume/Display/
Sound Controls ............................. 5-86
Operating the Radio ..................... 5-88
Operating the Digital Audio
Broadcasting (DAB) Radio
* ......... 5-91
Operating the Compact Disc (CD)
Player
* .......................................... 5-94
Operating the Digital Versatile Disc
(DVD) Player
* .............................. 5-98
How to use AUX mode .............. 5-101
How to use USB mode ............... 5-102
Bluetooth
® .................................. 5-108
Bluetooth® Preparation ............... 5-111
Available Language * .................. 5-114
Bluetooth® Audio ....................... 5-114
How to Use Aha™ ....................... 5-119
How to Use Stitcher™ Radio ...... 5-123
Bluetooth® Hands-Free .............. 5-126
Voice Recognition ...................... 5-136
Settings ....................................... 5-139
Applications ............................... 5-141
Troubleshooting ......................... 5-142

Appendix .......................................... 5-146
Things You Need to Know ......... 5-146

5–8
Interior Features
Air-Conditioning System
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
Fan control dial
This dial allows variable fan speeds.
(Type A)
The fan has seven speeds.
(Type B)
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Mode selector dial
Turn the mode selector dial to select
airÀ ow mode (page 5-6 ).
NOTE

 The mode selector dial can be set at
the intermediate positions (
)
between each mode. Set the dial to
an intermediate position if you want
to split the airÀ ow between the two
modes.
  For example, when the mode selector
dial is at the
position between the

and positions, airÀ ow from the
À oor vent is less than that of the

position.
A/C switch
(Type A)
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.
( Type B)
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is set at position 1, 2, 3, or 4.
Press the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Air intake selector (Type A)
This switch controls the source of air
entering the vehicle.
Press the air intake selector switch to
alternate between the outside air and
recirculated air positions.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
Outside air position (
)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.

5–10
Interior Features
Air-Conditioning System
Cooling (With air conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. After cooling begins, adjust the fan
control dial and temperature control
dial as needed to maintain maximum
comfort.

CAUTION
If the air conditioner is used while
driving up long hills or in heavy traf¿ c,
monitor the engine coolant temperature
warning light to see if it is illuminated or
À ashing (page 4-36 ).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or À ashing, turn the air-
conditioning off (page 7-42 ).
NOTE
  (Type A)  When maximum cooling is desired,
set the temperature control dial to
the extreme cold position and set the
air intake selector to the recirculated
air position, then turn the fan control
dial fully clockwise.
  (Type B)  When maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the recirculated air
position, then set the fan control dial
to position 4.
  If warmer air is desired at À oor level,
set the mode selector dial at the

position and adjust the temperature
control dial to maintain maximum
comfort.
  The air to the À oor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
Ventilation
1. Set the mode selector dial to the
position.
2. (Type A)
Set the air intake selector to the outside
air position.
(Type B)
Set the air intake selector to the

position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.

5–11
Interior Features
Air-Conditioning System
Windscreen Defrosting and
Defogging
1. Set the mode selector dial to the
position.
2. (Type B)
Set the air intake selector to the

position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. If dehumidi¿ ed heating is desired, turn
on the air conditioner.

WARNING
Do not defog the windscreen using
the position with the temperature
control set to the cold position:
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident. Set the
temperature control to the hot or warm
position when using the
position.
NOTE
  (Type A)  For maximum defrosting, turn on the
air conditioner, set the temperature
control dial to the extreme hot
position, and turn the fan control dial
fully clockwise.
  (Type B)  For maximum defrosting, turn on the
air conditioner, set the temperature
control dial to the extreme hot
position, and the fan control dial to
position 4.
  If warm air is desired at the À oor, set
the mode selector dial to the

position.
  (Type A)  In the position, the outside air
position is automatically selected.
The air intake selector cannot be
changed to the recirculated air
position.

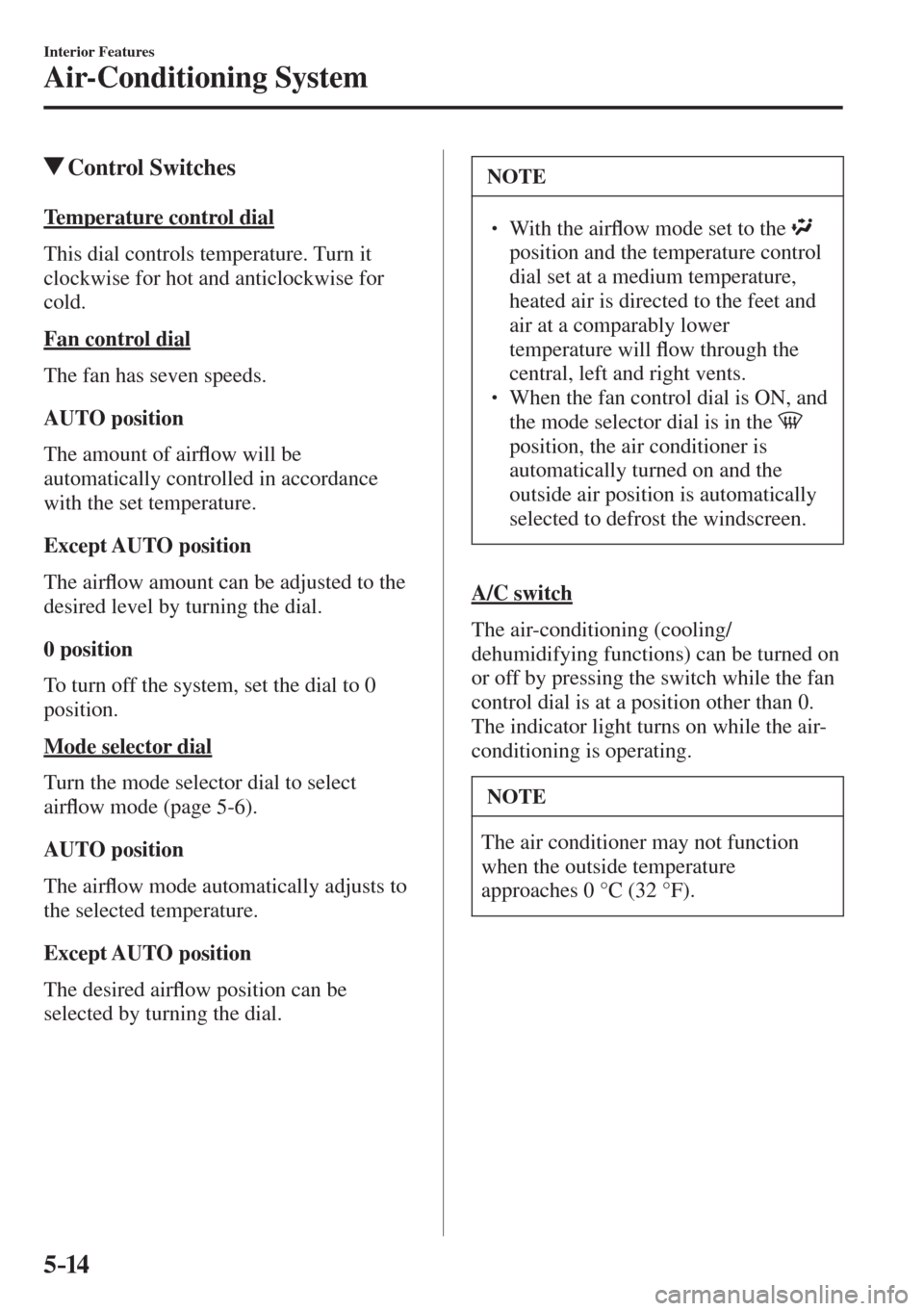

5–14
Interior Features
Air-Conditioning System
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
Fan control dial
The fan has seven speeds.
AUTO position
The amount of airÀ ow will be
automatically controlled in accordance
with the set temperature.
Except AUTO position
The airÀ ow amount can be adjusted to the
desired level by turning the dial.
0 position
To turn off the system, set the dial to 0
position.
Mode selector dial
Turn the mode selector dial to select
airÀ ow mode (page 5-6 ).
AUTO position
The airÀ ow mode automatically adjusts to
the selected temperature.
Except AUTO position
The desired airÀ ow position can be
selected by turning the dial.
NOTE
  With the airÀ ow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and
air at a comparably lower
temperature will À ow through the
central, left and right vents.
  When the fan control dial is ON, and
the mode selector dial is in the

position, the air conditioner is
automatically turned on and the
outside air position is automatically
selected to defrost the windscreen.
A/C switch
The air-conditioning (cooling/
dehumidifying functions) can be turned on
or off by pressing the switch while the fan
control dial is at a position other than 0.
The indicator light turns on while the air-
conditioning is operating.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

5–24
Interior Features
Audio Set [Type A (non-touchscreen)]
Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.
Audio sound adjustment
1. Press the menu button ( ) to select
the function. The selected function will
be indicated.
2. Turn the audio control dial to adjust the
selected functions as follows:

Indication Setting value Tu r n
Anticlockwise Tu r n
Clockwise
A F
*1
(Setting Alternative
Frequency (AF)) Off On
R E G
*1
(Setting Regional
Programme (REG)) Off On
A L C
(Automatic volume
adjustment) Level
decrease Level
increase
BASS
(Low pitch sound) Decrease
bass Increase
bass
TREB
(Treble sound) Decrease
treble Increase
treble
FADE
(Front/back volume
balance) Shift the
sound to
the front Shift the
sound to
the rear
B A L
(Left/right volume
balance) Shift the
sound to
the left Shift the
sound to
the right
BEEP
(Audio operation sound) OFF ON
BT SETUP
*2 Select mode

5–25
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Indication Setting value Tu r n
Anticlockwise Tu r n
Clockwise
12HR
24HR
(12 HR/24 HR time
adjustment) 12HR
(Flashing) 24HR
(Flashing)
*1 With Radio Data System (RDS)
*2 Depending on the model, this function may not be
available.
NOTE
If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (
) for 2
seconds. The unit will beep and
“ CLEAR ” will be displayed.
AF (Setting Alternative Frequency
(AF))
*
The AF function of the Radio Data System
(RDS) can be set on or off.
Refer to Radio Data System (RDS) on
page 5-30 .
REG (Setting Regional Programme
(REG))
*
The REG function of the Radio Data
System (RDS) can be set on or off.
Refer to Radio Data System (RDS) on
page 5-30 . ALC (Automatic volume adjustment)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BEEP (Audio operation sound)
The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound.
BT SETUP mode
*
Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth
®
transmission function can be listened to
via wireless transmission over the vehicle's
speakers. Using the BT SETUP mode,
these devices can be programmed to the
Bluetooth
® unit or changed (page 5-48 ).
1 2 H R
24HR
(12 HR/24 HR time adjustment)
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-26 ).

5–26
Interior Features
Audio Set [Type A (non-touchscreen)]
Clock

Audio display Audio control dial
Hour/Minute set switch:00 button
Menu button Clock button

Setting the time
The clock can be set at any time when the
ignition is switched to ACC or ON.

1. To adjust the time, press the clock
button (
) for about 2 seconds until
a beep is heard.
2. The clock's current time will À ash.
Time adjustment




 To adjust the time, press the hour/
minute set button (
, ) while the
clock's current time is À ashing.




 The hours advance while the hour set
button (
) is pressed. The minutes
advance while the minute set button
(
) is pressed.
3. Press the clock button ( ) again to
start the clock.

Time resetting
1. Press the clock button ( ) for about
2 seconds until a beep is heard.
2. Press the :00 button ( 1 ).
3. When the button is pressed, the time
will be reset as follows:
(Example)
12:01—12:29
:12:00
12:30—12:59
:1:00

NOTE

 When the :00 button ( 1 ) is pressed,
the seconds will start at “ 00 ”.

 Switching between 12 and 24-hour
clock time:
 Press the menu button ( )
several times until 12 and 24-hour
clock time are displayed. Turn the
audio control dial in either direction,
select the desired clock setting while
the preferred clock time is À ashing.
