“PASSENGER AIR BAG” indicator
The “ON” indicator light turns on when the airbag system is on (only when theengine switch is in IGNITION ON
mode).
Airbag manual on-off switch
Insert the mechanical key into the cylin-
der and rotate to the “OFF” position.
The “OFF” indicator light turns on (only when the engine switch is in IGNITIONON mode).
Airbag manual on-off system
This system deactivates the front passenger airbag and front passenger knee
airbag.
Only deactivate the airbags when using a child restraint system on the front
passenger seat.
1
2
Deactivating the front passenger airbag and front passenger knee
airbag

92
RC200t_RC F_EE(OM24728E)
1-2. Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security system (key with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in tran sponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security agai nst all vehicle thefts.

1122. Instrument cluster
RC200t_RC F_EE(OM24728E)
Warning lights inform the driver of malfunctions in the indicated vehicle systems.
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
Warning lights
*1Brake system warning light
( P. 591)
*1 Automatic headlight leveling system warninglight ( P. 592)
*1Charging system warning light ( P. 591)Open door warning light ( P. 593)
*1Malfunction indicator lamp ( P. 591)Low fuel level warning light ( P. 593)
*1SRS warning light
( P. 591)
Driver’s and front passen- ger’s seat belt reminder light ( P. 593)
*1ABS warning light ( P. 592)
*3Rear passengers’ seat belt reminder lights ( P. 593)
*1Electric power steering sys-
tem warning light ( P. 592)
*1Master warning light ( P. 593)
*1, 2
(if equipped)
Pre-crash safety system warning light ( P. 592)
*1
Tire pressure warning light ( P. 593)
*1Slip indicator ( P. 592)

1152. Instrument cluster
2
Instrument cluster
RC200t_RC F_EE(OM24728E)
●TVD (Torque Vectoring Differential) control mode indicators (RC F)
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turn ed off. The light will flash quickly when the
system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main switch is turned on.• When the BSM main switch is turned on while the engine switch is in IGNITION
ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
*5: When the outside temperature is approximately 3°C (37°F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8:RC F
(if equipped)
“STANDARD” indicator
( P. 382)(if equipped)
“SLALOM” indicator
( P. 382)
(if equipped)
“TRACK” indicator ( P. 382)

1222. Instrument cluster
RC200t_RC F_EE(OM24728E)
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when th e tail lights are on and off can be adjusted
individually. However, when the surroundings ar e bright (daytime, etc.), turning on the tail lights will not change the in strument panel brightness.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “ ” or “E” is displayed, the system may be malfunctioning. Take your vehicle to any authorized Lexus de aler or repairer, or another duly qualified and equipped professional.
■Pop-up display
●In some situations, a pop-up display will be temporarily displayed on the multi-informa- tion display or the odometer/trip meter screen (F SPORT models only).
●Some pop-up displays can be set on/off. (P. 136)
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. (P. 131)
Instrument panel light control
1
2

1292. Instrument cluster
2
Instrument cluster
RC200t_RC F_EE(OM24728E)
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Welcome illumination of the analog speedometer
●When the driver’s door is opened, the analog speedometer will illuminate.
Then, when the driver’s door is closed, the analog speedometer will illuminate and go off (pulsate) 3 times.
●In the following situations, the analog speedometer will not pulsate even though the
driver’s door is opened and closed:
• Within 60 seconds after the analog meter pulsation completes • Within 60 seconds of turning the engine switch off
■Variable red zone
■Eco driving meter
●The number of blue segments displayed on the eco driving meter decreases/increases depending on the vehicle acceleration. Use this meter as a guideline when you wish to
drive in an eco-friendly manner that reduces fuel consumption. However, on a downward grade where the vehicle can accelerate without the acceler-ator pedal being depressed, the eco driving meter may not display the eco-driving
state correctly.
●When the shift lever is moved to P, N or R, the segments will turn gray and the eco driv- ing meter will not operate.
Instrument panel light control
1
2
To help protect the engine, the engine speed is
controlled by starting the red zone of the tachometer at different engine speeds rangingfrom 3700 r/min to 7300 r/min depending on
the engine coolant temperature.
Before driving under extremely high load condi- tions, make sure to sufficiently warm up the
engine.

1382. Instrument cluster
RC200t_RC F_EE(OM24728E)

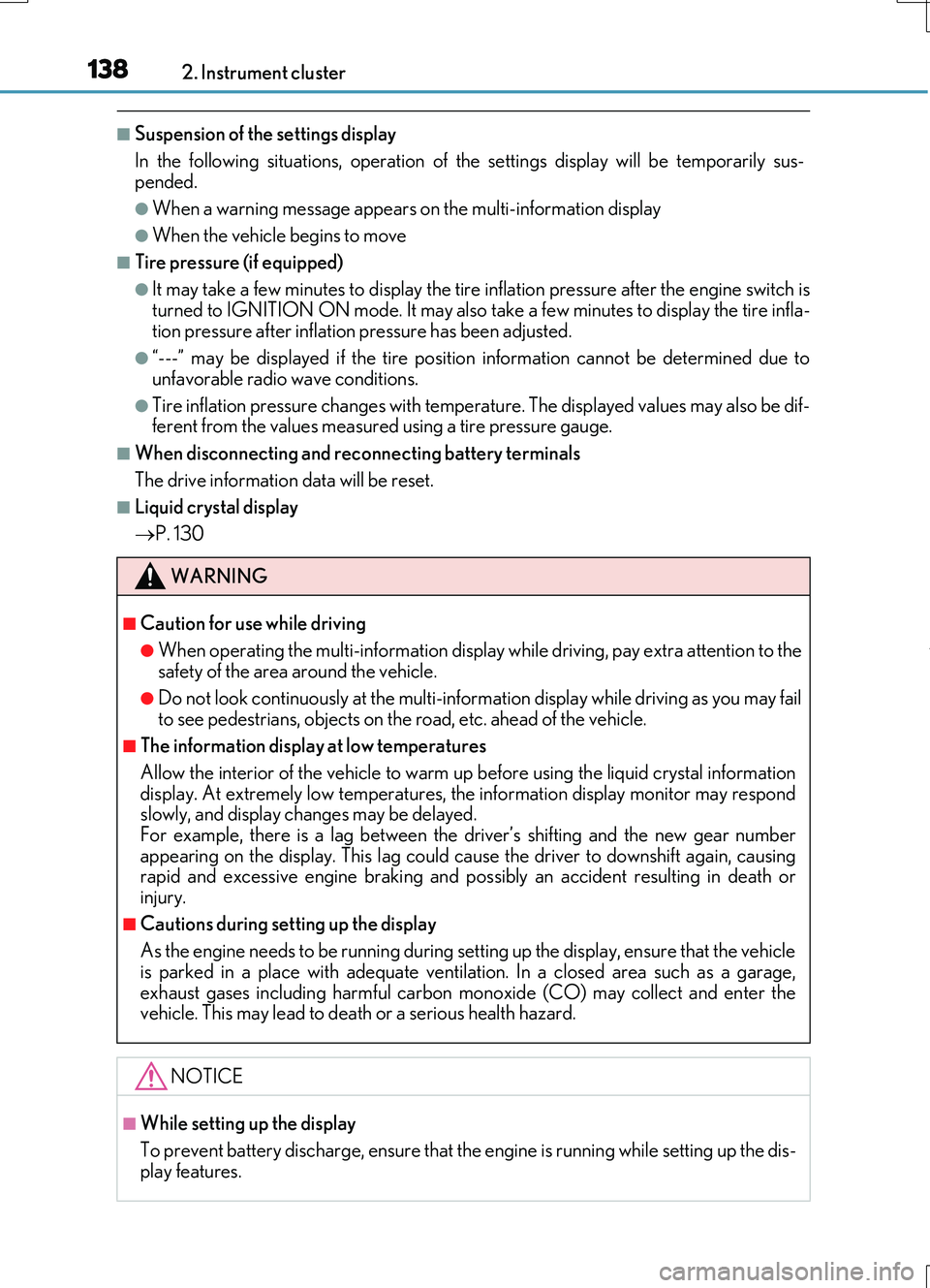

■Suspension of the settings display
In the following situations, operation of th e settings display will be temporarily sus- pended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Tire pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla- tion pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be dif- ferent from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting battery terminals
The drive information data will be reset.
■Liquid crystal display
 P. 130
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-info rmation display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, th e information display monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number appearing on the display. This lag could cau se the driver to downshift again, causing rapid and excessive engine braking and po ssibly an accident resulting in death or
injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter thevehicle. This may lead to death or a serious health hazard.
NOTICE
■While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis- play features.
