2017 Lexus GX460 Quick Guide

96
GX460_QG_OM60P00U_(U)
Fuel Tank Cap
■Before refueling the vehicle
● Turn the engine switch off and ensure that all the doors and windows are closed.
● Confirm the type of fuel.
■Opening the fuel tank cap
Press the opener to open the fuel filler
door.
Turn the fuel tank cap slowly to open,
and hang the fuel tank cap on the back
of the fuel filler door.1
2
GX460_QG_OM60P00U_(U).book Page 96 Friday, June 3, 2016 2:27 PM

What to do if ...
97
GX460_QG_OM60P00U_(U)
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lampLED headlight warning light
(Canada)Automatic headlight leveling
system warning light
*2
SRS warning lightKinetic dynamic suspension
system warning light
(U.S.A.)
ABS warning light
Low speed four-wheel drive
indicator light
*2
(Canada)Center differential lock
indicator light
*2
Pre-collision system warning
light
*1,2
(Blinking and
then continu- ously on)Tire pressure warning light
Slip indicator light
For further information, refer to the “OWNER’S MANUAL”.
GX460_QG_OM60P00U_(U).book Page 97 Friday, June 3, 2016 2:27 PM

98
What to do if ...
GX460_QG_OM60P00U_(U)
Follow the correction procedures.
Open door warning lightMaster warning light
Low fuel level warning light
(Illuminates without
blinking)Tire pressure warning light*3
Seat belt reminder light
See the “OWNER’S MANUAL”.
Turn signal indicator“SET” indicator
Headlight indicator (U.S.A.)Dynamic radar cruise control
indicator
*1
Tail light indicator (Canada)“LDA” (Lane Departure Alert)
indicator
*1
Headlight high beam
indicator
(Flashes)Slip indicator
Automatic High Beam
indicator
*1VSC OFF indicator
Fog light indicator*1Multi-terrain
Select indicator
*1
Eco Driving Indicator LightCrawl Control indicator*1
Cruise control indicatorDownhill assist control system
indicator
*1
For further information, refer to the “OWNER’S MANUAL”.
GX460_QG_OM60P00U_(U).book Page 98 Thursday, June 16, 2016 1:43 PM

What to do if ...
99
GX460_QG_OM60P00U_(U)
*1: If equipped.
*
2: Indicates a malfunction if the light continues flashing.
*
3: It also comes on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.
See the “OWNER’S MANUAL”.
“2nd STRT” indicator(Flashes rapidly)“PCS” warning light*1
Low speed four-wheel drive
indicator light“BSM” (Blind Spot Monitor)
indicator
*1
Center differential lock
indicatorBSM (Blind Spot Monitor)
outside rear view mirror
indicators
*1
Intuitive parking assist indicator*1“A I R B A G O N / O F F ”
indicator
For further information, refer to the “OWNER’S MANUAL”.
GX460_QG_OM60P00U_(U).book Page 99 Friday, June 3, 2016 2:27 PM

100
What to do if ...
GX460_QG_OM60P00U_(U)
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key ( →P.1 2 ) i n o r d e r t o
perform the following operations (driver’s
door only):
Locks all the doors
Closes the windows and moon roof*
(turn and hold)
Unlocks the doors
Turning the key rearward unlocks the
driver’s door. Turning the key once
again unlocks the other doors.
Opens the windows and moon roof*
(turn and hold)
*: These settings must be customized at your Lexus dealer.
■Starting the engine
Ensure that the shift lever is in P and
depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
If any of the doors is opened or
closed while the key is being touched
to the switch, an alarm will sound to
indicate that the start function cannot
detect the electronic key.
Press the engine switch within 10 sec-
onds of the buzzer sounding, keeping
the brake pedal depressed.
In the event that the engine switch still cannot be operated , contact your Lexus dealer.
1
2
3
4
1
2
3
If the electronic key battery becomes depleted , replace it with a new battery. For instruc-
tions on replacing the battery, refer to the “O WNER’S MANUAL”. If you need further assis-
tance, contact your Lexus dealer.
GX460_QG_OM60P00U_(U).book Page 100 Friday, June 3, 2016 2:27 PM

What to do if ...
101
GX460_QG_OM60P00U_(U)

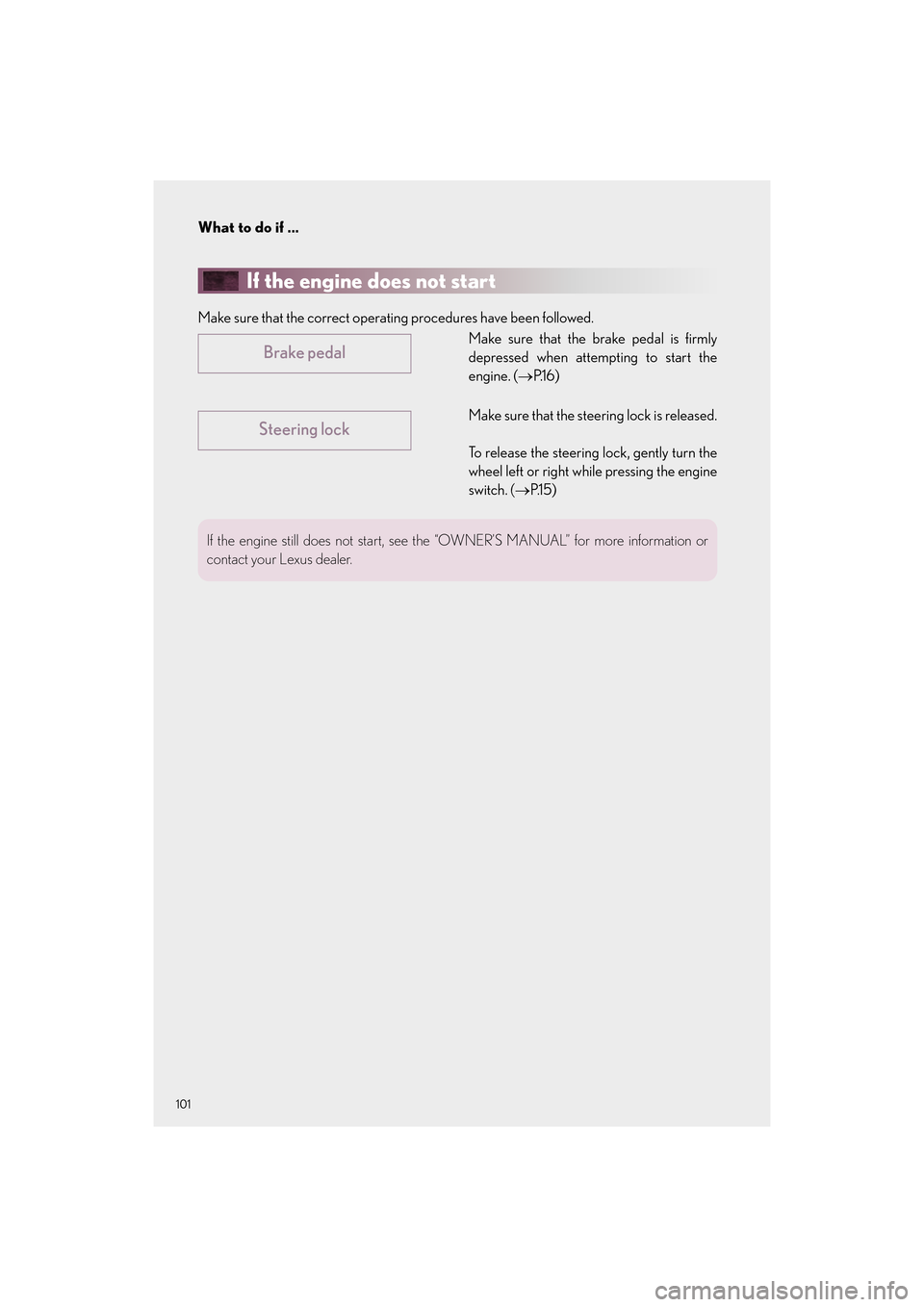

If the engine does not start
Make sure that the correct operating procedures have been followed.Make sure that the brake pedal is firmly
depressed when attempting to start the
engine. (→P.1 6 )
Make sure that the steering lock is released.
To release the steering lock, gently turn the
wheel left or right while pressing the engine
switch. ( →P.1 5 )
Brake pedal
Steering lock
If the engine still does not start, see the “OWNER’S MANUAL” for more information or
contact your Lexus dealer.
GX460_QG_OM60P00U_(U).book Page 101 Friday, June 3, 2016 2:27 PM

102
GX460_QG_OM60P00U_(U)
Yo u r L e x u s d e a l e r
Your Lexus dealer will provide quality maintenance and any other assistanceyou may require.
If there is not a Lexus dealer near you, please call the following number:
■ U.S. OWNERS
● In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
● In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■ CANADIAN OWNERS
● In Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
● The U.S. mainland: www.lexus.com
● Hawaii: www.servcolexus.com
● Canada: www.lexus.ca
© 2 0 1 6 TOYOTA M OTO R CO R P O R AT I O N
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
GX460_QG_OM60P00U_(U).book Page 102 Friday, June 3, 2016 2:27 PM
