2017 Lexus GX460 Navigation Manual

55
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2
BASIC FUNCTION
3. OTHER SETTINGS
1. GENERAL SETTINGS
1Press the “SETUP” button.
2Select “General” .
3Select the items to be set.
Settings are available for auto screen
change, operation sounds, etc.GENERAL SETTINGS SCREEN
No.Function
Select to change the time zone and
set the daylight saving time and auto-
matic adjustment of the clock by GPS
on/off. (→P.56)
Select to change the language.
Select to change the unit of measure
for distance.
GX_Navi_OM60N98U_(U).book Page 55 Monday, May 30, 2016 2:28 PM

56
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Display the “General Settings” screen.
(→ P.55)
2Select “Clock” .
3Select the items to be set.
Select to set the sound beeps on/off.
Select to change the screen button
color.
Select to change the keyboard lay-
out.
Select to customize the startup/
screen off images. ( →P.58)
Select to set automatic screen
changes from the audio/air condi-
tioning control screen to the previous
screen to on/off. When set to on, the
screen will automatically return to the
previous screen from the audio/air
conditioning control screen after 20
seconds.
Select to delete personal data.
(→ P.61)
Select to update software versions.
For details, contact your Lexus deal-
er.
Select to update “Gracenote” data-
base versions. For details, contact
your Lexus dealer.
Select to display the software infor-
mation. Notices related to third party
software used in this product are en-
listed. (This includes instructions for
obtaining such software, where appli-
cable.)
No.FunctionCLOCK SETTINGS
Used for changing time zones and the
on/off settings of daylight saving time
and automatic adjustment of the clock
by GPS.
No.Function
Select to change the time zone.
( → P.57)
Select to set daylight saving time on/
off.
Select to set automatic adjustment of
the clock by GPS on/off. When set to
on, the system will automatically ad-
just the clock to the current position’s
time zone when the vehicle moves to
a different time zone.
When “Auto Adjust by GPS” is
turned off, the clock can be manually
adjusted. ( →P.57)
GX_Navi_OM60N98U_(U).book Page 56 Monday, May 30, 2016 2:28 PM

57
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2
BASIC FUNCTION
■SETTING THE TIME ZONE
1Select “Time Zone” .
2Select the desired time zone.
zIf “Other” is selected, the zone can be
adjusted manually. Select “+” or “-” to
adjust the time zone.
■ MANUAL CLOCK SETTING
1Display the “Clock” screen. ( → P.56)
2Select the items to be set.
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
When “A u t o A d j u s t b y G P S ” is turned
“Off ” , the clock can be manually adjust-
ed.
No.Function
Select “+” to set the time forward one
hour and “-” to set the time back one
hour.
Select “+” to set the time forward one
minute and “-” to set the time back
one minute.
Rounds to the nearest hour*.
GX_Navi_OM60N98U_(U).book Page 57 Monday, May 30, 2016 2:28 PM

58
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Display the “General Settings” screen.
(→ P.55)
2Select “Customize Images” .
3Select the items to be set.
CUSTOMIZING THE STARTUP
AND SCREEN OFF IMAGES
An image can be copied from a USB
memory and used as the startup and
screen off Images.
When the engine switch is in
ACCESSORY or IGNITION ON
mode, the initial screen will be displayed.
( → P.28)
When “Screen Off” on the “Display”
screen is selected, the screen is turned
off and the desired screen off image that
is set is displayed. (To turn the screen off:
→ P.38)
No.FunctionPage
Select to copy images from
a USB memory.59
Select to delete images.61
Select to set an image as the
startup or screen off image.60
GX_Navi_OM60N98U_(U).book Page 58 Monday, May 30, 2016 2:28 PM

59
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2
BASIC FUNCTION
■TRANSFERRING IMAGES
1Slide the auxiliary box lid.
2Open the cover and connect a USB
memory.
zTurn on the power of the USB memory if it
is not turned on.
3Select “Copy from USB” .
4Select the desired images from the list
and then select “Copy”.
zThe selected image is displayed on the
right side of the screen. If the selected
image file is broken or incompatible,
will be displayed.
z The remaining number of image files that
can be transferred is displayed at the bot-
tom of the screen.
5Select “Yes” when the confirmation
screen appears.
GX_Navi_OM60N98U_(U).book Page 59 Monday, May 30, 2016 2:28 PM

60
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
■SETTING THE STARTUP AND
SCREEN OFF IMAGES
1Select “Set Images” .
2Select the desired image.
3Select the desired items to be set.
INFORMATION
●
When saving image files to a USB mem-
ory to be transferred to the navigation
system, save the images in a folder
named “Image” (I-m-a-g-e, case sensi-
tive). If a different folder name is used, the
navigation system will not recognize the
image files.
●The compatible file extensions are JPG
and JPEG.
●An image’s file name, including file exten-
sion, can be up to 32 characters.
●Image files of 5 MB or less can be trans-
ferred.
●Up to 10 images can be transferred to the
navigation system.
No.Function
Select to set an image as the startup
image.
Select to set an image as the screen
off image.
Select to set an image as both the
startup and screen off image.
GX_Navi_OM60N98U_(U).book Page 60 Monday, May 30, 2016 2:28 PM

61
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2
BASIC FUNCTION
■DELETING TRANSFERRED IMAG-
ES
1Select “Delete Images” .
2Select the images to be deleted and se-
lect “Delete” .
3Select “Yes” when the confirmation
screen appears.
1Display the “General Settings” screen.
( → P.55)
2Select “Delete Personal Data” .
3Select “Delete” .
4Select “Yes” when the confirmation
screen appears.
z Registered or changed personal settings
will be deleted or returned to their default
conditions.
For example:
• General settings
• Navigation settings
• Audio settings
• Phone settings
• Lexus Enform settings
DELETING PERSONAL DATA
GX_Navi_OM60N98U_(U).book Page 61 Monday, May 30, 2016 2:28 PM

62
3. OTHER SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27

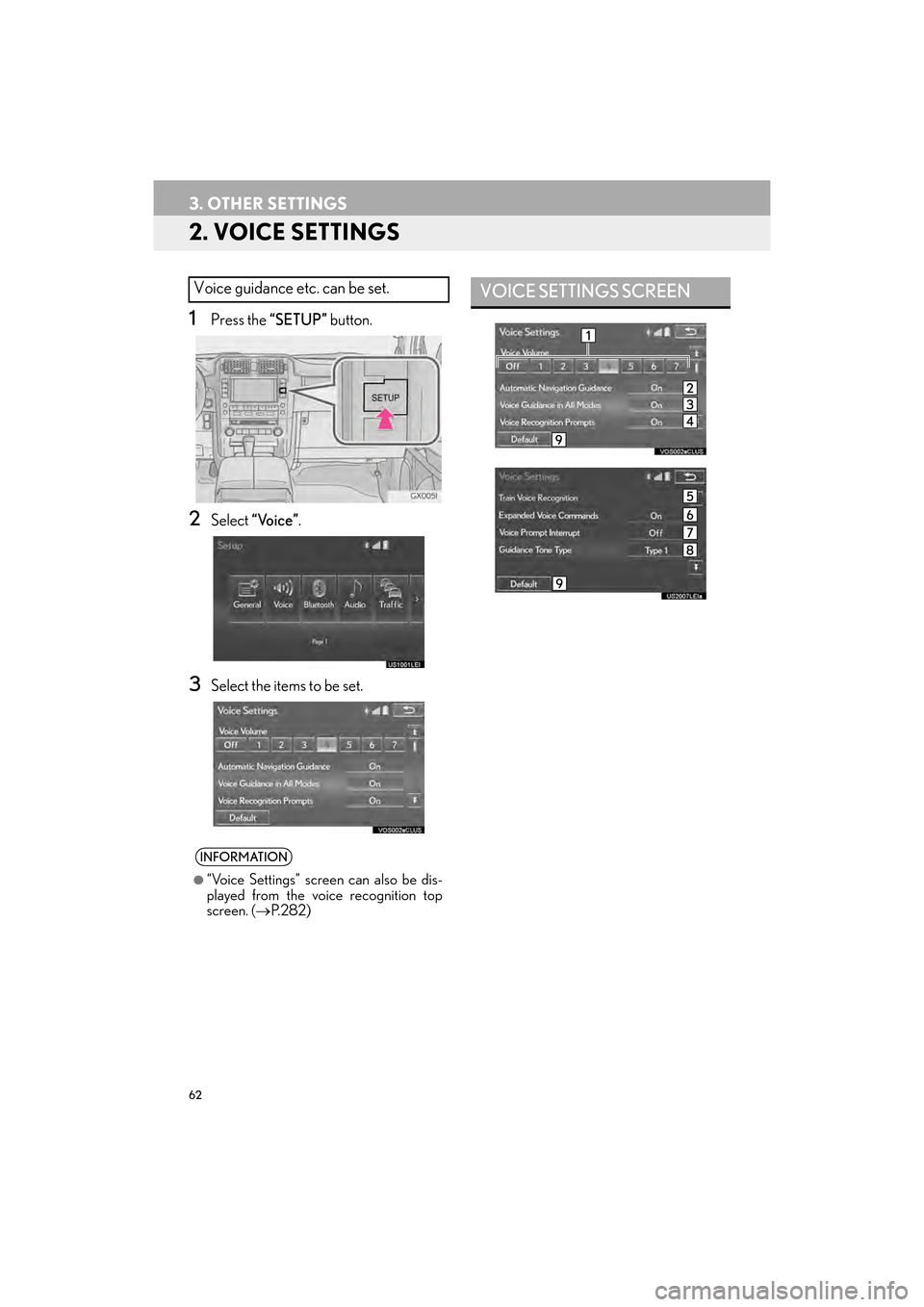

2. VOICE SETTINGS
1Press the “SETUP” button.
2Select “Voice” .
3Select the items to be set.
Voice guidance etc. can be set.
INFORMATION
●
“Voice Settings” screen can also be dis-
played from the voice recognition top
screen. ( →P. 2 8 2 )
VOICE SETTINGS SCREEN
