2017 Lexus GX460 Navigation Manual

5
279
1
2
3
4
5
6
7
8
GX460_Navi_OM60N98U_(U)16.05.30 14:27

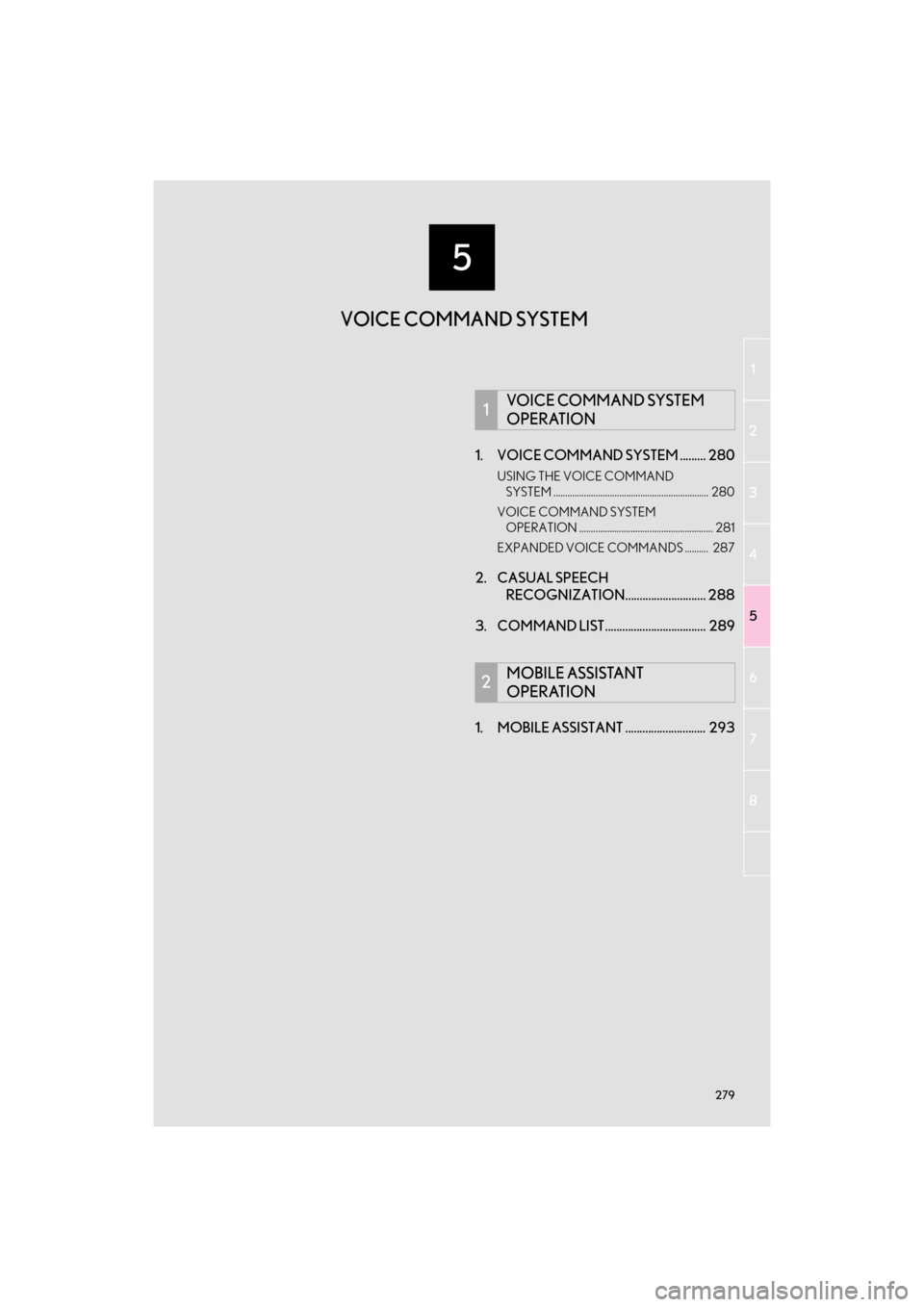

1. VOICE COMMAND SYSTEM ......... 280
USING THE VOICE COMMAND SYSTEM .................................................................. 280
VOICE COMMAND SYSTEM OPERATION ......................................................... 281
EXPANDED VOICE COMMANDS .......... 287
2. CASUAL SPEECH RECOGNIZATION............................ 288
3. COMMAND LIST................................... 289
1. MOBILE ASSISTANT ............................ 293
1VOICE COMMAND SYSTEM
OPERATION
2MOBILE ASSISTANT
OPERATION
VOICE COMMAND SYSTEM
GX_Navi_OM60N98U_(U).book Page 279 Monday, May 30, 2016 2:28 PM

280
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1. VOICE COMMAND SYSTEM OPERATION
1. VOICE COMMAND SYSTEM
Talk switch
zPress the talk switch to start the voice com-
mand system.
z To cancel voice recognition, press and hold
the talk switch. z
It is unnecessary to speak directly into the
microphone when giving a command.
The voice command system enables the
navigation, audio/visual, hands-free and
air conditioning systems to be operated
using voice commands.
Refer to the command list for samples of
voice commands. ( →P.289)
USING THE VOICE
COMMAND SYSTEM
STEERING SWITCH
MICROPHONE
INFORMATION
●
Wait for the confirmation beep before
speaking a command.
●Voice commands may not be recognized
if:
•Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice com- mands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
●In the following conditions, the system
may not recognize the command prop-
erly and using voice commands may not
be possible:
• The command is incorrect or unclear.Note that certain words, accents or
speech patterns may be difficult for the
system to recognize.
• There is excessive background noise, such as wind noise.
GX_Navi_OM60N98U_(U).book Page 280 Monday, May 30, 2016 2:28 PM

281
1. VOICE COMMAND SYSTEM OPERATION
5
VOICE COMMAND SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the talk switch.
2Say the tab selection command or se-
lect the desired tab.
zCommands related with each function are
displayed on the screen of the each func-
tion tab.
3Say the desired command.
zRegistered POIs, registered names in the
contacts list etc., can be said in the place of
the “<>” next to the commands. ( →P. 2 8 9 )
For example: Say “Find nearby dining” ,
“Call John Smith” etc.
z If a desired outcome is not shown, or if no
selections are available, perform one of the
following to return to the previous screen:
•Say “Go back” .
•Select “Go Back” .
z To cancel voice recognition, select
, or press and hold the talk switch.
VOICE COMMAND SYSTEM
OPERATION
The voice commands of multifunction
can be confirmed by selecting a tab. The
tabs are found on the upper part of the
screen.
All commands that are not displayed on
the screen can be recognized on any
screens.
zVoice guidance for the voice command
system can be skipped by pressing the
talk switch.
zSaying “Help” prompts voice guidance to
offer examples of commands and opera-
tion methods.
GX_Navi_OM60N98U_(U).book Page 281 Monday, May 30, 2016 2:28 PM

282
1. VOICE COMMAND SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
■DISPLAYING THE “Voice Settings”
SCREENS
zSelecting can be displayed the
“Voice Settings” screen.
INFORMATION
●
If the navigation system does not respond
or the confirmation screen does not dis-
appear, press the talk switch and try
again.
●If a voice command cannot be recog-
nized, voice guidance will say “Pardon?”
(“Command not recognized.” will be dis-
played on the screen) and voice com-
mand reception will restart.
●If a voice command cannot be recog-
nized 2 consecutive times, the voice
command guidance system will say
“Paused. To restart voice recognition,
push the talk switch. To cancel voice rec-
ognition, press and hold the talk switch.”
Then voice recognition will be sus-
pended.
●“Voice Recognition Prompts” can be set
to on or off on the “Voice Settings”
screen. ( →P. 6 2 )
●Voice guidance can be canceled by set-
ting voice prompts to off. Use this setting
when it is desirable to say a command
immediately after pressing the talk switch
and hearing a beep.
GX_Navi_OM60N98U_(U).book Page 282 Monday, May 30, 2016 2:28 PM

283
1. VOICE COMMAND SYSTEM OPERATION
5
VOICE COMMAND SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the talk switch.
2Say “Launch ” .
zLEXUS App Suite application screen is dis-
played.
1Press the talk switch.
2Say “Enter an address” .
3Say “ name, State>” continuously.
zA confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “”
or select the number.
z Some areas cannot be recognized by the
voice recognition system.
VOICE COMMAND
EXAMPLE: LAUNCH LEXUS
App Suite APPLICATIONVOICE COMMAND
EXAMPLE: PERFORMING A
DESTINATION SEARCH BY
ADDRESS (ENGLISH ONLY)
GX_Navi_OM60N98U_(U).book Page 283 Monday, May 30, 2016 2:28 PM

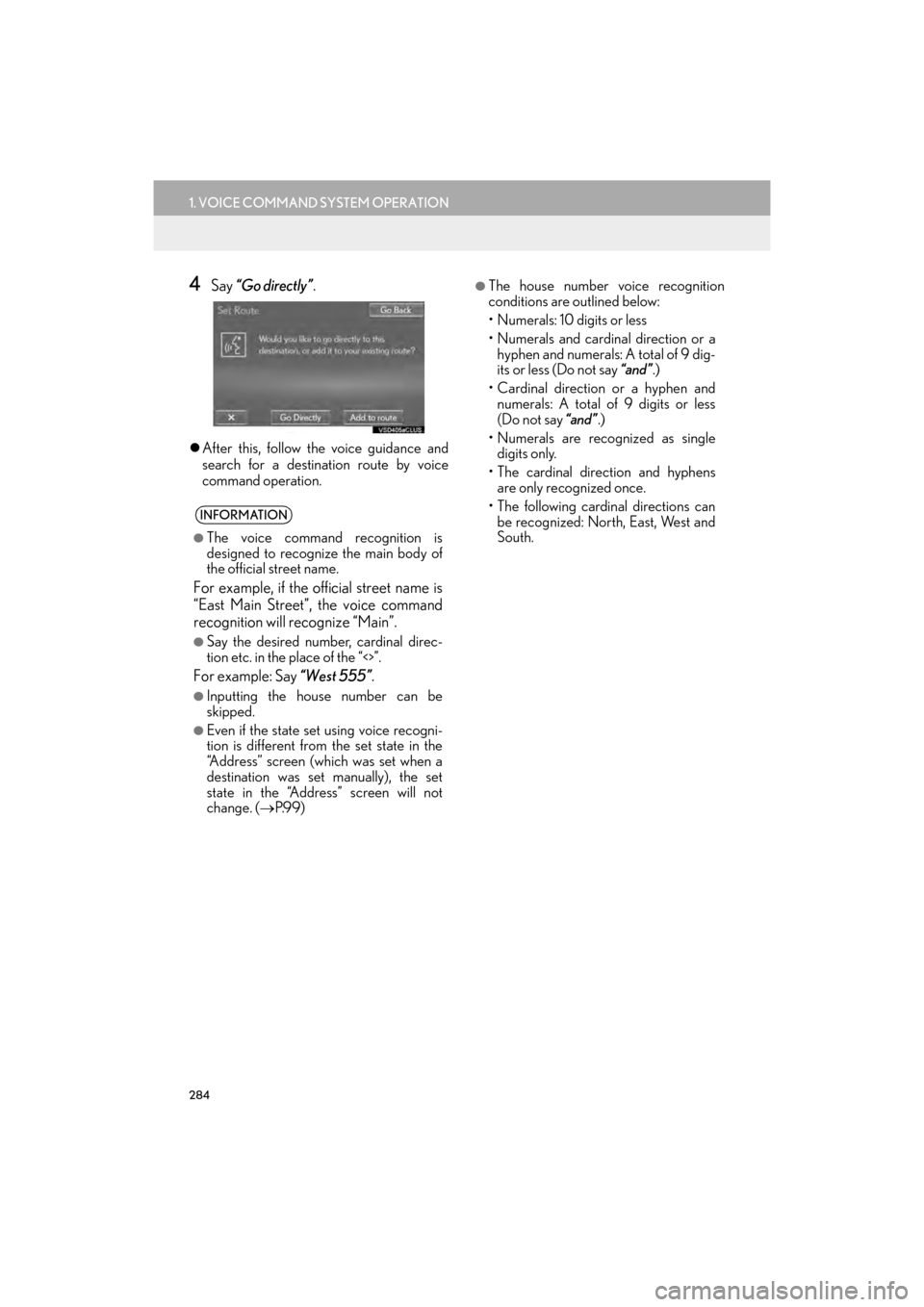

284
1. VOICE COMMAND SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4Say “Go directly” .
zAfter this, follow the voice guidance and
search for a destination route by voice
command operation.
INFORMATION
●
The voice command recognition is
designed to recognize the main body of
the official street name.
For example, if the official street name is
“East Main Street”, the voice command
recognition will recognize “Main”.
●Say the desired number, cardinal direc-
tion etc. in the place of the “<>”.
For example: Say “West 555”.
●Inputting the house number can be
skipped.
●Even if the state set using voice recogni-
tion is different from the set state in the
“Address” screen (which was set when a
destination was set manually), the set
state in the “Addre ss” screen will not
change. ( →P.9 9 )
●The house number voice recognition
conditions are outlined below:
• Numerals: 10 digits or less
• Numerals and cardinal direction or a
hyphen and numerals: A total of 9 dig-
its or less (Do not say “and”.)
• Cardinal direction or a hyphen and numerals: A total of 9 digits or less
(Do not say “and”.)
• Numerals are recognized as single digits only.
• The cardinal direction and hyphens are only recognized once.
• The following cardinal directions can be recognized: North, East, West and
South.
GX_Navi_OM60N98U_(U).book Page 284 Monday, May 30, 2016 2:28 PM

285
1. VOICE COMMAND SYSTEM OPERATION
5
VOICE COMMAND SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the talk switch.
2Say “Play song ” .
zA confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “”
or select the number.
z The system starts pl aying music and the
song lists are displayed.
VOICE COMMAND
EXAMPLE: SEARCH FOR A
SONG
z When “Play Artist ” is used to
play music, the first track is selected ran-
domly. For operations beyond playing
music: →P.1 5 5
INFORMATION
●
The Gracenote database is only compati-
ble with the USB or iPod mode.
●The list screens can be operated by
selecting a screen button as well as by
recognizing the voice commands.
●A USB memory or iPod must be con-
nected to enable track searching and
playback. ( →P.202, 207)
●When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using voice com-
mands.
●Recognition data is updated under the
following conditions:
• When the USB memory or iPod data
has changed.
• When the voice recognition language is changed. ( →P. 5 5 )
●While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a voice com-
mand.
●When the “Music” tab is disappeared on
the shortcut menu screen, it is not possi-
ble to search for a track using a voice
command.
GX_Navi_OM60N98U_(U).book Page 285 Monday, May 30, 2016 2:28 PM

286
1. VOICE COMMAND SYSTEM OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Press the talk switch.
2Say “Call ” .
zA confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed. Say “”
or select the number.
VOICE COMMAND
EXAMPLE: CALL NAMEINFORMATION
●
In the same manner as it is displayed on
the screen, “Call types>”, after saying “Call a contact” say
the name, or the name and type of phone,
of a contact.
For example: “Call a contact” , “J o h n
Smith” or “Call a contact” , “Mary Davis” ,
“Mobile”
●There are 4 types of phones: Home,
Mobile, Office and Other.
●Short or abbreviated names in the con-
tacts list may not be recognized. Change
names in the contacts list to full names.
●Sometimes a voice recognition result
confirmation screen will be displayed.
After confirming the result, say “Yes” or
“No” .
●When the system recognizes multiple
names from the contacts list, a name can-
didate list will be displayed on the screen.
If the desired name is not displayed on the
top of the screen, say or select the num-
ber of the name from the candidate list to
select a name from the candidate list.
●When a contact has multiple phone num-
bers registered in the contacts list, a can-
didate list will be displayed. If the desired
phone number is not displayed on the top
of the screen, say or select the number of
the desired phone number from the can-
didate list to select a phone number from
the candidate list.
GX_Navi_OM60N98U_(U).book Page 286 Monday, May 30, 2016 2:28 PM
