2017 Lexus GS200t Owner's Manual

577
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Emergency tire puncture repair kit components
Bottle Hose
Air pressure gauge
Compressor switch Compressor
Stickers
Power plug
Air release cap1
2
3
4
5
6
7
8

5787-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Remove the center luggage mat. ( P. 425)
Take out the emergency tire puncture repair kit.
Remove the center luggage mat. ( P. 425)
Remove the center auxiliary box.
Taking out the emergency tire puncture repair kit
1
2
Type AType B
Taking out the jack
1
2
Type AType B

579
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Take out the jack.
For tightening
For loosening
Remove the valve cap from the valve
of the punctured tire.
Remove the air release cap from the
hose.
You will use the air release cap again.
Therefore keep it in a safe place.3
Type AType B
1
2
Emergency repair method
1
2

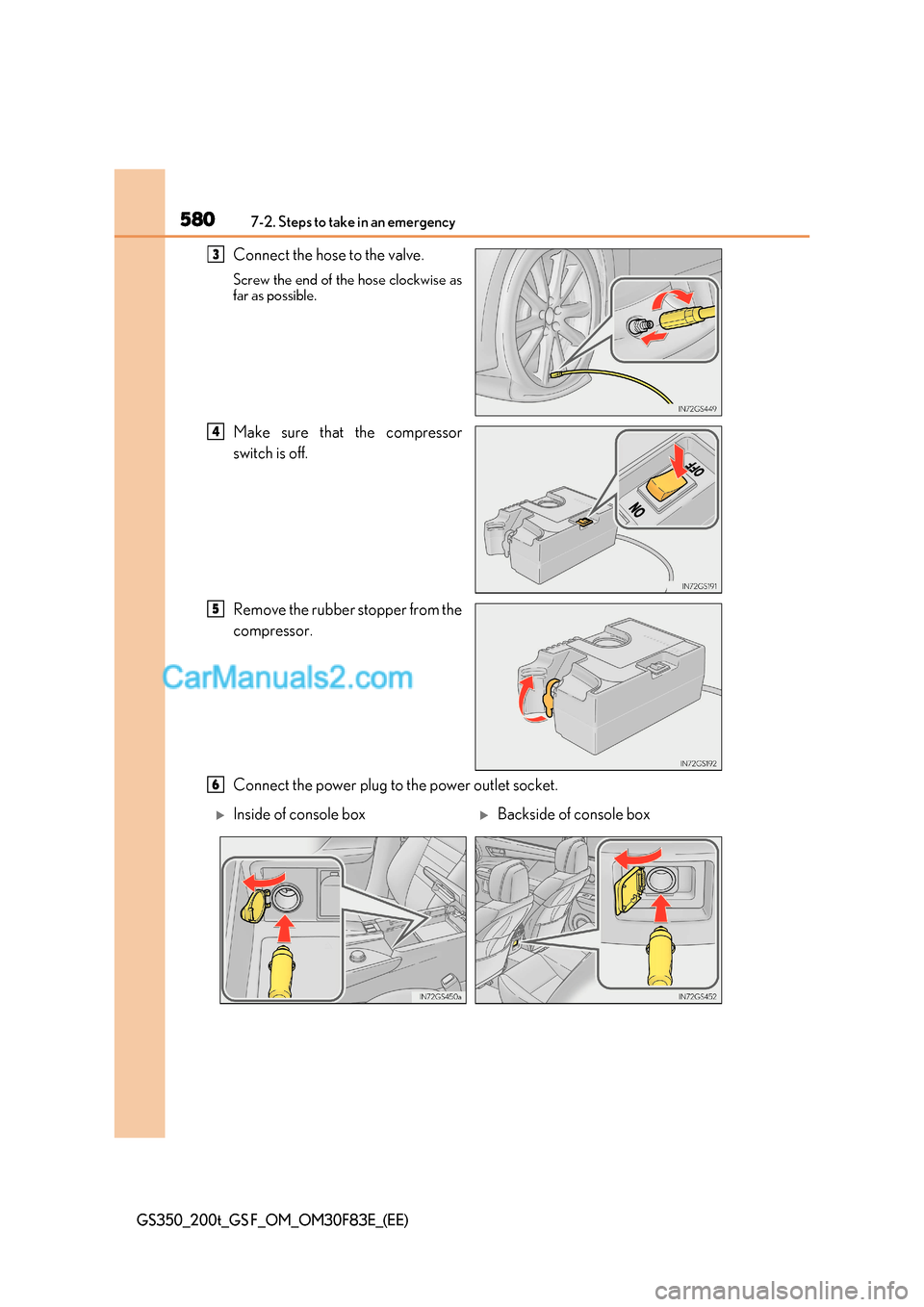

5807-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Make sure that the compressor
switch is off.
Remove the rubber stopper from the
compressor.
Connect the power plug to the power outlet socket.3
4
5
6
Inside of console boxBackside of console box

581
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Connect the bottle to the compres-
sor.
Connect by inserting the bottle straight
into the compressor, and make sure that
the protruding part of the bottle is prop-
erly aligned with the groove in the case.
Attach the 2 stickers as shown.
Remove any dirt and moisture from the
wheel before attaching the sticker.
If you are unable to apply the stickers,
inform the nearest any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer that sealant has
been applied to the puncture when hav-
ing the tire repaired or replaced.7
8

5827-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the
label as shown. ( P. 629)
Start the engine. ( P. 240)
To inject the sealant and inflate the
tire, turn the compressor switch on.9
10
11

583
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected and the
pressure will spike to 300 kPa
(3.0 kgf/cm 2
or bar, 44 psi) or
400 kPa (4.0 kgf/cm 2
or bar, 58
psi), and then gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 minute (15 minutes at
low temperature) after the switch
is turned on.
Inject to recommended pressure.

5847-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may
get dirty.
Temporarily store the bottle in the trunk while it is connected to the compres-
sor.
To spread the liquid sealant evenly within the tire, immediately drive safely for
about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km
(3 miles), stop your vehicle in a safe
place on a hard, flat surface and
remove the air release cap from the
hose before reconnecting the repair
kit.
Turn the compressor switch on and
wait for several seconds, and then
turn it off. Check the tire inflation
pressure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm 2
or
bar, 19 psi): The puncture cannot
be repaired. Contact any autho-
rized Lexus retailer or Lexus
authorized repairer, or any reli-
able repairer.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm 2
or bar, 19 psi) or higher,
but less than the recommended level: Proceed to step .
If the tire inflation pressure is the recommended level: Proceed to step .15
16
17
18
19
1
2
20
321
