2017 Lexus GS200t Owner's Manual

425
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
■Center
First-aid kit storage net
Luggage mat
Type AType B
Pull the strap upwards to lift up the lug-
gage mat. Pull the lever upwards to lift up the
luggage mat.
The lever can be hooked on the lug-
gage hook.

4265-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)
■Left side
Pull the strap upwards when lifting
the luggage mat up.
Type C
Pull the strap upwards to lift up the lug-
gage mat.

427
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)

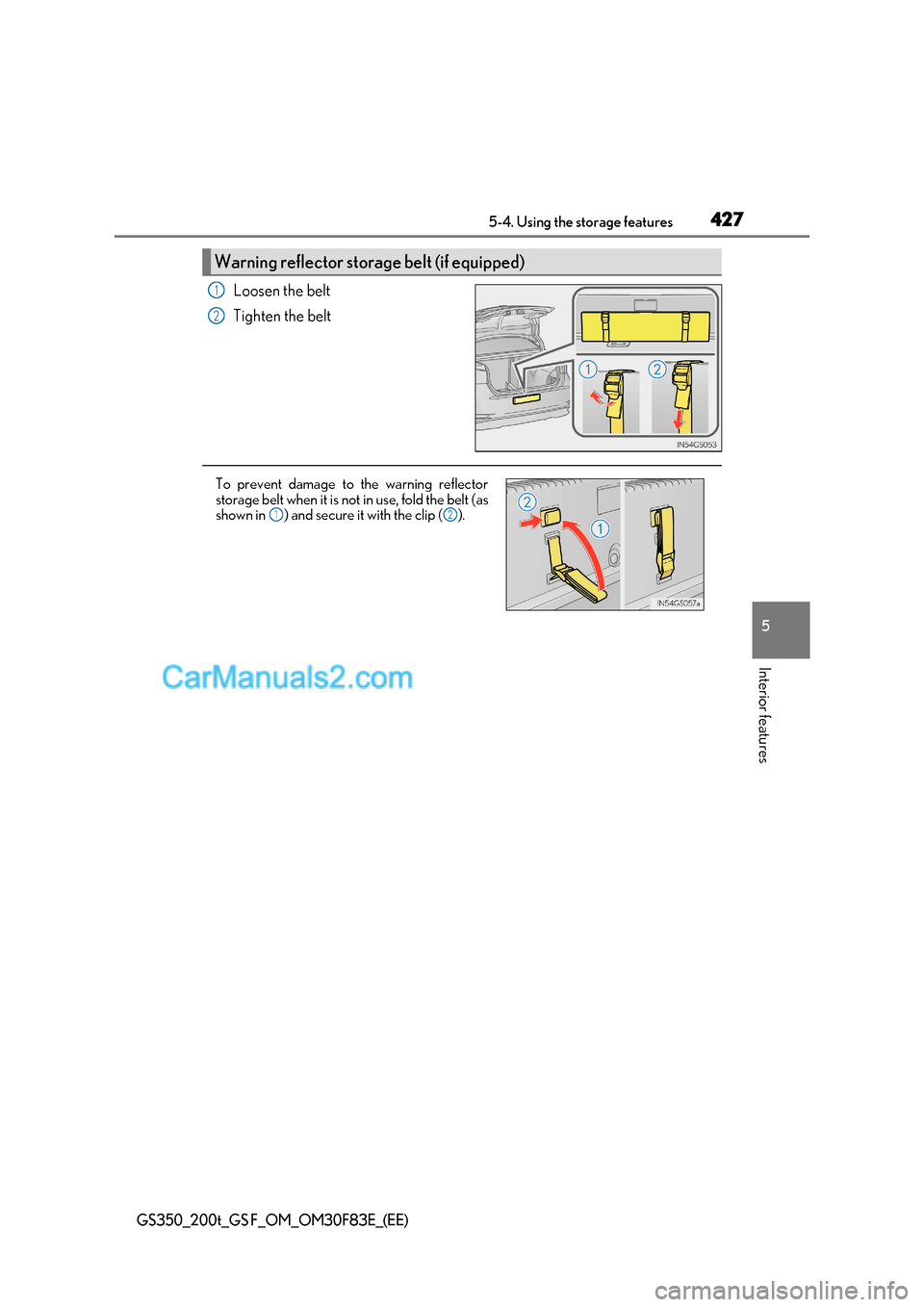

Loosen the belt
Tighten the belt
Warning reflector storage belt (if equipped)
1
2
To prevent damage to the warning reflector
storage belt when it is not in use, fold the belt (as
shown in ) and secure it with the clip ( ).
12

4285-5. Using the other interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open. The light turns on when the cover is
opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods
while the engine is off.

429
5-5. Using the other interior features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Open the ashtray lid. To remove the ashtray, pull the ashtray
lid upwards.
Clock
Ashtrays (if equipped)
WARNING
●Keep the ashtray closed when not in use. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
●To prevent fire

4305-5. Using the other interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Please use as a power supply for electronic goods that use less than 12 V DC /
10 A (power consumption of 120 W).
The power outlets can be used when engine switch is in ACCESSORY or IGNITION
ON mode.
Fold down the armrest for use.
Power outlets
FrontRear
Open the lid.
NOTICE
●To avoid damaging the power outlets, close the power outlet lids when the power out-
lets are not in use.
Foreign objects or liquids that enter th e power outlets may cause a short circuit.
●To prevent battery discharge, do not use the power outlets longer than necessary
when the engine is off.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.

431
5-5. Using the other interior features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
■Rear sunshade
The rear sunshade can be raised and lowered by operating the button shown
below.
■Rear door sunshades
Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it slowly.
Rear sunshade (if equipped)/rear door sunshades (if equipped)
From the front seatsFrom the rear seats (if equipped)
Pull up the lever to release the lock.
Slide the armrest.
Raise/lower
1
2
3

4325-5. Using the other interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
●The rear sunshade can be used when the engine switch is in IGNITION ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the engine
switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate rear visibility, the rear sunshade auto-
matically lowers when the shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
