Maintenance

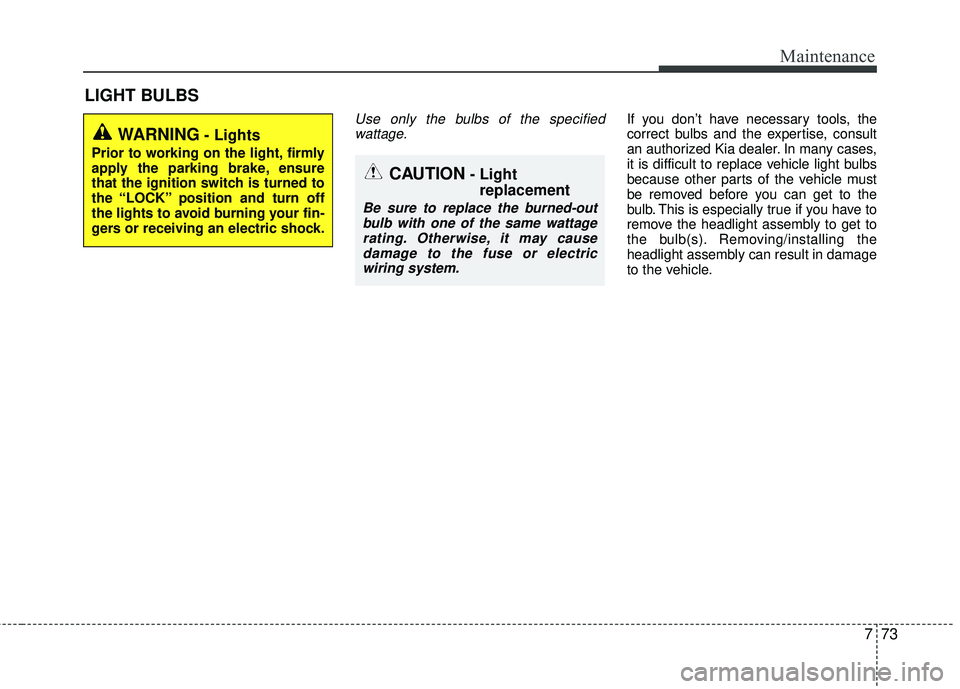

LIGHT BULBS
Use only the bulbs of the specifiedwattage.If you don’t have necessary tools, the
correct bulbs and the expertise, consult
an authorized Kia dealer. In many cases,
it is difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true if you have to
remove the headlight assembly to get to
the bulb(s). Removing/installing the
headlight assembly can result in damage
to the vehicle.
WARNING- Lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the “LOCK” position and turn off
the lights to avoid burning your fin-
gers or receiving an electric shock.
CAUTION- Light replacement
Be sure to replace the burned-out
bulb with one of the same wattagerating. Otherwise, it may causedamage to the fuse or electricwiring system.

Maintenance
74
7
Headlight, position light, turn sig-
nal light, side marker light and
front fog light bulb replacement

(1) Headlight (High and DRL/Low)
(2) Position light
(3) Front turn signal light
(4) Front fog light*

(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light
(4) Position light/DRL
(5) Front side marker
(6) Front fog light*
* : if equipped
Headlight bulb
OHD076046
WARNING - Halogen bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass if broken.
OUB075110
■ ■4 door
OUB075052K
■ ■5 door
- Type A
- Type BOUB075028K

775
Maintenance

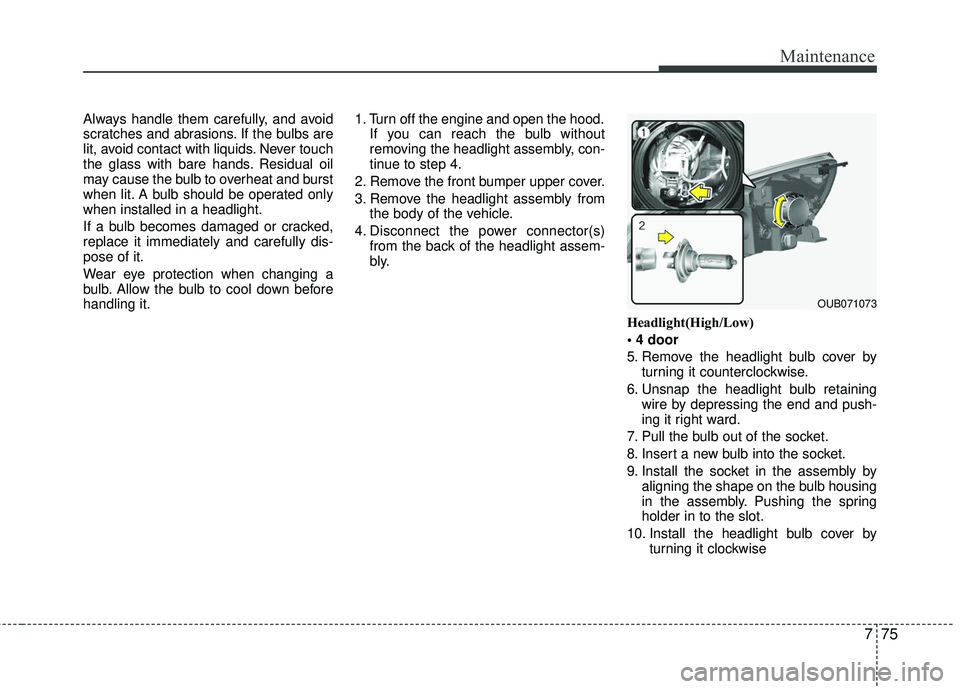

Always handle them carefully, and avoid
scratches and abrasions. If the bulbs are
lit, avoid contact with liquids. Never touch
the glass with bare hands. Residual oil
may cause the bulb to overheat and burst
when lit. A bulb should be operated only
when installed in a headlight.
If a bulb becomes damaged or cracked,
replace it immediately and carefully dis-
pose of it.
Wear eye protection when changing a
bulb. Allow the bulb to cool down before
handling it.1. Turn off the engine and open the hood.
If you can reach the bulb without
removing the headlight assembly, con-
tinue to step 4.
2. Remove the front bumper upper cover.
3. Remove the headlight assembly from the body of the vehicle.
4. Disconnect the power connector(s) from the back of the headlight assem-
bly.
Headlight(High/Low)

5. Remove the headlight bulb cover byturning it counterclockwise.
6. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it right ward.
7. Pull the bulb out of the socket.
8. Insert a new bulb into the socket.
9. Install the socket in the assembly by aligning the shape on the bulb housing
in the assembly. Pushing the spring
holder in to the slot.
10. Install the headlight bulb cover by turning it clockwise
OUB071073

Maintenance
76
7
Headlight (High)

5. Remove the headlight bulb cover by
turning it counterclockwise.
6. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it down ward.
7. Pull the bulb out of the socket.
8. Insert a new bulb into the socket.
9. Install the socket in the assembly by aligning the shape on the bulb housing
in the assembly. Pushing the spring
holder in to the slot.
10. Install the headlight bulb cover by turning it clockwise. Headlight (Low)

Follow the steps 1 to 4 from the previous
section.
5. Remove the headlight bulb cover by
turning it counterclockwise.
6. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
7. Pull the bulb out of the socket.
8. Insert a new bulb into the socket. 9. Install the socket in the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
10. Install the headlight bulb cover by turning it clockwise.
If the headlight aiming adjustment is nec-
essary after the headlight assembly is
reinstalled, consult an authorized Kia
dealer.
OUB071030NOUB071029

777
Maintenance
Turn signal light/Position light or Side
marker
Follow the steps 1 to 4 from the previous
page.
5. Remove the socket from the assemblyby turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket 7. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
Position light (if equipped)
If the light bulb does not operate, have
the vehicle checked by an authorized Kia
dealer.
OUB071031N
OUB071055
OUB071077
OUB071056
■ 4 door
■ 5 door

Maintenance
78
7

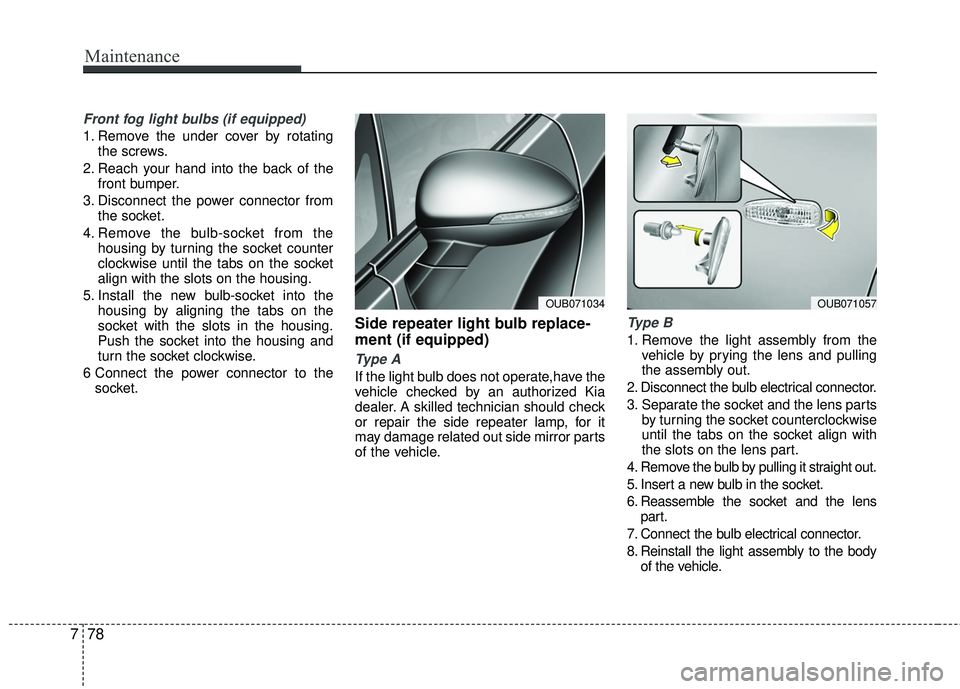

Front fog light bulbs (if equipped)
1. Remove the under cover by rotating
the screws.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socket
align with the slots on the housing.
5. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6 Connect the power connector to the socket.
Side repeater light bulb replace-
ment (if equipped)
Type A
If the light bulb does not operate,have the
vehicle checked by an authorized Kia
dealer. A skilled technician should check
or repair the side repeater lamp, for it
may damage related out side mirror parts
of the vehicle.
Type B
1. Remove the light assembly from the vehicle by prying the lens and pulling
the assembly out.
2. Disconnect the bulb electrical connector.
3. Separate the socket and the lens parts by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the light assembly to the body of the vehicle.
OUB071034OUB071057

779
Maintenance
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
(4) Tail light
Stop and tail light (LED type, if equipped)
If the light (LED) does not operate, have
the vehicle checked by an authorized Kia
dealer.
Outside light
Rear turn signal light and tail/stop light

1. Turn off the engine.
2. Open the trunk lid.
3. Remove the service cover by pulling out the service cover.
OUB071036
■ 4 door
■ 5 doorOUB075113
OUB071069K

Maintenance
80
7

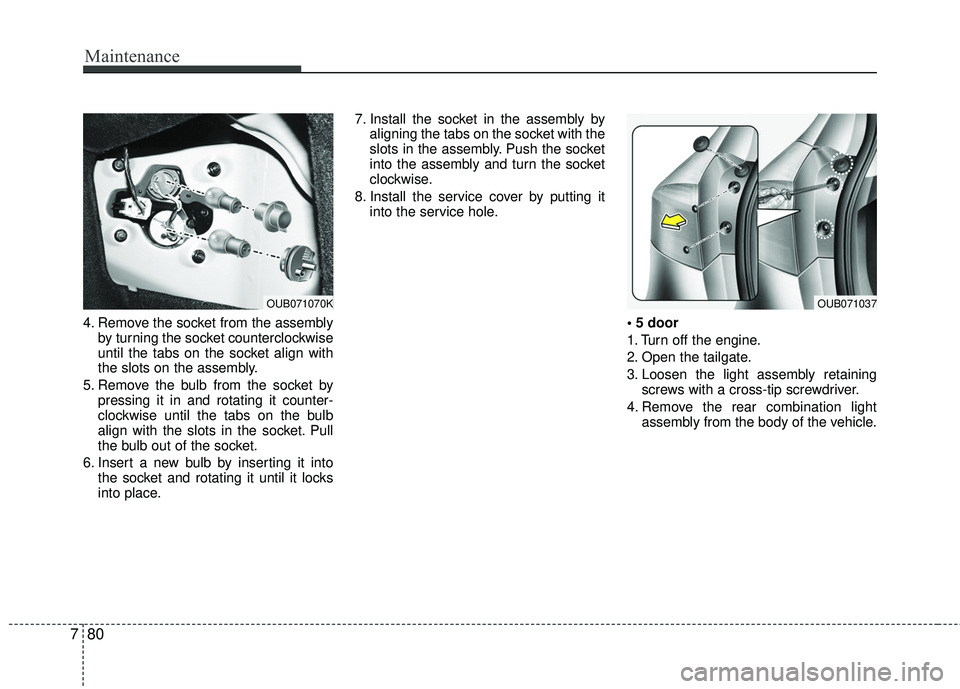

4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place. 7. Install the socket in the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Install the service cover by putting it into the service hole.

1. Turn off the engine.
2. Open the tailgate.
3. Loosen the light assembly retainingscrews with a cross-tip screwdriver.
4. Remove the rear combination light assembly from the body of the vehicle.
OUB071070KOUB071037
