2017 KIA RIO high beam

457
Features of your vehicle
Turn signal indicator
The blinking green arrows on the instru-
ment panel show the direction indicated
by the turn signals. If the arrow comes on
but does not blink, blinks more rapidly
than normal, or does not illuminate at all,
it indicates a malfunction in the turn sig-
nal system. You should consult your deal-
er for repairs.
This indicator also blinks when the haz-
ard warning switch is turned on.
High beam indicator
This indicator illuminates when the head-
lights are on and in the high beam posi-
tion or when the turn signal lever is pulled
into the Flash-to-Pass position.
Front fog light indicator (if equipped)
The indicator illuminates when the front
fog lights ON.
Tail light indicator
This indicator illuminates when the tail
lights are on.
Engine oil pressure warning light
This warning light indicates the engine oil
pressure is low.
If the warning light illuminates while driv-
ing:
1. Drive safely to the side of the road and stop.
2. With the engine off, check the engine oil level. If the level is low, add oil as
required.
If the warning light remains on after
adding oil or if oil is not available, call an
authorized Kia dealer.
CAUTION - Engine damage
If the engine is not stopped immedi- ately after the engine oil pressurewarning light is illuminated and stays on while the engine is running,serious engine damage may result.

475
Features of your vehicle

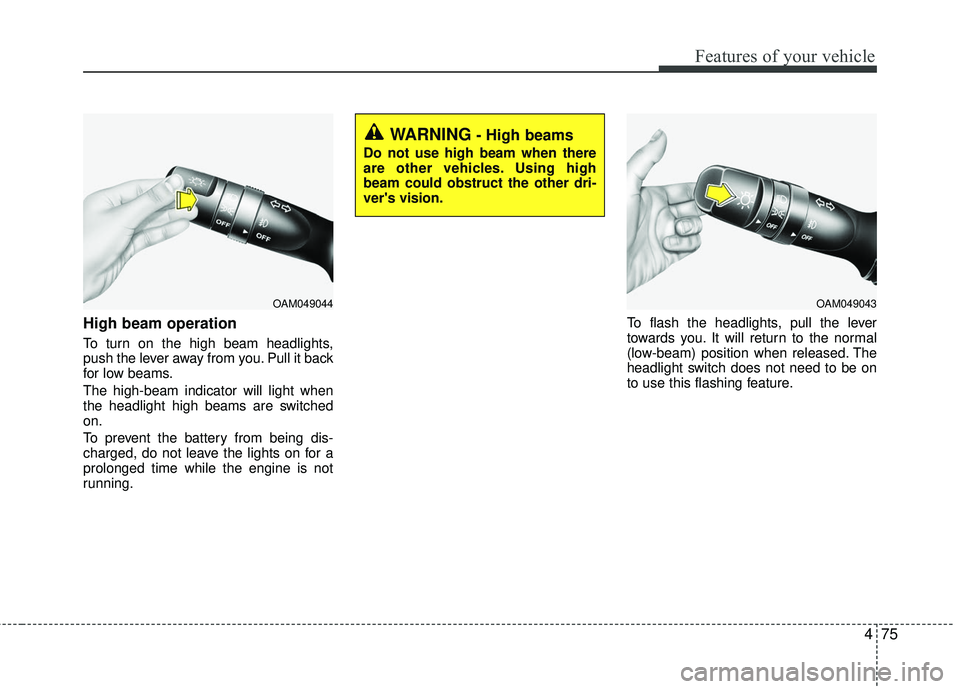

High beam operation
To turn on the high beam headlights,
push the lever away from you. Pull it back
for low beams.
The high-beam indicator will light when
the headlight high beams are switched
on.
To prevent the battery from being dis-
charged, do not leave the lights on for a
prolonged time while the engine is not
running.To flash the headlights, pull the lever
towards you. It will return to the normal
(low-beam) position when released. The
headlight switch does not need to be on
to use this flashing feature.
OAM049044
WARNING- High beams
Do not use high beam when there
are other vehicles. Using high
beam could obstruct the other dri-
ver's vision.
OAM049043

Index
6I
Interior light bulb replacement ··················\
··················\
7-85
Interior light bulb replacement ··················\
··················\
7-85
License plate light bulb replacement ··················\
········7-84
Rear combination light bulb replacement ··················\
·7-79
Side repeater light bulb replacement ··················\
········7-78
Lights ··················\
··················\
··················\
··················\
·····4-73 Battery saver function··················\
··················\
··············4-73
Daytime running light ··················\
··················\
·············4-73
Front fog light··················\
··················\
··················\
········4-76
High beam operation ··················\
··················\
··············4-75
Lighting control ··················\
··················\
··················\
·····4-73
Turn signals and lane change signals ··················\
········4-76
Maintenance services ··················\
··················\
··················\
·7-3 Owner maintenance precautions ··················\
·················7-4
Owner’s responsibility ··················\
··················\
·············7-3
Manual climate control system··················\
··················\
··4-84 Checking the amount of air conditioner refrigerant andcompressor lubricant ··················\
··················\
·············4-93
Climate control air filter ··················\
··················\
··········4-92
Heating and air conditioning ··················\
··················\
···4-85
System operation ··················\
··················\
··················\
···4-90
Manual Transaxle··················\
··················\
··················\
·····5-13 Good driving practices ··················\
··················\
············5-15
Manual transaxle operation ··················\
··················\
·····5-13 Mirrors ··················\
··················\
··················\
··················\
···4-40
Inside rearview mirror ··················\
··················\
·············4-40
Outside rearview mirror ··················\
··················\
··········4-40
Owner maintenance ··················\
··················\
··················\
···7-5 Owner maintenance schedule ··················\
··················\
····7-5
Parking brake ··················\
··················\
··················\
···········7-41 Checking the parking brake··················\
··················\
·····7-41
Rear-Camera Display··················\
··················\
·················4-71\
Recommended lubricants and capacities ··················\
·······8-7 Recommended SAE viscosity number ··················\
········8-7
Remote keyless entry ··················\
··················\
··················\
·4-8 Battery replacement ··················\
··················\
·················4-10\
Immobilizer system ··················\
··················\
·················4-11\
Limp home (override) procedure ··················\
··············4-12
Remote keyless entry system operations··················\
·····4-8
Transmitter precautions ··················\
··················\
·············4-9
Road warning ··················\
··················\
··················\
·············6-2 Hazard warning flasher ··················\
··················\
·············6-2
M
O
P
R
