2017 KIA RIO Owners Manual

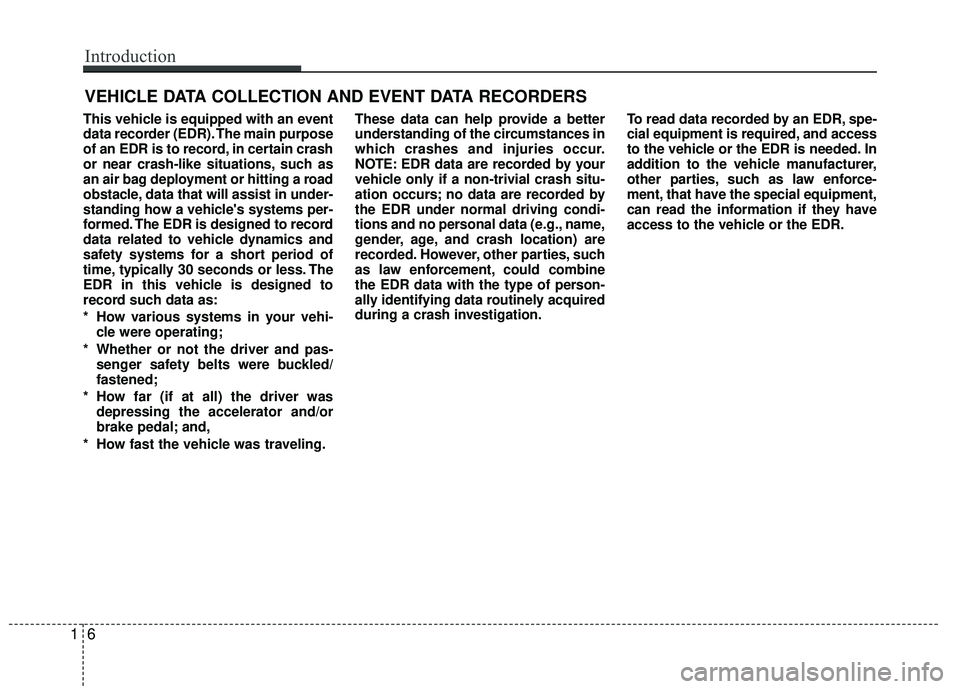

This vehicle is equipped with an event
data recorder (EDR). The main purpose
of an EDR is to record, in certain crash
or near crash-like situations, such as
an air bag deployment or hitting a road
obstacle, data that will assist in under-
standing how a vehicle's systems per-
formed. The EDR is designed to record
data related to vehicle dynamics and
safety systems for a short period of
time, typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
* How various systems in your vehi-cle were operating;
* Whether or not the driver and pas- senger safety belts were buckled/
fastened;
* How far (if at all) the driver was depressing the accelerator and/or
brake pedal; and,
* How fast the vehicle was traveling. These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by
the EDR under normal driving condi-
tions and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine
the EDR data with the type of person-
ally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, spe-
cial equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforce-
ment, that have the special equipment,
can read the information if they have
access to the vehicle or the EDR.
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
16
Introduction

2
Exterior overview I / 2-2
Exterior overview II / 2-3
Interior overview / 2-4
Instrument panel overview / 2-5
Engine compartment / 2-6
Your vehicle at a glance

Your vehicle at a glance
22
EXTERIOR OVERVIEW I
1. Hood ......................................................4-28
2. Headlamp ..............................................7-74
3. Fog light ................................................7-74
4. Tires and wheels ....................................7-485. Outside rearview mirror..........................4-40
6. Sunroof ..................................................4-33
7. Wiper blade ............................................7-42
8. Windows ................................................4-24
OUB024003N/OUB025003K
■ ■

Front
- 4 Door
❈ The actual engine compartment in the vehicle may differ from the illustration.
- 5 Door

23
Your vehicle at a glance
EXTERIOR OVERVIEW II
9. Door ......................................................4-16
10. Fuel filler lid ........................................4-30
11. Rear combination lamp ......................7-79
12. Tailgate (trunk) ....................................4-20, 2213. Rear wiper blade ................................7-44
14. Center high mounted stop light ..........7-83
15. Rear window defroster ........................4-83
16. Antenna ..............................................4-121
OUB025004N/OUB025008N
■ ■

Rear
- 4 Door
❈ The actual engine compartment in the vehicle may differ from the illustration.
- 5 Door

Your vehicle at a glance
42
INTERIOR OVERVIEW
OUB021001K
1. Door lock/unlock button ....................4-16
2. Central door lock switch....................4-17
3. Power window switches ....................4-24
4. Power window lock button ................4-27
5. Outside rearview mirror control switch ................................................4-41
6. Hood release lever ............................4-28
7. Fuel filler lid release lever .................4-30
8. Trunk lid release lever (4 door) .........4-20
9. Steering wheel ..................................4-37
10. Steering wheel tilt control lever.......4-38
11. Active ECO button ..........................5-43
12. Instrument panel illumination control switch ..............................................4-44
13. ESC OFF button .............................5-27
14. Heated steering wheel switch (if equipped) ....................................4-38
15. Idle Stop and Go system OFF button (if equipped) ....................................5-40
16. Fuse box .........................................7-62
17. Brake pedal .....................................5-22
18. Accelerator pedal
❈ The actual interior in the vehicle may differ from the illustration.

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
OUB025002N
1. Instrument cluster.............................4-43
2. Horn .................................................4-39
3. Driver’s front air bag .........................3-44
4. Light control/Turn signals .................4-73
5. Wiper/Washer ...................................4-77
6. Ignition switch or ENGINE START/STOP button .................................5-5, 5-7
7. Hazard warning flasher switch ......4-72, 6-2
8. Audio ..............................................4-121
9. Climate control system...............4-84, 94
10. Shift lever ...............................5-13, 5-16
11. Steering wheel audio control........4-122
12. Passenger’s front air bag ...............3-44
13. Glove box .....................................4-110
14. Parking brake lever ........................5-24
15. Power outlet .................................4-117
16. Cigarette lighter ............................4-114
17. Seat warmer .....................................3-8
❈ The actual instrument panel in the vehicle may differ from the illustration.

Your vehicle at a glance
62
ENGINE COMPARTMENT
OUB071103N
* The actual engine compartment in the vehicle may differ from the illustration.1. Engine Coolant Reservoir ................7-36
2. Engine Oil Filler Cap ........................7-34
3. Brake/Clutch Fluid Reservoir ...........7-39
4. Air Cleaner .......................................7-41
5. Fuse Box ..........................................7-62
6. Negative Battery Terminal ................7-45
7. Positive Battery Terminal ..................7-45
8. Radiator Cap ....................................7-37
9. Engine Oil Dipstick ...........................7-34
10. Windshield Washer Fluid Reservoir..
7-40

3

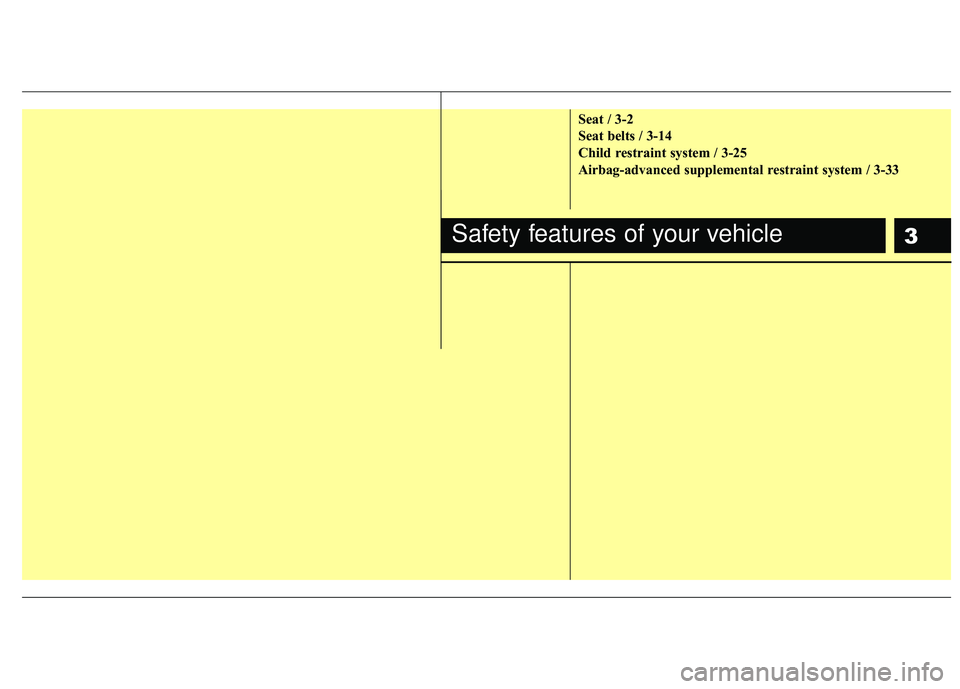

Seat / 3-2
Seat belts / 3-14
Child restraint system / 3-25
Airbag-advanced supplemental restraint system / 3-33
Safety features of your vehicle
