Safety features of your vehicle
42
3
Installing a child restraint system
with a lap/shoulder belt
To install a child restraint system on
the seat, do the following:
1. For stable and safe installation of child restraint system, adjust the
vehicle seat (seatback angle and/or
seat forward and backward) so that
your child can fit in the child restraint
system in a comfortable manner.
To properly accommodate child restraint system in all adjustment
positions, the front passenger seat
may be moved rearwards with the
seat back not passing beyond the
seat belt shoulder anchor.
WARNING
A child can be seriously injured or killed in a collision
if the child restraint system is
not properly anchored to the
vehicle and the child is not
properly restrained in the
child restraint system. Before
installing the child restraint
system, read the instructions
supplied by the child restraint
system manufacturer.
If the seat belt does not oper- ate as described in this sec-
tion, we recommend the sys-
tem to be checked by an
authorised Kia dealer.
Failure in observing this man- ual's instructions regarding
child restraint systems and
the instructions provided with
the child restraint system
could increase the chance
and/or severity of injury in anaccident.
(Continued)(Continued)
Temporarily re-adjust orremove any headrest interfer-
ing with the proper installation
of child restraint system. Make
sure to put any removed head-
rests back into position foradult occupants.
E2MS103005
Safety features of your vehicle
44
3

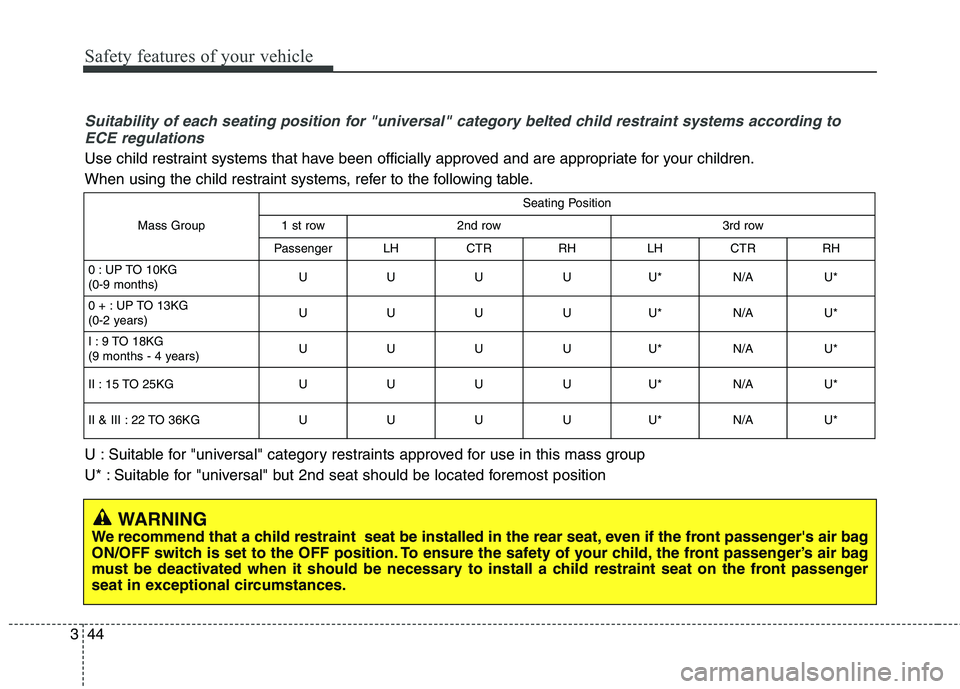

Suitability of each seating position for "universal" category belted child restraint systems according to
ECE regulations
Use child restraint systems that have been officially approved and are appropriate for your children.
When using the child restraint systems, refer to the following table.
Mass Group
Seating Position
1 st row2nd row3rd row
PassengerLHCTRRHLHCTRRH
0 : UP TO 10KG (0-9 months)UUUUU*N/AU*
0 + : UP TO 13KG
(0-2 years)UUUUU*N/AU*
I : 9 TO 18KG
(9 months - 4 years)UUUUU*N/AU*
II : 15 TO 25KGUUUUU*N/AU*
II & III : 22 TO 36KGUUUUU*N/AU*
WARNING
We recommend that a child restraint seat be installed in the rear seat, even if the front passenger's air bag
ON/OFF switch is set to the OFF position. To ensure the safety of your child, the front passenger’s air bag
must be deactivated when it should be necessary to install a child restraint seat on the front passenger
seat in exceptional circumstances.
U : Suitable for "universal" category restraints approved for use in this mass group
U* : Suitable for "universal" but 2nd seat should be located foremost position
347
Safety features of your vehicle

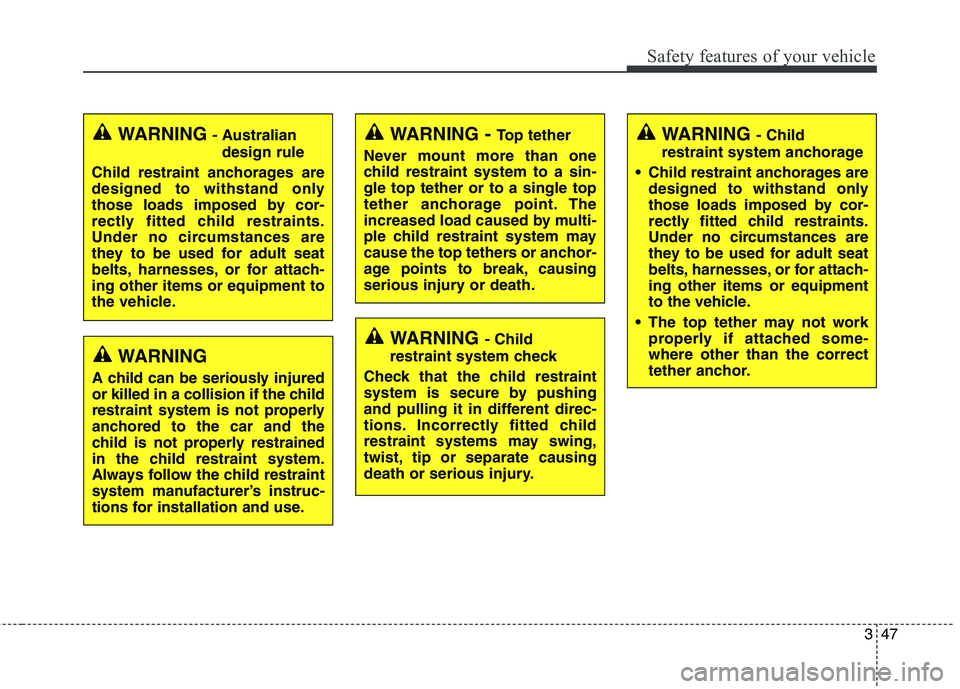

WARNING - Child
restraint system check
Check that the child restraint
system is secure by pushing
and pulling it in different direc-
tions. Incorrectly fitted child
restraint systems may swing,
twist, tip or separate causing
death or serious injury.
WARNING - Child
restraint system anchorage
Child restraint anchorages are designed to withstand only
those loads imposed by cor-
rectly fitted child restraints.
Under no circumstances are
they to be used for adult seat
belts, harnesses, or for attach-ing other items or equipment
to the vehicle.
The top tether may not work properly if attached some-where other than the correct
tether anchor.WARNING - Top tether
Never mount more than one
child restraint system to a sin-gle top tether or to a single top
tether anchorage point. The
increased load caused by multi-
ple child restraint system may
cause the top tethers or anchor-
age points to break, causing
serious injury or death.
WARNING
A child can be seriously injured
or killed in a collision if the child
restraint system is not properly
anchored to the car and the
child is not properly restrained
in the child restraint system.
Always follow the child restraint
system manufacturer’s instruc-
tions for installation and use.
WARNING - Australian
design rule
Child restraint anchorages are
designed to withstand only
those loads imposed by cor-
rectly fitted child restraints.
Under no circumstances are
they to be used for adult seat
belts, harnesses, or for attach-ing other items or equipment to
the vehicle.
349
Safety features of your vehicle
Both rear outboard seats are equipped with a pair of ISOFIX
anchorages as well as a correspon-
ding top tether anchorage on the
back side of the back rest. The
ISOFIX anchorages are located
between seat cushion and back rest,
marked with the ISOFIX icon.
For installation, child restraint system
ISOFIX connectors have to engage
with the vehicles ISOFIX anchorages
(listen for a CLICK, check potential
visual indicators on the child restraint
system and cross-check by pulling).
Child restraint systems with universal
approval to ECE-R 44, ECE-R 129 or
relevant regulation need to be fixed
additionally with a top tether strap con-nected to the corresponding top tether
anchorage point in the back rest. The installation and the use of a child
restraint system has to be done
according to the installation manual,
which is provided with the ISOFIX
child restraint system. ❈(1) : ISOFIX Anchor Position Indicator
(Type A- ,Type B- )
(2) : ISOFIX Anchor For stable and safe installation of
child restraint system, adjust the seat
position (seat-back angle and/or seat
forward and backward) so that your
child can fit in the child restraint sys-
tem in a comfortable manner.
WARNING
Install the child restraint seat
after reclining the seatback.
Reclined 10 clicks (slightly pull
up the recline lever) rearward
from the first locked position. ❈
❈ first locked position :
Is a position when the seatback
is unfold to the first locked posi-
tion from the fully folded seat-
back position (almost theupright position).
WARNING
When using the vehicle's "ISOFIX" system to install a
child restraint system in the
rear seat, all unused vehicle
rear seat belt metal latch plates
or tabs must be latched
securely in their seat belt buck-les and the seat belt webbing
must be retracted behind the
child restraint system to pre-
vent the child from reachingand taking hold of unretracted
seat belts. Unlatched metal
latch plates or tabs may allow
the child to reach the unretract-
ed seat belts which may resultin strangulation and a serious
injury or death to the child in
the child restraint system.
Do not place anything around the lower anchors. Also makesure that the seat belt is not
caught in the lower anchors.
Safety features of your vehicle
50
3
To secure the child restraint system
1. To engage the child restraint sys-
tem to the ISOFIX anchor, insert
the child restraint system latch into
the ISOFIX anchor. Listen for the
audible “click” sound.
2. Connect the top tether strap to the corresponding top tether anchor-
age and tighten it. (Refer to the
previous page.)
CAUTION
Do not allow the rear seat belt
webbing to get scratched orpinched by the ISOFIX-seat latch and ISOFIX anchor duringinstallation.
WARNING
Do not install a child restraint system at the centre of the rear
seat using the vehicle's ISOFIX
anchors. The ISOFIX anchors
are only provided for the left
and right outboard rear seatingpositions. Do not misuse the ISOFIX
anchors by attempting to
attach a child restraint system
in the middle of the rear seat to
the ISOFIX anchors.
In a crash, the child restraint
system ISOFIX attachments
may not be strong enough to
secure the child restraint sys-
tem properly in the centre of the
rear seat and may break, caus-
ing serious injury or death.
(Continued)(Continued)
Do not mount more than onechild restraint system to an
ISOFIX anc horage point. The
improper increased load may
cause the anchorage points or
top tether anchor to break,
causing serious injury or death.
Attach the ISOFIX or ISOFIX- compatible child restraint sys-
tem only to the appropriate
locations shown in the illus-tration.
Always follow the installation and use instructions provided
by the manufacturer of the
child restraint system.
Safety features of your vehicle
52
3
Mass GroupNameManufacturerType of FixationECE-R44
Approval No.
Group 0-1
(0-18kg)BABY-SAFE Plus + ISOFIX baseBritax Römer* 1Rearward facing with ISOFIX adapter &
support legE1 04301146
Group1
(9-18kg)Pearl + FamilyFix BaseMaxi-cosi* 2Forward facing with vehicle ISOFIX lower
anchorage + support legE4 04443908

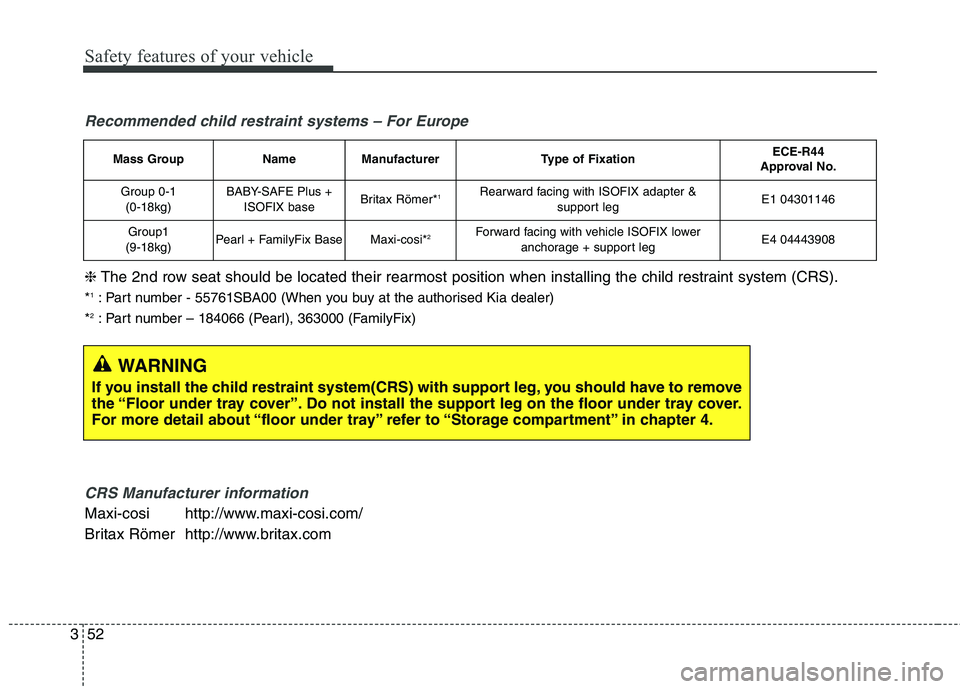

Recommended child restraint systems – For Europe
CRS Manufacturer information
Maxi-cosi http://www.maxi-cosi.com/
Britax Römer http://www.britax.com
❈
The 2nd row seat should be located their rearmost position when installing the child restraint system (CRS).
* 1
: Part number - 55761SBA00 (When you buy at the authorised Kia dealer)
* 2
: Part number – 184066 (Pearl), 363000 (FamilyFix)
WARNING
If you install the child restraint system(CRS) with support leg, you should have to remove
the “Floor under tray cover”. Do not install the support leg on the floor under tray cover.
For more detail about “floor under tray” refer to “Storage compartment” in chapter 4.
Safety features of your vehicle
54
3

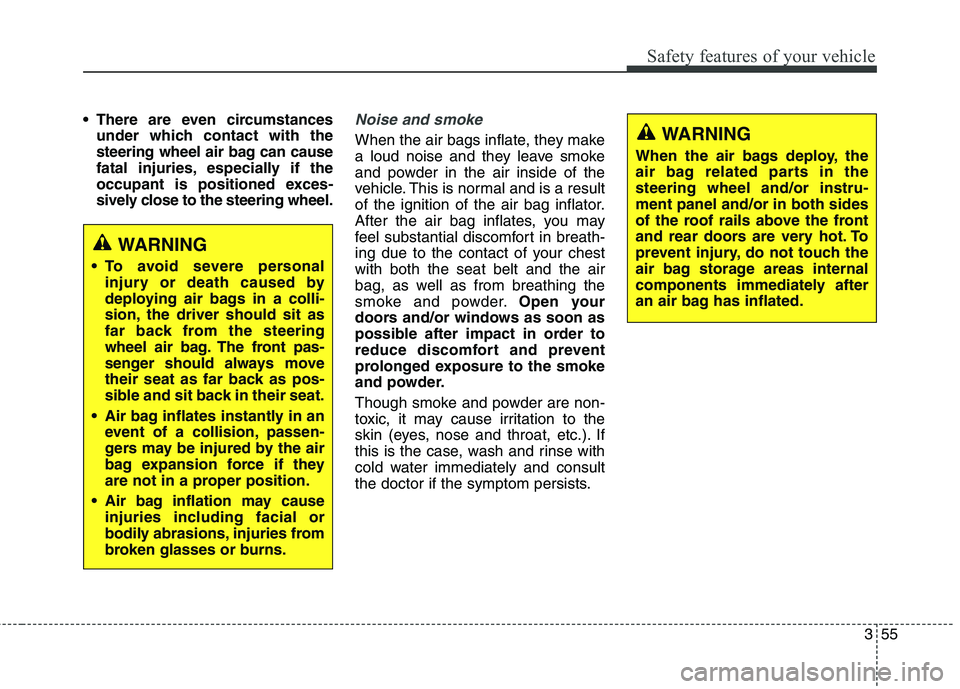

How does the air bag system operate
Air bags are activated (able to
inflate if necessary) only when the
ignition switch is turned to the ON
or START position.
Air bags inflate instantly in the event of serious frontal or side col-lision (if equipped with side air bag
or curtain air bag) in order to help
protect the occupants from serious
physical injury.
There is no single speed at which the air bags will inflate.
Generally, air bags are designed to
inflate based upon the severity of a
collision and its direction. These
two factors determine whether thesensors produce an electronic
deployment/ inflation signal.
Air bag deployment depends on a number of factors including vehiclespeed, angles of impact and the
density and stiffness of the vehi-
cles or objects which your vehicle
hits in the collision. The determin-
ing, factors are not limited to those
mentioned above. The front air bags will completely
inflate and deflate in an instant.
It is virtually impossible for you to
see the air bags inflate during an
accident. It is much more likely that
you will simply see the deflated air
bags hanging out of their storage
compartments after the collision.
In order to help provide protection in a severe collision, the air bags
must inflate rapidly. The speed ofair bag inflation is a consequence
of extremely short time in which acollision occurs and the need to
get the air bag between the occu-
pant and the vehicle structures
before the occupant impacts those
structures. This speed of inflation
reduces the risk of serious or life-
threatening injuries in a severe col-
lision and is thus a necessary partof air bag design.
However, air bag inflation can also
cause injuries which can include
facial abrasions, bruises and bro-
ken bones because the inflationspeed also causes the air bags to
expand with a great deal of force.WARNING
Even in vehicles with air bags, you and your passengers must
always wear the safety belts
provided in order to minimise
the risk and severity of injury
in the event of a collision or in
most rollover situation.
SRS and pretensioners con- tain explosive chemicals.
If scraping a vehicle without
removing SRS and pretension-
ers from a vehicle, it may cause
fire. Before scraping a vehicle,
we recommend that you con-
tact an authorised Kia dealer.
Keep the SRS parts and wirings away from water or any
liquid. If the SRS components
are inoperative due to expo-
sure to water or liquids, it may
cause fire or severe injury.
355
Safety features of your vehicle
There are even circumstancesunder which contact with the
steering wheel air bag can cause
fatal injuries, especially if the
occupant is positioned exces-
sively close to the steering wheel.Noise and smoke
When the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chestwith both the seat belt and the air
bag, as well as from breathing the
smoke and powder. Open your
doors and/or windows as soon as
possible after impact in order to
reduce discomfort and prevent
prolonged exposure to the smoke
and powder.
Though smoke and powder are non-
toxic, it may cause irritation to the
skin (eyes, nose and throat, etc.). If
this is the case, wash and rinse with
cold water immediately and consult
the doctor if the symptom persists.
WARNING
To avoid severe personal injury or death caused by
deploying air bags in a colli-
sion, the driver should sit as
far back from the ste ering
wheel air bag. The front pas-
senger should always move
their seat as far back as pos-
sible and sit back in their seat.
Air bag inflates instantly in an event of a collision, passen-
gers may be injured by the air
bag expansion force if they
are not in a proper position.
Air bag inflation may cause injuries including facial or
bodily abrasions, injuries from
broken glasses or burns.
WARNING
When the air bags deploy, the
air bag related parts in thesteering wheel and/or instru-ment panel and/or in both sides
of the roof rails above the front
and rear doors are very hot. To
prevent injury, do not touch the
air bag storage areas internal
components immediately after
an air bag has inflated.
