Features of your vehicle
18
4
Theft-alarm stage
The alarm will be activated if any of
the following occurs whilst the sys-
tem is armed.
A front or rear door is opened with-
out using transmitter or smart key.
The tailgate is opened without using transmitter or smart key.
The engine bonnet is opened.The siren will sound and the hazard
warning lights will blink continuously
for 27 seconds, unless the system is
disarmed. To turn off the system,
unlock the doors with the transmitter
or smart key. Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started.
- The ignition switch is in the “ON”
position for 30 seconds or more.
Smart key
- The door unlock button is pressed.
- The button of the front outside dooris pressed whilst carrying the
smart key.
- The engine is started.
After the doors are unlocked, the haz-
ard warning lights will blink twice to
indicate that the system is disarmed.
After pressing the unlock button, if
any door (or tailgate) is not opened
within 30 seconds, the system will be
rearmed.
✽✽ NOTICE
 Without smart key system If the system is not disarmed withthe transmitter, insert the key into
the ignition switch and start the
engine. Then the system will be
disarmed.
 With smart key system If the system is not disarmed with
the smart key, open the door with
the mechanical key and start the
engine. Then the system will be
disarmed.
 If you lose your keys, we recom- mend that you consult an autho-
rised Kia dealer.
CAUTION
Do not change, alter or adjust the
theft-alarm system because itcould cause the theft-alarm sys- tem to malfunction and we rec-ommend that the system be serv-iced by an authorised Kia dealer.
Malfunctions caused by improp-er alterations, adjustments or modifications to the theft-alarmsystem are not covered by yourvehicle manufacturer warranty.

419
Features of your vehicle
Vehicles equipped with a theft alarm
system will have a label attached to
the vehicle with the following words:
1. WARNING
2. SECURITY SYSTEMThis system is designed to provide
protection from unauthorised entry
into the vehicle, movement inside the
vehicle (if equipped), and leaning to
one side (if equipped). This system is
operated in three stages: the first is
the "Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the
ignition switch or turn off the engine.
2. Make sure the intrusion/tilt sensor is ON (the sensor ON/OFF button
light is off) and exit the vehicle.
3. Make sure that all doors (and tail- gate) and engine bonnet areclosed and latched.
4. Lock the doors using the transmit- ter of the keyless entry system (or
smart key).
After completion of the steps above,
the hazard warning lights will blinkonce to indicate that the system is
armed.
If any door (or tailgate) or engine bonnet remains open, the hazard
warning lights will not operate and
the theft-alarm will not arm. If alldoors (and tailgate) and engine bon-
net are closed after the lock button is
pressed, the hazard warning lights
will blink once.
THEFT-ALARM SYSTEM (INTRUSION PROTECTION SYSTEM, UK ONLY)
OJC040170
Armed
stage
Theft-alarm stageDisarmedstage

Features of your vehicle
20
4
Do not arm the system until all
passengers have left the vehicle. Ifthe system is armed whilst a pas-
senger(s) remains in the vehicle,
the alarm may be activated when
the passenger(s) moves in the
vehicle.Intrusion/Tilt sensor ON/OFF con-
dition
To cancel the sensor operation, press the sensor ON/OFF button
when the system in the "Disarmed"stage and the ignition is OFF posi-tion. The button light will turn on to indi-
cate that the sensor is deactivated.
After pressing the button, if the sys-
tem is not armed within 5 minutes,
the sensor will be activated again.
If the system is armed when the
sensor is in the OFF status, the
intrusion/tilt sensor will not operate
even though the button light is
turned off. Then, the alarm will be
deactivated when the system
meets the intrusion/tilt sensor off
condition of "Theft-alarm" stage.
To reactivate the sensor operation, press the sensor ON/OFF buttonagain.
WARNING
Do not lock the doors with the
(smart) key or the transmitter
with anybody left in the vehicle.
The passenger in the vehicle
cannot unlock the doors with
the door lock button. For exam-
ple, if the door is locked with
the transmitter, the passenger
in the vehicle cannot unlock the
door without the transmitter.
ORP042271R
ORP042270R
■ Type A
■ Type B
Sensor
Sensor

421
Features of your vehicle
✽✽NOTICE
 Do not activate the sensor if there are any chances the vehicle tilts by
the outward influences (for exam-
ple, ferry boat travelling, tower
parking etc.), because it could cause
the siren to sound inadvertently.
 Make sure all windows are close whilst the system operates. If not,
the sensor detects the inadvertent
movement inside the vehicle (for
example, blowing a wind or enter-
ing a butterfly) and it makes the
siren sounds.
 If boxes are piled high in the vehi- cle, the sensor may not detect the
movement behind the boxes. Also
the boxes may drop and it makes
the siren sounds.
 If the sensor is stained with for- eign matter such as cosmetics,
spray type air freshener, or spray
type window cleaner, the sensor
may not operate normally.Theft-alarm stage
Intrusion/tilt sensor off condition
The alarm will be activated if any of
the following occurs whilst the sys-
tem is armed.
A front or rear door is opened with-out using the transmitter (or smart
key).
The tailgate is opened without using the transmitter (or smart key).
The engine bonnet is opened.
The ignition switch is in the ON position. Intrusion/tilt sensor on condition
The alarm will be activated if any of
the following occurs whilst the sys-
tem is armed when the sensor is
activated.
The passenger(s) moves in the
vehicle.
The inclination of the vehicle is changed to the certain degree.
A front or rear door is opened without using the transmitter (or smart key).
The tailgate is opened without using the transmitter (or smart key).
The engine bonnet is opened.
The ignition switch is in the ON position.
The siren will sound and the hazard
warning lights will blink continuously
for approximately 27 seconds and
repeat max. 8 times whilst the sys-
tem is met the alarm activate condi-
tion. To turn off the system, unlock
the doors with the transmitter (or
smart key).

Features of your vehicle
22
4
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The 3 seconds are passed after
the engine has been started.
Smart key
- The door unlock button is pressed.
- The button of the front outside dooris pressed whilst carrying the
smart key.
- The engine is started.
After the doors are unlocked, the haz-
ard warning lights will blink twice to
indicate that the system is disarmed.
After pressing the unlock button, if
any door (or tailgate) is not opened
within 30 seconds, the system will be
rearmed.
✽✽ NOTICE
 Avoid trying to start the engine whilst the alarm is activated. The
vehicle starting motor is disabled
during the theft-alarm stage.
 If you lose your keys, we recommend that you consult an authorised Kia
dealer.Self-diagnosis (if equipped)
If the siren sounds 3 times when you
lock the doors by using the transmit-
ter, it means the intrusion/tilt sensor
is not working normally. We recom-
mend that you contact an authorised
Kia dealer.
CAUTION
Do not change, alter or adjust the
system because it could causethe system to malfunction and we recommend that the systembe serviced by an authorised Kiadealer.
Malfunctions caused by improp-er alterations, adjustments or modifications to the system arenot covered by your vehiclemanufacturer warranty.

423
Features of your vehicle

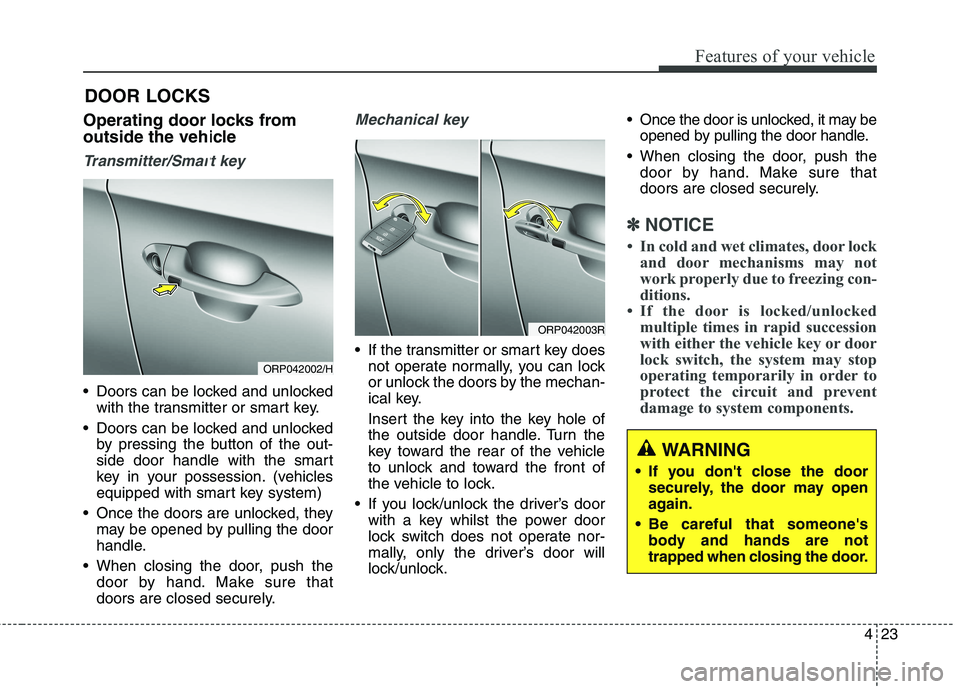

Operating door locks from
outside the vehicle
Transmitter/Smart key
Doors can be locked and unlockedwith the transmitter or smart key.
Doors can be locked and unlocked by pressing the button of the out-
side door handle with the smart
key in your possession. (vehicles
equipped with smart key system)
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
Mechanical key
If the transmitter or smart key doesnot operate normally, you can lock
or unlock the doors by the mechan-
ical key.
Insert the key into the key hole of
the outside door handle. Turn the
key toward the rear of the vehicle
to unlock and toward the front of
the vehicle to lock.
If you lock/unlock the driver’s door with a key whilst the power door
lock switch does not operate nor-
mally, only the driver’s door will
lock/unlock. Once the door is unlocked, it may be
opened by pulling the door handle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
✽✽ NOTICE
 In cold and wet climates, door lock and door mechanisms may not
work properly due to freezing con-
ditions.
 If the door is locked/unlocked multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
DOOR LOCKS
WARNING
If you don't close the door securely, the door may open
again.
Be careful that someone's body and hands are not
trapped when closing the door.
ORP042002/H
ORP042003R

Features of your vehicle
26
4
Ty p e B
Operate by pressing the central door
lock switch.
When pressing the front portion (1)
of the switch, all vehicle doors will
lock.
When pressing the rear portion (2) of the switch, all vehicle doors will
unlock.
If the key is in the ignition switch (or if the smart key is in the vehicle)
and any door is opened, the doors
will not lock even though the front
portion (1) of the central door lock
switch is pressed.
WARNING - Door lock
malfunction
If a power door lock ever fails to
function whilst you are in the
vehicle, try one or more of the
following:
Operate the other door locks and handles.
Lower the driver’s window and use the key to unlock the
door from outside.
Move to the cargo area and open the tailgate.WARNING - Doors
The doors should always be fully closed and locked whilst
the vehicle is in motion to pre-vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows down.
Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.Opening a door when some-
thing is approaching can
cause damage or injury.
ORP042006R2

427
Features of your vehicle

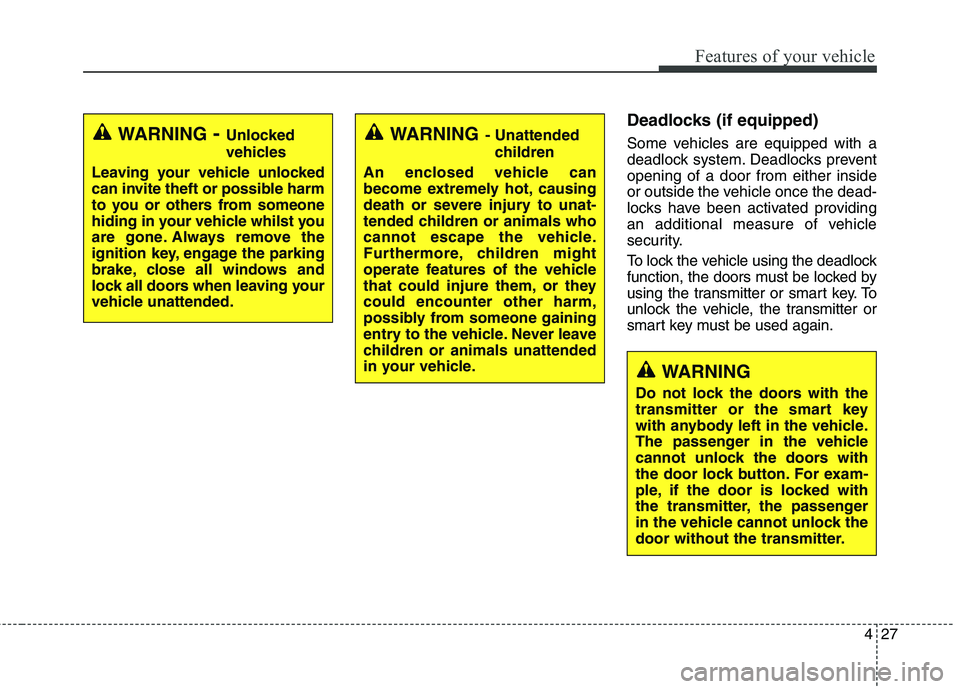

Deadlocks (if equipped)
Some vehicles are equipped with a
deadlock system. Deadlocks preventopening of a door from either inside
or outside the vehicle once the dead-
locks have been activated providing
an additional measure of vehicle
security.
To lock the vehicle using the deadlock
function, the doors must be locked by
using the transmitter or smart key. To
unlock the vehicle, the transmitter or
smart key must be used again.WARNING- Unlocked
vehicles
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle whilst you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.WARNING - Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or theycould encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
WARNING
Do not lock the doors with the
transmitter or the smart key
with anybody left in the vehicle.
The passenger in the vehicle
cannot unlock the doors with
the door lock button. For exam-
ple, if the door is locked with
the transmitter, the passenger
in the vehicle cannot unlock the
door without the transmitter.
