4

45

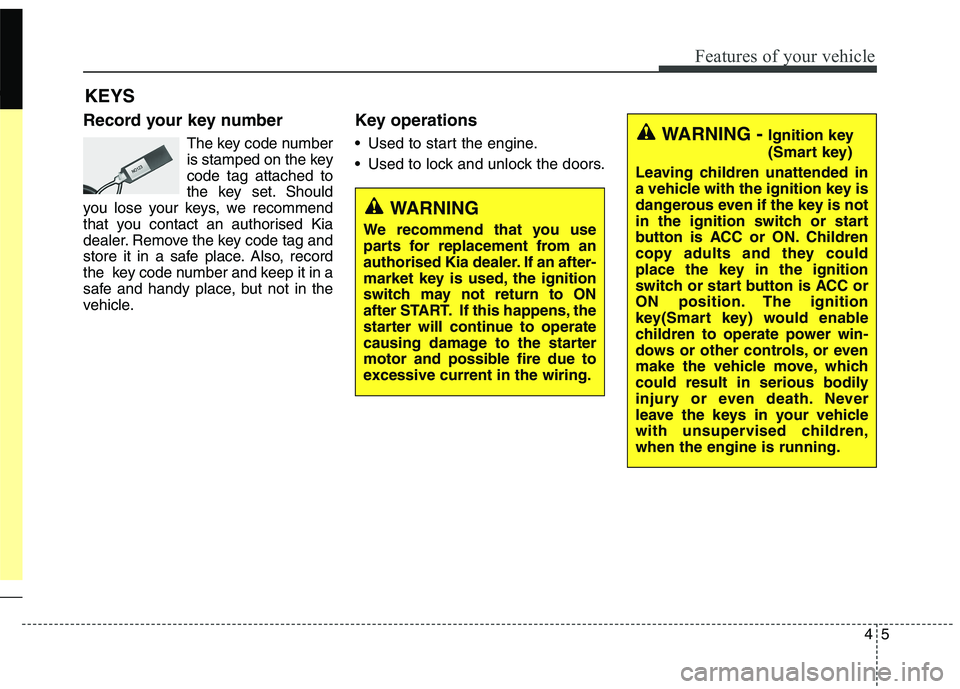

Features of your vehicle
Record your key numberThe key code number
is stamped on the keycode tag attached to
the key set. Should
you lose your keys, we recommend
that you contact an authorised Kia
dealer. Remove the key code tag and
store it in a safe place. Also, record
the key code number and keep it in a
safe and handy place, but not in the
vehicle. Key operations
• Used to start the engine.
Used to lock and unlock the doors.
KEYSWARNING -
Ignition key
(Smart key)
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition switch or start
button is ACC or ON. Children
copy adults and they could
place the key in the ignition
switch or start button is ACC or
ON position. The ignition
key(Smart key) would enable
children to operate power win-
dows or other controls, or even
make the vehicle move, which
could result in serious bodily
injury or even death. Never
leave the keys in your vehicle
with unsupervised children,when the engine is running.
WARNING
We recommend that you use
parts for replacement from an
authorised Kia dealer. If an after-
market key is used, the ignition
switch may not return to ON
after START. If this happens, the
starter will continue to operate
causing damage to the starter
motor and possible fire due to
excessive current in the wiring.

47
Features of your vehicle
✽✽NOTICE
When starting the engine, do not use
the key with other immobiliser keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separate in
order to avoid a starting malfuntioin. ✽✽
NOTICE
If you need additional keys or lose
your keys, we recommend that you
consult an authorised Kia dealer.
CAUTION
The transponder in your ignition key is an important part of theimmobiliser system. It is designed to give years of trou-ble-free service, however youshould avoid exposure to mois-ture, static electricity and rough handling. Immobiliser systemmalfunction could occur.
CAUTION
Do not change, alter or adjust theimmobiliser system because itcould cause the immobiliser sys- tem to malfunction. We recom-mend that the system be serv-iced by an authorised Kia dealer.
Malfunctions caused by improp-er alterations, adjustments or modifications to the immobilisersystem are not covered by yourvehicle manufacturer warranty.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobiliser password is a cus-
tomer unique password and
should be kept confidential. Do
not leave this number anywhere
in your vehicle.CAUTION
Do not put metal accessories near the ignition switch.
The engine may not startbecause the metal accessoriesmay interrupt the transponder signal from normally transmit-ting.

49
Features of your vehicle
3. The hazard warning light will blinkonce to indicate that all doors are
locked (the engine bonnet and tail-
gate must be closed). Also, the out-
side rearview mirror will automati-
cally fold if the outside rearview
mirror folding switch (Type B) is in
the AUTO position (if equipped).
✽✽ NOTICE
The doors will not lock if any door is
opened.
Unlock (2)
1. Press the unlock button.
2. The hazard warning lights will blink twice to indicate that all
doors are unlocked. Also, the out-
side rearview mirror will automati-
cally unfold if the outside rearview
mirror folding switch (Type B) is in
the AUTO position (if equipped).
✽✽ NOTICE
After unlocking all doors, the doors
will lock and the outside rearview
mirror will unfold if the outside
rearview mirror folding switch
(Type B) is in the AUTO position (if
equipped) unless a door is opened
within 30 seconds.
Tailgate unlock (3)
1. Press the tailgate unlock button for more than 1 second.
2. The hazard warning light will blink twice to indicate the tailgate is
unlocked.
✽✽ NOTICE
 After unlocking the tailgate, the tailgate will lock automatically
unless it is opened within 30 sec-
onds.
 Once the tailgate is opened and then closed, the tailgate will lock
automatically.
 The word "HOLD" is written on the button to inform you that you
must press and hold the button.

413
Features of your vehicle
SMART KEY (IF EQUIPPED)
Smart key function
1. Door lock
2. Door unlock
3. Tailgate unlock
With a smart key, you can lock or
unlock a door and tailgate and even
start the engine without inserting the
key.
The functions of the buttons on a
smart key are similar to the remote
keyless entry. Refer to the “Remote
keyless entry” in this chapter. Carrying the smart key, you may lock
and unlock the vehicle doors and tail-
gate.
Also, you may start the engine. Refer
to the following, for more details.
Locking
1. Carry the smart key.
2. Close all doors.
3. Press the button of the outside
door handle.
4. The hazard warning lights will blink once (the engine bonnet and tail-
gate must be closed). Also, the out-
side rearview mirror will automati-
cally fold if the outside rearview
mirror folding switch is in the
AUTO position (if equipped).
5. Make sure that doors are locked by pulling the outside door handle.
✽✽ NOTICE
 The button will only operate when the smart key is within 0.7 m (28
in.) from the outside door handle.
 Even though you press the outside door handle button, the doors will
not lock and the chime will sound
for 3 seconds if any of following
occur:- The smart key is in the vehicle.
- The engine start/stop button is in ACC or ON position.
- Any door except the tailgate is opened.
OPS046423L

Features of your vehicle
14
4
Unlocking
1. Carry the smart key.
2. Press the button of the front out-
side door handle.
3. All doors will unlock and the hazard warning lights will blink twice. Also,
the outside rearview mirror will
automatically unfold if the outside
rearview mirror folding switch is in
the AUTO position (if equipped).
✽✽ NOTICE
 The button will only operate when the smart key is within 0.7 m (28
in.) from the outside door handle.
 When the smart key is recognized in the area of 0.7 m (28 in.) from
the front outside door handle, other
people can also open the doors.
 After unlocking all doors, the doors will lock and the outside
rearview mirror will unfold if the
outside rearview mirror folding
switch is in the AUTO position (if
equipped) unless a door is opened
within 30 seconds.
Tailgate unlocking
1. Carry the smart key.
2. Press the tailgate handle switch.
3. The tailgate will unlock.
✽✽ NOTICE
 Once the tailgate is opened and then closed, the tailgate will lock
automatically.
 The button will only operate when the smart key is within 0.7 m (28
in.) from the tailgate handle.
Smart key precautions
✽✽ NOTICE
 If, for some reason, you happen to lose your smart key, you will not
be able to start the engine. Tow
the vehicle, if necessary, we recom-
mend that you contact an autho-
rised Kia dealer.
 A maximum of 2 smart keys can be registered to a single vehicle. If
you lose a smart key, we recom-
mend that you contact an autho-
rised Kia dealer.
 The smart key will not work if any of the following occurs:
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the smart key.
- The smart key is near a mobile two-way radio system or a
mobile phone.
- Another vehicle’s smart key is being operated close to your
vehicle. (Continued)

Features of your vehicle
16
4
Vehicles equipped with a theft alarm
system will have a label attached to
the vehicle with the following words:
1. WARNING
2. SECURITY SYSTEM This system is designed to provide
protection from unauthorised entry
into the vehicle. This system is oper-
ated in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.Armed stage
Using the smart key
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine.
2. Make sure that all doors, the
engine bonnet and tailgate are closed and latched.
button of the front outside door
handle with the smart key in yourpossession.
After completion of the steps
above, the hazard warning lights
will operate once to indicate that
the system is armed. If the tailgate or engine bonnet remains opened, the hazard
warning lights will not operate
and theft-alarm will not arm. After
this, if the tailgate and enginebonnet are closed, the hazard
warning lights will blink once and
the theft-alarm will arm.
THEFT-ALARM SYSTEM (IF EQUIPPED)Armed
stage
Theft-alarm stageDisarmedstage
OJC040170

417
Features of your vehicle
lock button on the smart key.
After completion of the steps
above, the hazard warning lights
will operate once to indicate that
the system is armed. If the tailgate or engine bonnet remains opened, the hazard
warning lights will not operate
and theft-alarm will not arm. After
this, if the tailgate and enginebonnet are closed, the hazard
warning lights will blink once and
the theft-alarm will arm.Using the transmitter
Park the vehicle and stop the engine.
Arm the system as described below.
1. Turn off the engine and remove the ignition key from the ignition switch.
2. Make sure that all doors, the engine bonnet and tailgate areclosed and latched.
3. Lock the doors by pressing the lock button on the transmitter.
After completion of the steps
above, the hazard warning lights
will blink once to indicate that the
system is armed. If the tailgate or engine bonnet
remains opened, the hazard warn-
ing lights will not operate and
theft-alarm will not arm. After this,if the tailgate and engine bonnet
are closed, the hazard warning
lights will blink once and the theft-
alarm will arm. Do not arm the system until all
passengers have left the vehi-
cle. If the system is armed whilst
a passenger(s) remains in the
vehicle, the alarm may be acti-
vated when the remaining pas-
senger(s) leave the vehicle. If
any door, tailgate or engine bon-net is opened within 30 seconds
after entering the armed stage,the system is disarmed to pre-
vent unnecessary alarm.
