Features of your vehicle
152
4
2. Turn the temperature control knob
to set the desired temperature.
✽✽ NOTICE
 To turn the automatic operation off, select any button of the following:- Mode selection button
- Air conditioning button (Except Europe)
- Front windscreen defrost button (Press the button one more time
to deselect the front windscreen
defroster function. The ‘AUTO’
sign will illuminate on the infor-
mation display once again.)
- Fan speed control button
The selected function will be con-
trolled manually whilst other
functions operate automatically.
 For your convenience and to improve the effectiveness of the
climate control, use the AUTO
button and set the temperature to
22°C/71°F (23°C/73°F -Except
Europe). ✽
✽
NOTICE
Placing any object over the sensor
on the instrument panel may inter-
fere with the heating and cooling
system.
ORP046151RORP042150

Features of your vehicle
166
4
This indicator illuminates
when the auto defoggingsystem senses the mois-ture of inside the wind-
screen and operates.
If more moisture is in the vehicle,
higher steps operate as follow.
Step 1 : Operating the air condition- ing
Step 2 : Blowing air flow toward the windscreen
Step 3 : Outside air position
Step 4 : Increasing air flow toward the windscreen If your vehicle is equipped with the
auto defogging system, it is automat-
ically activated when the conditions
are met. To cancel or reset the Auto
Defogging system, press the front
windscreen defroster button for 3
seconds when the ignition switch is in
the ON position. When the Auto
Defogging System is Cancelled, ADS
OFF symbol will blink 3 times and the
ADS OFF will be displayed on the cli-
mate control information screen.
When the Auto Defogging System is
reset, ADS OFF symbol will blink 6times without a signal. In case of automatic climate control
system with a climate button, it blinks
defroster button indicator. Blinking
time is same as above.
To use the auto defogging system
again, follow the procedures men-
tioned above.
If the battery has been disconnected or discharged, it resets to the auto
defogging status.✽✽
NOTICE
If the A/C off is manually selected
whilst the auto defogging system is
on, the auto defogging indicator will
blink 3 times to give notice that the
A/C off can not be selected.
CAUTION
Do not remove the sensor cover located on the upper end of thedriver side windscreen glass. Damage to the system partscould occur and may not be cov-ered by your vehicle warranty.

Driving your vehicle
20
6
ISG system malfunction
The system may not operate
when:
The ISG related sensors or system
error occurs.
The following will happen:
The yellow AUTO STOP ( ) indi- cator on the instrument cluster will
stay on after blinking for 5 seconds.
The light on the ISG OFF button will illuminate.
✽✽ NOTICE
 If the ISG OFF button light is not turned off by pressing the ISG
OFF button again or if the ISG
system continuously does not
work correctly, we recommend
that you contact an authorised Kia
dealer as soon as possible.
 When the ISG OFF button light comes on, it may stop illuminating
after driving your vehicle at
approximately 80 km/h for a max-
imum of two hours and setting the
fan speed control knob below the
2nd position. If the ISG OFF but-
ton light continues to be illuminat-
ed in spite of the procedure, we
recommend that you contact an
authorised Kia dealer as soon as
possible.
ORP056008R
WARNING
When the engine is in Idle Stop
mode, it's possible to restart theengine without the driver taking
any action.
Before leaving the car or doing
anything in the engine room
area, stop the engine by turning
the ignition switch to the
LOCK/OFF position or remov-
ing the ignition key.

Driving your vehicle
78
6
This system detects the lane with the sensor at the front windscreen and
warns you when your vehicle leaves
the lane.
LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)
WARNING
The LDWS does not make the vehicle change lanes. It is the driver's responsibility to
always check the road condi-tions.
Do not turn the steering wheel suddenly, when the LDWS
warns you that your vehicle is
leaving the lane.
If the sensor can not detect the lane or if the vehicle speed
does not exceed 60km/h, the
LDWS won't warn you even
though the vehicle leaves the
lane.
If your vehicle has window tint or other types of coating and
accessory on the front wind-
screen, the LDWS may not
work properly.
(Continued)
(Continued)
Do not let water or any kind ofliquid come in contact with
the LDWS sensor.
Do not remove the LDWS parts and do not affect the
sensor by a strong impact.
Do not put objects that reflect light on the dash board.
Always check road conditions because you may not hear the
warning chime because of
audio and external conditions.
ORP056044R
ORP052042
ORP056043L

679
Driving your vehicle
To operate the LDWS, press the
switch with the ignition in the ON
position. The indicator illuminates on
the cluster. To cancel the LDWS,
press the switch again.If you select this symbol, the LDWS
mode on the LCD display will appear.
If your vehicle leaves the lane when
the LDWS is operating and vehicle
speed exceeds 60km/h, the warning
operates as follows:
ORP046342LORP052059
ORP046343L
ORP046344L
■When the sensor detects the lane line
■When the sensor doesn’t detect the lane line

Driving your vehicle
80
6

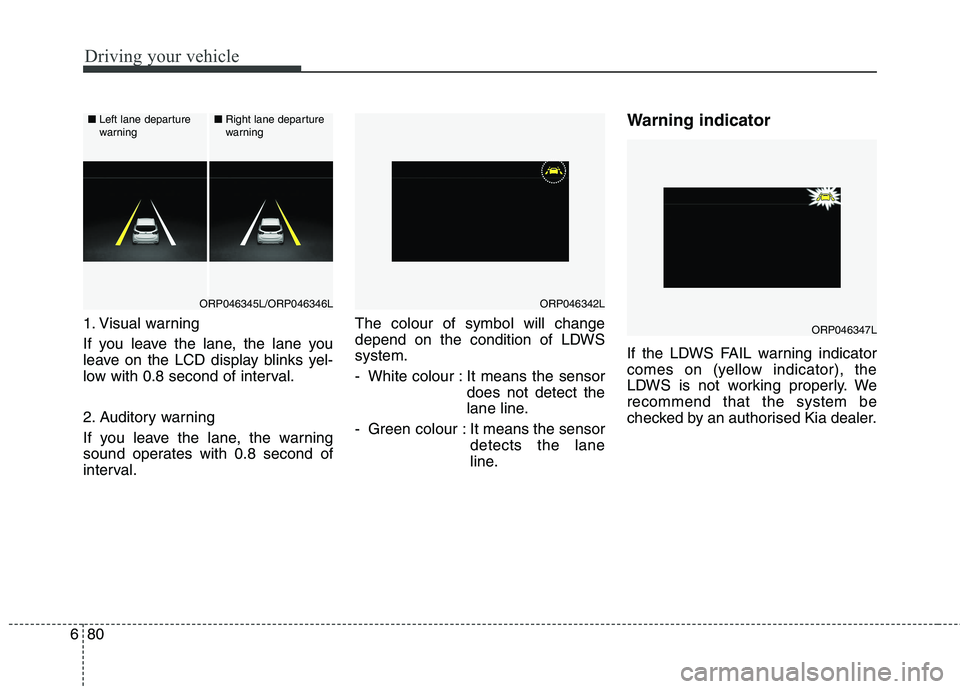

1. Visual warning
If you leave the lane, the lane you
leave on the LCD display blinks yel-
low with 0.8 second of interval.
2. Auditory warning
If you leave the lane, the warning
sound operates with 0.8 second of
interval. The colour of symbol will change
depend on the condition of LDWSsystem.
- White colour : It means the sensor
does not detect the
lane line.
- Green colour : It means the sensor detects the lane
line. Warning indicator
If the LDWS FAIL warning indicator
comes on (yellow indicator), the
LDWS is not working properly. Werecommend that the system be
checked by an authorised Kia dealer.ORP046347L
ORP046342L
■
Left lane departure
warning ■
Right lane departure
warning
ORP046345L/ORP046346L

681
Driving your vehicle
The LDWS does not operate when:
The driver turns on the turn signalor hazard warning flasher to
change lane.
Driving on the lane line.
✽✽ NOTICE
To change lane, operate the turn sig-
nal switch, then change the lane.
The LDWS may not warn you
even if the vehicle leaves the
lane, or may warn you even if
the vehicle does not leave thelane when:
The lane is not visible due to snow, rain, stain, a puddle or many other
things.
The brightness of the outside changes suddenly.
Not turning on the headlight even at night or in the tunnel.
Difficult to distinguish the colour of the lane from the road.
Driving on a steep grade or a curve.
Light reflects from the water on the road.
The lens or windscreen is stained with foreign matter.
The sensor can not detect the lane because of fog, heavy rain or
heavy snow.
The surrounding temperature of the inside rear view mirror is high
due to a direct ray of light.
The lane is very wide or narrow. The lane line is damaged or indis-
tinct.
The shadow is on the lane line by a median strip.
There is a mark similar to a lane line.
There is a boundary structure.
The distance from vehicle ahead is very short or the vehicle ahead
hides the lane line.
The vehicle shakes heavily.
The lane number increases or decreases or the lane lines are
crossing complicatedly.
Putting something on the dash- board.
Driving with the sun in front of you.
Driving in areas under construc- tion.
The lane line is more than two in either side (Left/Right).

Driving your vehicle
82
6
The BSD (Blind spot detection) sys-
tem uses a radar sensor to alert the
driver whilst driving.
It senses the rear side territory of the
vehicle and provides information to
the driver. ➀
BSD(Blind spot detection)
Warning range is dependent on your
vehicle speed. However, if the speed
of your vehicle is faster by 10km/h or
more than other nearby vehicles, the
warning is not operated. ➁ LCA(Lane change assist)
When vehicles are approaching to
your vehicle at high speed, the warn-
ing is operated. ➂ RCTA(Rear cross traffic alert)
When your vehicle moves backward,
the sensor detects approaching vehi-
cles to the left or right side direction
and warning is operated.
BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)
OUM056176L
WARNING
Always check the road condi- tion whilst driving for unex-
pected situations even thoughthe BSD (Blind spot detection)system is operating.
BSD (Blind spot detection) system is a system made for
convenience. Do not solely
rely on the system but always
pay attention to drive safely.
