Features of your vehicle
Operating condition
The system will help park the vehicle
in the middle or back of a parked
vehicle. Use the system when all the
below conditions are met.
When the parking space is astraight line
When parallel parking is required
When there is a parked vehicle
When there is enough space to move the vehicle Non-operating condition
Never use the Smart Parking Assist
System in the below conditions.
Curved parking space
Inclined roads
A vehicle loaded with longer or
wider cargo compared to the vehicle
Diagonal parking space
Parking space with trash, grass or barriers
Heavy snow or rain
A pole close to the parking line
Bumpy roads
A vehicle equipped with a snow chain or spare tyre
Tyre pressure lower or higher than the standard tyre pressure
A trailer connected to the vehicle
Slippery or uneven road
Big vehicles such as buses or trucks parked
Sensor covered with foreign mat- ter, such as snow or water
Moisture frozen on the sensor
A motorcycle or bicycle parked A trash can or obstacle near
Heavy wind
Wheel changed to an unauthorised
size
A problem with the wheel alignment
Next to a garden or bush
A accessory installed on the detec- tive area the of sensors (such as
number plate holder)
Vehicle leaned severely to one side
Strong sunlight or very cold weather
Ultrasonic interference other vehi- cle's. Such as horn sounds of other
vehicles, motorcycle's engine noise,
air brake noise of heavy vehicles
and with the other vehicle's parking
assist system working.
OVF041307R
■Right side
- parallel mode■ Left side
-parallel mode

Features of your vehicle
108
4
WARNING
Do not use the Smart Parking
Assist System in the following
conditions for unexpected
results may occur and cause aserious accident.
1. Parking on inclines
The driver must apply the accel- erator and brake pedal when
parking on inclines. If the driver
is unfamiliar with applying the
accelerator and brake pedal, a
vehicle accident may occur. (Continued)
ORP042104
(Continued)
2. Parking in snow
Snow may interfere with sensor
operation or the system may
cancel if the road is slippery
whilst parking. Also, if the driv-
er is unfamiliar with applyingthe accelerator and brake pedal,
a car accident may occur.(Continued)(Continued)
3. Parking in narrow space
The system may not search for parking spaces if the space is
too narrow. Even if it operates
always be careful.(Continued)
ORP042105ORP042106

Features of your vehicle
110
4
How the system works
1. Activate the Smart Parking Assist
System
2. Select parking assist mode
3. Search for parking space (slowly move forward.)
4. Search complete (automatic search by sensor.)
5. Steering wheel control (1) Shift according to the instruc- tion on the LCD display.
(2) Drive slo wly with the brake
pedal applied.
6. Smart Parking Assist System complete
7. If necessary, manually adjust posi- tion of vehicle.✽✽ NOTICE
 Before activating the system check if the conditions are possible to use
the system.
 For your safety, always apply the brake pedal except for when driv-
ing.(Continued)
7. Obstacle in parking space
The system may search for a
parking space even though an
obstacle is in the parking
space. An accident may occur if
you continue to park the vehiclewith the system.
Do not solely rely on the Smart
Parking Assist System.
OVF041309R

4111
Features of your vehicle
1. Activate Smart Parking AssistSystem
Press the Smart Parking AssistSystem button (the button indicator will illuminate).
The Parking Assist System will be activated (the button indicator willilluminate).
A warning sound will be heard if an obstacle is detected.
Press the Smart Parking Assist System button again for more than
2 seconds to turn off the system.
The Smart Parking Assist System defaults to the OFF position when-
ever the ignition switch is turned on.
2. Select parking assist mode
Select the parking assist mode bypressing the Smart Parking Assist
System button with the shift lever in
N (Neutral) or D(Drive) and the
brake pedal depressed.
The right side parallel mode is selected automatically when the
Smart Parking Assist System is
activated.
To select the left side parallel mode press the Smart Parking Assist
System button once more.
If the button is pressed again, the system will turn off.
3. Search for parking space
Slowly drive forward maintainingthe distance of approximately 50cm ~ 150cm (19.6in.~59.0in.) with the
parked vehicles. The side sensors
will search for a parking space.
If the vehicle speed is over 30km/h (18.6mph), a message will appearto notify to reduce speed.
If the vehicle speed is over 40km/h (24.8mph), the system will cancel.ORP046103RORP046333L/ORP046334L
■
Right side
- parallel mode ■
Left side
-parallel modeORP046335L/ORP046336L
■
Right side
- parallel mode ■
Left side
-parallel mode

Features of your vehicle
112
4
✽✽
NOTICE
 Turn on the hazard warning flasher if it is crowded with other vehicles.
 If the parking lot is small, slowly drive more nearer to the parking
space.
 The search for a parking space will be completed only when there
is enough space for the vehicle to
move to park.
✽
✽ NOTICE
 When searching for a parking space, the system may not be able
to find a parking space if there is
no vehicle parked, a parking space
is available after driving by or a
parking space is available before
driving by.
 The system may not operate nor- mally in the following conditions:
(1) When the sensors are frozen
(2) When the sensors are dirty
(3) When it snows or rains heavily
(4) When a pillar or object is near ✽
✽
NOTICE
Slowly drive forward maintaining
the distance of approximately 50cm
~ 150cm (19.6in.~59.0in.) with the
parked vehicles. If not within the
distance, the system may not be able
to search for a parking space.
4. Search complete
Whilst driving forward to search for a
parking space, the above messagewill appear with a beep sound if the
search is complete. Stop the vehicle
and shift to the R (Reverse) position.
CAUTION
After searching for a parking space is completed, continueusing the system after checking the surrounding area.
OVF041310R
50~150 cm
CAUTION
Always drive slowly with the
brake pedal applied.
If the parking space is to small the system may be cancelledat the Steering wheel control stage. Do not park your vehicleif the space is too small.
ORP046337L/ORP046338L
■
Right side
- parallel mode ■
Left side
-parallel mode

4121
Features of your vehicle
Auto light (if equipped)
When the light switch is in the AUTO light position, the taillights and head-
lights will be turned ON or OFF auto-matically depending on the amount
of light outside the vehicle.High - beam operation
1. Turn the light switch to the head-
light position.
2. Push the lever away from you.
CAUTION
Never place anything over the sensor (1) located on the instru-ment panel, this will ensure bet-ter auto-light system control.
Don’t clean the sensor using a window cleaner, the cleanermay leave a light film which could interfere with sensoroperation.
If your vehicle has window tint or other types of coating on thefront windscreen, the Auto light system may not work properly.
ORP042119
ORP042119R
■ Type A
■Type BORP042118
ORP042118R
■ Type A
■Type B

Features of your vehicle
128
4

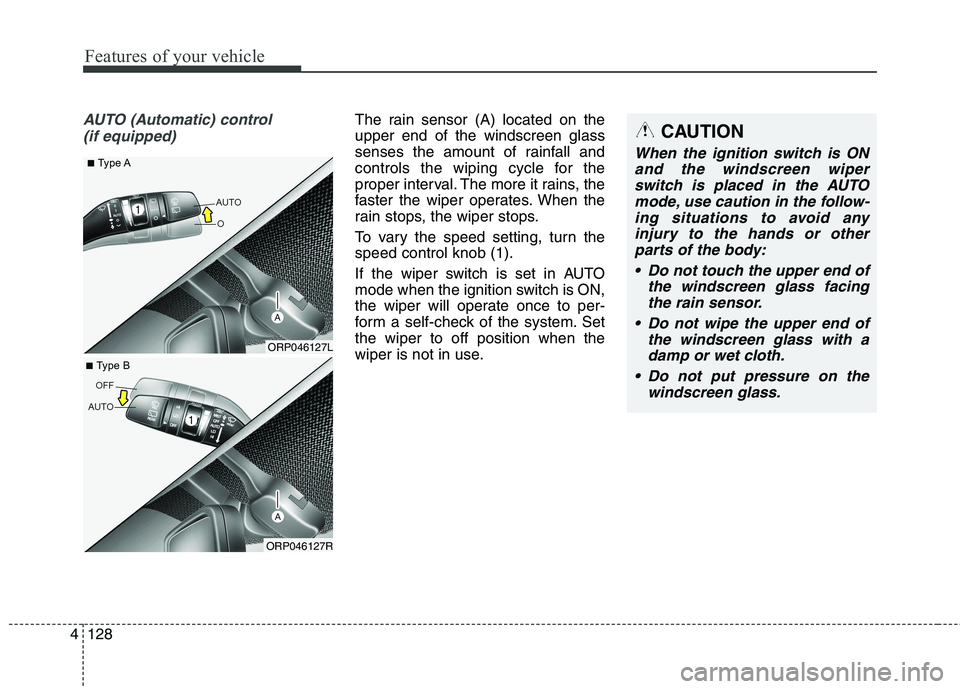

AUTO (Automatic) control
(if equipped)The rain sensor (A) located on the upper end of the windscreen glass
senses the amount of rainfall and
controls the wiping cycle for the
proper interval. The more it rains, the
faster the wiper operates. When the
rain stops, the wiper stops.
To vary the speed setting, turn the speed control knob (1).
If the wiper switch is set in AUTO
mode when the ignition switch is ON,
the wiper will operate once to per-
form a self-check of the system. Setthe wiper to off position when the
wiper is not in use.CAUTION
When the ignition switch is ONand the windscreen wiperswitch is placed in the AUTO mode, use caution in the follow-ing situations to avoid anyinjury to the hands or otherparts of the body:
Do not touch the upper end of the windscreen glass facingthe rain sensor.
Do not wipe the upper end of the windscreen glass with adamp or wet cloth.
Do not put pressure on the windscreen glass.
ORP046127L
■
Type A
ORP046127R
■
Type B

4129
Features of your vehicle
Windscreen wipersWhen the wiper blade is not in a nor-
mal position, place the ignition switch
in the ON position. The wiper blade
will return to the normal position.
Following are cases a wiper blade
may be in an abnormal position.
- The wiper blade may be positioned
abnormally when in an automatic
vehicle wash. (Ignition switch in theOFF position)
- The wiper blade may be positioned abnormally when moved by force.
- The passenger's side wiper is on top of the driver's side wiper.
(Normal position : The driver's side
wiper must be on top of the pas-
senger's side wiper.)CAUTION
When washing the vehicle, set
the wiper switch in the off posi-tion to stop the auto wiper oper- ation.
The wiper may operate and bedamaged if the switch is set inthe AUTO mode whilst washingthe vehicle.
Do not remove the sensor coverlocated on the upper end of the driver side windscreen glass.Damage to system parts couldoccur and may not be covered by your vehicle warranty.
When starting the vehicle inwinter, set the wiper switch inthe off position. Otherwise,wipers may operate and ice may damage the windscreen wiperblades. Always remove all snowand ice and defrost the wind-screen properly prior to operat- ing the windscreen wipers.■ Normal position
■Abnormal position■ Abnormal position
■Ignition switch is ON
■ Normal position
ORP072060R
