2017 INFINITI QX30 ESP

Press and hold thebutton until the side
windows are in the desired position.
To interrupt convenience opening: release the
button.
Convenience closing feature
WARNING
When the convenience closing feature is oper-
ating, parts of the body could become trapped
in the closing area of the side window. There is
a risk of injury. Observe the complete closing
procedure when the convenience closing fea-
ture is operating. When closing make sure that
no parts of the body are in the closing area.
For vehicles with Intelligent key:The key can
also be used to carry out the following functions
simultaneously:
•Lock the vehicle
•Close the side windows
The driver’s door and the door at which the
handle is used must both be closed. The key
must be outside the vehicle. The gap between
the key and the corresponding door handle
should not be greater than 1 m.
Press and hold the
button until the side
windows are fully closed.To interrupt convenience closing: release the
button.
You can also use the keyless locking feature to
activate convenience closing:
Touch recessed sensor surface
1on the door
handle until the side windows are fully closed.
NOTE
Make sure you only touch recessed sensor sur-
face
1.
To interrupt convenience opening: release the
recessed sensor surface
1on the door handle.
Resetting the side windows
If a side window can no longer be closed fully,
you must reset it.
1.
Switch the ignition switch to the ON position.
2. Close the door.
3. Pull the corresponding switch on the door
control panel until the side window is com-
pletely closed
4. Hold the switch for an additional second.
NPA1478
Instruments and controls2-73

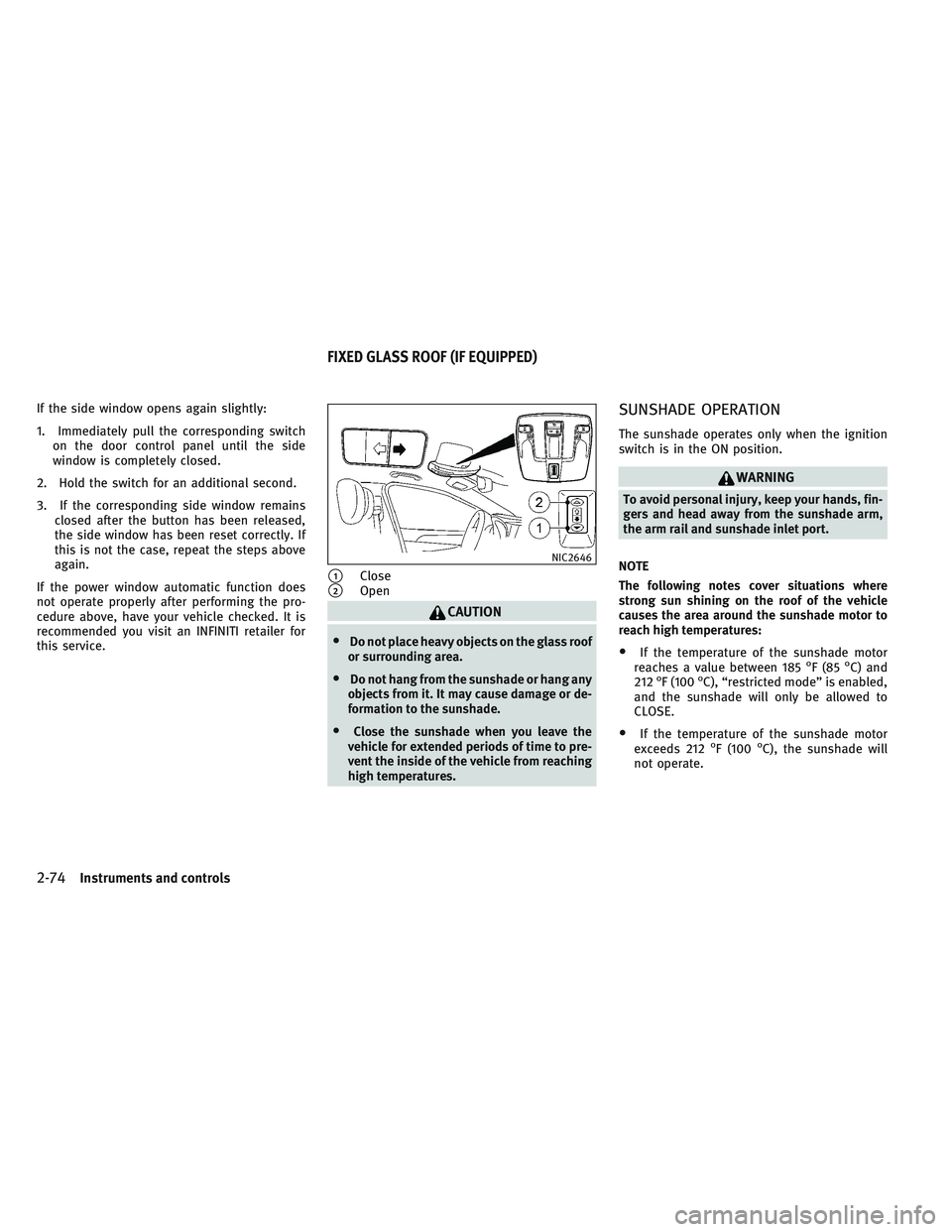

If the side window opens again slightly:
1. Immediately pull the corresponding switch
on the door control panel until the side
window is completely closed.
2. Hold the switch for an additional second.
3. If the corresponding side window remains
closed after the button has been released,
the side window has been reset correctly. If
this is not the case, repeat the steps above
again.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked. It is
recommended you visit an INFINITI retailer for
this service.
1Close
2Open
CAUTION
•Do not place heavy objects on the glass roof
or surrounding area.
•Do not hang from the sunshade or hang any
objects from it. It may cause damage or de-
formation to the sunshade.
•Close the sunshade when you leave the
vehicle for extended periods of time to pre-
vent the inside of the vehicle from reaching
high temperatures.
SUNSHADE OPERATION
The sunshade operates only when the ignition
switch is in the ON position.
WARNING
To avoid personal injury, keep your hands, fin-
gers and head away from the sunshade arm,
the arm rail and sunshade inlet port.
NOTE
The following notes cover situations where
strong sun shining on the roof of the vehicle
causes the area around the sunshade motor to
reach high temperatures:
•If the temperature of the sunshade motor
reaches a value between 185oF (85oC) and
212oF (100oC), “restricted mode” is enabled,
and the sunshade will only be allowed to
CLOSE.
•If the temperature of the sunshade motor
exceeds 212oF (100oC), the sunshade will
not operate.
NIC2646
FIXED GLASS ROOF (IF EQUIPPED)
2-74Instruments and controls

PARCEL SHELF
WARNING
•Never put anything on the parcel shelf, no
matter how small. Any object on it could
cause an injury in case of an accident or if
the brakes are applied suddenly.
•Do not leave the parcel shelf in position
when it is disengaged from the grooves.
•Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury
•Properly secure cargo and do not allow it to
contact the top tether strap when it is at-
tached to the top tether anchor. Cargo that
is not properly secured or cargo that con-
tacts the top tether strap may damage the
top tether strap during a collision. If the
cargo cover contacts the top tether strap
when it is attached to the top tether anchor,
remove the cargo cover from the vehicle or
secure it on the cargo floor below its attach-
ment location. If the cargo cover is not re-
moved, it may damage the top tether strap
during a collision. Your child could be seri-
ously injured or killed in a collision if the
child restraint top tether strap is damaged.
•Do not use the cargo cover if the rear seats
are folded down.
Removal
1. Open the lift gate (seeLift gate lockin the
2. Instruments and controlssection).
2. Detach both of the cords (left and right)
1from the inside of the lift gate.
3. Detach the parcel shelf
2by simply pulling
it rearwards through the lift gate opening.
CAUTION
Make sure the parcel shelf is carefully stored
when not in use in order to prevent any
damage.
Installation
1. Open the lift gate.
2. Insert the parcel shelf by pushing it for-
wards as far as possible through the lift gate
opening.
3. Attach the corresponding cords to each side
1of the lift gate.
4. Close the lift gate (seeLift gate lockin the
2. Instruments and controlssection).
ROOF RACK (IF EQUIPPED)
Genuine NISSAN accessory cross bars are avail-
able through an INFINITI retailer. It is recom-
mended you visit an INFINITI retailer for cross-
bar or other equipment information.
Always distribute the luggage evenly on the roof
rack. Observe the maximum load limit shown on
the crossbars or roof carriers when you attach
them on the roof rails. It is recommended you
visit an INFINITI retailer for cross bar or other
equipment information.
NIC2672
2-82Instruments and controls

Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be
installed before applying load/cargo/luggage
to the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its Gross
Axle Weight Rating (GAWR front and rear). The
GVWR and GAWR are located on the F.M.V.S.S.
or C.V. M.S.S. certification label (located on the
driver’s door pillar). For additional information,
refer toVehicle loading informationin the10.
Technical informationsection.
WARNING
•Drive extra carefully when the vehicle is
loaded at or near the cargo carrying capac-
ity, especially if the significant portion of
that load is carried on the roof rack.
•Heavy loading of the roof rack has the po-
tential to affect the vehicle stability and
handling during sudden or unusual han-
dling maneuvers.
•Roof rack load should be evenly distrib-
uted.
•Do not exceed maximum roof rack load
weight capacity.
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, unse-
cured cargo could cause personal injury.
CAUTION
Always install the cross bars (if so equipped)
onto the roof side rails before loading cargo of
any kind. Loading cargo directly onto the roof
side rails or the vehicle’s roof may cause ve-
hicle damage.
SKI HATCH (IF EQUIPPED)
To open the ski hatch:
1. Fold down rear seat armrest.
2. Pull the center head restraint on the rear
bench seat into the uppermost position.
3. Slide locking mechanism
1in the direction
of the arrow
4. Swing flap
2fully to the side. The flap is
held open by a magnet.
To close the ski hatch:
1. Swing flap
1in the luggage compartment
back until it engages.
2. Fold armrest fully up if necessary.
NIC2668
Instruments and controls2-83

1. Turn the ignition key to the ON position.
2. Press and hold one of buttons
2to4on
the HomeLink®.
HomeLink® is now in programing mode.
After a short time, indicator lamp
1lights
up yellow.
Indicator lamp
1lights up yellow as soon
as button
2,3or4is programed for the
first time. If the selected button has already
been programed, indicator lamp
1will only
light up yellow after ten seconds have elapsed.
3. Release button2,3or4. Indicator lamp
1flashes yellow.
4. Position the end of your hand-held trans-
mitter
52–8 inches (5–20 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light
1in view.5. Press and hold button
6on the hand held
transmitter until indicator lamp
1lights up
green. When indicator lamp
1: lights up
green: programing is finished.
When indicator lamp
1flashes green: pro-
graming was successful. The next step is to
synchronize the rolling code.
6. Release button
6on the hand held trans-
mitter
5for the garage door drive system.
If indicator lamp
1lights up red: repeat the
programing procedure for the corresponding
button on the rear-view mirror. When doing
so, vary the distance between the hand held
transmitter
5and the rear-view mirror.
The required distance between the hand
held transmitter
5and the integrated ga-
rage door opener depends on the garage
door drive system. Several attempts might
be necessary. You should test every position
for at least 25 seconds before trying another
position.
Synchronizing the rolling code
If the garage door system uses a rolling code,
you will also have to synchronize the garage
door system with the integrated garage door
opener in the rear-view mirror. To do this you
will need to use the programing button on the
door drive control panel. The programing buttonmay be positioned at different locations de-
pending on the manufacturer. It is usually lo-
cated on the door drive unit on the garage
ceiling.
Familiarize yourself with the garage door drive
operating instructions before carrying out the
following steps.
Your vehicle must be within reach of the garage
door or gate opener drive. Make sure that
neither your vehicle nor any persons/ objects
are present within the sweep of the door or
gate.
1. Turn the ignition key to the ON position.
2. Get out of the vehicle.
3. Press the programing button on the door
drive unit.
Usually, you now have 30 seconds to initiate
the next step.
4. Get into the vehicle.
5. Press previously programed button
2,3or4on the HomeLink® until the door
closes.
The rolling code synchronization is then com-
plete.
NDI1631
Instruments and controls2-87

If you live in Canada
Canadian radio frequency laws require abreak
(or interruption) of the transmission signals
after broadcasting for a few seconds. Therefore,
these signals may not last long enough for the
integrated garage door opener. The signal is not
recognized during programing. Comparable
with Canadian law, some U.S. garage door
openers also feature abreak.
Proceed as follows:
•If you live in Canada
•If you have difficulties programing the ga-
rage door opener (regardless of where you
live) when using the programing steps.
1. Press and hold one of buttons
2to4on
the HomeLink®. After a short time, indicator
lamp
1lights up yellow.
2. Release the button.
Indicator lamp
1flashes yellow.
3. Press button
6of the hand held transmit-
ter
5for two seconds, then release it for
two seconds.
4. Press button
6again for two seconds.5. Repeat this sequence on button
6of the
hand held transmitter
5until indicator
lamp
1lights up green.
When indicator lamp
1lights up green:
programing is finished.
When indicator lamp
1flashes green: pro-
graming was successful. The next step is to
synchronize the rolling code.
6. Release button
6of the hand held trans-
mitter
5for the garage door drive.
If indicator lamp
1lights up red: repeat the
programing process for the corresponding
button on the rear-view mirror. When doing
so, vary the distance between the hand held
transmitter
5and the rear-view mirror.
The required distance between the hand
held transmitter
5and the HomeLink®
depends on the garage door drive system.
Several attempts might be necessary. You
should test every position for at least 25
seconds before trying another position.
PROGRAMMING TROUBLE DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:
•Check the transmitter frequency used by
garage door drive hand-held transmitter
5and whether it is supported. The transmitter
frequency can usually be found on the back
of the garage door drive hand-held transmit-
ter. HomeLink® is compatible with devices
that have units which operate in the fre-
quency range of 280 to 433 MHz.
•Replace the hand-held transmitter5bat-
teries with new batteries.
This increases the likelihood that the hand-
held transmitter
5will transmit a strong
and precise signal to the HomeLink®.
•When programing, hold the hand-held trans-
mitter
5at varying distances and angles
from the button which you are programing.
Try various angles at a distance between 2
and 12 inches (5 to 30 cm) or at the same
angle but at varying distances.
2-88Instruments and controls

When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
WARNING
•Before opening any door, always look for
and avoid oncoming traffic.
•Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
•Do not leave children or adults who would
normally require the assistance of others
alone in your vehicle. Pets should also not
be left alone. They could accidentally injure
themselves or others through inadvertent
operation of the vehicle. Also, on hot, sunny
days, temperatures in a closed vehicle
could quickly become high enough to cause
severe or possibly fatal injuries to people or
animals.
LOCKING WITH THE KEY
1Locks the vehicle.
2Unlocks the vehicle.
3Panic button.
If you do not open the vehicle within approxi-
mately 40 seconds of unlocking, the vehicle will
lock again and protection against theft is reac-
tivated.
To lock centrally, press button
1. The key
centrally locks:
•Doors
•Lift gate
•Fuel filler lid
When unlocking, the turn signals flash once
When locking, they flash three times.
Intelligent key
You can combine the Intelligent Key functions
with the functions of a conventional key. Unlock
the vehicle by using Intelligent key function, for
instance, and lock it using the
button on
the key.
The driver’s door and the door at which the
handle is used, must both be closed. The key
must be outside the vehicle. When locking or
unlocking with Intelligent key, the distance
between the key and the corresponding door
handle must not be greater than 1 m.
NPA1493
DOORS
3-4Pre-driving checks and adjustments

CHILD SAFETY REAR DOOR LOCK
The child safety lock helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the switch is in the LOCK
2position, the
rear door can only be opened from the outside.
LIFT GATE LOCK
To open the lift gate, unlock it first with one of
the following operations, then push the button
1.
•Push thebutton on the key or Intelli-
gent Key (if equipped). SeeINFINITI intelli-
gent key systemlater in this section.
•Unlock all the doors using the key.
To close the lift gate, pull it down until it
securely locks.
1Locks the vehicle.
2Unlocks the vehicle.
3Panic button.
WARNING
•Radio waves could adversely affect electric
medical equipment. Those who use a pace-
maker should contact the electric medical
equipment manufacturer for the possible in-
fluences before use.
•The Intelligent Key transmits radio waves
when the buttons are pushed. The FAA ad-
vises that the radio waves may affect air-
craft navigation and communication sys-
tems. Do not operate the Intelligent Key
while on an airplane. Make sure that the
buttons are not operated unintentionally
when the unit is stored for a flight.
NIC2641NPA1479NPA1493
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7
