For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer toRecommended
fluids/lubricants and capacities in the
10. Technical information section.
EMISSION CONTROL SYSTEM
MAINTENANCE
Drive belts*:
Check engine drive belts for wear, fraying or
cracking and for proper tension. Replace any
damaged drive belts
Engine air filter*:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, check/
replace the filter more frequently.
Engine coolant*:
Replace coolant at the specified interval. When
adding or replacing coolant, be sure to use only
Genuine INFINITI Engine Coolant or equivalent
in its quality (BASF Glysantin® G40®). (For
additional information, refer to Engine cooling
system in the9. Maintenance and Schedules
section.) NOTE
Mixing any other type of coolant or the use of
non-distilled water may reduce the recom-
mended service interval of the coolant.
Engine oil and oil filter:
Replace engine oil and oil filter at the specified
intervals. For recommended oil grade and vis-
cosity refer to
Recommended fluids/lubricants
and capacities in the10. Technical informa-
tion section.
Fuel filter:
Replace the fuel filter and drain the water at the
specified intervals.
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tighten
connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new plugs
of the type as originally equipped.
CHASSIS AND BODY MAINTENANCE
Brake lines and cables:
Visually inspect for proper installation. Check
for chafing, cracks, deterioration, and signs of
leaking. Replace any deteriorated or damaged
parts immediately.
Brake pads, rotors, drums, & linings:
Check for wear, deterioration and fluid leaks.
Replace any deteriorated or damaged parts
immediately.
Exhaust system:
Visually inspect the exhaust pipes, muffler and
hangers for leaks, cracks, deterioration, and
damage. Tighten connections or replace parts
as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, replace
the filter more frequently.
Propeller shaft(s):
Check for damage, looseness, and grease leak-
age. (4WD/AWD).
9-6Maintenance and Schedules

Steering gear and linkage, axle and suspension
parts, drive shaft boots:
Check for damage, looseness, and leakage of
oil or grease. Under severe driving conditions,
inspect more frequently
Tire rotation:
Tires should be rotated every 6,000 miles
(10,000 km) for 2WD, every 3000 miles (5000
km) for 4WD/AWD according to the instructions
underTire rotation* earlier in this section“Ge-
neral maintenance” in this section. When rotat-
ing tires, check for damage and uneven wear.
Replace if necessary.
Transmission fluid/oil, differential oil, transfer
case oil:
Visually inspect for signs of leakage at specified
intervals. To ensure smooth, trouble-free, safe and eco-
nomical driving, INFINITI provides two mainte-
nance schedules that may be used, depending
upon the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles (192,000
km)/144 months. For most people, the odom-
eter reading will indicate when service is
needed. However, if you drive very little, your
vehicle should be serviced at the regular time
intervals shown in the schedule.
After 120,000 miles (192,000 km)/144 months,
continue maintenance at the same mileage/time
intervals.
ADDITIONAL MAINTENANCE ITEMS
FOR SEVERE OPERATING SYSTEMS
Additional maintenance items for severe oper-
ating conditions; should be performed on ve-
hicles that are driven under especially demand-
ing conditions. Additional maintenance items
should be performed if you primarily operate
your vehicle under the following conditions:
•Repeated short trips of less than 5 miles in
normal temperatures or less than 10 miles in
freezing temperatures.
•Stop-and-go traffic in hot weather or low
speed driving for long distances.
•Driving in dusty conditions or on rough,
muddy or salt-spread roads.
•Towing a trailer, or using a camper or car-top
carrier.
OIL CHANGE MONITOR
This vehicle is equipped with oil change moni-
tor. It calculates engine oil and filter change
interval base on driving conditions. Driving in
severe conditions will shorten the engine oil
and filter change interval. When the Engine Oil
– Service Due Now warning appears in the
vehicle information display, the engine oil and
filter need to be replaced.
NOTE
For vehicles operated in Canada, both standard
and severe maintenance items should be per-
formed at every interval.
MAINTENANCE SERVICE MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display does
not show any information on the engine oil level.
MAINTENANCE SCHEDULES
Maintenance and Schedules9-7

The vehicle information display shows a service
message for a few seconds, e g:
•[Service A In .. days]
•[Service A Due]
•[Service A Exceeded by .. days]
Depending on the operating conditions of the
vehicle, the remaining time or distance until the
next service due date is displayed.
The letter indicates which service is due. A
stands for a minor service and B for a major
service. A number or another letter may be
displayed after the letter.
Only for certain countries: the position after the
letter A or B indicates any necessary additional
maintenance work. If you notify an INFINITI
retailer of this display, you will receive a state-
ment on the associated costs.
The maintenance service interval display does
not take into account any periods of time during
which the battery is disconnected.
Maintaining the time-dependent service sched-
ule:
Note down the service due date displayed in the
vehicle information display before disconnect-
ing the battery.
or After reconnecting the battery, subtract the
battery disconnection periods from the service
date shown on the display.
Hiding service messages
Press the orbutton on the steering
wheel.
Displaying service messages
1. Switch the ignition on.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Maintenance] submenu and confirm by
pressing the OK button.
The service due date appears in the vehicle
information display.
Information about service
Resetting the maintenance service interval display:
CAUTION
If the maintenance service interval display has
been inadvertently reset, this setting can be
corrected at an INFINITI retailer.
Have service work carried out as described in
the Maintenance Schedule. This may other-
wise lead to increased wear and damage to the
major assemblies or the vehicle. An INFINITI retailer will reset the maintenance
service interval display after the service work
has been carried out. You can also obtain
further information on maintenance work, for
example.
Special service requirements
:
The prescribed service interval is based on
normal operation of the vehicle. Service work
will need to be performed more often if the
vehicle is operated under arduous conditions or
increased loads, for example:
•Regular city driving with frequent intermedi-
ate stops
•If the vehicle is primarily used to travel short
distance
•For frequent operation in mountainous ter-
rain or on poor road surfaces
•If the engine is often left idling for long
periods
In these or similar operating conditions, have,
for example, the air filter, engine oil and oil
filter changed more frequently. The tires must
be checked more frequently if the vehicle is
operated under increased loads. Further infor-
mation can be obtained at an INFINITI retailer.
9-8Maintenance and Schedules

The following tables show the standard maintenance schedule. Depending upon weather and atmospheric conditions, varying road surfaces, individual
driving habits and vehicle usage, additional or more frequent maintenance may be required. After 120,000 miles (192,000 km)/144 months, continue
maintenance at the same mileage/time intervals.
EMISSION CONTROL SYSTEM MAINTENANCE (FOR 2.0L TURBO GASOLINE ENGINE)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000 MAINTENANCE INTERVAL
Perform at number of miles,
kilometers or months, whichever comes first. 51015202530354045505560
(km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96) months 6 12 18 24 30 36 42 48 54 60 66 72
Engine compartment See NOTE (1) V-belt See NOTE (2) I*I*I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil RR RRRR
Engine oil filter RR RRRR
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item. * Maintenance items and intervals with ”*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emission
warranty or manufacturer recall liability. Other
maintenance items and intervals are required
STANDARD MAINTENANCE
Maintenance and Schedules9-9

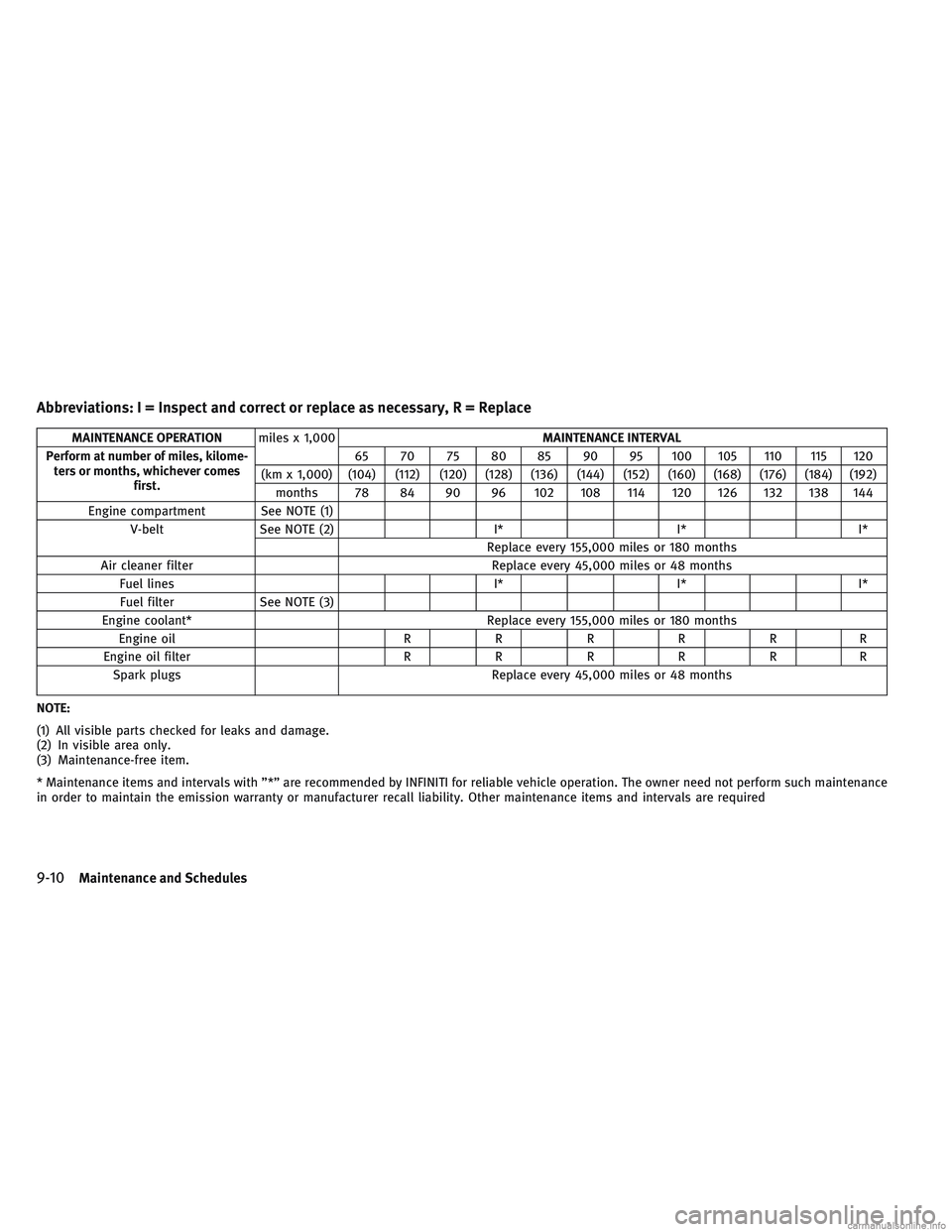

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATIONmiles x 1,000 MAINTENANCE INTERVAL
Perform at number of miles, kilome- ters or months, whichever comes first. 65 70 75 80 85 90 95 100 105 110 115 120
(km x 1,000) (104) (112) (120) (128) (136) (144) (152) (160) (168) (176) (184) (192) months 78 84 90 96 102 108 114 120 126 132 138 144
Engine compartment See NOTE (1) V-belt See NOTE (2) I*I*I*
Replace every 155,000 miles or 180 months
Air cleaner filter Replace every 45,000 miles or 48 months
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 155,000 miles or 180 months
Engine oil RR RRRR
Engine oil filter RR RRRR
Spark plugs Replace every 45,000 miles or 48 months
NOTE:
(1) All visible parts checked for leaks and damage.
(2) In visible area only.
(3) Maintenance-free item.
* Maintenance items and intervals with ”*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform such maintenance
in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required
9-10Maintenance and Schedules

level roads, it is recommended you have an
INFINITI retailer correct the condition. Failure to
correct the condition is misuse of the vehicle, for
which INFINITI is not responsible.
Incorrect ignition timing will result in knocking,
after-run and/or overheating. This in turn may
cause excessive fuel consumption or damage to
the engine. If any of the above symptoms are
encountered, have your vehicle checked. It is
recommended you visit an INFINITI retailer.
However, now and then you may notice light
spark knock for a short time while accelerating
or driving up hills. This is no cause for concern,
because you get the greatest fuel benefit when
there is light spark knock for a short time under
heavy engine load.
1API certification mark
2API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance. For addi-
tional information, refer toRecommended
fluids/lubricants and capacities earlier in this
section. INFINITI recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval Committee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
based on the temperatures at which the vehicle
will be operated before the next oil change.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high—
quality genuine INFINITI oil filter. When replac-
ing, it is recommended you use the genuine oil
filter or its equivalent for the reason described
in “Change intervals”.
NTI326
Technical information10-5

For Canada:
If you believe that your vehicle has a defect
which could cause a crash or could cause injury
or death, you should immediately inform Trans-
port Canada in addition to notifying INFINITI.
If Transport Canada receives complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may request that INFINITI conduct a recall cam-
paign. However, Transport Canada cannot be-
come involved in individual problems between
you, your retailer, or INFINITI.
You may contact Transport Canada’s Defect
Investigations and Recalls Division toll free at
1-800-333- 0510. You may also report safety
defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec- Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor ve-
hicle safety may be obtained from Transport
Canada’s Road Safety Information Center at
1-800-333- 0371 or online at www.tc.gc.ca/
roadsafety (English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers).
To notify INFINITI of any safety concerns please
contact our Consumer Information Center toll
free at 1-800- 361-4792.WARNING
A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel dy-
namometer (such as the dynamometers used
by some states for emissions testing), or simi-
lar equipment. Make sure you inform test facil-
ity personnel that your vehicle is equipped
with AWD before it is placed on a dynamom-
eter. Using the wrong test equipment may re-
sult in transmission damage or unexpected ve-
hicle movement which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready
condition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without start- ing the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds, the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”.
It is recommended you contact an INFINITI re-
tailer to set the “ready condition” or to prepare
the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
10-18Technical information

11 Index
ABS (Anti-lock Braking System).........2-9
Warninglight .................2-9
Active sound enhancement ..........5-67
Operation ...................5-67
Adaptive Front lighting System ........2-65
Aids .......................5-60 Forward emergency braking system ....5-60
Hill Start Assist (HSA) ............5-93
Intelligent Parking Assist (IPA) .......5-68
Air bags .....................1-47
Front passenger air bag switch .......1-47
Overview ....................0-2
Repair and replacement ...........1-56
Supplemental Restraint System ......1-38
Warninglight..............1-55, 2-12
Air cleaner filter .................8-13
Air conditioner .................4-42
Heater and air conditioner .........4-42
Refrigerant and lubricant ..........10-6
Servicing ...................4-51
Specification label .............10-11
Airfresheners...................7-4
Anti-theft alarm system ............2-58
AppGarage...................4-98 Screen ....................4-98
Settings screen ...............4-99
Around View Monitor ..............4-24
Moving object detection (MOD) ......4-37Settings
....................4-33
Audible reminders ................2-14
Audio .......................4-52
Operation precautions ...........4-52
Settings ...................4-80
Sourcebar..................4-65
System ....................4-52
Automatic transmission .............8-7
Fluid(ATF)...................8-7
Operation ...................5-18
Battery ......................8-9
Cautionlabel .................8-9
Coldweather.................5-93
Jump-starting .................6-10
Replacement - Intelligent Key .......8-20
Saver system ................2-86
Vehicle battery ................8-10
Blind Spot Warning (BSW) system ......5-35
Bluetooth®...................4-83 Hands-Free Phone System .....4-83,4-131
Information..................4-96
Streamingaudio..............4 -130
Booster seats ..................1-35
Precautions................. .1-35
B r

akes......................8-17 ABS (Anti-Lock Braking System) ......5-88
Adjustment..................8-17 Fluid ......................8-7
Forward emergency braking system
....5-60
Parking brake ................5-25
Precautions ..................5-87
System ....................5-87
Warninglight .................2-9
Break-inschedule................5-81
Brightness....................2-69 Instrumentpanel ..............2-69
Capacities and recommendations .......10-2
Coolant....................10-2
Fuel......................10-2
Oil.......................10-2
Refrigerant ..................10-2
Cardholder...................2-79
Center multi-function control panel ......4-2
Changing.....................8-4 Enginecoolant ................8-4
Engineoil ...................8-5
Engine oil filter ................8-6
Tires and wheels ..............8-32
Checking .....................8-4
Coolantlevel .................8-4
Engine oil level ................8-5
Child restraints .................1-20
Anchorage ..................1-23
ISOFIX installation ..............1-23
