SYSTEM MALFUNCTION
If the LDW system malfunctions, it will cancel
automatically, and the message [Lane Depar-
ture Warning Inoperative] will appear.
Action to take:Stop the vehicle in a safe loca-
tion, engage P (Park), turn the engine off and
restart the engine. If the message continues to
appear, have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The lane camera unit1for the LDW system is
located above the inside mirror.
To ensure the proper operation of the LDW
system and prevent a system malfunction, be
sure to observe the following:
•Always keep the windshield clean.
•Do not attach a sticker (including transparent
material) or install an accessory near the
camera unit.
•Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
•Do not strike or damage the areas around the
camera unit. Do not touch the camera lens or
remove parts from the camera unit. If the
camera unit is damaged due to an accident,
it is recommended you contact an INFINITI
retailer.
NSD644
5-34Starting and driving

SYSTEM TEMPORARILY UNAVAILABLE
1Vehicle information display
If radar blockage is detected, the system will be
turned off automatically, and the [Blind Spot
Warning Currently Unavailable See Operator’s Manual] message appears in the vehicle infor-
mation display1. The system is not available
until the conditions no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above conditions no
longer exist, the system will resume automati-
cally. If the message still appears, have the
system checked. It is recommended you visit an
INFINITI retailer for this service.
System malfunction
If the system malfunctions, it will be turned off
automatically, and the [Blind Spot Warning
Inoperative] message appears in the vehicle
information display
1.
Action to take: Stop the vehicle in a safe loca-
tion, place the vehicle in the P (Park) position,
turn the engine off and restart the engine.
If the message still appears, have the system
checked. It is recommended you visit an
INFINITI retailer for this service.
NSD631
Starting and driving5-43

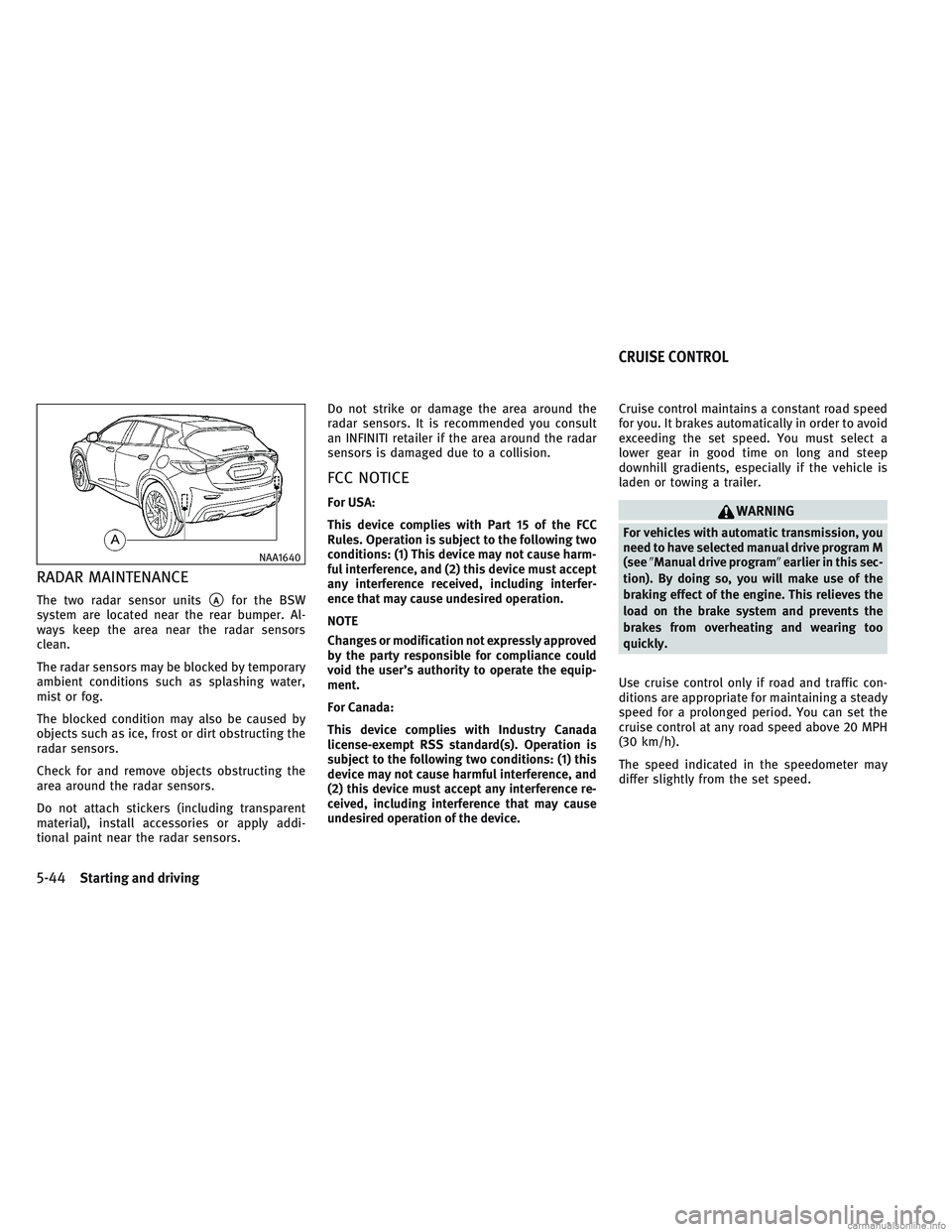

RADAR MAINTENANCE
The two radar sensor unitsAfor the BSW
system are located near the rear bumper. Al-
ways keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors. Do not strike or damage the area around the
radar sensors. It is recommended you consult
an INFINITI retailer if the area around the radar
sensors is damaged due to a collision.
FCC NOTICE
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
NOTE
Changes or modification not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equip-
ment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference re-
ceived, including interference that may cause
undesired operation of the device.
Cruise control maintains a constant road speed
for you. It brakes automatically in order to avoid
exceeding the set speed. You must select a
lower gear in good time on long and steep
downhill gradients, especially if the vehicle is
laden or towing a trailer.WARNING
For vehicles with automatic transmission, you
need to have selected manual drive program M
(see
Manual drive program earlier in this sec-
tion). By doing so, you will make use of the
braking effect of the engine. This relieves the
load on the brake system and prevents the
brakes from overheating and wearing too
quickly.
Use cruise control only if road and traffic con-
ditions are appropriate for maintaining a steady
speed for a prolonged period. You can set the
cruise control at any road speed above 20 MPH
(30 km/h).
The speed indicated in the speedometer may
differ slightly from the set speed.
NAA1640
CRUISE CONTROL
5-44Starting and driving

SYSTEM TEMPORARILY UNAVAILABLE
When the radar sensor area is covered with dirt
or is obstructed, the system will automatically
be canceled. If the radar sensor area is covered
with ice, a transparent or translucent vinyl bag,
etc., the ICC system may not detect them. In
these instances, the ICC system may not cancel
and may not be able to maintain the selected
following distance from the vehicle ahead.
If the ICC system stops working due to a
malfunction or some other reason, one of the
following messages will be displayed in the
vehicle information display
2.
•[ICC off]
•[ICC Now Available]
•[ICC Currently Unavailable See Operator’s
Manual]
•[ICC Inoperative]
•[ICC Suspended]
•[ICC–––MPH]
[ICC off]: The ICC system has been deactivated.
If it was not deactivated by the driver, a warning
tone also sounds. [ICC Now Available]:
The ICC system is opera-
tional again after having been temporarily un-
available. You can now reactivate the ICC sys-
tem.
[ICC Currently Unavailable See Operator’s
Manual]: The ICC system is temporarily inopera-
tive. Possible causes:
•The function is impaired due to heavy rain or
snow.
•The radar sensor system is temporarily inop-
erative, e. g. due to electromagnetic radia-
tion emitted by nearby TV or radio stations or
other sources of electromagnetic radiation.
•The system is outside the operating tempera-
ture range.
•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply,
the display message goes out.
If the display message does not disappear:
•Pull over and stop the vehicle safely as soon
as possible, paying attention to road and
traffic conditions.
•Secure the vehicle against rolling away.
•Restart the engine. [ICC Inoperative]:
The ICC system is malfunc-
tioning. The adaptive brake assist function may
also have failed. A warning tone also sounds.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
[ICC Suspended]: You have depressed the accel-
erator pedal. The ICC system is no longer
controlling the speed of the vehicle.
The display message should disappear when
you remove your foot from the accelerator pedal
[ICC–––MPH]: An activation condition for the
ICC system is not fulfilled.
Check the activation conditions for the ICC
system.
Starting and driving5-59

PROBLEMS WITH PARKING SENSOR SYSTEM
ProblemPossible causes/consequences and solutions
Only the red segments in the
Parking Sensor System displays are
lit. You also hear a warning tone for
approximately two seconds.
The Parking Sensor System is then
deactivated and the indicator light
on the Parking Sensor System
button lights up. The Parking Sensor System has malfunctioned and has been
deactivated.
If problems persist, have the Parking Sensor System checked. It is
recommended you visit an INFINITI retailer for this service.
Only the red segments in the
parking sensor displays are lit. The
Parking Sensor System is then
deactivated. The parking sensors are dirty or there is interference.
•Clean the sensors.•Switch the ignition back on.
The problem may be caused by an external source of radio or ultrasound
waves.
See if the Parking Sensor System functions in a different location.
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle. Failure
to follow these recommendations may result in
shortened engine life and reduced engine per-
formance.
•Avoid driving for long periods at constant
speed, either fast or slow, and do not run the
engine over 4,000 RPM.
•Do not accelerate at full throttle in any gear.
•Avoid quick starts.
•Avoid hard braking as much as possible.
•Do not tow a trailer for the first 500 mi (805
km). Your engine, axle or other parts could
be damaged.
You should also observe these notes on
break-in if the engine or parts of the drive train
on your vehicle have been replaced.
CAUTION
In certain driving and driving safety systems,
the sensors adjust automatically while a cer-
tain distance is being driven after the vehicle
has been delivered or after repairs. Full system
effectiveness is not reached until the end of
this teach-in process.
BREAK-IN SCHEDULE
Starting and driving5-81

SWITCHING OFF THE ENGINE
WARNING
The automatic transmission switches to posi-
tion N (Neutral) when you switch off the en-
gine. The vehicle may roll away. There is a risk
of an accident.
After switching off the engine, always switch
to position P (Park). Prevent the parked vehicle
from rolling away by applying the parking
brake.
Procedure
1. Apply the electric parking brake.
2. Shift the transmission to position P (Park).
3.With the key: turn the key to the position OFF
in the ignition switch and remove it The
immobilizer is activated.
If you switch the engine off with the transmis-
sion in position R (Reverse) or D (Drive), the
automatic transmission shifts to N (Neutral)
automatically.
With the key: if you then open the driver’s door
or the front-passenger door or remove the key
from the ignition, the automatic transmission
shifts to P (Park) automatically. If you want the automatic transmission to re-
main in neutral N (Neutral), e.g. when having
the vehicle cleaned in an automatic car wash
with a towing system:
With the key
:
1. Switch the ignition on.
2. Depress the brake pedal and keep it de-
pressed.
3. Shift to N (Neutral).
4. Release the brake pedal.
5. Release the electric parking brake.
6. Switch off the ignition and leave the key in the ignition switch.
EXTENDED PARKING
If you leave the vehicle parked up for longer
than four weeks, the battery may be damaged
by exhaustive discharging.
If you leave the vehicle parked up for longer
than six weeks, it may suffer from lack of use.
Visit an INFINITI retailer and seek advice
NOTE
You can obtain information about trickle char-
gers from an INFINITI retailer. The electric power steering system is designed
to reduce the driver effort required to steer the
vehicle.
WARNING
If during operation a fault is detected the fol-
lowing message will be displayed in the ve-
hicle information display along with an audible
warning tone.
[Power Steering Malfunction See Operators
Manual]
In conjunction with this warning, steering as-
sistance will no longer be provided by the sys-
tem.
The effort required to steer the vehicle will
increase. This will be most noticeable at low
speed and when performing a tight turning
maneuver.
Check whether you are able to provide the ex-
tra effort required.
If you are able to steer safely: Carefully drive on
to an INFINITI retailer.
If you are unable to steer safely: Do NOT drive
on. It is recommended you contact the nearest
INFINITI retailer for assistance.
ELECTRIC POWER STEERING SYSTEM
5-86Starting and driving

Wheels and Tiresin the9. Maintenance and
Schedules section.)
– For detailed information, see Wheels and
tires in the 8. Do-it-yourself section.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a “clunk” noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked. It is recommended you visit an
INFINITI retailer for this service.
Normal operation
The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h). The speed varies according to
road conditions.
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.
Starting and driving5-89

VDC warning lightmay illuminate. This
is not a malfunction. Restart the engine af-
ter driving onto a stable surface.
•If wheels or tires other than the INFINITI
recommended ones are used, the VDC sys-
tem may not operate properly and the VDC
warning light
may illuminate.
•The VDC system is not a substitute for win-
ter tires or tire chains on a snow covered
road.
•If VDC is malfunctioning, VDC is unable to
stabilize the vehicle. In addition, other driv-
ing safety systems are switched off. This
increases the risk of skidding and an acci-
dent. Drive on carefully. Have VDC checked.
It is recommended you visit an INFINITI re-
tailer for this service.
CAUTION
•When VDC is deactivated, theVDC
OFF warning light lights up continuously.
•If both thewarning light andwarning light are lit continuously, VDC is
not available due to a malfunction.
TRACTION CONTROL SYSTEM (TCS)
The Traction Control System (TCS) is part of
VDC..
Traction control brakes the drive wheels indi-
vidually if they spin. This enables you to pull
away and accelerate on slippery surfaces, for
example if the road surface is slippery on one
side. In addition, more drive torque is trans-
ferred to the wheel or wheels with traction.
Traction control remains active if you deactivate
VDC.
CHARACTERISTICS OF VDC
If theVDC warning light goes out before
beginning the journey, VDC is automatically
active.
If VDC intervenes, the
VDC warning lamp
flashes in the combination meter.
If VDC intervenes:
•Do not deactivate VDC under any circum-
stances.
•When pulling away, only depress the accel-
erator pedal as far as is necessary.
•Adapt your driving style to suit the prevailing
road and weather conditions.
Deactivating/activating VDC
WARNING
If you deactivate VDC, VDC no longer stabilizes
the vehicle. There is an increased risk of skid-
ding and an accident.
Only deactivate VDC in the situations de-
scribed in the following section.
You can select between the following statuses
of VDC:
•VDC is activated.
•VDC is deactivated.
It may be best to deactivate VDC in the follow-
ing situations:
•When using snow chains.
•In deep snow.
•On sand or gravel.
NOTE
Activate VDC as soon as the situations described
above no longer apply. VDC will otherwise not be
Starting and driving5-91
