Driving your vehicle
18
5
ISG system malfunction
The system may not operate when:
- The ISG related sensors or system
error occurs.
The yellow AUTO STOP indicator ( )
on the instrument cluster will stay on
after blinking for 5 seconds and the light
on the ISG OFF button will illuminate. If
your vehicle is equipped with a supervi-
sion cluster, the notice will illuminate on
the LCD display.
✽✽ NOTICE
 If the ISG OFF button light is not turned off by pressing the ISG OFF
button again or if the ISG system con-
tinuously does not work correctly, we
recommend that you contact an
authorized HYUNDAI dealer.
 When the ISG OFF button light comes on, it may stop illuminating after driv-
ing your vehicle at approximately 80
km/h for a maximum of two hours
and setting the fan speed control knob
below the 2nd position. If the ISG
OFF button light continues to illumi-
nate in spite of the procedure, we rec-
ommend that you contact an author-
ized HYUNDAI dealer.WARNING
When the engine is in Idle Stop
mode, it's possible to restart theengine without the driver taking
any action.
Before leaving the car or doing any-
thing in the engine room area, stop
the engine by turning the ignition
switch to the LOCK(OFF) position
or removing the ignition key.
OJC050036
procarmanuals.com

519
Driving your vehicle

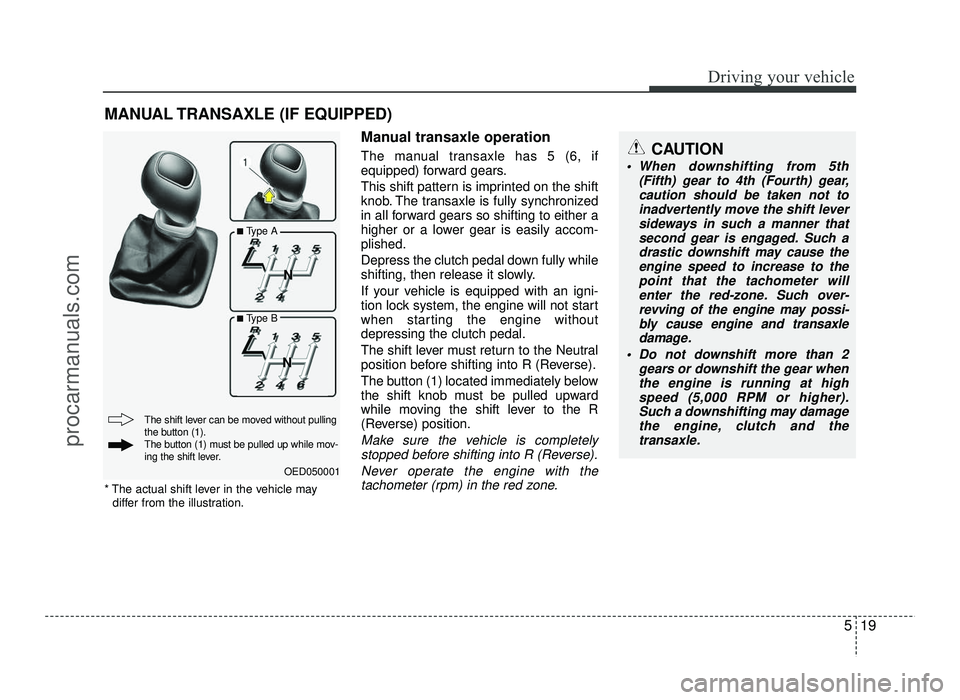

Manual transaxle operation
The manual transaxle has 5 (6, if
equipped) forward gears.
This shift pattern is imprinted on the shift
knob. The transaxle is fully synchronized
in all forward gears so shifting to either a
higher or a lower gear is easily accom-plished.
Depress the clutch pedal down fully while
shifting, then release it slowly.
If your vehicle is equipped with an igni-
tion lock system, the engine will not start
when starting the engine withoutdepressing the clutch pedal.
The shift lever must return to the Neutral
position before shifting into R (Reverse).
The button (1) located immediately below
the shift knob must be pulled upward
while moving the shift lever to the R
(Reverse) position.
Make sure the vehicle is completelystopped before shifting into R (Reverse).
Never operate the engine with thetachometer (rpm) in the red zone.
MANUAL TRANSAXLE (IF EQUIPPED)
CAUTION
When downshifting from 5th (Fifth) gear to 4th (Fourth) gear,caution should be taken not to
inadvertently move the shift lever sideways in such a manner thatsecond gear is engaged. Such a
drastic downshift may cause theengine speed to increase to the
point that the tachometer willenter the red-zone. Such over-
revving of the engine may possi- bly cause engine and transaxle
damage.
Do not downshift more than 2 gears or downshift the gear when
the engine is running at high speed (5,000 RPM or higher).
Such a downshifting may damage the engine, clutch and thetransaxle.
OED050001
The shift lever can be moved without pulling
the button (1).
The button (1) must be pulled up while mov-
ing the shift lever.
* The actual shift lever in the vehicle may
differ from the illustration.
■ Type A
■ Type B
NN
NN
procarmanuals.com

Driving your vehicle
30
5

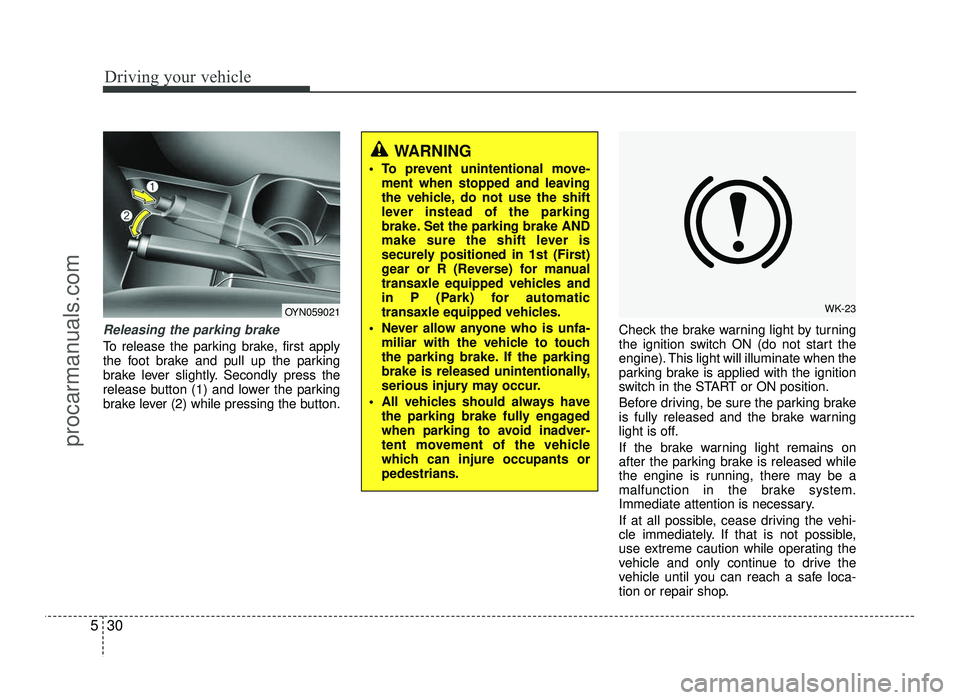

Releasing the parking brake
To release the parking brake, first apply
the foot brake and pull up the parking
brake lever slightly. Secondly press the
release button (1) and lower the parking
brake lever (2) while pressing the button. Check the brake warning light by turning
the ignition switch ON (do not start the
engine). This light will illuminate when the
parking brake is applied with the ignition
switch in the START or ON position.
Before driving, be sure the parking brake
is fully released and the brake warning
light is off.
If the brake warning light remains on
after the parking brake is released while
the engine is running, there may be a
malfunction in the brake system.
Immediate attention is necessary.
If at all possible, cease driving the vehi-
cle immediately. If that is not possible,
use extreme caution while operating the
vehicle and only continue to drive the
vehicle until you can reach a safe loca-
tion or repair shop.
WARNING
To prevent unintentional move- ment when stopped and leaving
the vehicle, do not use the shift
lever instead of the parking
brake. Set the parking brake AND
make sure the shift lever is
securely positioned in 1st (First)
gear or R (Reverse) for manual
transaxle equipped vehicles and
in P (Park) for automatic
transaxle equipped vehicles.
Never allow anyone who is unfa- miliar with the vehicle to touch
the parking brake. If the parking
brake is released unintentionally,
serious injury may occur.
All vehicles should always have the parking brake fully engaged
when parking to avoid inadver-
tent movement of the vehicle
which can injure occupants orpedestrians.
WK-23OYN059021
procarmanuals.com

621
What to do in an emergency

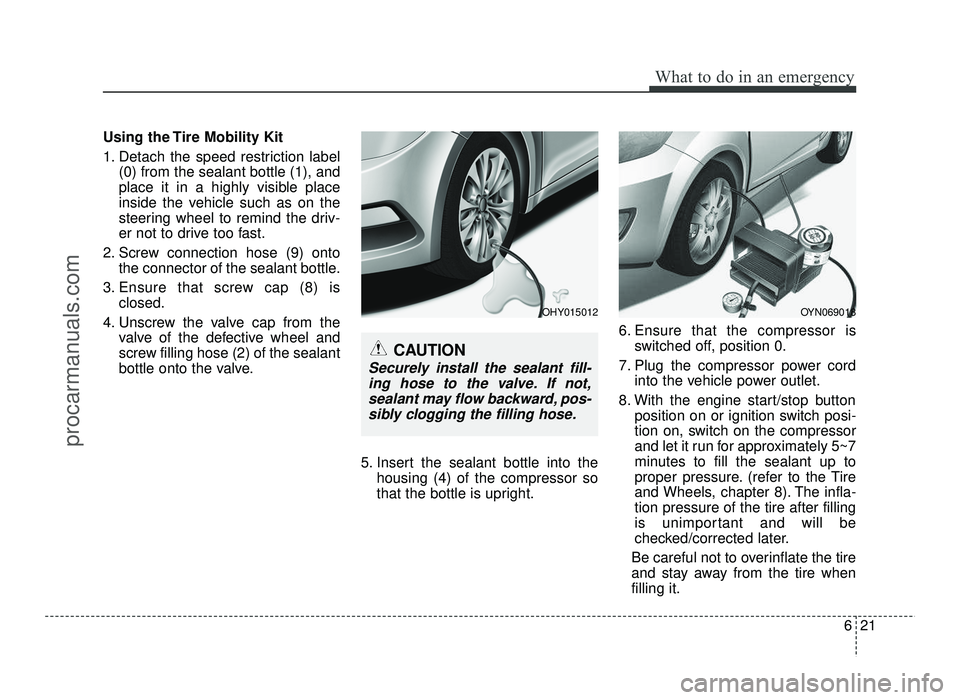

Using the Tire Mobility Kit
1. Detach the speed restriction label(0) from the sealant bottle (1), and
place it in a highly visible place
inside the vehicle such as on the
steering wheel to remind the driv-
er not to drive too fast.
2. Screw connection hose (9) onto the connector of the sealant bottle.
3. Ensure that screw cap (8) is closed.
4. Unscrew the valve cap from the valve of the defective wheel and
screw filling hose (2) of the sealant
bottle onto the valve.
5. Insert the sealant bottle into thehousing (4) of the compressor so
that the bottle is upright. 6. Ensure that the compressor is
switched off, position 0.
7. Plug the compressor power cord into the vehicle power outlet.
8. With the engine start/stop button position on or ignition switch posi-
tion on, switch on the compressor
and let it run for approximately 5~7
minutes to fill the sealant up to
proper pressure. (refer to the Tire
and Wheels, chapter 8). The infla-tion pressure of the tire after filling
is unimportant and will be
checked/corrected later.
Be careful not to overinflate the tire
and stay away from the tire whenfilling it.
OYN069018OHY015012
CAUTION
Securely install the sealant fill- ing hose to the valve. If not,sealant may flow backward, pos-sibly clogging the filling hose.
procarmanuals.com

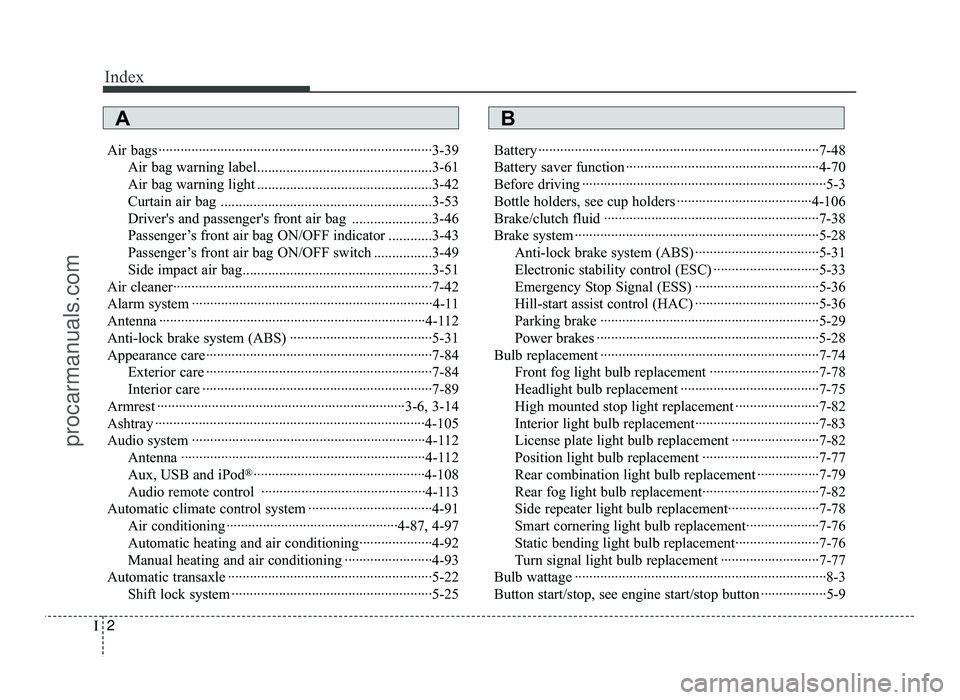

Index
2
I
Air bags ···········································································3-39
Air bag warning label................................................3-61
Air bag warning light ................................................3-42
Curtain air bag ..........................................................3-53
Driver's and passenger's front air bag ......................3-46
Passenger’s front air bag ON/OFF indicator ............3-43
Passenger’s front air bag ON/OFF switch ................3-49
Side impact air bag....................................................3-51
Air cleaner·······································································7-42
Alarm system ··································································4-11
Antenna ·········································································4-112
Anti-lock brake system (ABS) ·······································5-31
Appearance care······························································7-84 Exterior care ······························································7-84
Interior care ·······························································7-89
Armrest ····································································3-6, 3-14
Ashtray ··········································································4-105
Audio system ································································4-112 Antenna ···································································4-112
Aux, USB and iPod ®
···············································4-108
Audio remote control ·············································4-113
Automatic climate control system ··································4-91 Air conditioning ···············································4-87, 4-97
Automatic heating and air conditioning····················4-92
Manual heating and air conditioning ························4-93
Automatic transaxle ························································5-22 Shift lock system ·······················································5-25 Battery ·············································································7-48
Battery saver function ·····················································4-70
Before driving ···································································5-3
Bottle holders, see cup holders ·····································4-106
Brake/clutch fluid ···························································7-38
Brake system ···································································5-28
Anti-lock brake system (ABS) ··································5-31
Electronic stability control (ESC) ·····························5-33
Emergency Stop Signal (ESS) ··································5-36
Hill-start assist control (HAC) ··································5-36
Parking brake ····························································5-29
Power brakes ·····························································5-28
Bulb replacement ····························································7-74 Front fog light bulb replacement ······························7-78
Headlight bulb replacement ······································7-75
High mounted stop light replacement ·······················7-82
Interior light bulb replacement··································7-83
License plate light bulb replacement ························7-82
Position light bulb replacement ································7-77
Rear combination light bulb replacement ·················7-79
Rear fog light bulb replacement································7-82
Side repeater light bulb replacement·························7-78
Smart cornering light bulb replacement····················7-76
Static bending light bulb replacement·······················7-76
Turn signal light bulb replacement ···························7-77
Bulb wattage ·····································································8-3
Button start/stop, see engine start/stop button ··················5-9
AB
procarmanuals.com

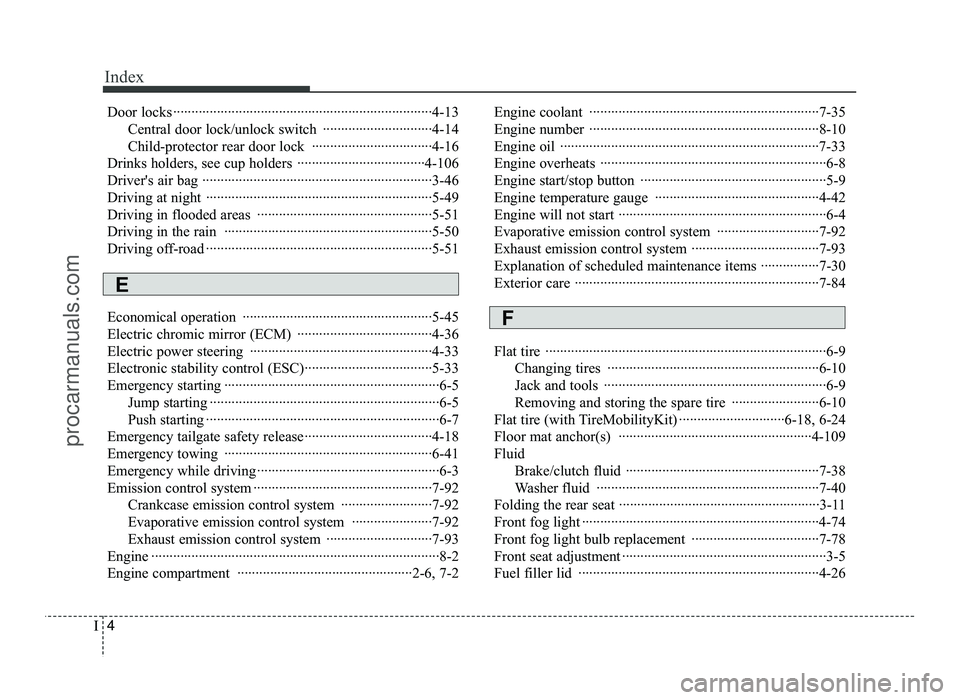

Index
4
I
Door locks ·······································································4-13
Central door lock/unlock switch ······························4-14
Child-protector rear door lock ·································4-16
Drinks holders, see cup holders ···································4-106
Driver's air bag ·······························································3-46
Driving at night ······························································5-49
Driving in flooded areas ················································5-51
Driving in the rain ·························································5-50
Driving off-road ······························································5-51
Economical operation ····················································5-45
Electric chromic mirror (ECM) ·····································4-36
Electric power steering ··················································4-33
Electronic stability control (ESC)···································5-33
Emergency starting ···························································6-5 Jump starting ·······························································6-5
Push starting ································································6-7
Emergency tailgate safety release···································4-18
Emergency towing ·························································6-41
Emergency while driving ··················································6-3
Emission control system ·················································7-92 Crankcase emission control system ·························7-92
Evaporative emission control system ······················7-92
Exhaust emission control system ·····························7-93
Engine ···············································································8-2
Engine compartment ················································2-6, 7-2 Engine coolant ·······························································7-35
Engine number ·······························································8-10
Engine oil ·······································································7-33
Engine overheats ······························································6-8
Engine start/stop button ···················································5-9
Engine temperature gauge ·············································4-42
Engine will not start ·························································6-4
Evaporative emission control system ····························7-92
Exhaust emission control system ···································7-93
Explanation of scheduled maintenance items ················7-30
Exterior care ···································································7-84
Flat tire ·············································································6-9
Changing tires ··························································6-10
Jack and tools ·····························································6-9
Removing and storing the spare tire ························6-10
Flat tire (with TireMobilityKit) ·····························6-18, 6-24
Floor mat anchor(s) ·····················································4-109
Fluid Brake/clutch fluid ·····················································7-38
Washer fluid ·····························································7-40
Folding the rear seat ·······················································3-11
Front fog light ·································································4-74
Front fog light bulb replacement ···································7-78
Front seat adjustment ························································3-5
Fuel filler lid ··································································4-26
E
F
procarmanuals.com
