2017 Hyundai Elantra Owner's Manual

7-90
Maintenance
HID Headlamp (Type C Low)
If the HID lamp does not operate, we
recommend that the system be
checked by an authorized HYUNDAI
dealer.Information
HID lamps have superior perform-
ance vs. halogen bulbs.
HID lamps are estimated by the man-
ufacturer to last twice as long or
longer than halogen bulbs depending
on their frequency of use. They will
probably require replacement at some
point in the life of the vehicle. Cycling
the headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after a
period of operation but will immedi-
ately relight when the headlamp
switch is cycled it is likely the HID
lamp needs to be replaced. HID light-
ing components are more complex
than conventional halogen bulbs thus
have higher replacement cost.
Turn signal lamp
1. Open the hood.
2. Disconnect the negative battery
cable.
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
i
HID Headlight low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, we recom-
mend that the system be
checked by an authorized
HYUNDAI dealer.
WARNING
OAD075033

7-91
7
Maintenance
5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly
and turn the socket clockwise.Daytime running lamp/
Position lamp/Fog lamp
If the LED lamp does not operate, we
recommend that the system be
checked by an authorized HYUNDAI
dealer.
Side repeater lamp replace-
ment
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
OAD075035

7-92
Maintenance
Headlamp and front fog lamp
aiming (For Europe)
Headlamp aiming
1. Inflate the tires to the specified
pressure and remove any loads
from the vehicle except the driver,
spare tire, and tools.
2. The vehicle should be placed on a
flat floor.
3. Draw vertical lines (Vertical lines
passing through respective head
lamp centers) and a horizontal line
(Horizontal line passing through
center of head lamps) on the
screen.
4. With the headlamp and battery in
normal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right,
turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,
turn the driver clockwise or coun-
terclockwise.Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the headlamps
aiming.
With the front fog lamps and battery
in normal condition, aim the front fog
lamps.
To aim the front fog lamp up or down,
turn the driver clockwise or counter-
clockwise.
OAD075066L
OAD075067L
■without Headlight leveling device
■Equipped with Headlight leveling device

7-93
7
Maintenance
Vehicle condition H1 H2H3 W1 W2W3
Without driver 685 (26.97) 662 (26.06)
356 (14.02) 1,466 (57.72) 1,242 (48.90)1,565 (61.61)
With driver 678 (26.69) 655 (25.79)
350 (13.78) 1,466 (57.72) 1,242 (48.90)1,565 (61.61)
Unit: mm (in)

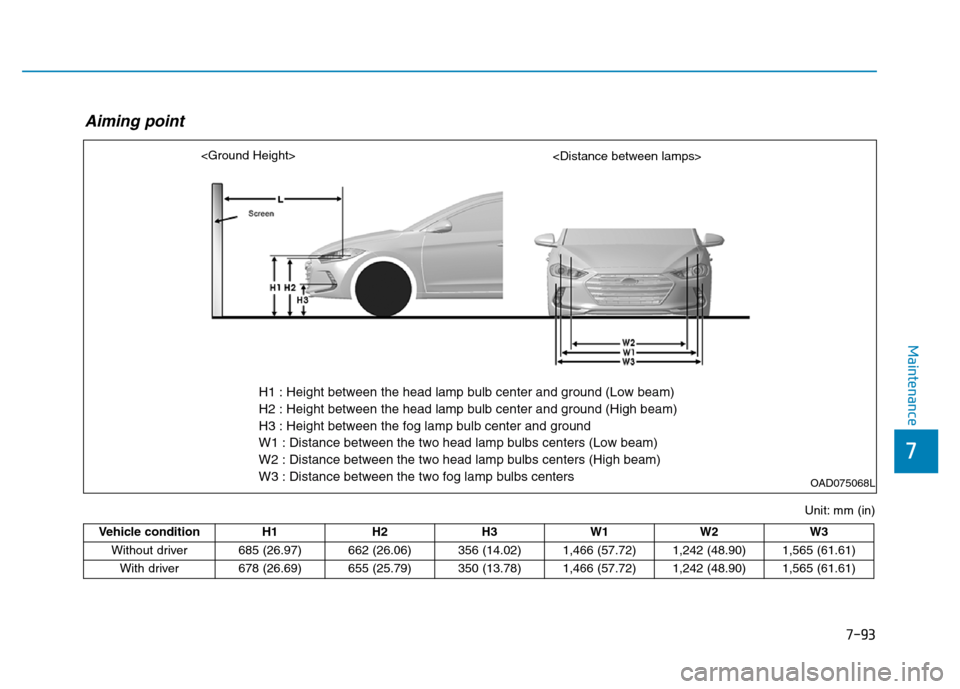

Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
OAD075068L

7-94
Maintenance
Headlamp low beam (LHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
OAD075071L
■Based on 10m screen

7-95
7
Maintenance
Headlamp low beam (RHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
W1
Low Beam)CAR AXIS
CUT- OFF LINE
Horizontal line of head
lamp bulb center
Vertical line of the left
head lamp bulb centerVertical line of the right head
lamp bulb center
GROUND
100± 20
H1
Low beam)
OAD075072L
■Based on 10m screen

7-96
Maintenance

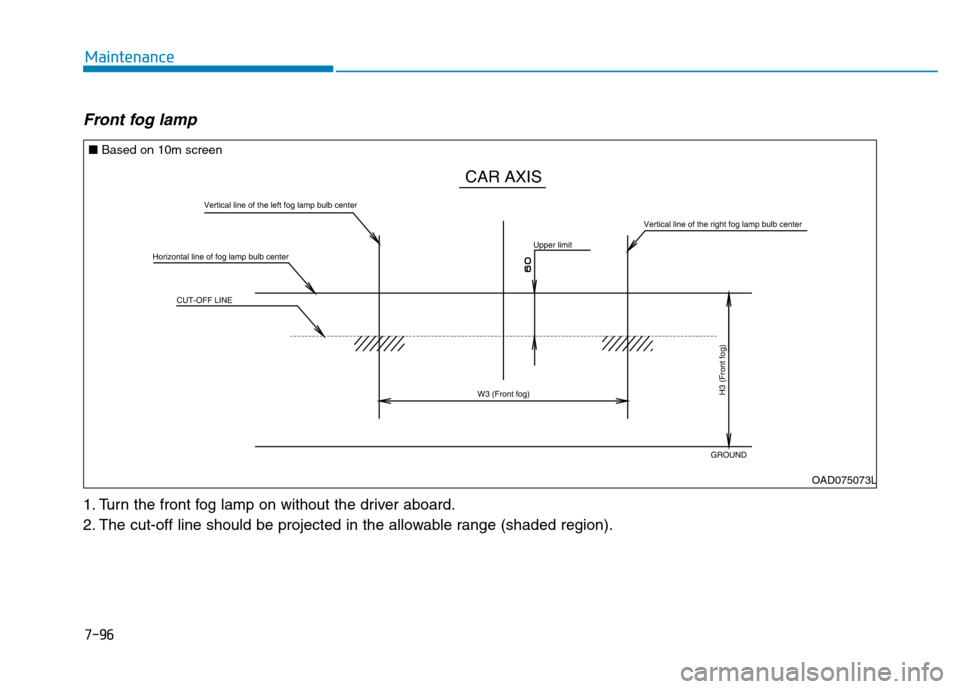

Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
Vertical line of the left fog lamp bulb center
Vertical line of the right fog lamp bulb center
H3 (Front fog)
CAR AXIS
Upper limit
Horizontal line of fog lamp bulb center
CUT-OFF LINE
W3 (Front fog)
GROUND
OAD075073L
■Based on 10m screen

7-97
7
Maintenance
Rear combination lamp bulb
replacement
(1) Tail/Stop lamp
(2) Tail lamp
(3) Turn signal lamp
(4) Back-up lamp
(5) Fog lamp (if equipped)
Outside lamp
1.Open the trunk lid.
2.Remove the service cover by
pulling out the service cover.OAD075036
■ Type A (Bulb)
OAD075036
■ Type B (LED)
OAD075036
■ Type C (LED with fog lamp)
OAD075049
