2017 Hyundai Elantra Owner's Manual

Maintenance
7-74
Fuse NameSymbolFuse ratingCircuit Protected
S/HEATER
FRONTFRT20AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
START7.5ABurglar Alarm Relay, Transmission Range Switch, Ignition Lock & Clutch Switch,
Smart Key Control Module, ECM/PCM, E/R Jnction Block (RLY.4)
BUTTON START1115ASmart Key Control Module
A/CON2210AE/R Junction Block (RLY.12), Blower Motor, Blower Resistor, A/C Control Module
SPARE1SPARE120ASpare
P/WDW LHLH25APower Window LH Rleay Driver Safety Power Window Module (LHD)
INTERIOR LAMP10AIgnition Key ILL. & Door Warning Switch, Trunk Room Lamp, Front Vanity Lamp, LH/RH,
Room Lamp, Overhead Console Lamp
MODULE2MODULE210ADigital Clock, USB Charging Connector, MTS E-Call Module, Smart Key Control,
Module, BCM, Audio, A/V & Navigation Head Unit, Power Outside Mirror Switch,
DC-DC Converter, AMP, E/R Junction Block (RLY.14)
Driver’s side fuse panel

Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.
i
7-75
7
Maintenance
OAD075065L
OAD075027

Maintenance
7-76
SymbolRelay NO.Relay NameType
R LY. 1 BPTC HEATER #2 RelayMICRO
R LY. 2COOLING FAN2 RelayMICRO
R LY. 3PDM #3 (IG1) RelayMICRO
R LY. 4START #1 RelayMICRO
R LY. 5 ASUB FUEL PUMP RelayMICRO
R LY. 5 BFUEL HEATER Relay (D4FB)MICRO
R LY. 6PDM #4 (IG2) RelayMICRO
R LY. 7B/ALARM HORN RelayMICRO
R LY. 8PDM #2 (ACC) RelayMICRO
R LY. 9COOLING FAN1 RelayMINI
R LY. 1 0REAR HEATED RelayMINI
R LY. 1 1 AA/C RelayMICRO
R LY. 1 1 BPTC HEATER #1 Relay
(D4FB)MICRO
SymbolRelay NO.Relay NameType
R LY. 1 2BLOWER RelayMICRO
R LY. 1 3 AH/LAMP HI RelayMICRO
R LY. 1 3 BPTC HEATER #3 Relay
(D4FB)MICRO
R LY. 1 4POWER OUTLET Relay
(D4FB)MICRO

7-77
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
MAIN150AFuse : F28, F29, F30, F31, F34
MDPS180AMDPS Unit
BATT560APCB Block (Fuse : F8, F14, F15, F16, Engine Control Relay)
BATT260ASmart Junction Block (Fuse : F36, ARISU)
BATT360ASmart Junction Block (Fuse : ARISU, IPS)
BATT450ASmart Junction Block (Fuse : F20, F26, F27, F33, F34, F35, F41)
COOLING FAN150ARLY.9, RLY.2 (DSL)
RR HTD50ARLY.10
BLOWER40ARLY.12
IG140AIgnition Switch, E/R Junction Block (RLY.3, RLY8)
IG240AIgnition Switch, E/R Junction Block (RLY.6)
GLOW80AGlow Relay Unit
Engine compartment main fuse panel

Maintenance
7-78

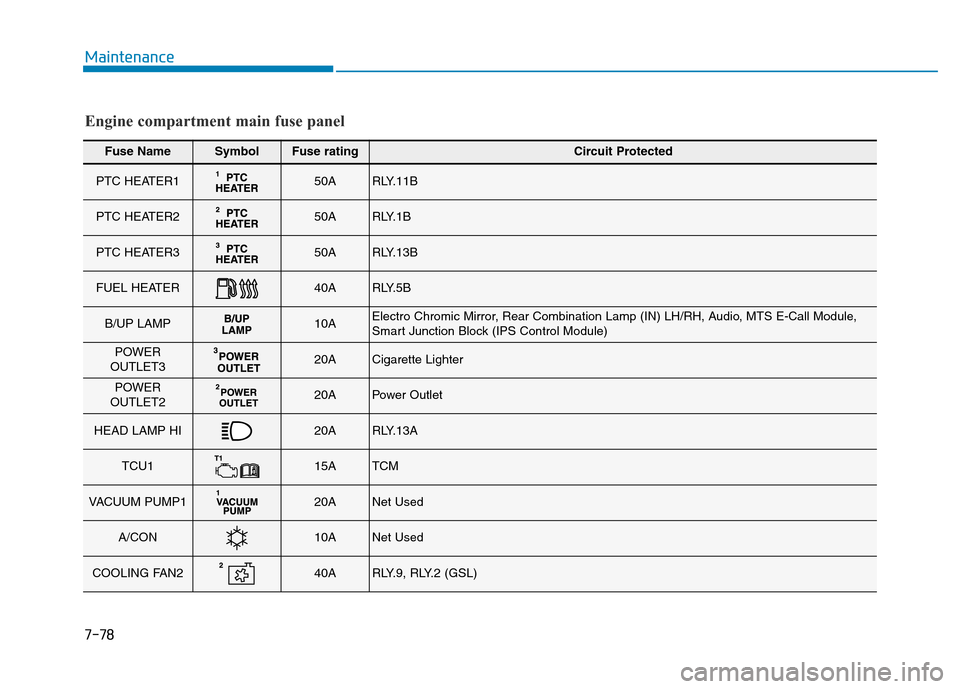

Fuse NameSymbolFuse ratingCircuit Protected
PTC HEATER150ARLY.11B
PTC HEATER250ARLY.1B
PTC HEATER350ARLY.13B
FUEL HEATER40ARLY.5B
B/UP LAMP10AElectro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Audio, MTS E-Call Module,
Smart Junction Block (IPS Control Module)
POWER
OUTLET320ACigarette Lighter
POWER
OUTLET220APower Outlet
HEAD LAMP HI20ARLY.13A
TCU115ATCM
VACUUM PUMP120ANet Used
A/CON10ANet Used
COOLING FAN240ARLY.9, RLY.2 (GSL)
Engine compartment main fuse panel

7-79
7
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
BATT140ASmart Junction Block (LEAK CURRENT AUTOCUT DEVICE,
Fuse : F10, F12, F21, F29, F38)
DCT140ATCM
DCT240ATCM
B/ALARM HORN10AR LY. 7
S/FUEL PUMP15AR LY. 5
ABS140AABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS230AABS Control Module, ESC Control Module, Multipurpose Check Connector
POWER40ARLY.14
Engine compartment main fuse panel

Maintenance
7-80
Engine compartment main fuse panel - PCB Block (Gamma 1.6 MPI)
Fuse NameSymbolFuse ratingCircuit Protected
SNSR210APurge Control Solenoid Valve, Variable Intake Solenoid Valve,
E/R Junction Block (RLY.2, RLY.9)
ECU215A-
ECU110AECM/PCM
INJ.15AINJECTOR #1~#4
SNSR115AOxygen Sensor (Up), Oxygen Sensor (Down)
IGN.15AIgnition Coil #1~#4, Condenser
SNSR320AFuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2
HORN10AHorn Relay
ECU510AECM/PCM
SNSR420A-
ABS315AABS/ESC Control Module, Multipurpose Check Connector
TCU215AVehicle Speed Sensor, Transmission Range Switch, E/R Junction Block (Fuse : F17)
ECU420AECM/PCM
ECU310AECM/PCM
F/PUMP20AFuel Pump Relay

7-81
7
Maintenance
Engine compartment main fuse panel - PCB Block (Nu 2.0 MPI)
Fuse NameSymbolFuse ratingCircuit Protected
SNSR210APurge Control Solenoid Valve, Variable Intake Solenoid Valve,
E/R Junction Block (RLY.2, RLY.9), Cold Start Solenoid Valve
ECU215APCM
ECU110A-
INJ.15AINJECTOR #1~#4
SNSR115AOxygen Sensor (Up), Oxygen Sensor (Down)
IGN.15AIgnition Coil #1~#4, Condenser
SNSR320AFuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2
HORN10AHorn Relay
ECU510APCM
SNSR420A-
ABS315AABS/ESC Control Module, Multipurpose Check Connector
TCU215AVehicle Speed Sensor, Transmission Range Switch, E/R Junction Block (Fuse : F17)
ECU420APCM
ECU310APCM
F/PUMP20AFuel Pump Relay
