2017 Hyundai Elantra Owner's Manual

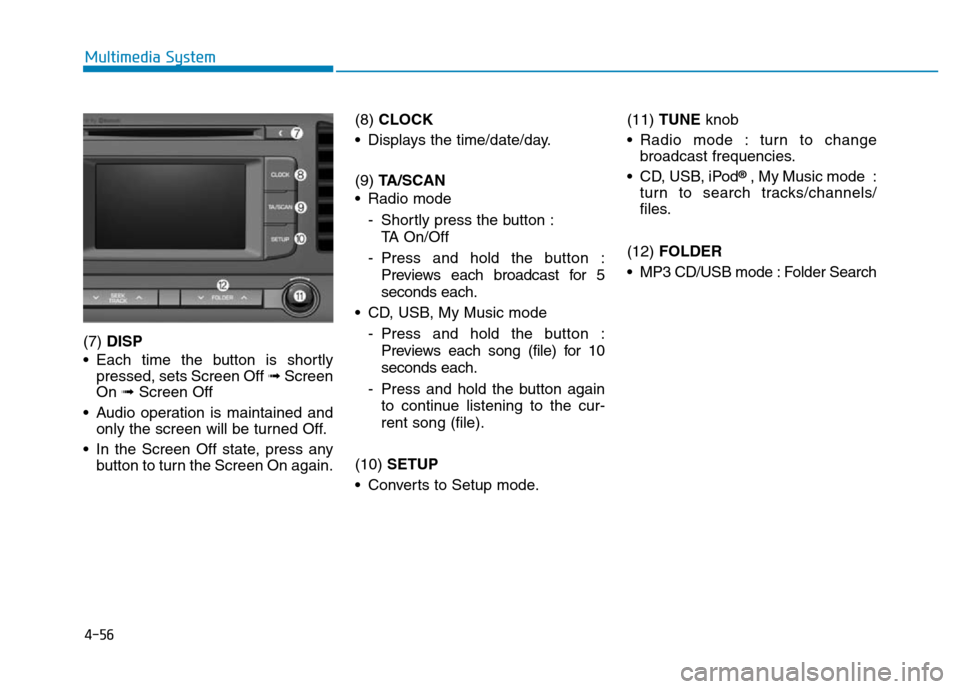

4-56
Multimedia System
(7) DISP
• Each time the button is shortly
pressed, sets Screen Off ➟Screen
On ➟Screen Off
• Audio operation is maintained and
only the screen will be turned Off.
• In the Screen Off state, press any
button to turn the Screen On again.(8) CLOCK
• Displays the time/date/day.
(9) TA/SCAN
• Radio mode
- Shortly press the button :
TA On/Off
- Press and hold the button :
Previews each broadcast for 5
seconds each.
• CD, USB, My Music mode
- Press and hold the button :
Previews each song (file) for 10
seconds each.
- Press and hold the button again
to continue listening to the cur-
rent song (file).
(10) SETUP
• Converts to Setup mode.(11) TUNE knob
• Radio mode : turn to change
broadcast frequencies.
• CD, USB, iPod
®, My Music mode :
turn to search tracks/channels/
files.
(12) FOLDER
• MP3 CD/USB mode : Folder Search

4-57
Multimedia System
4
ADB50002EE/ADB50003EE ■
Type B-3■Type B-4
(WithBluetooth®Wireless Technology)

4-58
Multimedia System
Feature of Your Audio
(1) EJECT
• Ejects the disc.
(2) RADIO
• Changes to FM/AM mode.
• Each time the button is pressed,
the mode is changed in order of
FM1 ➟FM2 ➟FMA ➟AM ➟AMA.(3)MEDIA
• Changes to CD, USB(iPod
®), AUX,
My Music, BT Audio mode.
• Each time the button is pressed, the
mode is changed in order of CD,
USB(iPod
®), AUX, My Music, BT
Audio.
(4) PHONE
• Converts to Phone mode.
• When a phone is not connected,
the connection screen is displayed.
(5) PWR/VOLknob
• Power knob : Turns power On/Off
by pressing the knob
• Volume knob : Sets volume by
turning the knob left/right(6) SEEK TRACK
When pressed shortly
• Radio mode : plays previous/next
frequency.
• CD, USB, iPod®, My Music, BT Audio
mode : changes the track, Song(file).
When pressed and held
• Radio mode : continuously changes
the frequency. Upon release, plays
the current frequency.
• CD, USB, iPod
®, My Music mode :
rewinds or fast forwards the track or
file.
• During a Handsfree call, controls the
call volume.

4-59
Multimedia System
4
(7) DISP
• Each time the button is shortly
pressed, sets Screen Off ➟Screen
On ➟Screen Off
• Audio operation is maintained and
only the screen will be turned Off.
• In the Screen Off state, press any
button to turn the Screen On again.(8) CLOCK
• Displays the time/date/day.
(9) TA/SCAN
• Radio mode
- Shortly press the button : TA
On/Off
- Press and hold the button :
Previews each broadcast for 5
seconds each.
• CD, USB, My Music mode
- Press and hold the button :
Previews each song (file) for 10
seconds each.
- Press and hold the button again
to continue listening to the cur-
rent song (file).(10) SETUP
• Converts to Setup mode.
(11) TUNE knob
• Radio mode : turn to change
broadcast frequencies.
• CD, USB, iPod
®, My Music mode :
turn to search tracks/channels/
files.
(12) FOLDER
• MP3 CD/USB mode : Folder Search

4-60
Multimedia System
ADB50004EE/ADB50005EE ■
Type B-5■Type B-6
(WithBluetooth®Wireless Technology)

4-61
Multimedia System
4
Feature of Your Audio
(1) EJECT
• Ejects the disc.
(2) RADIO
• Changes to FM/AM mode.
• Each time the button is pressed,
the mode is changed in order of
FM1 ➟FM2 ➟AM.(3)MEDIA
• Changes to CD, USB(iPod
®), AUX,
My Music, BT Audio mode.
• Each time the button is pressed,
the mode is changed in order of
CD, USB(iPod
®), AUX, My Music,
BT Audio.
(4) PHONE
• Converts to Phone mode.
• When a phone is not connected,
the connection screen is displayed.
(5) PWR/VOL knob
• Power knob : Turns power On/Off
by pressing the knob
• Volume knob : Sets volume by
turning the knob left/right(6) SEEK TRACK
When pressed shortly
• Radio mode : plays previous/next
frequency.
• CD, USB, iPod®, My Music, BT Audio
mode : changes the track, Song(file).
When pressed and held
• Radio mode : continuously changes
the frequency. Upon release, plays
the current frequency.
• CD, USB, iPod
®, My Music mode :
rewinds or fast forwards the track or
file.
• During a Handsfree call, controls the
call volume.

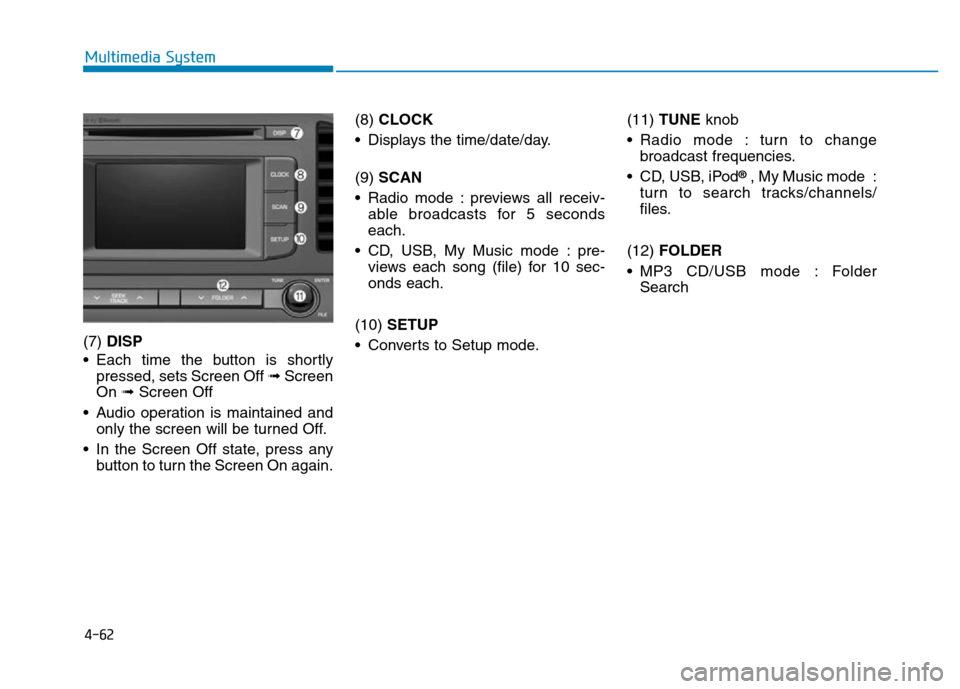

4-62
Multimedia System
(7) DISP
• Each time the button is shortly
pressed, sets Screen Off ➟Screen
On ➟Screen Off
• Audio operation is maintained and
only the screen will be turned Off.
• In the Screen Off state, press any
button to turn the Screen On again.(8) CLOCK
• Displays the time/date/day.
(9) SCAN
• Radio mode : previews all receiv-
able broadcasts for 5 seconds
each.
• CD, USB, My Music mode : pre-
views each song (file) for 10 sec-
onds each.
(10) SETUP
• Converts to Setup mode.(11) TUNE knob
• Radio mode : turn to change
broadcast frequencies.
• CD, USB, iPod
®, My Music mode :
turn to search tracks/channels/
files.
(12) FOLDER
• MP3 CD/USB mode : Folder
Search

4-63
Multimedia System
4
Information
- Using the Discs
• This device has been manufactured
to be compatible with software
bearing the following logo marks.
• Do not clean discs with chemical
solutions, such as record sprays,
antistatic sprays, antistatic liquids,
benzene, or thinners.
• After using a disc, put the disc back
in its original case to prevent disc
scratches.
• Hold discs by their edges or within
the center hole to prevent damages
to disc surfaces.
• Do not introduce foreign substances
into the disc insert/eject slot.
Introducing foreign substances
could damage the device interior.
• Do not insert two discs simultane-
ously.
• When using CD-R/CD-RW discs,
differences in disc reading and play-
ing times may occur depending on
the disc manufacturer, production
method and the recording method
as used by the user.
(Continued)(Continued)
• Clean fingerprints and dust off the
disc surface (coated side) with a soft
cloth.
• The use of CD-R/CD-RW discs
attached with labels may result in
disc slot jams or difficulties in disc
removal. Such discs may also result
in noise while playing.
• Some CD-R/CD-RW discs may not
properly operate depending on the
disc manufacturer, production
method and the record method as
used by the user. If problems persist,
trying using a different CD as con-
tinued use may result in malfunc-
tions.
• The performance of this product
may differ depending on the CDRW
Drive Software.
• Copy-protected CDs such as Stype
CDs may not function in the device.
DATA discs cannot be played.
(However, such discs may still oper-
ate but will do so abnormally.)
(Continued)(Continued)
• Do not use abnormally shaped discs
(8cm, heart-shaped, octagonshaped)
as such discs could lead to malfunc-
tions.
• If the disc is straddled on the disc
slot without removal for 10 seconds,
the disc will automatically be re-
inserted into the disc player.
• Only genuine audio CDs are sup-
ported. Other discs may result in
recognition failure (e.g. copy CDR,
CDs with labels)
