2017 HONDA ODYSSEY remote control

360
Features
Bluetooth® HandsFreeLink ®
See the Navigation System Manu al for how to operate the Bluetooth® HandsFreeLink ®.
Bluetooth ® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to answer an incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to give HFL voice commands.
PHONE button: Press to go directly to the Phone screen.
Interface dial: Rotate to select an item on the screen, then press . Move ,
, or to select secondary menu.
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
For a list of compatible phones:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use HFL, the Bluetooth Status setting must be
On .
2 Customized Features P. 295
Voice control tips:
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press and release the but ton when you want to
call a number using a stored voice tag, a
phonebook name, or a numbe r. Speak clearly and
naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system’s
volume knob or the remote audio controls on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Models with navigation system
Non-navi models with two displays
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up
Button
Volume down
Interface
Dial
PHONE

Button
17 US ODYSSEY (KA KC)-31TK86600.book 360 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

451
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 452
Safety When Performing Maintenance..... 453Parts and Fluids Used in Maintenance Service ........................................... 454
Maintenance Minder
TM..................... 455
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 463Opening the Hood ........................... 464
Recommended Engine Oil ................ 465
Oil Check ......................................... 466
Adding Engine Oil ............................ 467
Changing the Engine Oil and Oil Filter ..... 468
Engine Coolant ................................ 470
Transmission Fluid ............................ 472
Brake Fluid ....................................... 473
Power Steering Fluid Check.............. 474
Refilling Window Washer Fluid......... 474
Replacing Light Bulbs ....................... 475
Checking and Maintaining Wiper Blades.... 486Checking and Maintaining Tires
Checking Tires ................................. 490
Tire and Loading Information Label ...... 491Tire Labeling .................................... 491DOT Tire Quality Grading (U.S. Vehicles)....... 493Wear Indicators................................ 495 Tire Service Life ................................ 495
Tire and Wheel Replacement ........... 496
Tire Rotation .................................... 497
Winter Tires ..................................... 498
Battery ............................................... 499
Remote Transmitter Care ................. 500
Remote Control and Wireless Headphone Care
*........................... 502
Heating and Cooling System*/Climate
Control System* Maintenance ....... 504
Cleaning Interior Care .................................... 505
Exterior Care.................................... 507
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 451 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

502
Maintenance
Remote Control and Wireless Headphone Care*
Replacing the Battery
If it takes several pushes on the remo te control buttons to operate the rear
entertainment system.
1.Remove the cover.
2. Make sure to replace the battery with the
correct polarity.
■Remote Control
Models with Rear Entertainment System
1 Replacing the Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Battery type: BR3032
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 502 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

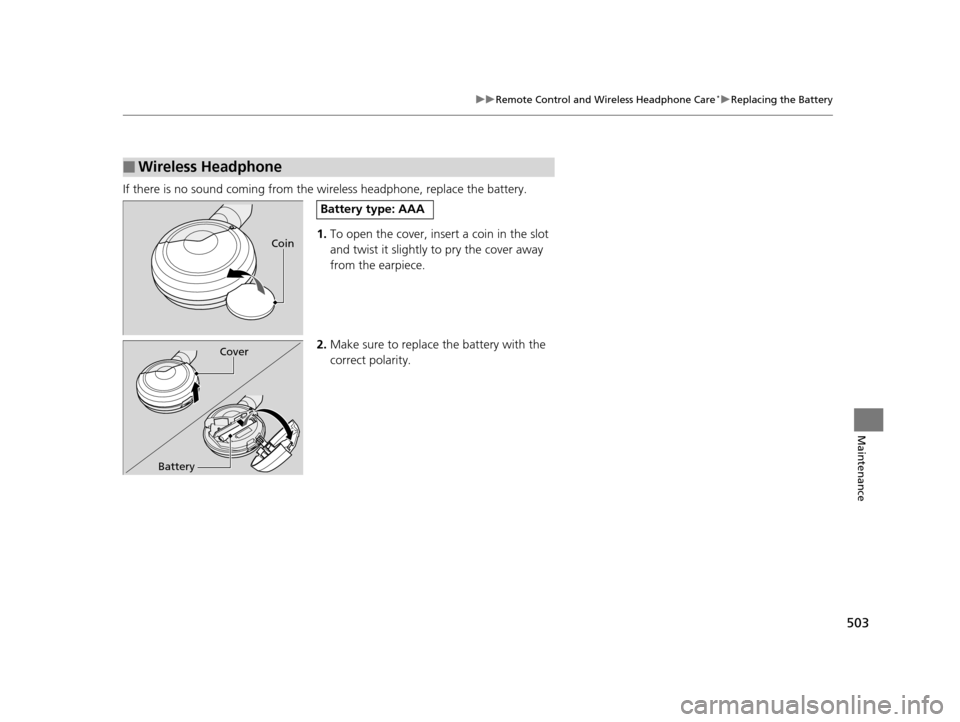

503
uuRemote Control and Wireless Headphone Care*uReplacing the Battery
Maintenance
If there is no sound coming from the wireless headphone, replace the battery.
1.To open the cover, insert a coin in the slot
and twist it slightly to pry the cover away
from the earpiece.
2. Make sure to replace the battery with the
correct polarity.
■Wireless Headphone
Coin
Battery type: AAA
Cover
Battery
17 US ODYSSEY (KA KC)-31TK86600.book 503 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

545
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver
Immobilizer System
Parking Sensor System (Canadian models only)
Remote Transmitter
Tire Pressure Monitoring System (TPMS)
Rear Entertainment System Remote Control
Models with Rear Entertainment System
17 US ODYSSEY (KA KC)-31TK86600.book 545 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Index
553
Index
Index
A
AAC................................... 221, 229, 252, 262
ABS (Anti-lock Brake System) .................. 438
AC Power Outlet ...................................... 185
Accessories and Modifications ................ 450
Accessory Power Sockets ......................... 183
Additives Coolant .................................................. 470
Engine Oil ............................................... 465
Washer ................................................... 474
Additives, Engine Oil ............................... 465
Adjusting Armrest .................................................. 175
Front Seats.............................................. 161
Head Restraints ....................................... 164
Mirrors.................................................... 158
Rear Seats ....................................... 162, 169
Steering Wheel ....................................... 157
Temperature ....................................... 95, 98
Aha
TM Menu ............................................. 261
AhaTM Radio .............................................. 271
Air Conditioning System (Climate Control
System) .................................................... 198
Changing the Mode................................ 198
Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 504
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 203
Using Automatic Climate Control............ 198 Air Conditioning System (Heating and
Cooling System) ...................................... 194
Cooling ................................................... 196
Defrosting the Windshield and Windows ............................................... 196
Dust and Pollen Filter ............................... 504
Heating ................................................... 195
Air Pressure ....................................... 491, 543
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care ............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator .............................................. 49, 74
Passenger Airbag Off Indicator .................. 50
Sensors ...................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 48
AM/FM Radio .................................... 218, 245
Anti-lock Brake System (ABS) .................. 438
Indicator .................................................... 73
Armrest ..................................................... 175
Audio Remote Controls ............................ 210
Audio System ............................................ 206
Adjusting the Sound ................ 216, 237, 243
Auxiliary Input Jack .................................. 207
Error Messages ........................................ 267
General Information ................................ 272
Internet Radio .................................. 227, 259
iPod ................................................. 224, 255
MP3/WMA/AAC .............. 221, 229, 252, 262 Reactivating ............................................ 208
Recommended CDs ................................. 273
Recommended Devices............................ 275
Remote Controls ..................................... 210
Security Code .......................................... 208
Shortcuts................................................. 236
Theft Protection ...................................... 208
Touch Screen .......................................... 235
USB Flash Drives ...................................... 275
USB Port.................................................. 207
Audio with Touch Screen ......................... 235
Authorized Manuals ................................ 551
Auto Door Locking/Unlocking ................. 120
Customize ............................... 103, 302, 317
Automatic Lighting .................................. 148
Automatic Transmission ........................... 412
Creeping ................................................. 412
Fluid ........................................................ 472
Kickdown ................................................ 412
Operating the Shift Lever................... 18, 414
Shift Lever Does Not Move ...................... 525
Shifting ................................................... 413
Auxiliary Input Jack .................................. 207
Average Fuel Economy ........................ 94, 97
Average Speed ........................................... 98
B
Battery...................................................... 499
Charging System Indicator................. 72, 528
Jump Starting .......................................... 523
17 US ODYSSEY (KA KC)-31TK86600.book 553 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

557
Index
Malfunction Indicator Lamp .............. 71, 529
Parking Brake and Brake System (Red) ............................................... 70, 530
Parking Sensor .......................................... 75
Power Sliding Door ................................... 83
Power Tailgate .......................................... 82
Seat Belt Reminder.............................. 31, 73
Security System Alarm............................... 79
Shift Lever Position.................................... 72
Smart Entry System ................................... 79
Starter System........................................... 79
Supplemental Restraint System ........... 49, 74
System Message ....................................... 77
TPMS ................................................ 76, 430
Transmission ............................................. 72
Turn Signal ............................................... 77
Vehicle Stability Assist (VSA® ) System ........ 74
VSA ® (Vehicle Stability Assist) System ...... 426
VSA ® OFF.......................................... 74, 427
Washer Level ............................................ 82
Information .............................................. 541
Information Button ................................... 96
Information Display ................................... 93
Instant Fuel Economy .......................... 94, 97
Instrument Panel ........................................ 69
Brightness Control .................................. 153
Integrated Sunshades .............................. 190
Interface Dial ............................................ 234
Interior Lights ........................................... 176
Interior Rearview Mirror ......................... 158J
Jack (Wheel Nut Wrench) ........................ 514
Jump Starting ........................................... 523
K
Key Number Tag ....................................... 111
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 110
Lockout Prevention .................................. 117
Master Keys ............................................. 110
Number Tag ............................................ 111
Rear Door Won’t Open ............................ 119
Remote Transmitter ................................. 115
Types and Functions ................................ 110
Valet Key ................................................. 111
Won’t Turn ................................................ 22
Kickdown (Automatic Transmission) ....... 412
L
Lane Departure Warning (LDW).............. 422
LaneWatchTM............................................. 434
Language (HFL) ................................. 328, 361
LATCH (Child Seats) .................................... 57
Lights ................................................. 147, 475
Automatic ............................................... 148
Bulb Replacement .................................... 475
Daytime Running Lights ........................... 150
Fog Lights ................................................ 150
High Beam Indicator .................................. 77 Interior .................................................... 176
Light Switches ......................................... 147
Lights On Indicator .................................... 77
Turn Signals ............................................ 147
Load Limits ................................................ 399
Locking/Unlocking .................................... 110
Auto Door Locking/Unlocking.................. 120
Childproof Door Locks............................. 119
From Inside ............................................. 118
From Outside .......................................... 113
Keys ........................................................ 110
Using a Key ............................................. 116
Lockout Prevention System ..................... 117
Low Battery Charge ................................. 528
Low Fuel Indicator ...................................... 73
Low Oil Pressure Indicator ................. 71, 528
Low Smart Entry Remote Signal
Strength .................................................. 112
Lower Anchors ............................................ 57
Luggage (Maximum Load Limit) ............. 399M
Maintenance............................................. 451
Battery .................................................... 499
Brake Fluid .............................................. 473
Cleaning ................................................. 505
Climate Control System ........................... 504
Coolant ................................................... 470
Heating and Cooling System ................... 504
Maintenance Minder
TM............................ 455
17 US ODYSSEY (KA KC)-31TK86600.book 557 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

558
Index
Oil ........................................................... 466
Power Steering Fluid ................................ 474
Precautions .............................................. 452
Radiator................................................... 471
Remote Control and Wireless Headphone ............................................ 502
Remote Transmitter ................................. 500
Replacing Light Bulbs ............................... 475
Safety ...................................................... 453
Service Items.................................... 457, 461
Tires ........................................................ 490
Transmission Fluid.................................... 472
Under the Hood....................................... 463
Malfunction Indicator Lamp .............. 71, 529
Map Lights ................................................ 177
Maximum Load Limit ................................ 399
Meters, Gauges ........................................... 92
Mirrors ....................................................... 158
Adjusting ................................................. 158
Door ........................................................ 159
Exterior .................................................... 159
Interior Rearview...................................... 158
Modifications (and Accessories) ............... 450
Moonroof .................................................. 141
MP3 .................................... 221, 229, 252, 262
Multi-Information Display .......................... 96
N
Numbers (Identification).......................... 544
O
Odometer............................................. 93, 97
Oil (Engine) ............................................... 465
Adding .................................................... 467
Checking................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator ................. 71, 528
Recommended Engine Oil ....................... 465
Viscosity .................................................. 465
Opening/Closing Hood....................................................... 464
Moonroof ............................................... 141
Power Windows ...................................... 138
Sliding Doors ........................................... 127
Tailgate ................................................... 121
Outside Temperature Display .............. 95, 98
Overheating .............................................. 526
P
Pandora®........................................... 228, 260
Panic Mode ............................................... 137
Parking ...................................................... 440
Parking Brake ........................................... 436
Parking Brake and Brake System Indicator .................................................... 70
Parking Sensor System ............................. 441
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 147
Power Sliding Doors ................................. 129
Power Tailgate ......................................... 123 Power Windows
....................................... 138
Precautions While Driving ....................... 411
Rain ........................................................ 411
Pregnant Women ....................................... 37
Puncture (Tire) ......................................... 511
R
Radiator.................................................... 471
Radio (AM/FM) ................................. 218, 245
Radio (SiriusXM ®)..................................... 249
Radio Data System (RDS) ................. 219, 247
Range .................................................... 94, 97
RDS (Radio Data System) ................. 219, 247
Readiness Codes (Emissions Testing) ...... 547
Rear Defogger/Heated Door Mirror
Button ..................................................... 154
Rear Entertainment System ..................... 276
Rear Seats (Folding Down) .............. 162, 173
Rearview Camera ..................................... 445
Rearview Mirror ....................................... 158
Refueling .................................................. 446
Fuel Gauge ............................................... 92
Gasoline ......................................... 446, 542
Low Fuel Indicator..................................... 73
Regulations .............................. 429, 493, 545
Remote Transmitter ................................. 115
Removable Center Console ..................... 178
Removing a Second Row Outer Seat ...... 170
Removing the Second Row Center
Seat ......................................................... 172
17 US ODYSSEY (KA KC)-31TK86600.book 558 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
