2017 HONDA ODYSSEY remote control

Continued115
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and the tailgate lock , and the security
system sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system
* is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 99, 295
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 176
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
LED Unlock
Button
Lock
Button
Unlock
Button LED
Lock
Button
Unlock
Button Lock
Button
LED
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 115 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
116
Controls
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver's door unlocks.
Twice: u The remaining doors and the tailgate unlock.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key
1Using the Remote Transmitter
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 500
You can customize the door unlock mode setting. 2 Customized Features P. 99, 295
1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all of the
other doors and the tailgate lock at the same time.
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 99, 295
LockUnlock
17 US ODYSSEY (KA KC)-31TK86600.book 116 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

117
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the driver’s door
Push the lock tab rearward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger’s doors
Push the lock tab rearward and close the door.
■Lockout prevention system
The doors and tailgate cannot be locked when the key is in the ignition switch*1, or
the smart entry remote is inside the vehicle.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and the tailgate lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
17 US ODYSSEY (KA KC)-31TK86600.book 117 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

122

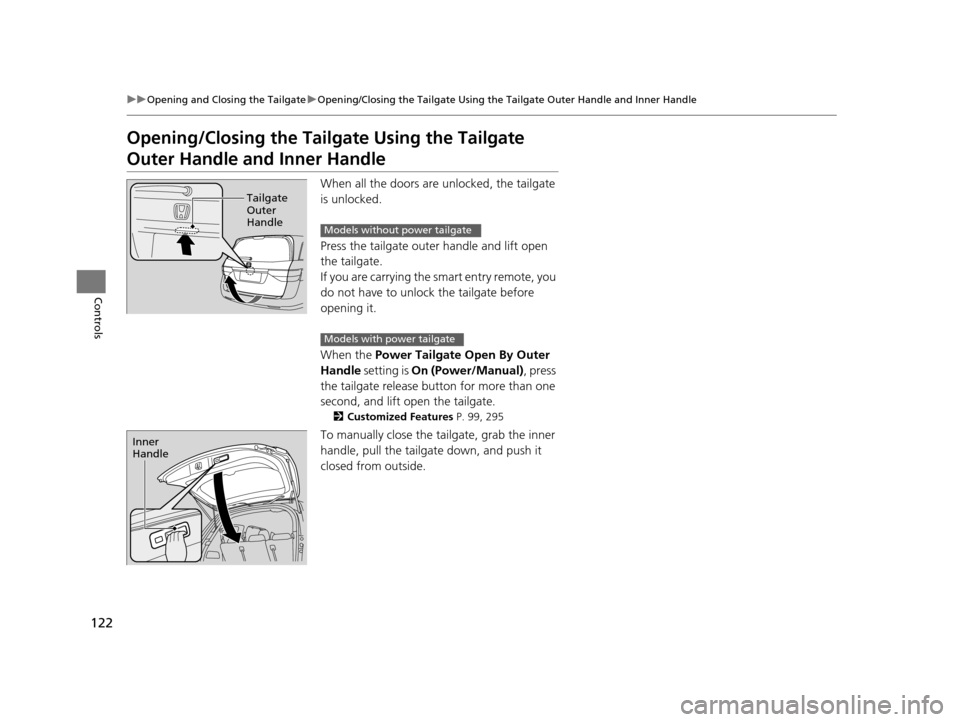

uuOpening and Closing the Tailgate uOpening/Closing the Tailgate Using the Tailgate Outer Handle and Inner Handle
Controls
Opening/Closing the Tailgate Using the Tailgate
Outer Handle a nd Inner Handle
When all the doors are unlocked, the tailgate
is unlocked.
Press the tailgate outer handle and lift open
the tailgate.
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
When the Power Tailgate Open By Outer
Handle setting is On (Power/Manual) , press
the tailgate release bu tton for more than one
second, and lift open the tailgate.
2 Customized Features P. 99, 295
To manually close the tailgate, grab the inner
handle, pull the tailgate down, and push it
closed from outside.
Tailgate
Outer
Handle
Models without power tailgate
Models with power tailgate
Inner
Handle
17 US ODYSSEY (KA KC)-31TK86600.book 122 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

123
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Opening/Closing the Power Tailgate*
The power tailgate can be operated by pr essing the power tailgate button on the
smart entry remote or instrument panel, or pressing the handle or button on the
tailgate.
■The power tailgate can be opened when:
• The tailgate is fully closed.
• The shift lever is in
(P.
• Press and hold the tailgate button on the smart entry remote for about one
second when the power mode is in VEHICLE OFF (LOCK).
u If you have changed the Power Tailgate Keyless Open Mode setting to
When Unlocked , you need to unlock the tailgate before you press the tailgate
button to open it.
2 Customized Features P. 99, 295
■The power tailgate ca n be closed when:
• The tailgate is fully open.
• The shift lever is in
(P.
• Press and hold the tailgate button on the smart entry remote for about one
second when the power mode is in VEHICLE OFF (LOCK).
1Opening/Closing the Power Tailgate*
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
The power tailgate may not open or close under the
following conditions:
•The vehicle is park ed on a steep hill.
•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgat e is fully closed before
you start the vehicle.
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 123 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
124
Controls
Press the power tailgate button for more than
one second to operate.
To reverse direction whil e the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and opens at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 99 , 295
■Remote Transmitter1Opening/Closing the Power Tailgate*
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. Three beeps sound.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power
Tailgate
Button
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 124 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

129
uuOpening and Closing the Sliding Doors uOpening/Closing the Power Sliding Doors*
Continued
Controls
Opening/Closing the Power Sliding Doors*
The power sliding doors can be operated by pressing the power sliding door button
on the smart entry remote, pressing the power sliding door switches on the
dashboard or door pillars, or using the door handle.
The power sliding doors can be operated when:
• The sliding door main switch is in the ON position.
• The power sliding door is unlocked.
• The fuel fill door is closed (on the driver side sliding door only).
• The power mode is in VEHICLE OFF (LOC K) when using the smart entry remote.
• The shift lever is in
(P, the brake pedal is depressed, or the parking brake is
applied (with the power mode in ON) when using the power sliding door switches
on the dashboard.
1 Opening/Closing the Power Sliding Doors*
If you move the shift lever out of (P, and release the
brake pedal and the parking brake:
While opening – The sliding door stops and is left
ajar.
While closing – The beeper sounds until the door
closes.
Check that passengers, es pecially children, do not
have their hands on the sliding doors or on the door
pillars before its operation. If someone is caught in
the opening or closing sliding door, it can cause
serious injury.
Before replacing a rear ti re, turn the power sliding
door main switch to OFF.
Operate the power slidi ng doors only when the
vehicle is at a complete stop. Make sure you apply the
brake when rear passengers are boarding or exiting.
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 129 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuOpening and Closing the Sliding Doors uOpening/Closing the Power Sliding Doors*
132
Controls
Press the power sliding door button for more
than one second to operate.
While the power sliding door is in operation, if
you press the button that corresponds to that
power sliding door, the beeper sounds and
the operation stops.
If you press the same button again, the sliding
door reverses its direction.
■Customizing when to open the sliding doors
Anytime: The power sliding door unlocks and op ens at the same time. This is the
default setting.
When Unlocked: The door opens when a ll doors are unlocked.
2Customized Features P. 99 , 295
■Smart Entry Remote1Smart Entry Remote
When you press the power sliding door button to
open the door, the front door on the same side
unlocks.
Driver’s Side Power Sliding
Door Button
Passenger’s Side Power Sliding
Door Button
1 Customizing when to open the sliding doors
When you select When Unlocked , you will hear
three short beeps.
When you select Any Time , you will hear one long
beep.
In When Unlocked , trying to operate the power
sliding door without unlocki ng the door triggers the
beeper to sound.
17 US ODYSSEY (KA KC)-31TK86600.book 132 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
