2017 HONDA ODYSSEY Console

7

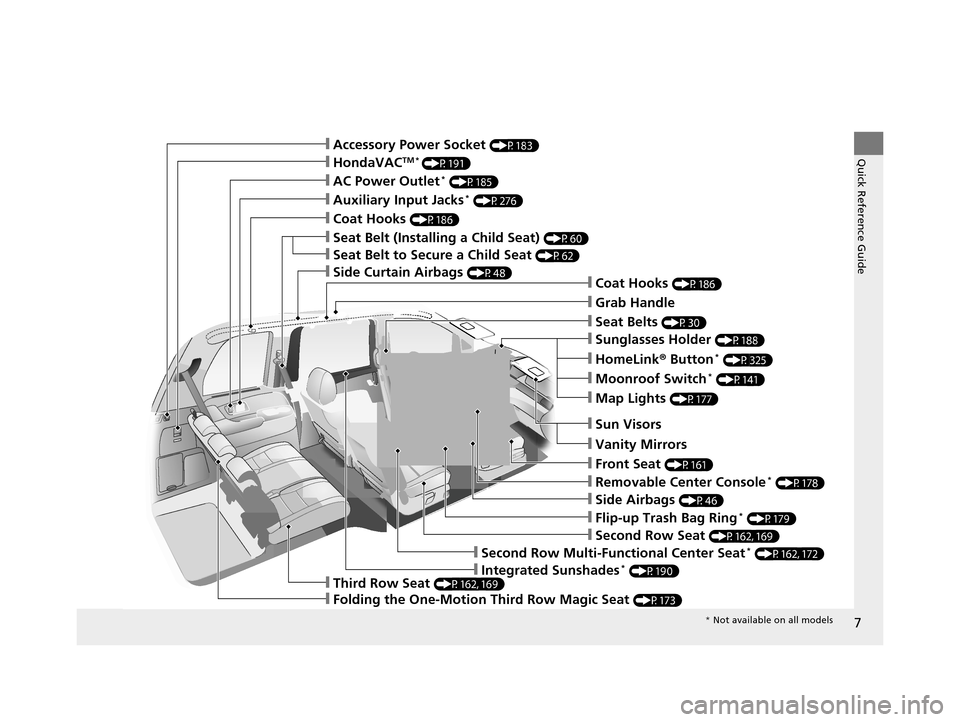

Quick Reference Guide
❙Sun Visors
❙Vanity Mirrors
❙Moonroof Switch* (P141)
❙Map Lights (P177)
❙HomeLink® Button* (P325)
❙Sunglasses Holder (P188)
❙Seat Belts (P30)
❙Grab Handle
❙Coat Hooks (P186)
❙Seat Belt to Secure a Child Seat (P62)
❙Seat Belt (Installing a Child Seat) (P60)
❙Accessory Power Socket (P183)
❙Side Curtain Airbags (P48)
❙Coat Hooks (P186)
❙AC Power Outlet* (P185)
❙Auxiliary Input Jacks* (P276)
❙Side Airbags (P46)
❙Second Row Seat (P162, 169)
❙Front Seat (P161)
❙Removable Center Console* (P178)
❙Flip-up Trash Bag Ring* (P179)
❙Third Row Seat (P162, 169)
❙Folding the One-Motion Third Row Magic Seat (P173)
❙Second Row Multi-Functional Center Seat* (P162, 172)
❙Integrated Sunshades* (P190)
❙HondaVACTM * (P191)
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 7 ページ ２０１６年１０月２４日　月曜日　午後４時２分

178
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
built-in key
*.
Pull up on the lever to open the console
compartment.
■Removing the center console
Pull up the handle on the front lower side and
unlock the console from the floor. Raise it
forward to remove.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■Removable Center Console*1Removable Center Console*
When you reinstall the center console, place the rear
side on the floor first, and align the marks on the
sides with the marks on the floor. Push the center
console down and lock it. M ake sure it is securely
latched before driving.
Marks
Handle
Lever
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 178 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued181
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

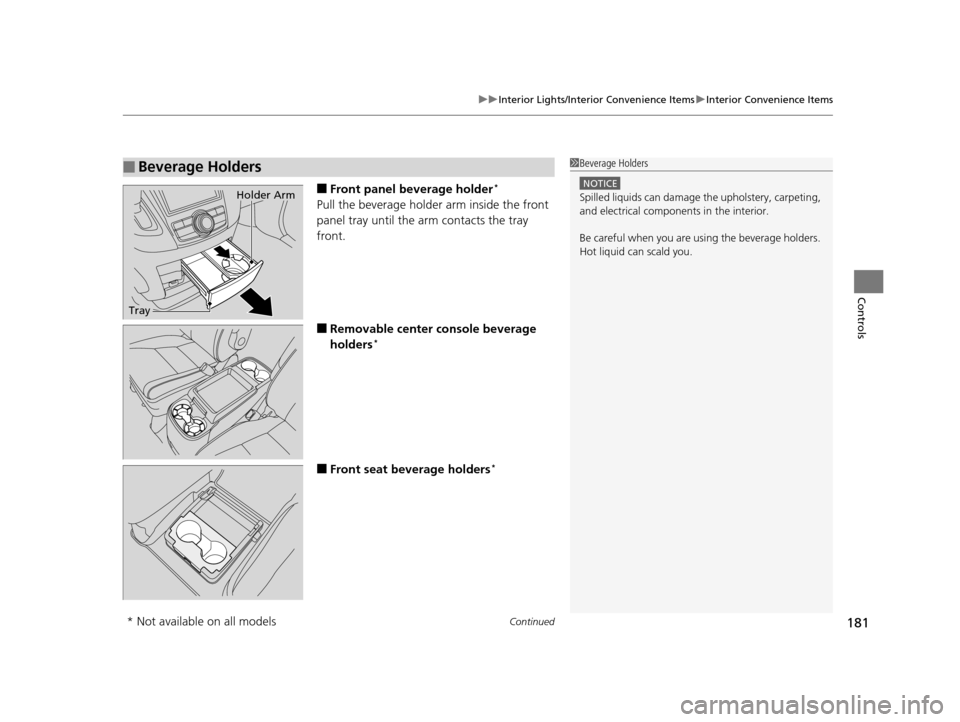

■Front panel beverage holder*
Pull the beverage holder arm inside the front
panel tray until the ar m contacts the tray
front.
■Removable center console beverage
holders*
■Front seat beverage holders*
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Tray
Holder Arm
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 181 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Continued183
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Third row seat beverage holders
The accessory power so ckets can be used when the i gnition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 120
watts (10 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
When each socket is bei ng used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).
17 US ODYSSEY (KA KC)-31TK86600.book 183 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

558
Index
Oil ........................................................... 466
Power Steering Fluid ................................ 474
Precautions .............................................. 452
Radiator................................................... 471
Remote Control and Wireless Headphone ............................................ 502
Remote Transmitter ................................. 500
Replacing Light Bulbs ............................... 475
Safety ...................................................... 453
Service Items.................................... 457, 461
Tires ........................................................ 490
Transmission Fluid.................................... 472
Under the Hood....................................... 463
Malfunction Indicator Lamp .............. 71, 529
Map Lights ................................................ 177
Maximum Load Limit ................................ 399
Meters, Gauges ........................................... 92
Mirrors ....................................................... 158
Adjusting ................................................. 158
Door ........................................................ 159
Exterior .................................................... 159
Interior Rearview...................................... 158
Modifications (and Accessories) ............... 450
Moonroof .................................................. 141
MP3 .................................... 221, 229, 252, 262
Multi-Information Display .......................... 96
N
Numbers (Identification).......................... 544
O
Odometer............................................. 93, 97
Oil (Engine) ............................................... 465
Adding .................................................... 467
Checking................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator ................. 71, 528
Recommended Engine Oil ....................... 465
Viscosity .................................................. 465
Opening/Closing Hood....................................................... 464
Moonroof ............................................... 141
Power Windows ...................................... 138
Sliding Doors ........................................... 127
Tailgate ................................................... 121
Outside Temperature Display .............. 95, 98
Overheating .............................................. 526
P
Pandora®........................................... 228, 260
Panic Mode ............................................... 137
Parking ...................................................... 440
Parking Brake ........................................... 436
Parking Brake and Brake System Indicator .................................................... 70
Parking Sensor System ............................. 441
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 147
Power Sliding Doors ................................. 129
Power Tailgate ......................................... 123 Power Windows
....................................... 138
Precautions While Driving ....................... 411
Rain ........................................................ 411
Pregnant Women ....................................... 37
Puncture (Tire) ......................................... 511
R
Radiator.................................................... 471
Radio (AM/FM) ................................. 218, 245
Radio (SiriusXM ®)..................................... 249
Radio Data System (RDS) ................. 219, 247
Range .................................................... 94, 97
RDS (Radio Data System) ................. 219, 247
Readiness Codes (Emissions Testing) ...... 547
Rear Defogger/Heated Door Mirror
Button ..................................................... 154
Rear Entertainment System ..................... 276
Rear Seats (Folding Down) .............. 162, 173
Rearview Camera ..................................... 445
Rearview Mirror ....................................... 158
Refueling .................................................. 446
Fuel Gauge ............................................... 92
Gasoline ......................................... 446, 542
Low Fuel Indicator..................................... 73
Regulations .............................. 429, 493, 545
Remote Transmitter ................................. 115
Removable Center Console ..................... 178
Removing a Second Row Outer Seat ...... 170
Removing the Second Row Center
Seat ......................................................... 172
