2017 HONDA FIT Owners Manual

440

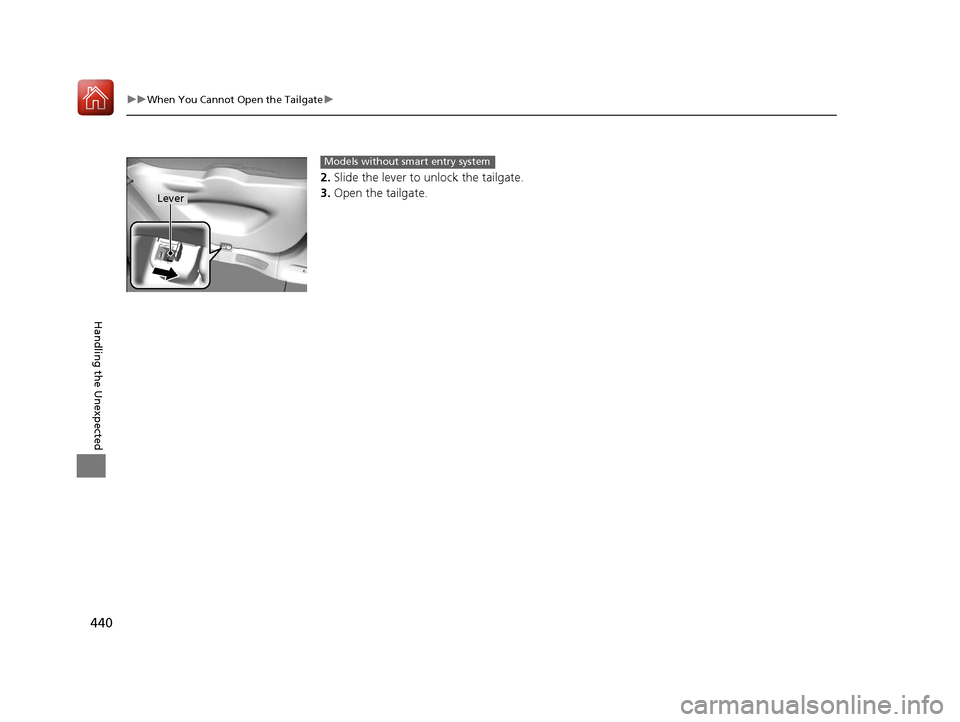

uuWhen You Cannot Open the Tailgate u
Handling the Unexpected
2.Slide the lever to unlock the tailgate.
3. Open the tailgate.
Lever
Models without smart entry system
17 FIT -31T5A6200.book 440 ページ ２０１６年５月２７日　金曜日　午後６時３３分

441

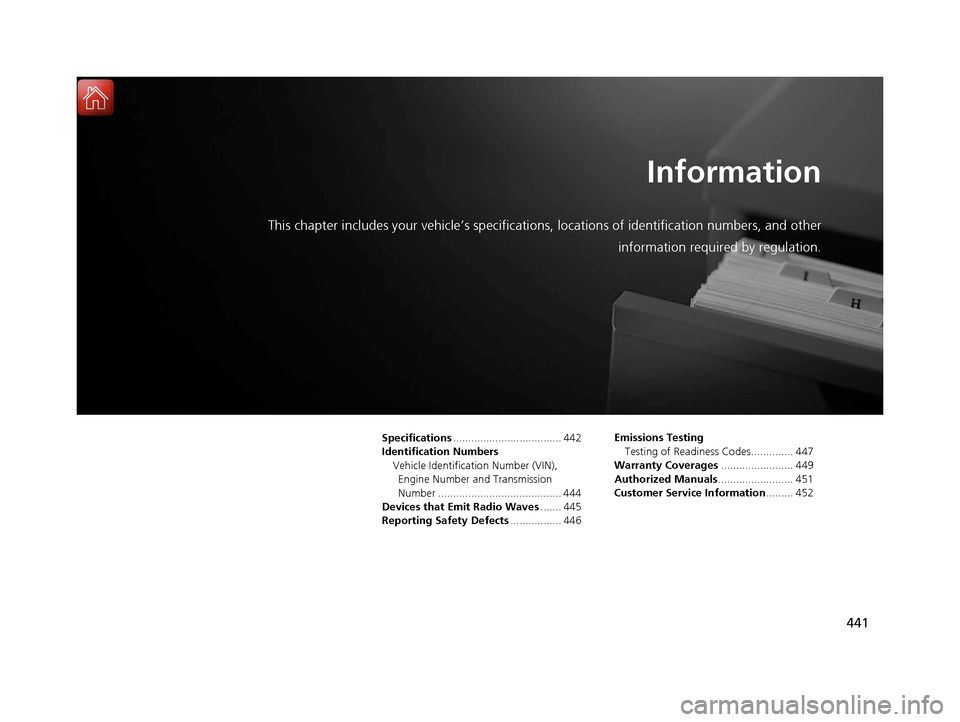

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 442
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 444
Devices that Emit Radio Waves ....... 445
Reporting Safety Defects ................. 446Emissions Testing
Testing of Readiness Codes.............. 447
Warranty Coverages ........................ 449
Authorized Manuals ......................... 451
Customer Service Information ......... 452
17 FIT -31T5A6200.book 441 ページ ２０１６年５月２７日　金曜日　午後６時３３分

442
Information

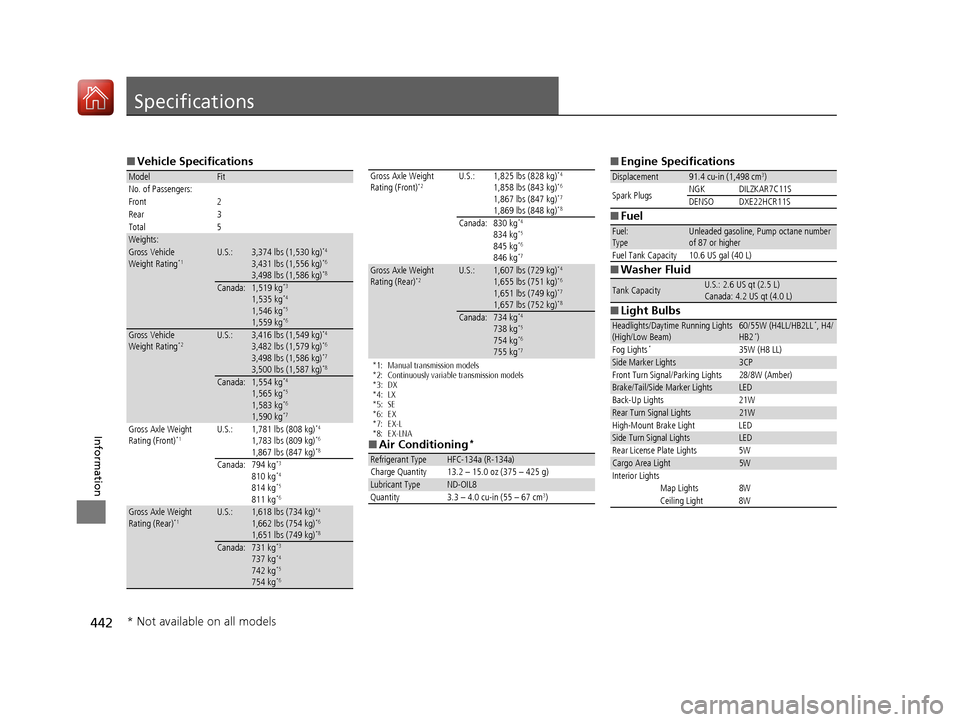

Specifications
■Vehicle Specifications
ModelFitNo. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating*1U.S.:3,374 lbs (1,530 kg)*4
3,431 lbs (1,556 kg)*6
3,498 lbs (1,586 kg)*8
Canada:1,519 kg*3
1,535 kg*4
1,546 kg*5
1,559 kg*6
Gross Vehicle
Weight Rating*2U.S.:3,416 lbs (1,549 kg)*4
3,482 lbs (1,579 kg)*6
3,498 lbs (1,586 kg)*7
3,500 lbs (1,587 kg)*8
Canada:1,554 kg*4
1,565 kg*5
1,583 kg*6
1,590 kg*7
Gross Axle Weight
Rating (Front)*1U.S.:1,781 lbs (808 kg)*4
1,783 lbs (809 kg)*6
1,867 lbs (847 kg)*8
Canada:794 kg*3
810 kg*4
814 kg*5
811 kg*6
Gross Axle Weight
Rating (Rear)*1U.S.:1,618 lbs (734 kg)*4
1,662 lbs (754 kg)*6
1,651 lbs (749 kg)*8
Canada:731 kg*3
737 kg*4
742 kg*5
754 kg*6
*1: Manual transmission models
*2: Continuously variable transmission models
*3: DX
*4: LX
*5: SE
*6: EX
*7: EX-L
*8: EX-LNA
■ Air Conditioning*
Gross Axle Weight
Rating (Front)*2U.S.:1,825 lbs (828 kg)*4
1,858 lbs (843 kg)*6
1,867 lbs (847 kg)*7
1,869 lbs (848 kg)*8
Canada:830 kg*4
834 kg*5
845 kg*6
846 kg*7
Gross Axle Weight
Rating (Rear)*2U.S.:1,607 lbs (729 kg)*4
1,655 lbs (751 kg)*6
1,651 lbs (749 kg)*7
1,657 lbs (752 kg)*8
Canada:734 kg*4
738 kg*5
754 kg*6
755 kg*7
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeND-OIL8
Quantity 3.3 – 4.0 cu-in (55 – 67 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
■ Light Bulbs
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11S
DENSODXE22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.2 US qt (4.0 L)
Headlights/Daytime Running Lights
(High/Low Beam)60/55W (H4LL/HB2LL*, H4/
HB2*)
Fog Lights*35W (H8 LL)Side Marker Lights3CP
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 21W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Side Turn Signal LightsLED
Rear License Plate Lights 5W
Cargo Area Light5W
Interior Lights
Map Lights8W
Ceiling Light 8W
* Not available on all models
17 FIT -31T5A6200.book 442 ページ ２０１６年５月２７日　金曜日　午後６時３３分

443
uuSpecifications u
Information

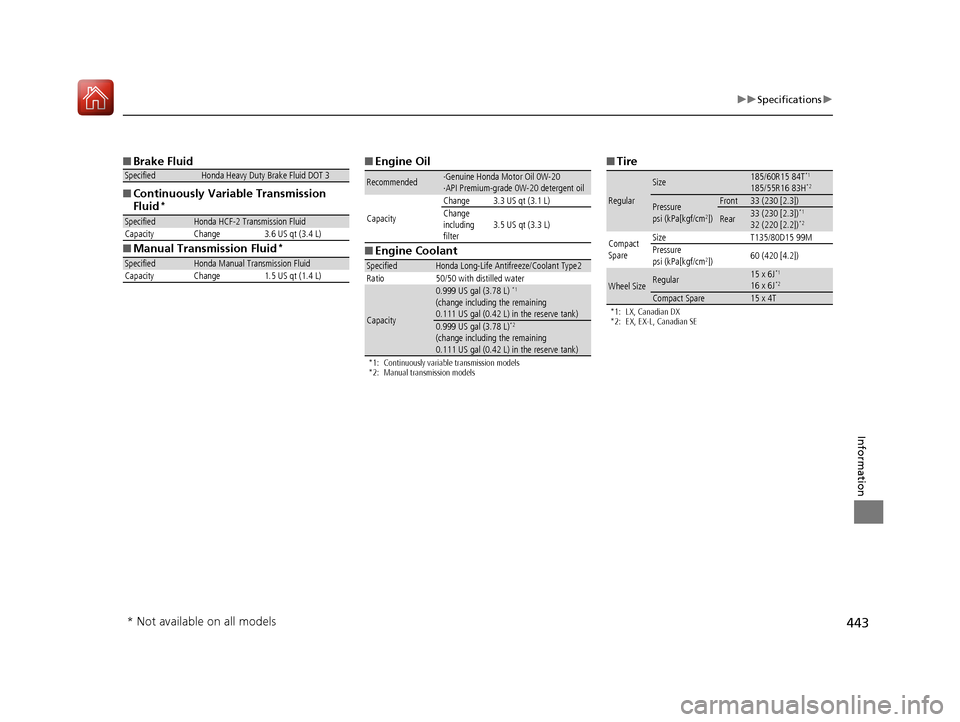

■Brake Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.6 US qt (3.4 L)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 L)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.3 US qt (3.1 L)
Change
including
filter
3.5 US qt (3.3 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
0.999 US gal (3.78 L) *1
(change including the remaining
0.111 US gal (0.42 L) in the reserve tank)
0.999 US gal (3.78 L)*2
(change including the remaining
0.111 US gal (0.42 L) in the reserve tank)
■ Tire
*1: LX, Canadian DX
*2: EX, EX-L, Canadian SE
Regular
Size185/60R15 84T*1
185/55R16 83H*2
Pressure
psi (kPa[kgf/cm2])
Front33 (230 [2.3])
Rear33 (230 [2.3])*1
32 (220 [2.2])*2
Compact
Spare Size
T135/80D15 99M
Pressure
psi (kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular15 x 6J*1
16 x 6J*2
Compact Spare15 x 4T
* Not available on all models
17 FIT -31T5A6200.book 443 ページ ２０１６年５月２７日　金曜日　午後６時３３分

444
Information

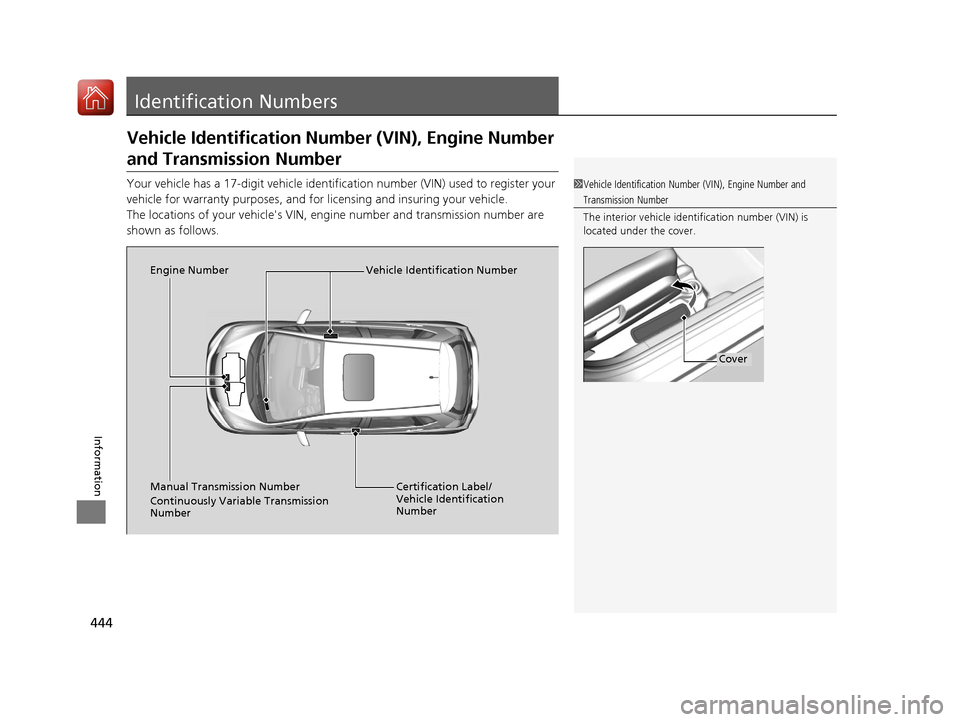

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, engine number and transmission number are
shown as follows.1 Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission Number
Continuously Variable Transmission
Number
17 FIT -31T5A6200.book 444 ページ ２０１６年５月２７日　金曜日　午後６時３３分

445
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Smart Entry System
Remote Transmitter
17 FIT -31T5A6200.book 445 ページ ２０１６年５月２７日　金曜日　午後６時３３分

446
Information

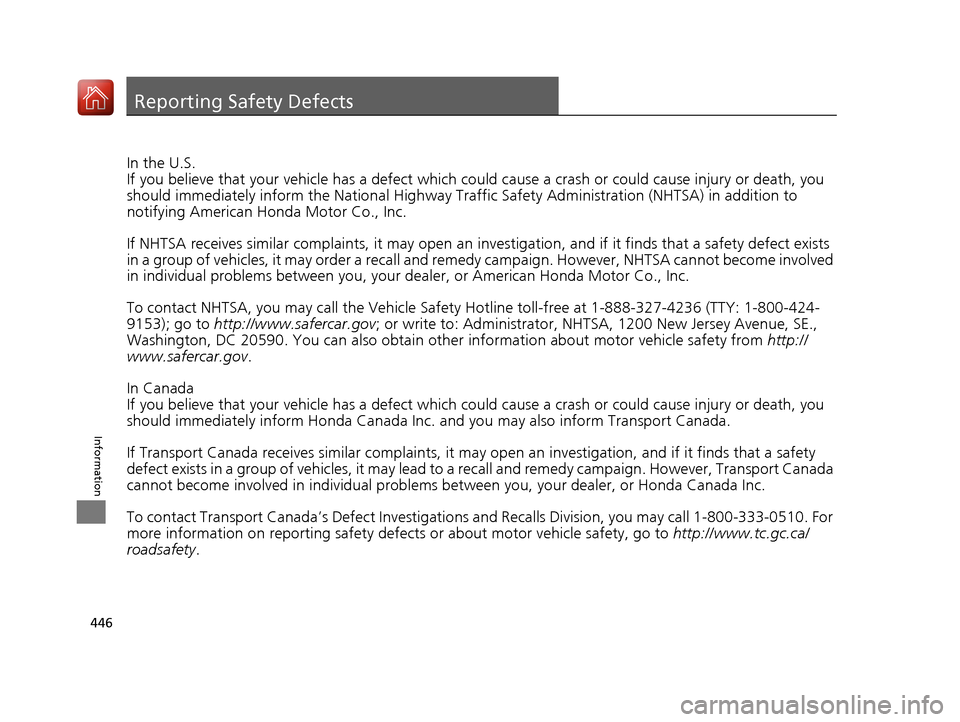

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
17 FIT -31T5A6200.book 446 ページ ２０１６年５月２７日　金曜日　午後６時３３分

447Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to ve rify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
