uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Maintenance

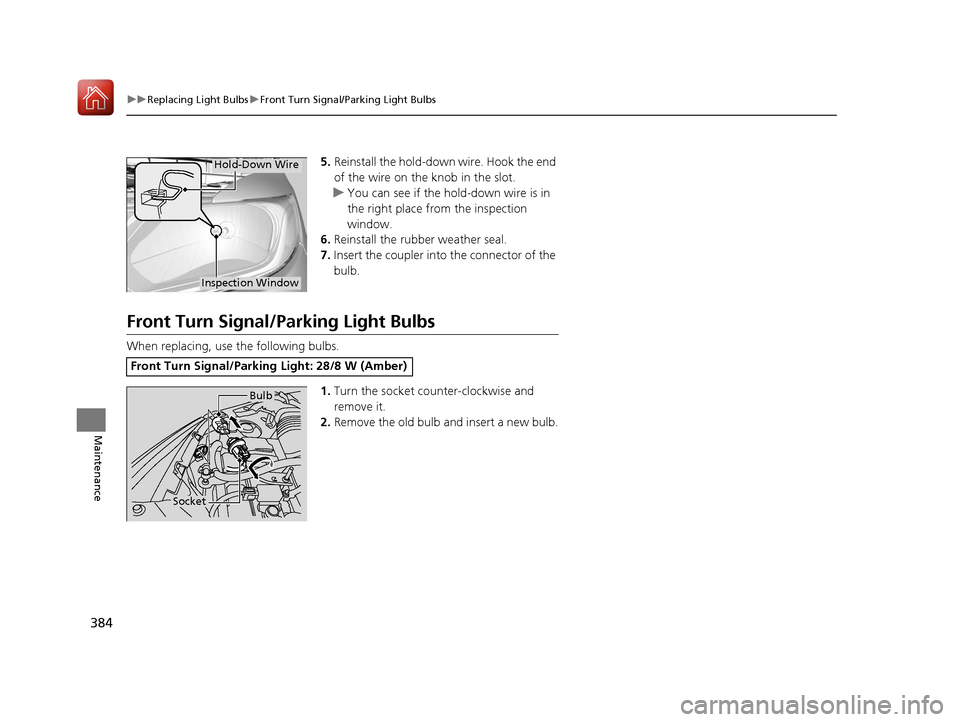

5. Reinstall the hold-down wire. Hook the end
of the wire on the knob in the slot.
u You can see if the hold-down wire is in
the right place from the inspection
window.
6. Reinstall the rubber weather seal.
7. Insert the coupler into the connector of the
bulb.
Front Turn Signal/Parking Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Hold-Down Wire
Inspection Window
Front Turn Signal/Parking Light: 28/8 W (Amber)
Bulb
Socket
17 FIT -31T5A6200.book 384 ページ ２０１６年５月２７日　金曜日　午後６時３３分

385
uuReplacing Light Bulbs uSide Marker Light Bulbs
Continued
Maintenance

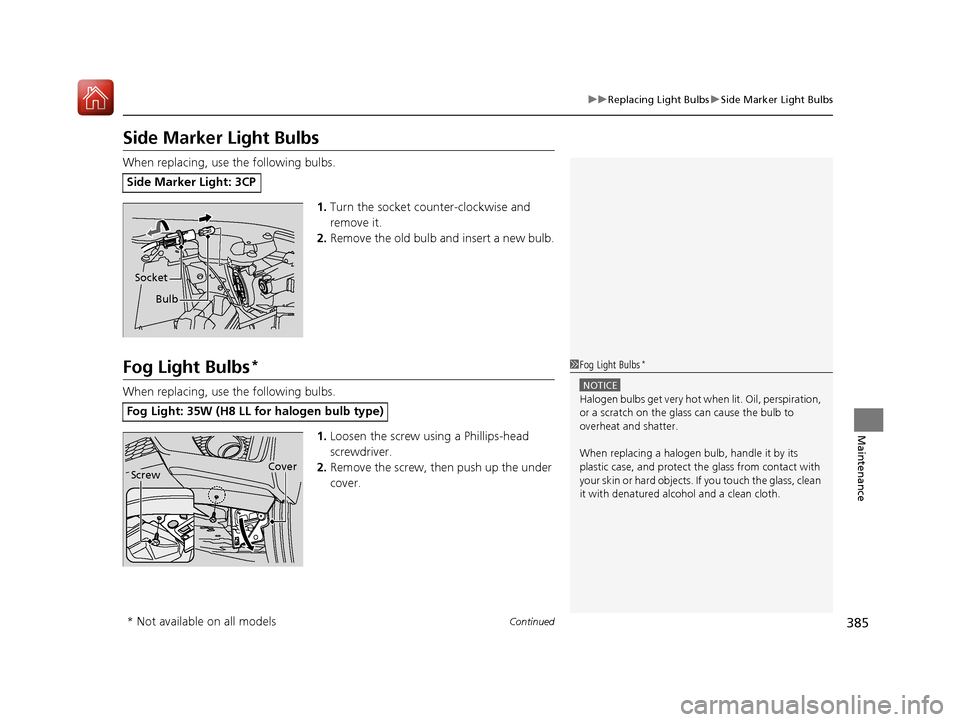

Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Loosen the screw using a Phillips-head
screwdriver.
2. Remove the screw, th en push up the under
cover.
Side Marker Light: 3CP
Bulb
Socket
Fog Light: 35W (H8 LL for halogen bulb type)
1 Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
CoverScrew
* Not available on all models
17 FIT -31T5A6200.book 385 ページ ２０１６年５月２７日　金曜日　午後６時３３分

386
uuReplacing Light Bulbs uSide Turn Signal/Emergency Indicator Lights*
Maintenance

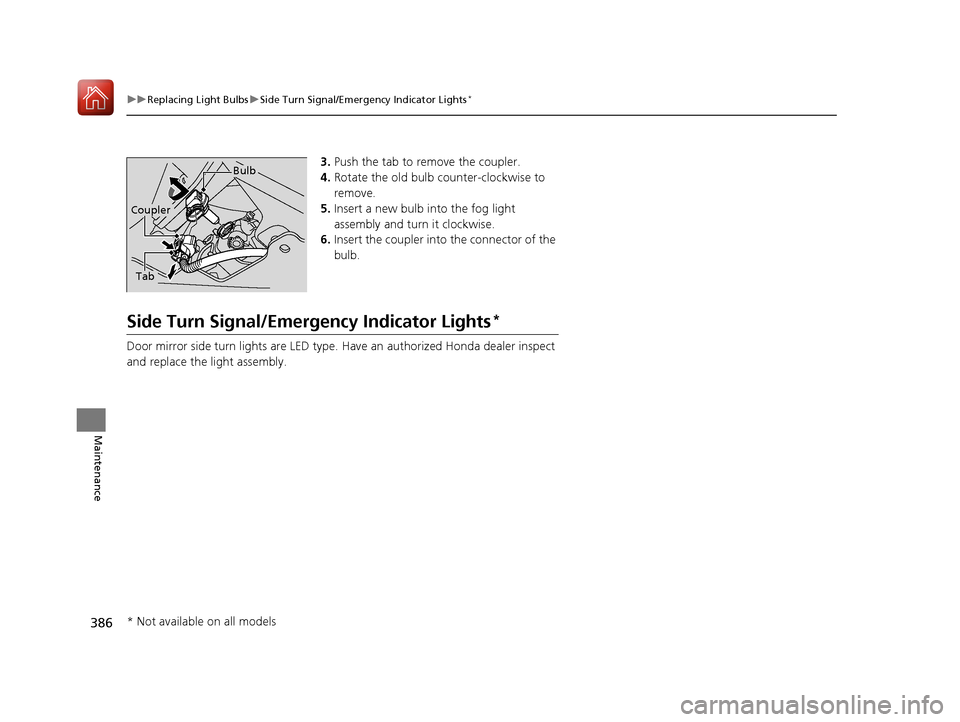

3. Push the tab to remove the coupler.
4. Rotate the old bulb counter-clockwise to
remove.
5. Insert a new bulb into the fog light
assembly and turn it clockwise.
6. Insert the coupler into the connector of the
bulb.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Tab
Bulb
Coupler
* Not available on all models
17 FIT -31T5A6200.book 386 ページ ２０１６年５月２７日　金曜日　午後６時３３分

387
uuReplacing Light Bulbs uBack-Up Light and Rear Turn Signal Light Bulbs
Maintenance

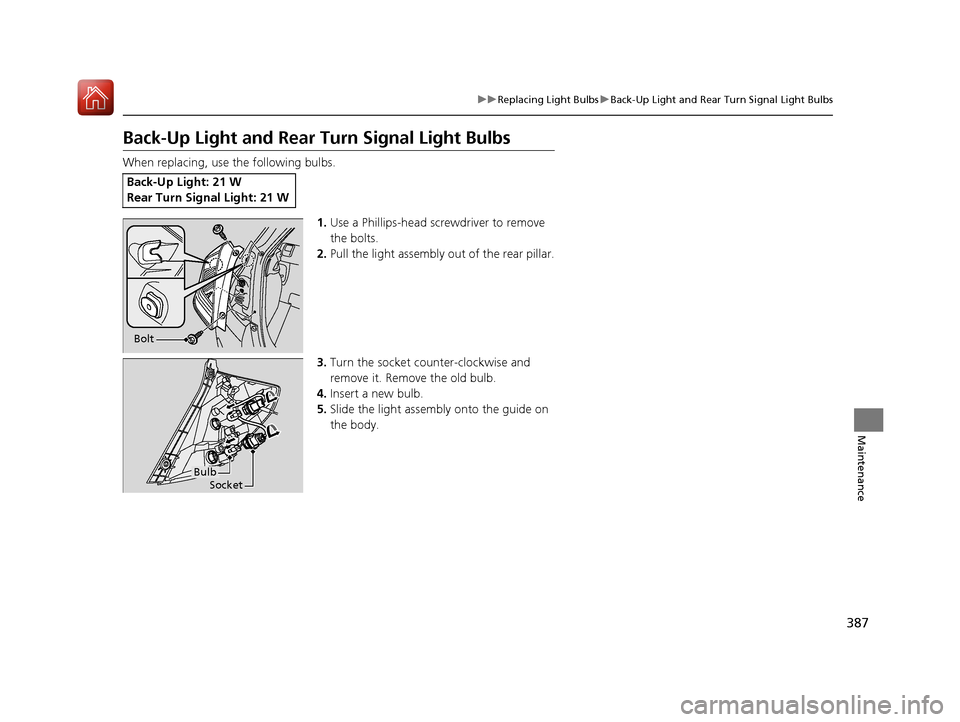

Back-Up Light and Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver to remove
the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it. Remove the old bulb.
4. Insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
Back-Up Light: 21 W
Rear Turn Signal Light: 21 W
Bolt
Bulb
Socket
17 FIT -31T5A6200.book 387 ページ ２０１６年５月２７日　金曜日　午後６時３３分

388
uuReplacing Light Bulbs uBrake/Tail/Rear Side Marker Lights
Maintenance

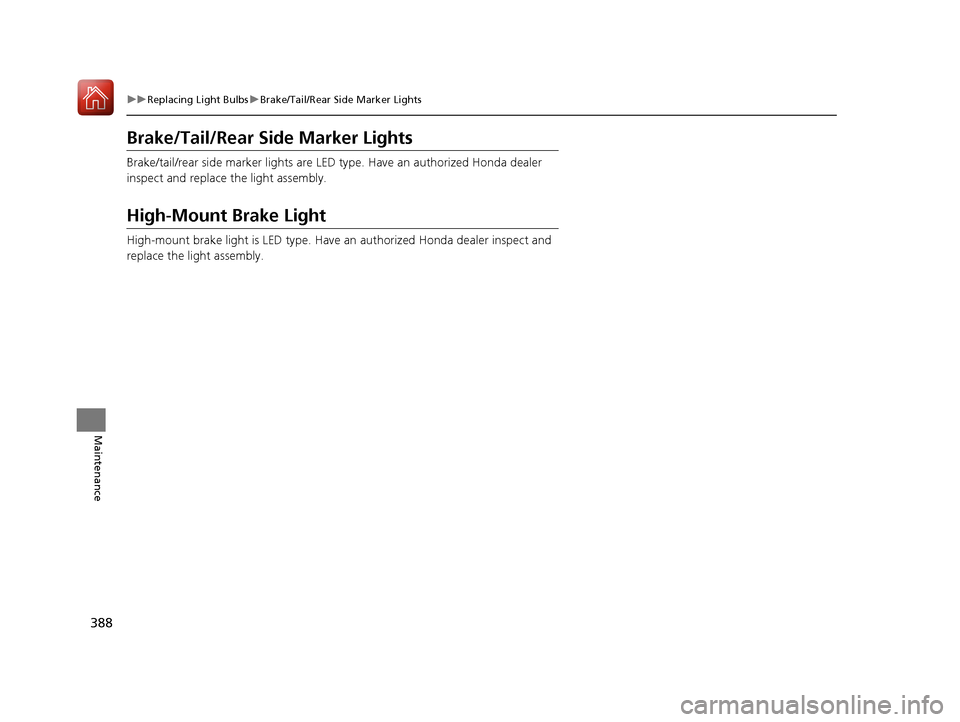

Brake/Tail/Rear Side Marker Lights
Brake/tail/rear side marker lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
17 FIT -31T5A6200.book 388 ページ ２０１６年５月２７日　金曜日　午後６時３３分

389
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance

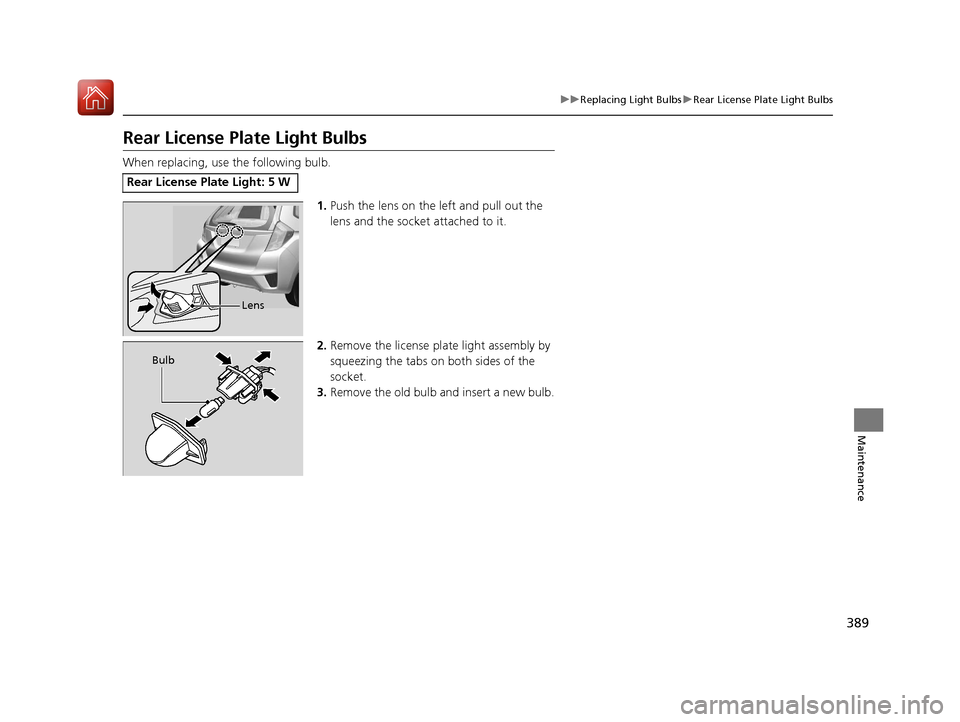

Rear License Plate Light Bulbs
When replacing, use the following bulb.
1.Push the lens on the left and pull out the
lens and the socket attached to it.
2. Remove the license plat e light assembly by
squeezing the tabs on both sides of the
socket.
3. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Lens
Bulb
17 FIT -31T5A6200.book 389 ページ ２０１６年５月２７日　金曜日　午後６時３３分

390
Maintenance

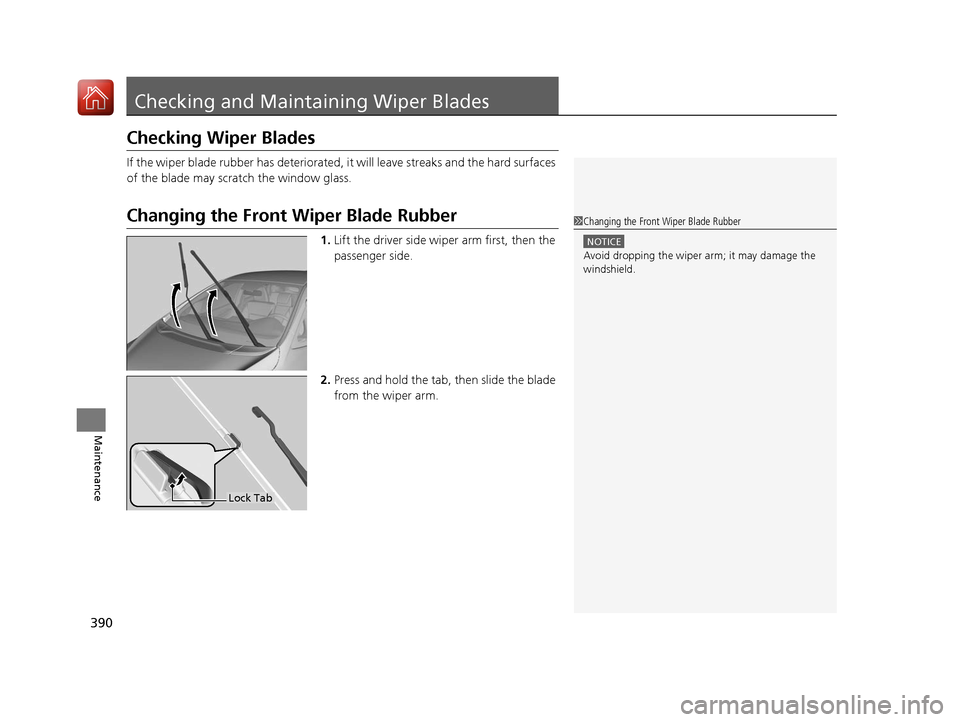

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade
from the wiper arm.
1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
17 FIT -31T5A6200.book 390 ページ ２０１６年５月２７日　金曜日　午後６時３３分

391
uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance

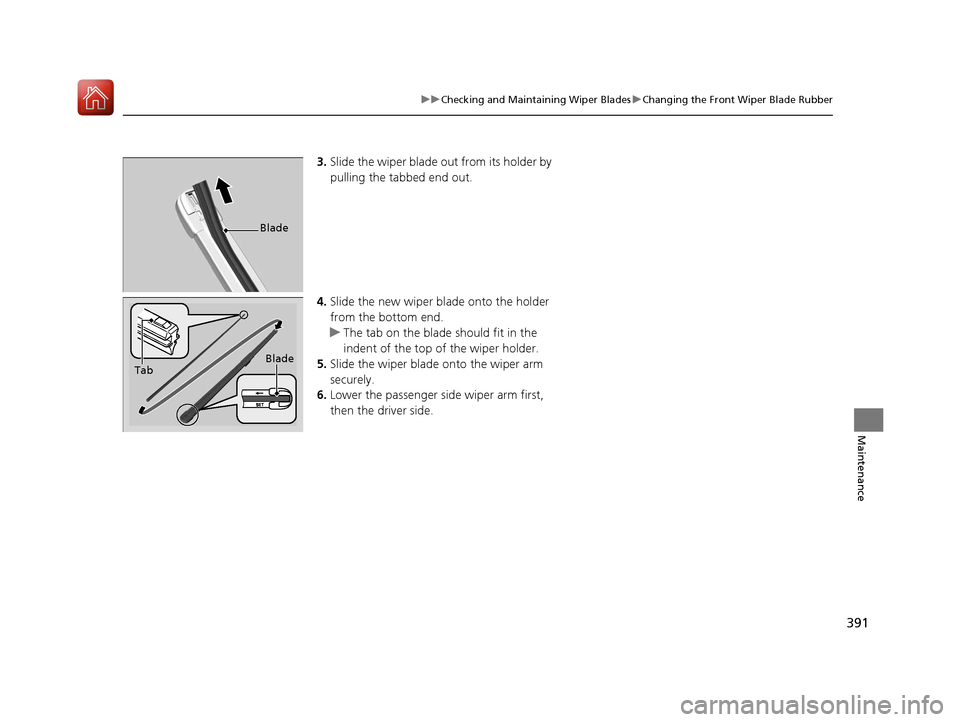

3. Slide the wiper blade out from its holder by
pulling the tabbed end out.
4. Slide the new wiper bl ade onto the holder
from the bottom end.
u The tab on the blade should fit in the
indent of the top of the wiper holder.
5. Slide the wiper blade onto the wiper arm
securely.
6. Lower the passenger side wiper arm first,
then the driver side.
Blade
