2017 HONDA FIT Owners Manual

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
96
Controls

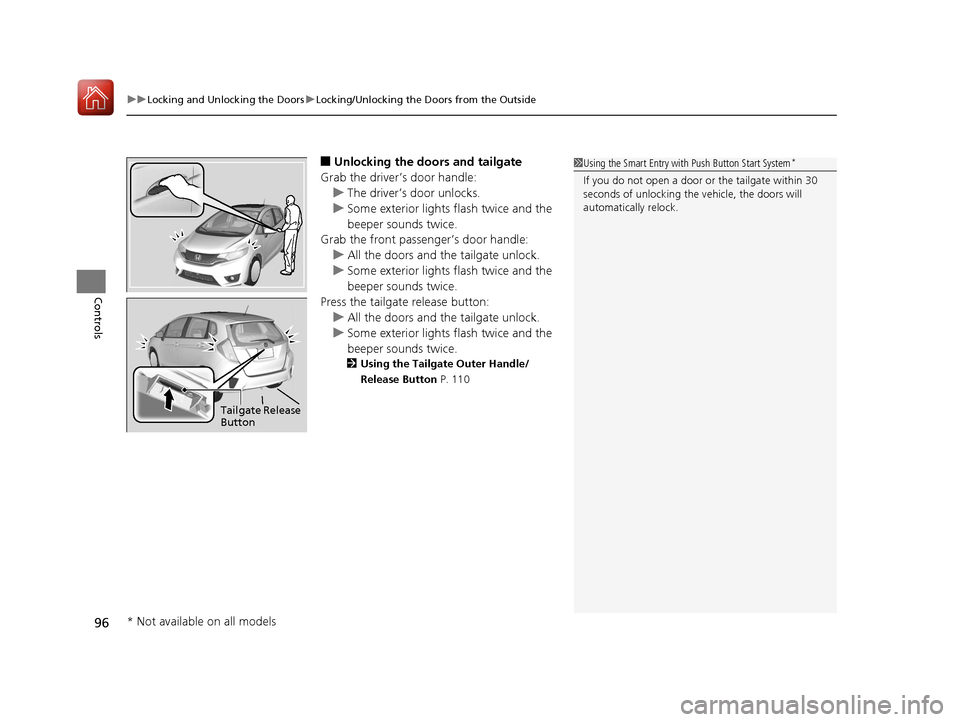

■Unlocking the doors and tailgate
Grab the driver’s door handle: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate release button: u All the doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Tailgate Outer Handle/
Release Button P. 110
1Using the Smart Entry with Push Button Start System*
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle, the doors will
automatically relock.
Tailgate Release
Button
* Not available on all models
17 FIT -31T5A6200.book 96 ページ ２０１６年５月２７日　金曜日　午後６時３３分

Continued97
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system is set.

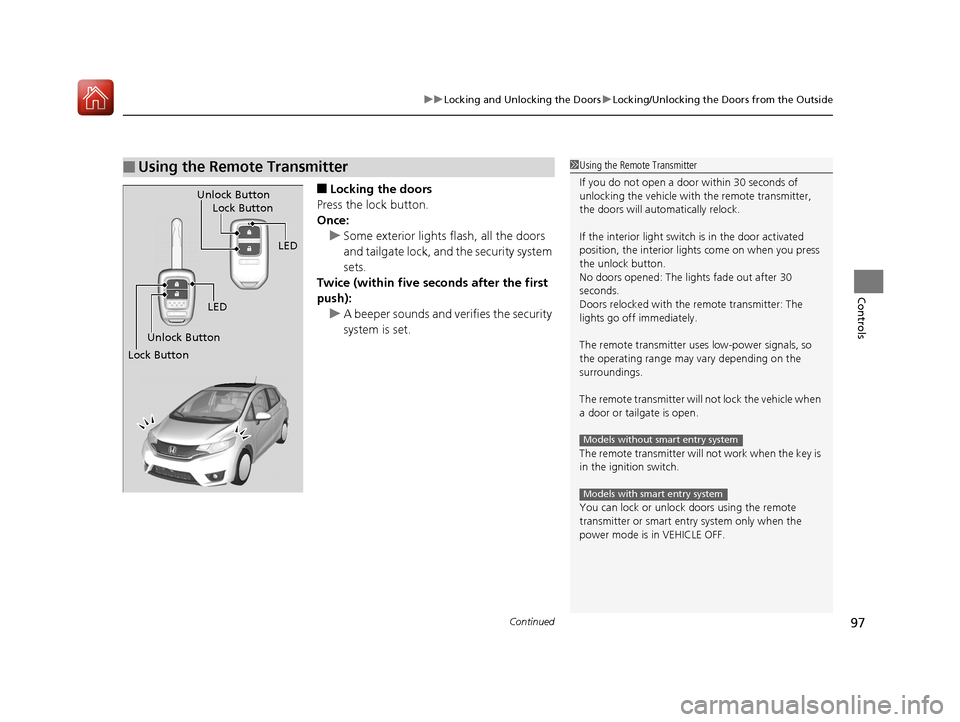

■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote transmitter: The
lights go off immediately.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not lock the vehicle when
a door or tail gate is open.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode is in VEHICLE OFF.
Models without smart entry system
Models with smart entry system
LED
Unlock Button Lock Button
Unlock Button
LED
Lock Button
17 FIT -31T5A6200.book 97 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
98
Controls

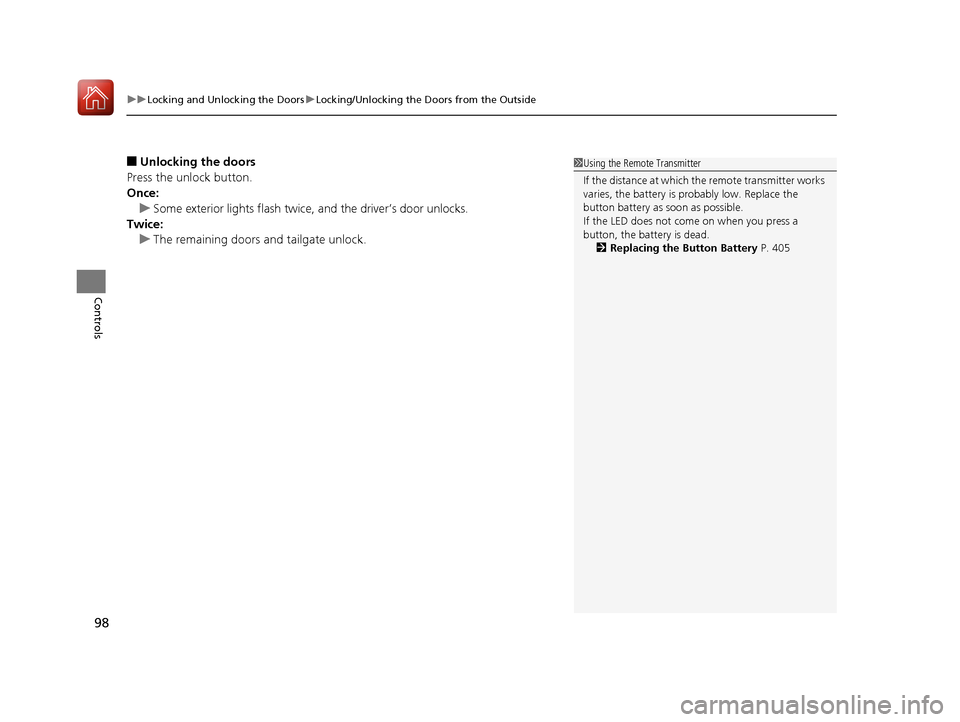

■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door unlocks.
Twice: u The remaining doors and tailgate unlock.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the battery is probably low. Replace the
button battery as soon as possible.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 405
17 FIT -31T5A6200.book 98 ページ ２０１６年５月２７日　金曜日　午後６時３３分

Continued99
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Fully insert the key and turn it.
When you lock the driver’s door with a key, all
the other doors and tailgate lock at the same
time. When unlocking, the driver’s door
unlocks first. Turn the key a second time
within a few seconds to unlock the remaining
doors and the tailgate.
■Locking/Unlocking the Doors Using a Key1 Locking a Door Without Using a Key
If you unlock the doors with the key, the alarm goes
off when you open the hood or move the shift lever
out of
(P (continuously variable transmission
models).
Lock
Unlock
17 FIT -31T5A6200.book 99 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
100
Controls

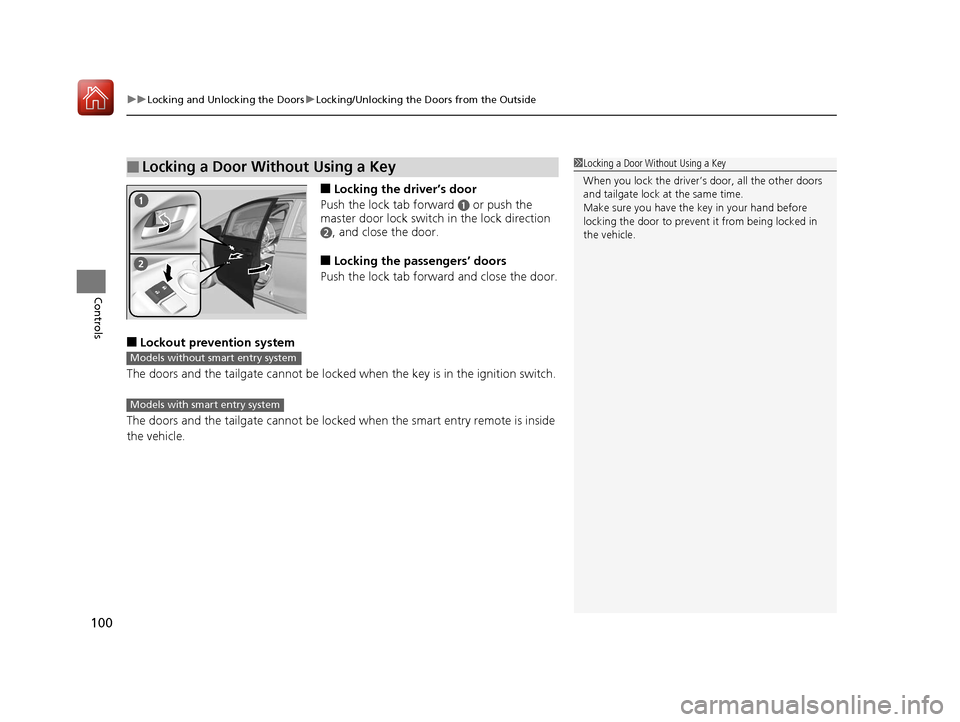

■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passengers’ doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and the tailgate can not be locked when the key is in the ignition switch.
The doors and the tailgate cannot be locked when the smart entry remote is inside
the vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
Models without smart entry system
Models with smart entry system
17 FIT -31T5A6200.book 100 ページ ２０１６年５月２７日　金曜日　午後６時３３分

101
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

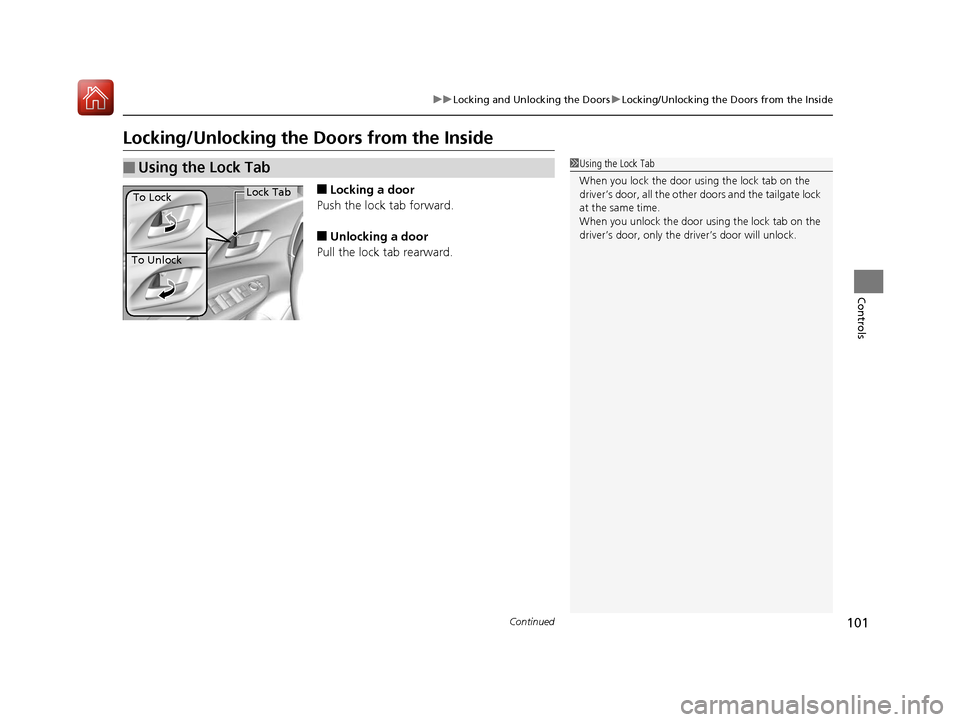

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all the other doors and the tailgate lock
at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock Tab
To Lock
17 FIT -31T5A6200.book 101 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
102
Controls

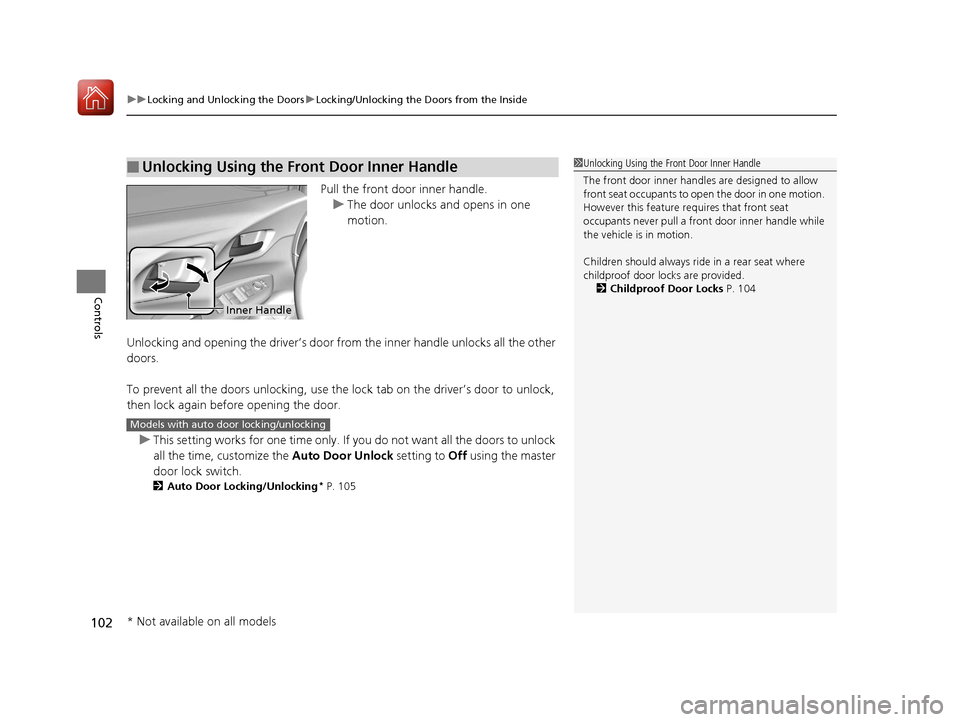

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To prevent all the doors unlock ing, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.
u This setting works for one time only. If you do not want all the doors to unlock
all the time, customize the Auto Door Unlock setting to Off using the master
door lock switch.
2 Auto Door Locking/Unlocking* P. 105
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 104
Inner Handle
Models with auto door locking/unlocking
* Not available on all models
17 FIT -31T5A6200.book 102 ページ ２０１６年５月２７日　金曜日　午後６時３３分

103
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

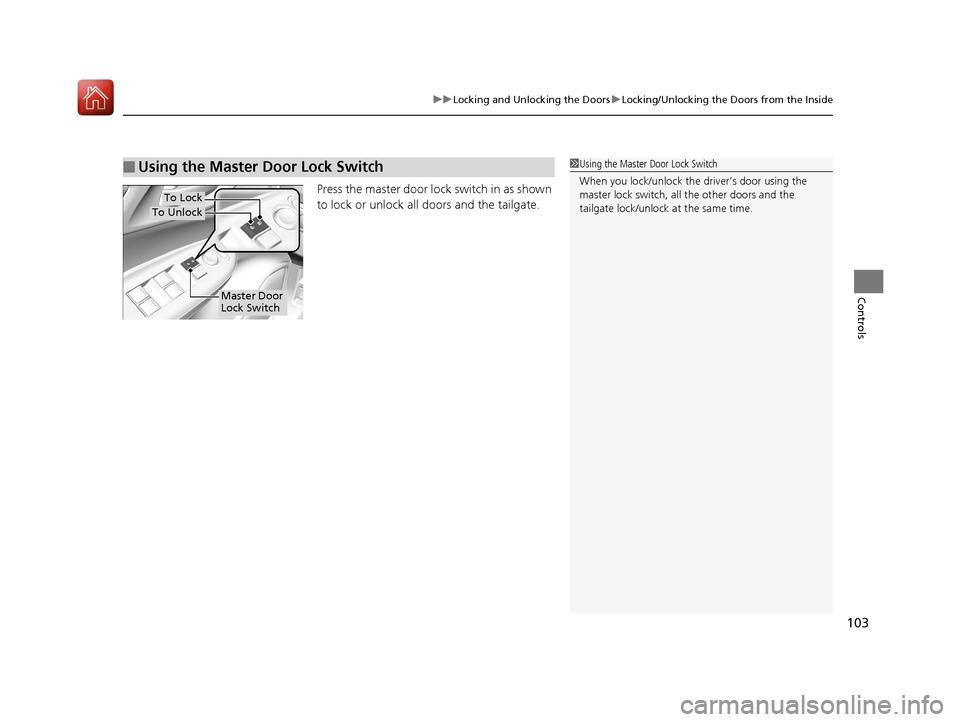

Press the master door lo ck switch in as shown
to lock or unlock all doors and the tailgate.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master lock switch, al l the other doors and the
tailgate lock/unlock at the same time.
To Lock
To Unlock
Master Door
Lock Switch
17 FIT -31T5A6200.book 103 ページ ２０１６年５月２７日　金曜日　午後６時３３分
