2017 HONDA FIT Owners Manual

104
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls

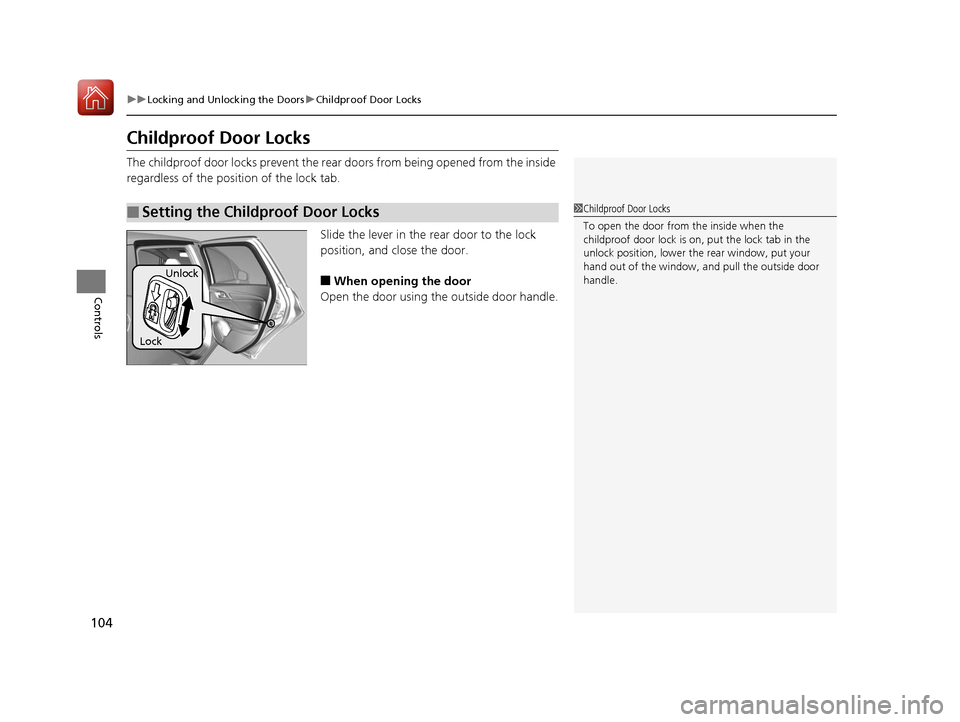

Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Setting the Childproof Door Locks1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock Unlock
17 FIT -31T5A6200.book 104 ページ ２０１６年５月２７日　金曜日　午後６時３３分

105
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking*
Controls

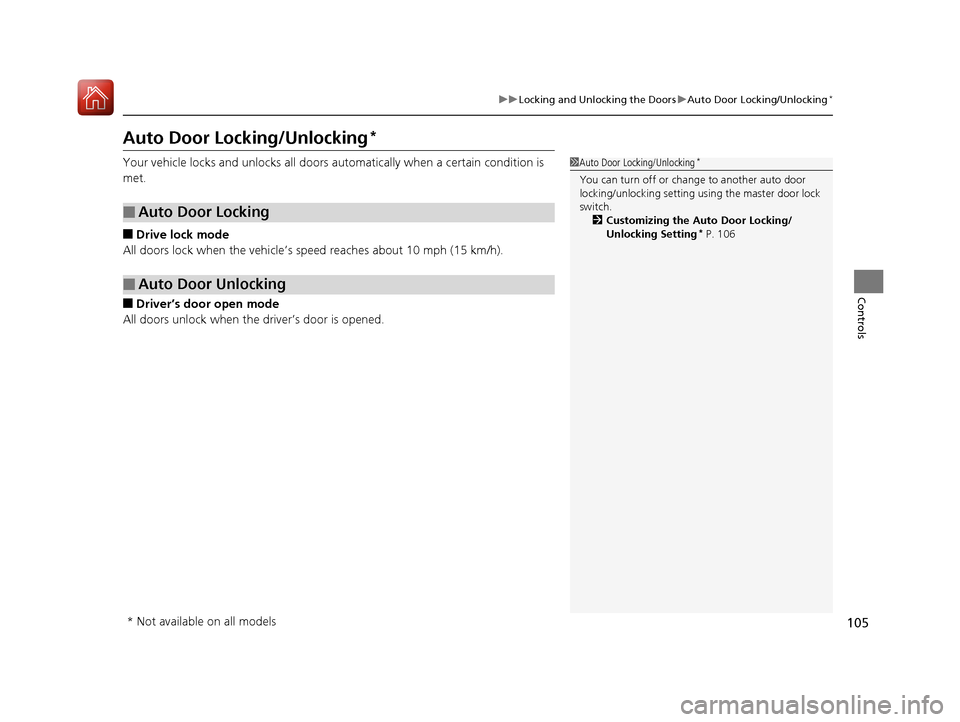

Auto Door Locking/Unlocking*
Your vehicle locks and unlocks all doors automatically when a certain condition is
met.
■Drive lock mode
All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking*
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting
* P. 106
* Not available on all models
17 FIT -31T5A6200.book 105 ページ ２０１６年５月２７日　金曜日　午後６時３３分

106
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls

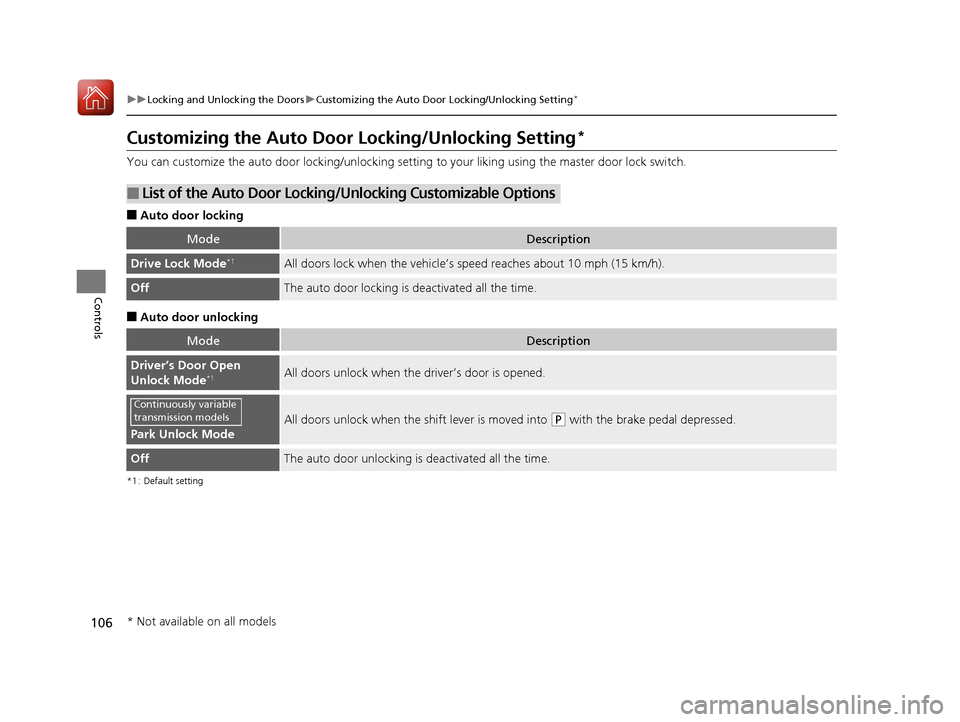

Customizing the Auto Door Locking/Unlocking Setting*
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■Auto door locking
■Auto door unlocking
*1 : Default setting
■List of the Auto Door Locking/Unlocking Customizable Options
ModeDescription
Drive Lock Mode*1All doors lock when the vehicle’s speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver’s Door Open
Unlock Mode*1All doors unlock when the driver’s door is opened.
Park Unlock Mode
All doors unlock when the shift lever is moved into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
Continuously variable
transmission models
* Not available on all models
17 FIT -31T5A6200.book 106 ページ ２０１６年５月２７日　金曜日　午後６時３３分

107
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Continued
Controls
*1 : Default setting
*2 : Models without smart entry system
*3 : Models with smart entry system

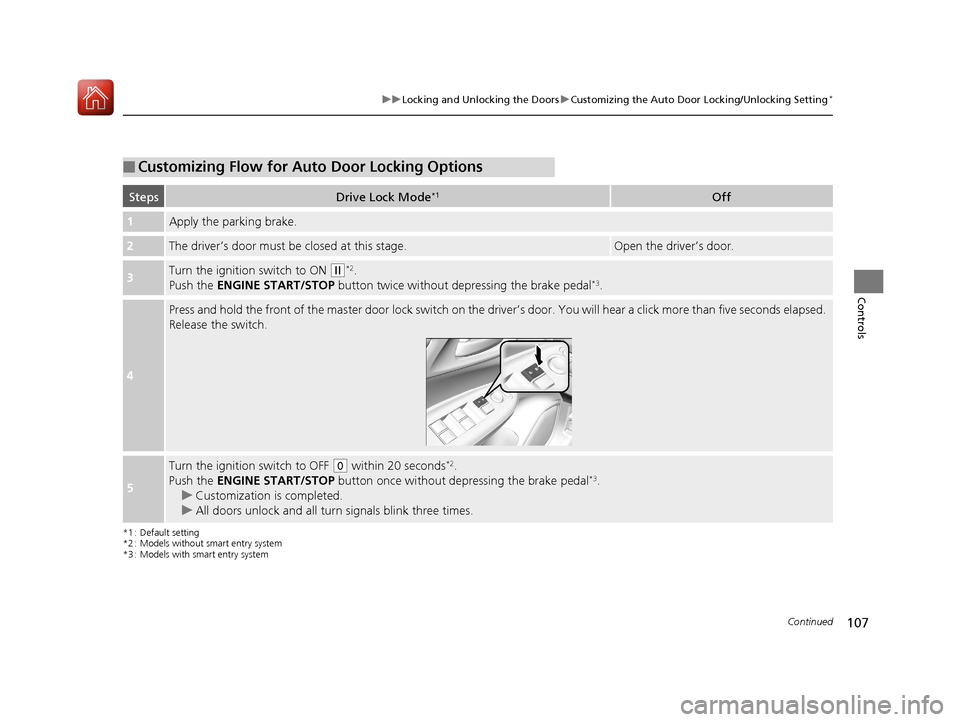

■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode*1Off
1Apply the parking brake.
2The driver’s door must be closed at this stage.Open the driver’s door.
3Turn the ignition switch to ON (w*2.
Push the ENGINE START/STOP button twice without depressing the brake pedal*3.
4
Press and hold the front of the master door lock switch on the driver’s door. You will hear a click more than five seconds elapsed.
Release the switch.
5
Turn the ignition switch to OFF (0 within 20 seconds*2.
Push the ENGINE START/STOP button once without depressing the brake pedal*3.
u Customization is completed.
u All doors unlock and all turn signals blink three times.
17 FIT -31T5A6200.book 107 ページ ２０１６年５月２７日　金曜日　午後６時３３分

108
uuLocking and Unlocking the Doors uCustomizing the Auto Door Locking/Unlocking Setting*
Controls
*1 : Default setting
*2 : Models without smart entry system
*3 : Models with smart entry system

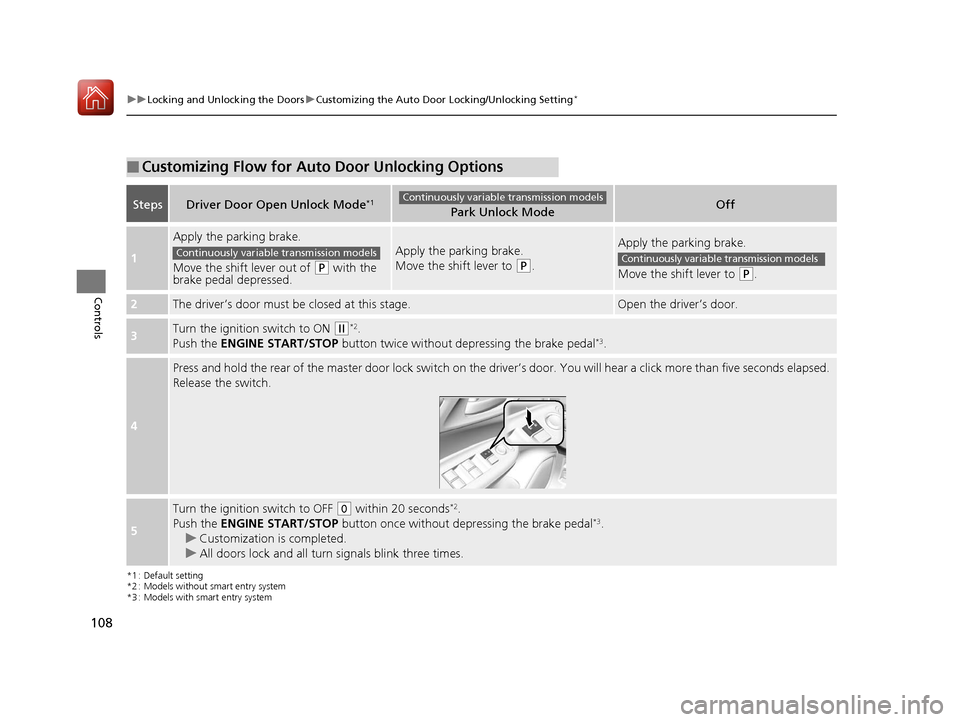

■Customizing Flow for Auto Door Unlocking Options
StepsDriver Door Open Unlock Mode*1Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P with the
brake pedal depressed.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2The driver’s door must be closed at this stage.Open the driver’s door.
3Turn the ignition switch to ON (w*2.
Push the ENGINE START/STOP button twice without de pressing the brake pedal*3.
4
Press and hold the rear of the master door lock switch on the driv er’s door. You will hear a click more than five seconds elapsed.
Release the switch.
5
Turn the ignition switch to OFF (0 within 20 seconds*2.
Push the ENGINE START/STOP button once without depressing the brake pedal*3.
u Customization is completed.
u All doors lock and all turn signals blink three times.
Continuously variable transmission models
Continuously variable transmission modelsContinuously variable transmission models
17 FIT -31T5A6200.book 108 ページ ２０１６年５月２７日　金曜日　午後６時３３分

109
Controls

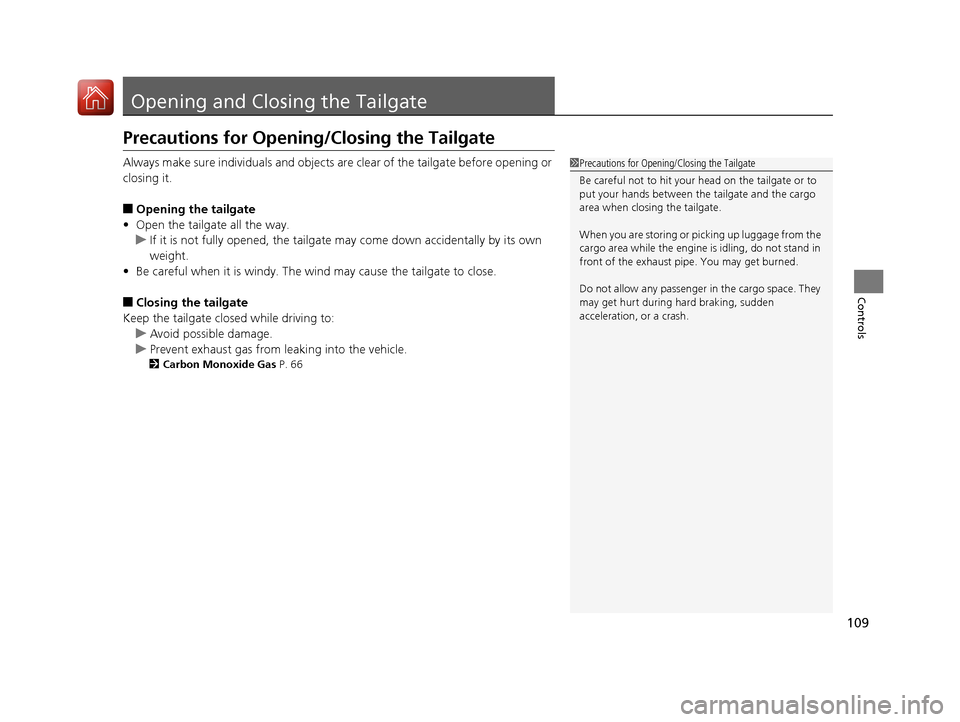

Opening and Closing the Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
■Opening the tailgate
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may come down accidentally by its own
weight.
• Be careful when it is windy. The wi nd may cause the tailgate to close.
■Closing the tailgate
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 66
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, sudden
acceleration, or a crash.
17 FIT -31T5A6200.book 109 ページ ２０１６年５月２７日　金曜日　午後６時３３分

110
uuOpening and Closing the Tailgate uUsing the Tailgate Outer Handle/Release Button
Controls

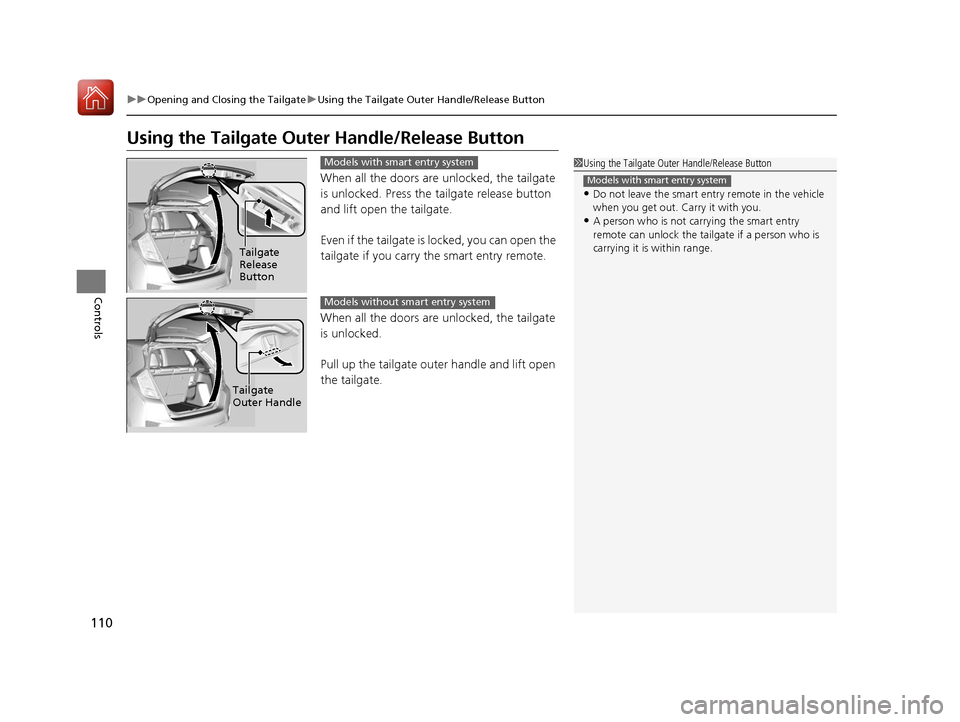

Using the Tailgate Outer Handle/Release Button
When all the doors are unlocked, the tailgate
is unlocked. Press the tailgate release button
and lift open the tailgate.
Even if the tailgate is locked, you can open the
tailgate if you carry the smart entry remote.
When all the doors are unlocked, the tailgate
is unlocked.
Pull up the tailgate outer handle and lift open
the tailgate.
1 Using the Tailgate Outer Handle/Release Button
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•A person who is not carrying the smart entry
remote can unlock the tail gate if a person who is
carrying it is within range.
Models with smart entry system
Tailgate
Release
Button
Models with smart entry system
Tailgate
Outer Handle
Models without smart entry system
17 FIT -31T5A6200.book 110 ページ ２０１６年５月２７日　金曜日　午後６時３３分

111
uuOpening and Closing the Tailgate uUsing the Tailgate Outer Handle/Release Button
Controls

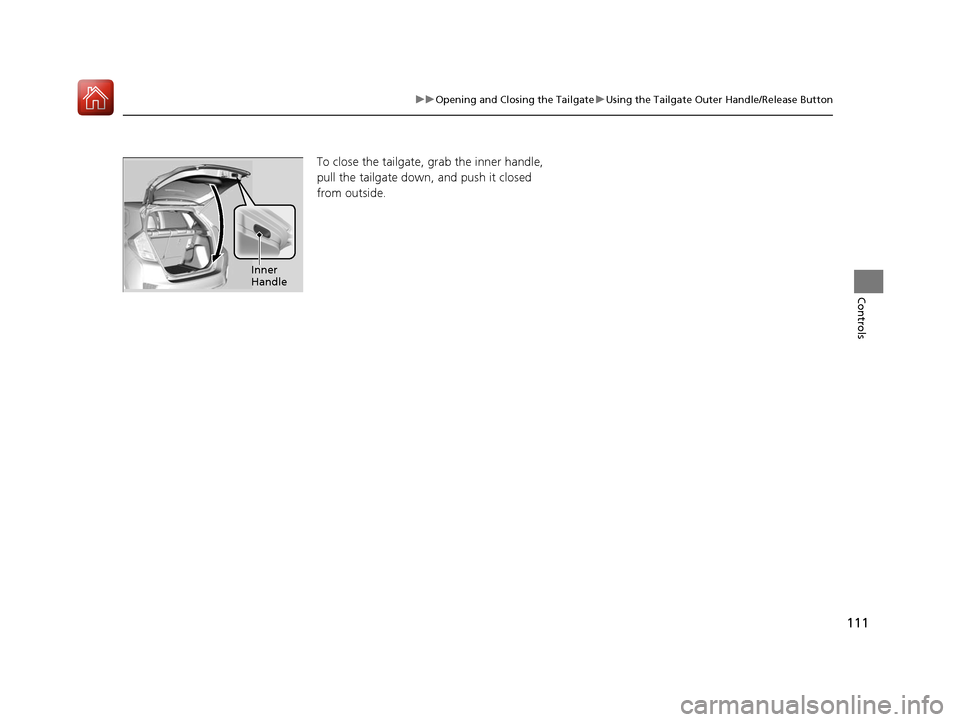

To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
Inner
Handle
