2017 HONDA CR-V Owners Manual

640
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the fuel tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 CR-V-31TLA6000.book 640 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

641
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
17 CR-V-31TLA6000.book 641 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

642
Information

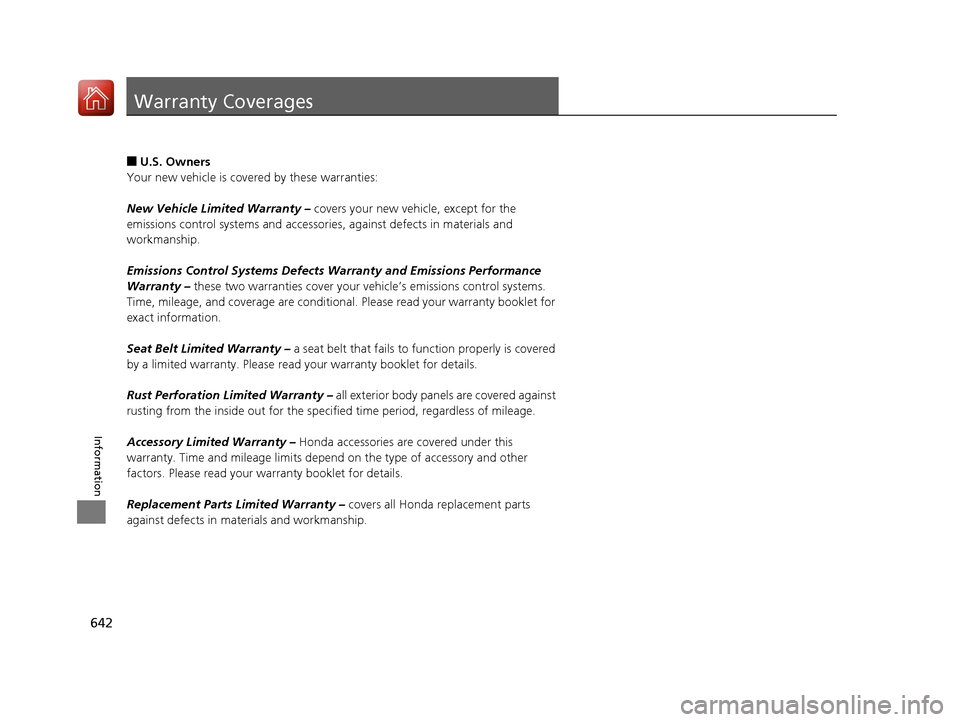

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditiona l. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
17 CR-V-31TLA6000.book 642 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

643
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purch ased from your dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further in formation concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Light-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: complianc [email protected]
17 CR-V-31TLA6000.book 643 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

644
Information

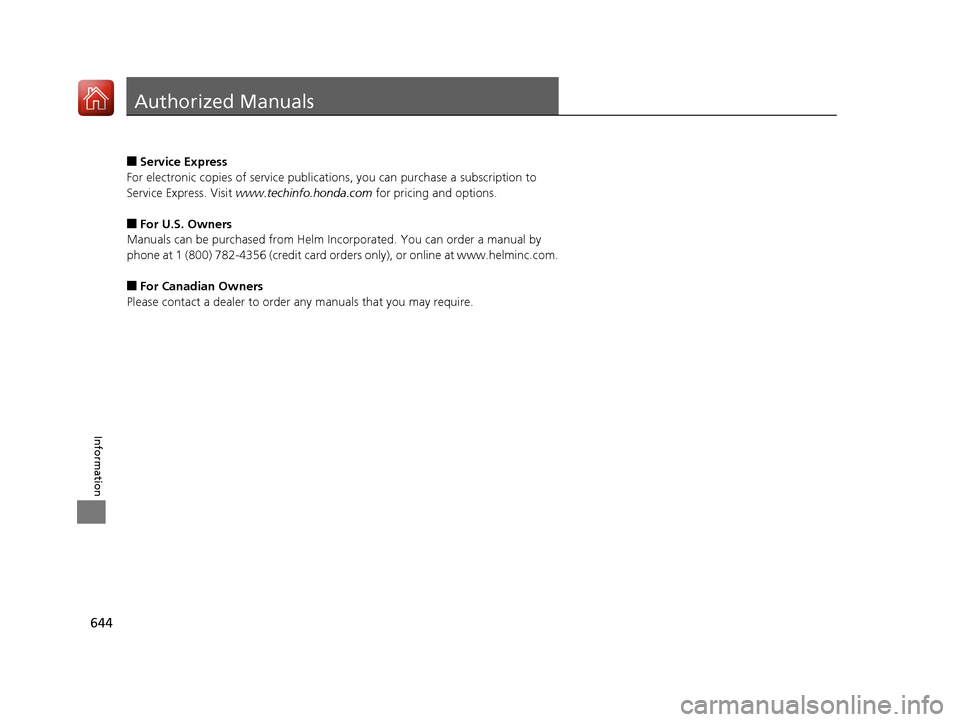

Authorized Manuals
■Service Express
For electronic copies of se rvice publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit card orde rs only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
17 CR-V-31TLA6000.book 644 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

645
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda Client
Relations/Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 636
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
17 CR-V-31TLA6000.book 645 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

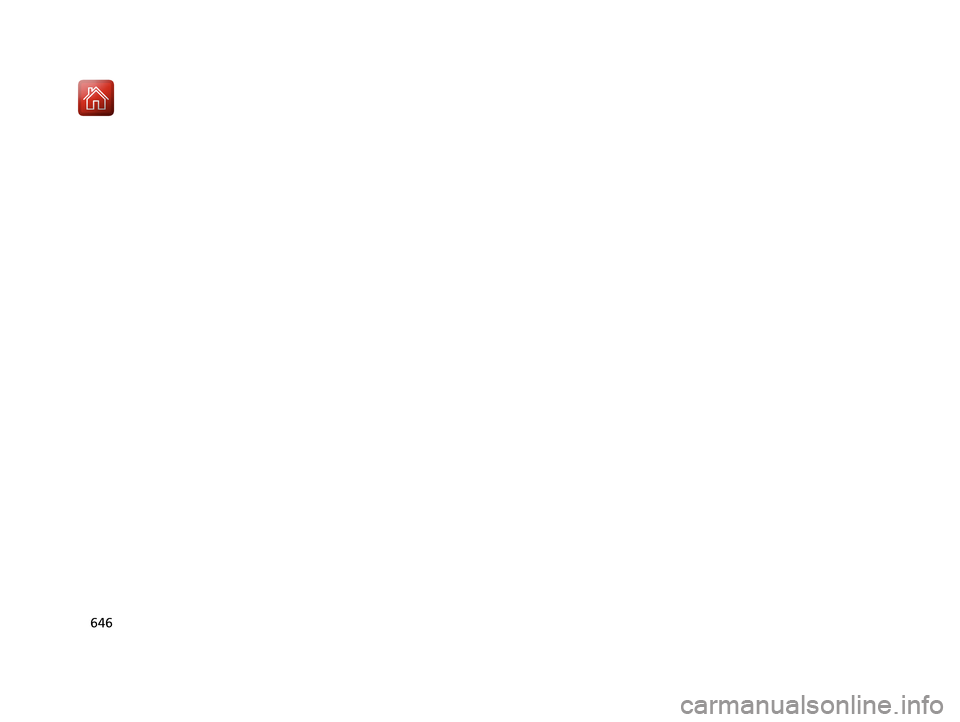

646
17 CR-V-31TLA6000.book 646 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

Index
647
Index
Index
Numbers
4WD.......................................................... 500
A
ABS (Anti-lock Brake System) .................. 512
Accessories and Modifications ................ 598
Accessory Power Sockets ......................... 212
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 97, 465
Adding the Coolant ................................. 562
Additives Coolant .......................................... 561, 563
Engine Oil ............................................... 554
Washer ................................................... 567
Additives, Engine Oil ............................... 554
Adjusting Armrest .................................................. 202
Front Seats.............................................. 194
Head Restraints ....................................... 198
Mirrors.................................................... 192
Rear Seats ............................................... 201
Steering Wheel ....................................... 191
Temperature ................................... 120, 128
Adjusting the Sound ........................ 240, 278
Agile Handling Assist ............................... 494
Air Conditioning System (Climate
Control System) ...................................... 221
Changing the Mode................................ 222
Defrosting the Windshield and
Windows .............................................. 222 Dust and Pollen Filter ............................... 592
Recirculation/Fresh Air Mode ................... 222
Sensor ..................................................... 225
Synchronized Mode ................................. 224
Using Automatic Climate Control ............ 221
Air Pressure ....................................... 580, 635
Airbags ........................................................ 49
Advanced Airbags ..................................... 55
Airbag Care ............................................... 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 52
Indicator .............................................. 60, 85
Passenger Airbag Off Indicator .................. 61
Sensors ...................................................... 49
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
All-Wheel Drive (AWD) ............................ 500
AM/FM Radio .................................... 242, 285
Android Auto
TM........................................ 321
Anti-lock Brake System (ABS) .................. 512
Indicator .................................................... 85
Apple CarPlay
TM........................................ 318
Armrest ..................................................... 202
Audio Remote Controls ............................ 231
Audio System ............................ 228, 235, 256
Adjusting the Sound ........................ 240, 278
AM/FM Radio .................................. 242, 285
Android Auto
TM....................................... 321
Apple CarPlayTM....................................... 318
Audio/Information Screen ................ 236, 257
Changing the Home Screen Icon Layout .. 261 Changing the Screen Interface ................ 275
Closing Apps ........................................... 277
Customizing the Meter............................ 262
Display Setup .................................. 241, 279
Error Messages ........................................ 325
General Information ................................ 330
Home Screen........................................... 268
HondaLink
®............................................. 310
How to use Siri ® Eyes Free .............. 255, 317
iPod ................................................ 244, 296
Limitations for Manual Operation ............ 280
Menu Customize ..................................... 276
MP3/WMA/AAC .............................. 249, 305
Pandora ®......................................... 247, 303
Playing Bluetooth ® Audio ................ 252, 308
Playing SiriusXM ® Radio .......................... 289
Reactivating ............................................ 230
Recommended Devices............................ 331
Remote Controls ..................................... 231
Security Code .......................................... 230
Selecting an Audio Source ....................... 280
Song By Voice
TM (SBV) ............................. 299
Status Area ............................................. 274
Theft Protection ...................................... 230
USB Flash Drives ...................... 249, 305, 331
USB Port(s) .............................................. 229
Voice Control Operation.......................... 281
Wallpaper Setup.............................. 238, 266
Wi-Fi Connection .................................... 315
Audio/Information Screen ............... 236, 257
Authorized Manuals ................................ 644
17 CR-V-31TLA6000.book 647 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
