2017 HONDA CR-V Owners Manual

568
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight: 60 W (HB3 for halogen bulb type)*
High beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
Low beam headlight: LED type*
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
Models with LED headlights
Coupler
Bulb
Tab
* Not available on all models
17 CR-V-31TLA6000.book 568 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

569
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Remove the holding clip using a flat-tip
screwdriver, then remo ve the upper part of
the window washer reserve tank.
2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to
remove.
4. Insert a new bulb into the headlight
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.
■Low Beam Headlights1 Low Beam Headlights
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
Holding clipPassenger side
Coupler
Bulb
Tab
Both side
17 CR-V-31TLA6000.book 569 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

570
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the screw using a Phillips-head
screwdriver and remove the holding clips
using a flat-tip screwdriver.
2. Pull down the under cover.
Fog Light: 35 W (H8 fo r halogen bulb type)
1Fog Light Bulbs*
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Screw
Holding clip
* Not available on all models
17 CR-V-31TLA6000.book 570 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

571
uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
3. Push the tab to remove the coupler.
4. Rotate the old bulb counter-clockwise to
remove.
5. Insert a new bulb into the fog light
assembly and turn it clockwise.
6. Insert the coupler into the connector of the
bulb.1 Fog Light Bulbs*
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Bulb
CouplerTab
* Not available on all models
17 CR-V-31TLA6000.book 571 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

572
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal/Front Side Marker Lights
Front turn signal lights/front side marker lights are LED type. Have an authorized
Honda dealer inspect and re place the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Side turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Brake/Taillight, Rear Turn Signal Light and Rear Side
Marker Lights
Brake/taillight, rear turn signal light and rear side ma rker lights are LED type. Have
an authorized Honda dealer inspec t and replace the light assembly.
* Not available on all models
17 CR-V-31TLA6000.book 572 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

573
uuReplacing Light Bulbs uTaillight and Back-Up Lights
Maintenance
Taillight and Back-Up Lights
When replacing, use the following bulbs.
1. Remove the lower taillight assembly.
2 Brake/Taillight, Rear Turn Signal Light and Rear Side Marker Lights P. 572
2.Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
3. Turn the socket to th e left and remove it.
Remove the old bulb.
4. Insert a new bulb.
Taillight: LED
Back-Up Light: 16W
1Taillight and Back-Up Lights
Taillights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Cover
Bulb
Socket
17 CR-V-31TLA6000.book 573 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

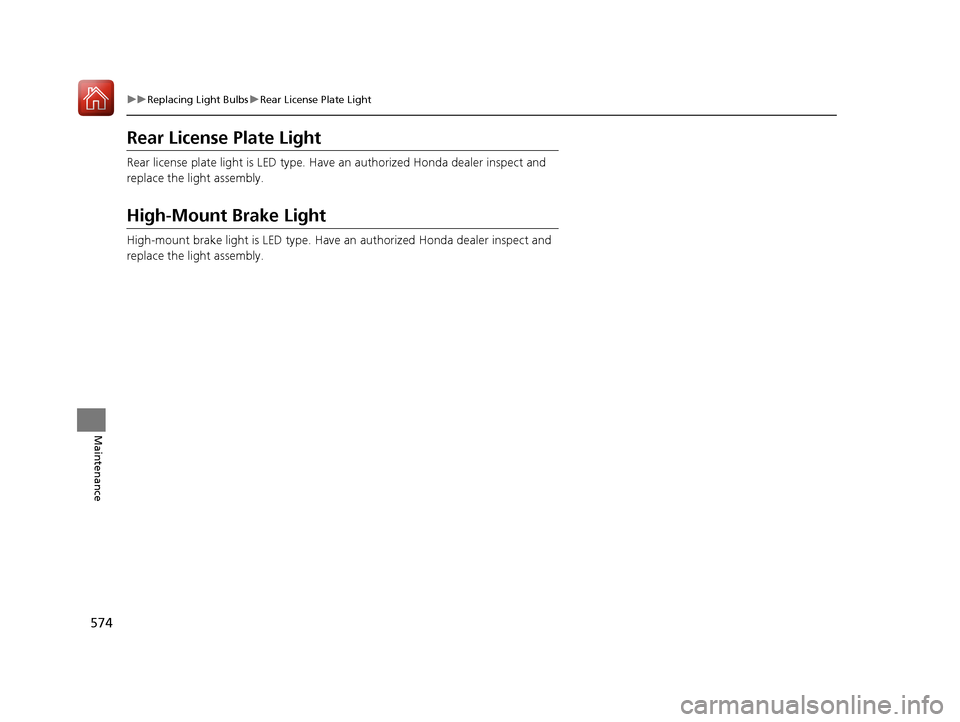

574
uuReplacing Light Bulbs uRear License Plate Light
Maintenance
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
17 CR-V-31TLA6000.book 574 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

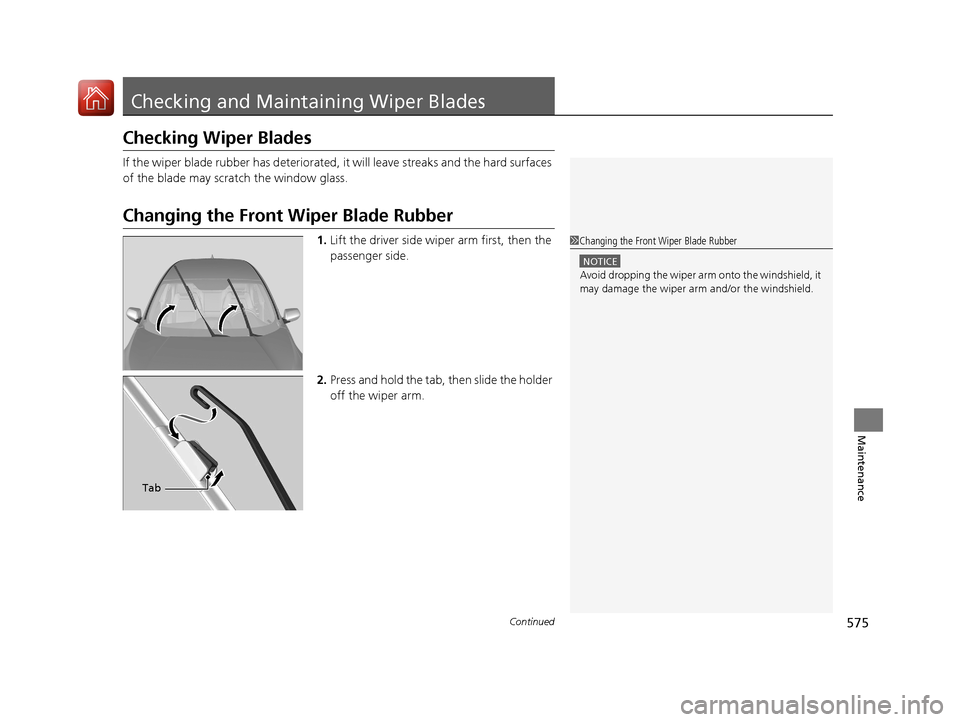

575Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the holder
off the wiper arm.1 Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
Tab
17 CR-V-31TLA6000.book 575 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
