2017 HONDA CR-V Owners Manual

632
17 CR-V-31TLA6000.book 632 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

633
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 634
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 636
Devices that Emit Radio Waves ....... 638
Reporting Safety Defects ................. 639Emissions Testing
Testing of Readiness Codes.............. 640
Warranty Coverages ........................ 642
Authorized Manuals ......................... 644
Customer Service Information ......... 645
17 CR-V-31TLA6000.book 633 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

634
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: AWD models
ModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.:4,695 lbs (2,130 kg)Canada:2,130 kgGross Axle Weight
Rating (Front)U.S.:2,425 lbs (1,100 kg)Canada:1,100 kgGross Axle Weight
Rating (Rear)U.S.:2,292 lbs (1,040 kg)*1
2,369 lbs (1,075 kg)*2
Canada:1,040 kg*1
1,075 kg*2
■ Air Conditioning
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Specifications
*1: 2.4 L engine models
*2: 1.5 L engine models
■Fuel
■ Washer Fluid
Air Conditioning:Refrigerant Type HFO-1234yf (R-1234yf)Charge Quantity14.6 – 16.4 oz (415 – 465 g)*1
15.3 – 17.1 oz (435 – 485 g)*2
Lubricant TypeRB100EV-01*1
RL85HM (POE)*2
Quantity5.80 - 6.53 cu-in (95 - 107 cm3)*1
4.70 - 6.28 cu-in (77 – 103 cm3)*2
Displacement143.72 cu-in (2,356 cm3)*1
91.38 cu-in (1,498 cm3)*2
Spark Plugs NGKDILKAR7H11GS
*1
DILKAR7G11GS*1
ILZKAR8J8SY*2
DENSO DXE22HQR-D11S*1
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)*
LED*
Headlights (High Beam) 60 W (HB3)*
LED*
Fog Lights*35 W (H8)
Front Turn Signal/
Front Side Marker Lights LED
Daytime Running/Parking LightsLED
Side Turn Signal Lights*LEDTail and Brake/Rear Turn Signal/
Rear Side Marker LightsLED
Back-Up Lights 16 W
TaillightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights 8 W
Ceiling Light 8 W
*
LED*
Cargo Area Light 5W
Vanity Mirror Lights*1.4 W
* Not available on all models
17 CR-V-31TLA6000.book 634 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

635
uuSpecifications u
Information
■Brake Fluid
■ Continuously Variable Transmission
Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)*1
4.5 US qt (4.3 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.32 US qt (1.25 L)
■ Engine Oil
*1: 2.4 L engine models
*2: 1.5 L engine models
■Engine Coolant
*1: 2.4 L engine models
*2: 1.5 L engine models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
4.4 US qt (4.2 L)
*1
3.4 US qt (3.2 L)*2
Change including
filter4.7 US qt (4.4 L)*1
3.7 US qt (3.5 L)*2
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.65 US gal (6.24 L)*1
1.64 US gal (6.20 L)*2
(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)*1
(change including the remaining 0.2 US gal
(0.75 L) in the reserve tank)*2
■ Tire
*1: Vehicle with 17 inch wheel
*2: Vehicle with 18 inch wheel
Regular
Size*1235/65R17 104HPressure*1
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])Size*2235/60R18 103HPressure*2
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear30 (210 [2.1])
Compact
Spare Size
T155/90D17 112M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
18 x 7 1/2J*2
Compact Spare17 x 4T
* Not available on all models
17 CR-V-31TLA6000.book 635 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

636
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows:1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
1.5 L engine models
17 CR-V-31TLA6000.book 636 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

637
uuIdentification Numbers uVehicle Identification Number (VIN), Engine Number, and Transmission Number
Information
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Continuously Variable
Transmission Number
2.4 L engine models
17 CR-V-31TLA6000.book 637 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

638
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interference, and (2 ) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compli ance could void the user's authority to
operate the equipment.
This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth ® HandsFreeLink ®
HomeLink® Universal Transceiver*
HondaLink*
Immobilizer System
Remote Transmitter
Smart Entry System*
Collision Mitigation Braking SystemTM *
* Not available on all models
17 CR-V-31TLA6000.book 638 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

639
Information

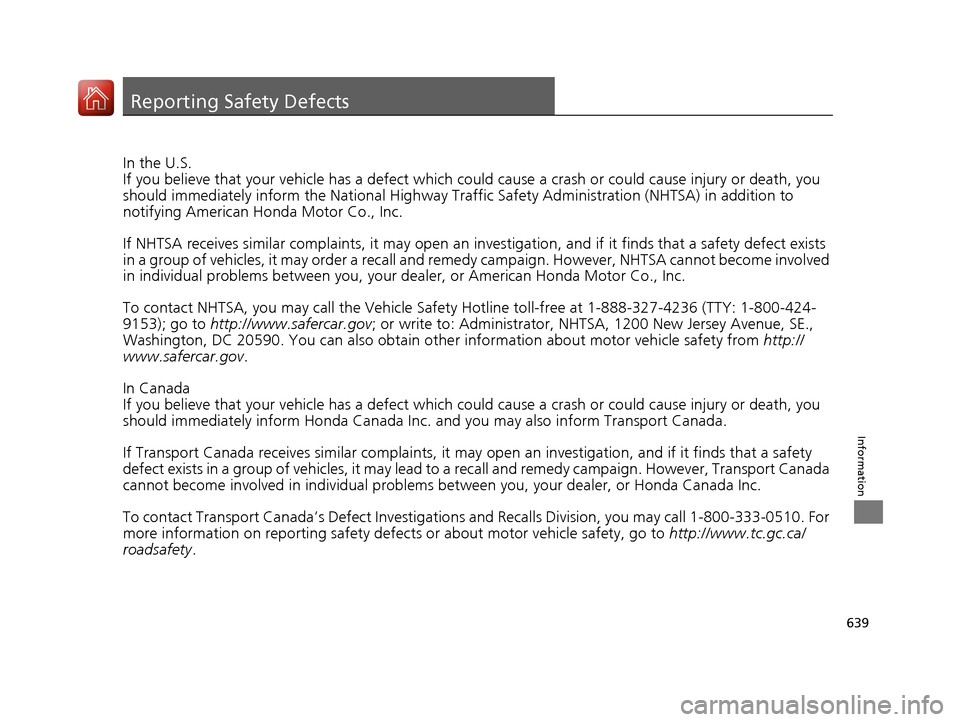

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
17 CR-V-31TLA6000.book 639 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
