2017 FIAT FULLBACK Owner handbook (in English)

A film of water can be formed on the
brake discs or brake drums and
prevent normal braking after driving in
heavy rain or through large puddles, or
after the vehicle is washed. If this
occurs, dry the brakes out by driving
slowly while lightly depressing the brake
pedal.
When driving downhill
It is important to take advantage of the
engine braking by shifting to a lower
shift position while driving on steep
downhill roads in order to prevent the
brakes from overheating.
239)
Brake pads and linings
Avoid hard braking situations. New
brakes need to be broken-in by
moderate use for the first 200 km.
The disc brakes are provided with a
warning device which emits a shrieking
metallic sound while braking if the brake
pads have reached their wear limit. If
you hear this sound, have the brake
pads replaced.
240)
IMPORTANT
148)Avoid driving habits that cause heavy
braking and never “ride” the brakes by
resting your foot on the brake pedal while
driving. It causes bake overheating and
fade.
WARNING
237)Do not turn off the engine while your
vehicle is in motion. If you turn off the
engine while driving, the power assistance
for the braking system will stop working
and your brakes will not work effectively.
238)If the power assist is lost or if either
brake hydraulic system stops working
properly, have your vehicle checked
immediately.
239)Do not leave any objects near the
brake pedal or let a floor mat slide under it;
doing so could prevent the full pedal stroke
that would be necessary in an emergency.
Make sure that the pedal can be operated
freely at all times. Make sure the floor mat
is securely held in place.
240)Driving with worn brake pads will
make it harder to stop, and can cause an
accident.
CRUISE CONTROL
(where provided)
Cruise control is an automatic speed
control system that keeps a set speed.
It can be activated at approximately
40 km/h or more.
241) 242)
149) 150) 151)
NOTE Cruise control may not be able
to keep your speed on uphills or
downhills. Your speed may decrease on
a steep uphill. You may use the
accelerator pedal if you want to stay at
your set speed. Your speed may
increase to more than the set speed on
183
a steep downhill. You have to use the
brake to control your speed. As a
result, the set speed driving is
deactivated.

Cruise control switches
Type 1
Type 2A — CRUISE CONTROL ON/OFF
switch
Used to turn on and off the cruise
control.
B — SET - switch
Used to reduce the set speed and to
set the desired speed.
C — RES + switch
Used to increase the set speed and to
return to the original set speed.
D — CANCEL switch
Used to deactivate the set speed
driving.
NOTE When operating the cruise
control switches, press the cruise
control switches correctly. The set
speed driving may be deactivated
automatically if two or more switches of
the cruise control are pressed at the
same time.
To activate
1. With the ignition switch in the “ON”
position or the operation mode in ON,
press the CRUISE CONTROL ON/OFF
switch (A) to turn on the cruise control.
The indicator lamp in the meter cluster
will come on.Type 1
Type 2
288AA0110608
289AHA108425
290AA0110611
291AHA114055
184
STARTING AND DRIVING

2. Accelerate or decelerate to your
desired speed, then push down and
release the SET - switch (B) when the
indicator lamp is illuminated. The
vehicle will then maintain the desired
speed.
Type 1Type 2
NOTE When you release the SET -
switch (B), the vehicle speed will be set.
To increase the set speed
There are 2 ways to increase the set
speed.
RES + switch
Push up and hold the RES + switch (C)
while driving at the set speed, and your
speed will then gradually increase.
When you reach your desired speed,
release the switch. Your new cruising
speed is now set.Type 1
Type 2
To increase your speed in small
amounts, push up the RES + switch (C)
for less than approximately 1 second
and release it. Each time you push up
the RES + switch (C), your vehicle will
go approximately 1.6 km/h faster.
292AHA112846
293AA0110624
294AHA108441295AA0110637
296AHA108454
185

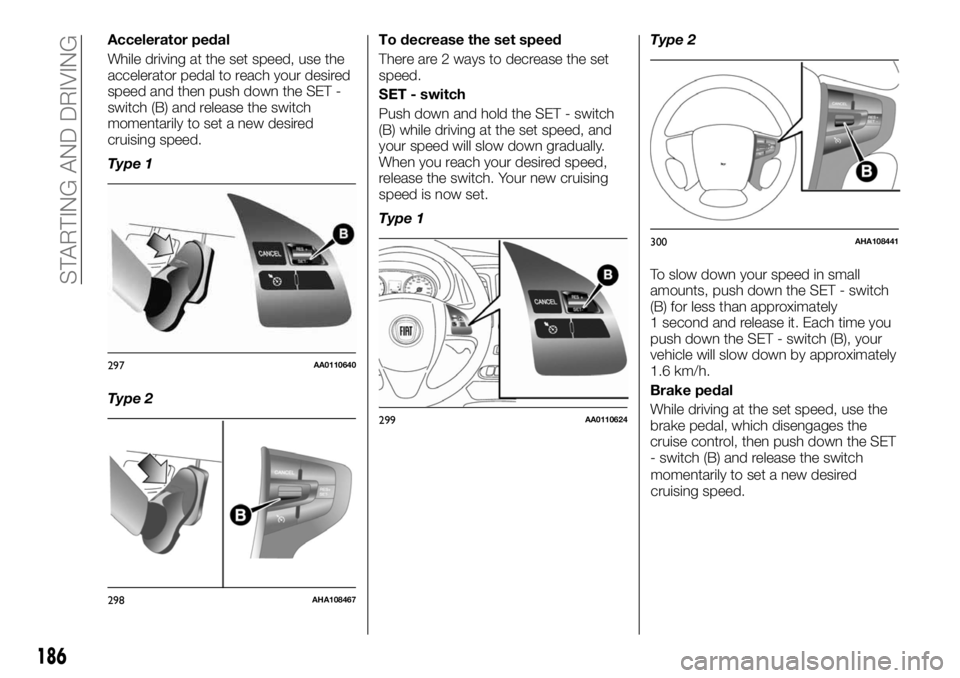

Accelerator pedal
While driving at the set speed, use the
accelerator pedal to reach your desired
speed and then push down the SET -
switch (B) and release the switch
momentarily to set a new desired
cruising speed.
Type 1
Type 2To decrease the set speed
There are 2 ways to decrease the set
speed.
SET - switch
Push down and hold the SET - switch
(B) while driving at the set speed, and
your speed will slow down gradually.
When you reach your desired speed,
release the switch. Your new cruising
speed is now set.
Type 1Type 2
To slow down your speed in small
amounts, push down the SET - switch
(B) for less than approximately
1 second and release it. Each time you
push down the SET - switch (B), your
vehicle will slow down by approximately
1.6 km/h.
Brake pedal
While driving at the set speed, use the
brake pedal, which disengages the
cruise control, then push down the SET
- switch (B) and release the switch
297AA0110640
298AHA108467
299AA0110624
300AHA108441
186
STARTING AND DRIVING
momentarily to set a new desired
cruising speed.

Type 1
Type 2To temporarily increase the speed
Depress the accelerator pedal as you
would normally. When you release the
pedal, you will return to your set speed.
To temporarily decrease the speed
Depress the brake pedal to decrease
the speed. To return to the previously
set speed, push up the RES + switch
(C). Refer to “To resume the set speed”.
Type 1Type 2
To deactivate
The set speed driving can be
deactivated as follows:
Press the CRUISE CONTROL
ON/OFF switch (A) (Cruise control will
be turned off).
Press the CANCEL switch (D).
Depress the brake pedal.
Type 1
301AA0110653
302AHA108483
303AA0001395
304AA0110666
305AHA108496
306AA0110679
187

Type 2
The set speed driving is deactivated
automatically in any of the following
ways.
When you depress the clutch pedal
(on vehicles with M/T).
When your speed slows to
approximately 15 km/h or more below
the set speed because of a hill, etc.
When your speed slows to
approximately 40 km/h or less.
When the Electronic Stability Control
(ESC) starts operating (if so equipped).
Refer to “Electronic Stability Control
(ESC)”.
243)
Also, the set speed driving may be
deactivated when the engine speed
rises and approaches the tachometer’s
red zone (the red-coloured part of the
tachometer dial).
152)
To resume the set speed
If the set speed driving is deactivated
by the condition described in “To
deactivate”, you can resume the
previously set speed by push up the
RES + switch (C) while driving at a
speed of approximately 40 km/h or
higher.
Type 1
Type 2Under either of the following conditions,
however, using the switch does not
allow you to resume the previously set
speed. In these situations, repeat the
speed setting procedure:
The CRUISE CONTROL ON/OFF
switch is pressed.
The ignition switch is turned OFF or
the operation mode is put in OFF.
Indicator lamp go off.
WARNING
241)If the device is faulty, turn ring nut A to
O, check the condition of the fuse and
contact a Fiat Dealership.
242)When travelling with the device active,
never move the gear lever to neutral.
243)On vehicles equipped with A/T,
although the set speed driving will be
deactivated when shifting to the “N”
(NEUTRAL) position, never move the
selector lever to the “N” (NEUTRAL)
position while driving. You would have no
engine braking and could cause a serious
accident.
307AHA108438
308AA0110637
309AHA108454
188
STARTING AND DRIVING

IMPORTANT
149)When you do not wish to drive at a
set speed, turn off the cruise control for
safety.
150)On vehicles with M/T, do not move the
gearshift lever to the “N” (Neutral) position
while driving at a set speed without
depressing the clutch pedal. The engine will
run too fast and might be damaged.
151)Do not use cruise control when driving
conditions will not allow you to stay at the
same speed, such as in heavy traffic or on
roads that are winding, icy, snow-covered,
wet, slippery, on a steep downhill slope.
152)When the set speed driving is
deactivated automatically in any situation
other than those listed above, there may be
a system malfunction. Press the CRUISE
CONTROL ON/OFF switch to turn off the
cruise control and have your vehicle
inspected by a Fiat Dealership.
SPEED LIMITER
The Speed Limiter is a driver assist
function to prevent from exceeding the
speed set by driver while engine power
control.
153)
NOTE If depressing the clutch pedal
(M/T), the Speed Limiter does not
activate.
If the vehicle speed exceeds the set
speed, control state “LIMIT” and the
Speed Limiter’s symbol will blink in the
combination meter.
If the vehicle speed exceeds the set
speed after indicated, control state
“LIMIT” and the beep alert will sound a
certain period of time.
While running without blinked control
state “LIMIT” and the Speed Limiter’s
symbol, if you decrease the set speed
and vehicle speed is more than set
speed, control state “LIMIT” and the
Speed Limiter’s symbol blinking starts
but beep alert is delayed.
In this case, when vehicle speed keeps
exceeding set speed for about
30 seconds after control state “LIMIT”
and the Speed Limiter’s symbol are
blinked, beep alert will sound a certain
period of time.
If the vehicle speeds decreases less
than set speeds, control state “LIMIT”
and the Speed Limiter’s symbol stop
blinking. When beep alert is sounding,
the beep alert also goes off.NOTE However, this gives priority to
audio and visual signal of safety
reasons or driver’s demand. If the set
speed is too lower based on current
shift position, the Speed Limiter may
not limit the vehicle speed to prevent
engine stall.
Speed Limiter control switches
There are 4 switches which relate to the
Speed Limiter on the steering wheel.
Type 1
310AA0113771
189

Type 2
A — SPEED LIMITER ON/OFF
switch
To turn on/off the Speed Limiter.
B — SET - switch
To set the current vehicle speed to a set
speed decrease the set speed.
C — RES + switch
To resume the Speed Limiter with set
speed memorized or increase the set
speed.
D — CANCEL switch
To cancel the Speed Limiter.
NOTE Press the switch one by one.
The Speed Limiter may be cancelled
automatically, if two or more switches
are pressed at the same time.Speed Limiter information on the
multi information display area
The Speed Limiter information is
displayed on the multi information
display area in the combination meter.
A — Control state
There are 2 control states as below.
LIMIT OFF
When the Speed Limiter is in STANDBY,
the vehicle speed can exceed the set
speed
LIMIT
When the Speed Limiter is in operation.
The vehicle is controlled in order not to
exceed the set speed.
B — SPEED LIMITER ON indication
When the Speed Limiter is started up,
the Speed Limiter’s symbol is
appeared.
C — Set speed
Set speed is appeared if it is stored.To start up
First of all, press the ON/OFF switch in
order to power up the Speed Limiter
when the ignition switch in the “ON”,
position or the operation mode in ON.
The Speed Limiter indication will be
appeared in the combination meter.
To activate
Accelerate or decelerate to your desired
speed, and push down the SET -
switch (B). the Speed Limiter
memorizes the current vehicle speed
when you release the SET - switch (B).
311AHA110510
312AHA105004
313AHA105020
190
STARTING AND DRIVING
Now, the Speed Limiter starts
controlling in order not to exceed the
set speed.
