2017 FIAT FULLBACK Owner handbook (in English)

Suitability for various seating positions
SINGLE CAB
Mass GroupSeating Position
Front PassengerRecommended Child Restraint Systems UN-R44 Approval No.
0—Upto10kg X — —
0+ — Up to 13 kg X — E1-04301146
1—9to18kg UF,LG 0/1 S ISOFIX (Child restraint system for
East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for
Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for
North area): MZ314390N
DUO plus: MZ313045E4-03443416
E1-04301133
II & III —15 to 36 kg UF, LKID plus: MZ314250
KIDFIX: MZ314804E1-04301169
E1-04301198
158)
74)
Definition of characters to be inserted in the table above:
U — Suitable for “universal” category restraints approved for use in this mass group.
UF — Suitable for front-facing “universal” category restraints approved for use in this mass group.
X — Seat position not suitable for child restraint systems in this mass group.
Important note:
Front passenger seat is NOT suitable for rearward facing child restraint system when the passenger airbag is active. It is
suitable for universal child restraint system when the airbag has been disabled (refer to “Supplemental restraint system —
Airbag”).
119

Suitability for various seating positions
CLUB CAB
Mass GroupSeating Position
Front PassengerRecommended Child Restraint
SystemsUN-R44 Approval No.
Activated
AirbagDeactivatedAirbag
0—Upto10kg X U — —
0+ — Up to 13 kg X U, L BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg X U,LG 0/1 S ISOFIX (Child restraint
system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint
system for Central- South area):
MZ314390CS
G 0/1 S ISOFIX (Child restraint
system for North area): MZ314390N
DUO plus: MZ313045E4-03443416
E1-04301133
II & III —15 to 36 kg X U, LKID plus: MZ314250
KIDFIX: MZ314804E1-04301169
E1-04301198
120
SAFETY

Mass GroupSeating Position
Rear OutboardRecommended Child Restraint Systems UN-R44 Approval No.
0—Upto10kg X — —
0+— Up to 13 kg X BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg XG 0/1 S ISOFIX (Child restraint system for
East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for
Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for
North area): MZ314390N
DUO plus: MZ313045E4-03443416
E1-04301133
II & III —15 to 36 kg XKID plus: MZ314250
KIDFIX: MZ314804E1-04301169
E1-04301198
158)
74)
Definition of characters to be inserted in the table above:
U — Suitable for “universal” category restraints approved for use in this mass group.
UF — Suitable for front-facing “universal” category restraints approved for use in this mass group.
X — Seat position not suitable for child restraint systems in this mass group.
Important note:
Front passenger seat is NOT suitable for rearward facing child restraint system when the passenger airbag is active. It is
suitable for universal child restraint system when the airbag has been disabled (refer to “Supplemental restraint system —
Airbag”).
121

Suitability for various seating positions
DOUBLE CAB
Mass GroupSeating Position
Front PassengerRecommended Child Restraint
SystemsUN-R44 Approval No.
Activated
AirbagDeactivatedAirbag
0—Upto10kg X U — —
0+ — Up to 13 kg X U, L BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg X U,LG 0/1 S ISOFIX (Child restraint
system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint
system for Central- South area):
MZ314390CS
G 0/1 S ISOFIX (Child restraint
system for North area): MZ314390N
DUO plus: MZ313045E4-03443416
E1-04301133
II & III —15 to 36 kg X U, LKID plus: MZ314250
KIDFIX: MZ314804E1-04301169
E1-04301198
122
SAFETY

Seating Position
Mass GroupRear
OutboardRear CentreRecommended Child Restraint
SystemsUN-R44 Approval No.
0—Upto10kg U U — —
0+—Upto
13 kgU, L U, L BABY-SAFE plus: MZ314393 E1-04301146
1—9to18kg U,L U,LG 0/1 S ISOFIX (Child restraint system
for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system
for Central- South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system
for North area): MZ314390N
DUO plus: MZ313045E4-03443416
E1-04301133
II & III —15 to
36 kgU, L XKID plus: MZ314250
KIDFIX: MZ314804E1-04301169
E1-04301198
158)
73) 74) 75) 76)
Definition of characters to be inserted in the table above:
U — Suitable for “universal” category restraints approved for use in this mass group.
UF — Suitable for front-facing “universal” category restraints approved for use in this mass group.
X — Seat position not suitable for child restraint systems in this mass group.
Important note:
Front passenger seat is NOT suitable for rearward facing child restraint system when the passenger airbag is active. It is
suitable for universal child restraint system when the airbag has been disabled (refer to “Supplemental restraint system —
Airbag”).
123

Installing a child
restraint system to the
lower anchorage
(ISOFIX child restraint
mountings) and tether
anchorage (Double cab)
Lower anchorage location
Your vehicle’s rear seat is fitted with
lower anchorages for attaching a child
restraint system with ISOFIX mountings.Tether anchorage location
There are 2 child restraint anchorage
points on the vertical panel, located
behind the rear seat.
These are for securing a child seat
tether strap to each of the 2 rear
seating positions in your vehicle.
159)
Child restraint systems
with ISOFIX mountings
(Double cab)
The child restraint system is designed
only for seats that incorporate lower
anchorages. Retain the child restraint
system using the lower anchorages.
It is not necessary to retain the child
restraint system using the vehicle’s seat
belts.A. Child restraint system connectors
To install
1. Remove any foreign material in or
around the connectors and ensure the
vehicle seat belt is in its normal storage
position.
2. Remove the head restraint from the
location in which you wish to install a
child restraint. Refer to “Head
restraints”.
3. Push the child restraint system’s
connectors (A) into the lower
anchorages (B) in accordance with the
instructions provided by the child
restraint system’s manufacturer.
207AHA106607
208AHA106229
209AHA104759
210AA0014302
124
SAFETY

A. Connector
B. Lower anchorage
If your child restraint system has a
support leg, make sure that there is a
support leg at the stable position on the
floor. If your child restraint system with a
tether strap, perform the step 4 through
8.
If your child restraint system without a
tether strap, perform the step 8.
4. Drop the child restraint’s tether strap
(C) down from the clearance between
the rear seatback and back panel trim.5. Tip the armrest forward. Open the
two fasteners (D) that’s located in the
space where the armrest are stowed.
6. Open the inner cover.7. Put your hand in the opening of the
two fasteners, attach the tether strap
hook (E) to the tether anchorage (F),
and securely tighten the tether strap.
If it is difficult to latch the tether strap
hook, turn the hook sideways.
8. Push and pull the child restraint
system in all directions to be sure it is
firmly secured.
211AHA106434212AHA106610
213AHA106623
214AHA106636
215AHA106649
125

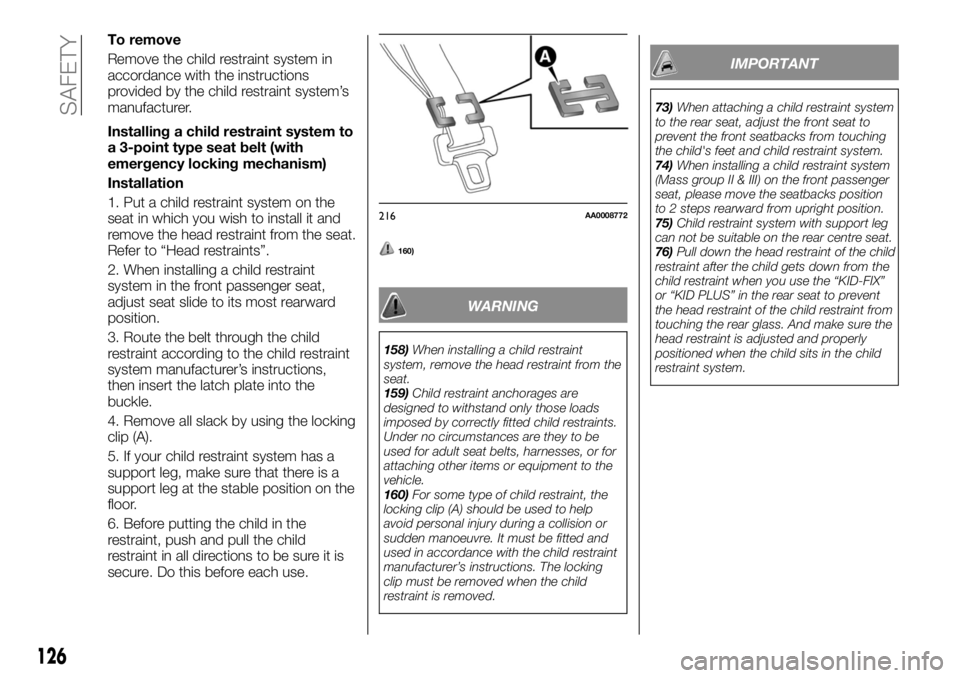

To remove
Remove the child restraint system in
accordance with the instructions
provided by the child restraint system’s
manufacturer.
Installing a child restraint system to
a 3-point type seat belt (with
emergency locking mechanism)
Installation
1. Put a child restraint system on the
seat in which you wish to install it and
remove the head restraint from the seat.
Refer to “Head restraints”.
2. When installing a child restraint
system in the front passenger seat,
adjust seat slide to its most rearward
position.
3. Route the belt through the child
restraint according to the child restraint
system manufacturer’s instructions,
then insert the latch plate into the
buckle.
4. Remove all slack by using the locking
clip (A).
5. If your child restraint system has a
support leg, make sure that there is a
support leg at the stable position on the
floor.
6. Before putting the child in the
restraint, push and pull the child
restraint in all directions to be sure it is
secure. Do this before each use.
160)
WARNING
158)When installing a child restraint
system, remove the head restraint from the
seat.
159)Child restraint anchorages are
designed to withstand only those loads
imposed by correctly fitted child restraints.
Under no circumstances are they to be
used for adult seat belts, harnesses, or for
attaching other items or equipment to the
vehicle.
160)For some type of child restraint, the
locking clip (A) should be used to help
avoid personal injury during a collision or
sudden manoeuvre. It must be fitted and
used in accordance with the child restraint
manufacturer’s instructions. The locking
clip must be removed when the child
restraint is removed.
IMPORTANT
73)When attaching a child restraint system
to the rear seat, adjust the front seat to
prevent the front seatbacks from touching
the child's feet and child restraint system.
74)When installing a child restraint system
(Mass group II & III) on the front passenger
seat, please move the seatbacks position
to 2 steps rearward from upright position.
75)Child restraint system with support leg
can not be suitable on the rear centre seat.
76)Pull down the head restraint of the child
restraint after the child gets down from the
child restraint when you use the “KID-FIX”
or “KID PLUS” in the rear seat to prevent
the head restraint of the child restraint from
touching the rear glass. And make sure the
head restraint is adjusted and properly
positioned when the child sits in the child
restraint system.
216AA0008772
126
SAFETY
