WARNING
If a fuse blows again, contact a Fiat
Dealership.
Never replace a blown fuse with metallic
wires or other material.
WARNING
Never replace a fuse with another
having higher amperage; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE, MIDI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
Remove the key from the ignition and
switch off or disable all devices before
replacing a fuse.
WARNING
Contact Fiat Dealership if a safety
system (air bags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
To identify the protective fuse, see the tables on the
following pages.
178
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

ENGINE BAY FUSE BOX
The fuse box is on the right-hand side of the engine.Removing the fuse box cover
Proceed as follows:
remove protective lid A fig. 178 from the positive
battery terminal by lifting it upwards;
press the tab A fig. 179 and remove the fuse box
protective lid B;
move the lid towards the headlight, turning it
anticlockwise (as shown by the arrow) and then
remove it fig. 180;
the fuse box can be accessed in this manner
fig. 182.
If you need to clean the engine
compartment , take care not to direct the
jet of water specifically onto the engine
compartment wired casing.
fig. 178F0T0171
fig. 179F0T0172
179
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Refitting the fuse box cover
To refit the cover proceed as follows:
insert the two tabs A fig. 181 in the respective
seats located on the fuse box;
refasten the tab B in the corresponding seat until
it clicks.
fig. 180F0T0173fig. 181F0T0174
180
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

PROTECTED DEVICE - fig. 182 FUSE AMPS
Spare (trailer kit) F09 15
Methane system solenoid valves (CNG) F09 10
HornsF10 10
Main beam headlights F14 15
Rear power socket F15 15
fig. 182F0T0181
181
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

PROTECTED DEVICE - fig. 182 FUSE AMPS
Air conditioner compressor F19 7.5
Heated rear window, mirror defrosters F20 30
Fuel pump F21 15
Fog lights F08 15
Cigar lighter/Passenger compartment socket/Heated seats F85 30
+15 reverse lights/air flow meter/water in fuel sensor/relay coils T02, T05,
T14, T17 and T19 (1.4 versions)F87 7,5
IBS battery charge sensor for Start&Stop system (1.3 Multijet with
Start&Stop)F87 5
182
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

PASSENGER COMPARTMENT FUSE BOX
To access the fuses undo the two screws A fig. 183
using the metallic insert of the ignition key then
remove the flap B.
The fuses are located in the two fuse boxes shown in
fig. 184.
fig. 183F0T0178fig. 184F0T0183
183
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

PROTECTED DEVICE - fig. 184 FUSE AMPS
Dipped headlight (passenger side)
F12
(*)7,5
Dipped headlight (driver side)/Headlight alignment corrector F13
7,5/5
(*)
INT/A SCM relay coils F31 5
Timed interior lighting
F32
(*)7,5
Radio
Bluetoothfisystem node/Blue&Me™ node/EOBD diagnostic socket/
Volumetric alarm ECU/Alarm siren ECUF36 10
Instrument panel node/Stop light control (NO) F37 5
Door/luggage compartment lock actuators
(*)F38 20
Windshield washer/rear window washer bidirectional pump F43 15
Front electric window (driver side)
(*)F47 20
Front electric window (passenger side)
(*)F48 20
Control lights/Parking sensors ECU/Electric wing mirrors/Volumetric alarm
ECUF49 5
INT Radio node/
Bluetoothfisystem ECU/Blue&Me™ node/Electric wing
mirrors movement/Clutch switch/
Brake light control (NC)F51 7.5
Instrument panel node F53 5
External mirror defrosters F41 7.5
SpareF45 -
SpareF46 -
SpareF90 -
(*)For versions/markets, where provided
184
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

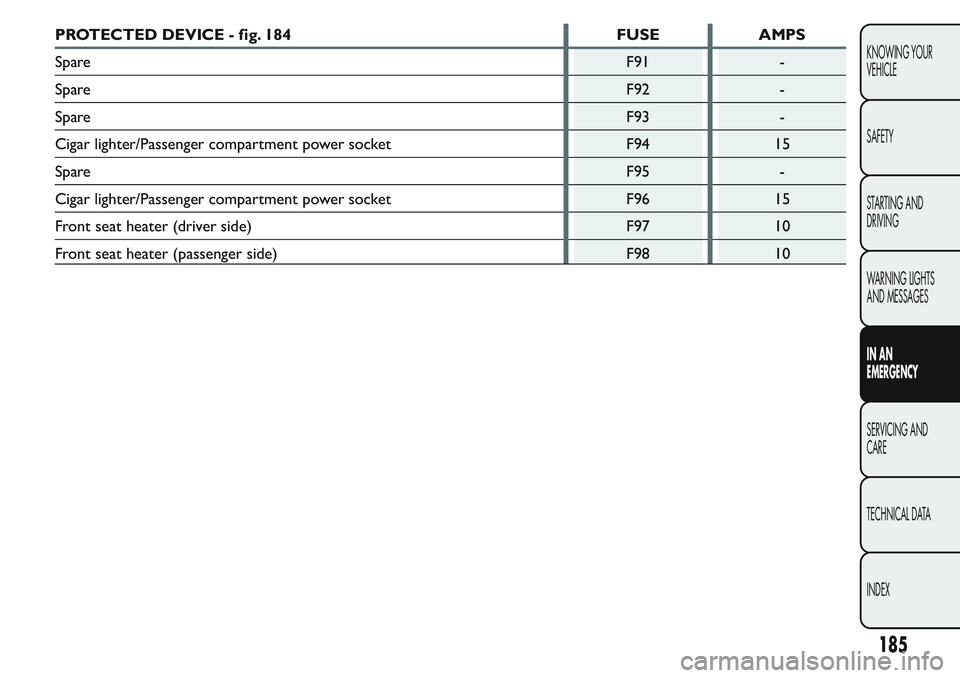

PROTECTED DEVICE - fig. 184 FUSE AMPS
SpareF91 -
SpareF92 -
SpareF93 -
Cigar lighter/Passenger compartment power socket F94 15
SpareF95 -
Cigar lighter/Passenger compartment power socket F96 15
Front seat heater (driver side) F97 10
Front seat heater (passenger side) F98 10
