2017 CHEVROLET SILVERADO Owners Manual

Silverado Owner’s Manual
2017
Silverado
23476161 A
C
M
Y
CM
MY
CY
CMY
K
2k17_Chevrolet_Silverado_23476161A .ai 1 5/10/2016 2:44:44 PM2k17_Chevrolet_Silverado_23476161A .ai 1 5/10/2016 2:44:44 PM

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 33
Seats and Restraints . . . . . . . . . . . 56
Storage . . . . . . . . . . . . . . . . . . . . . . . 115
Instruments and Controls . . . . . . 119
Lighting . . . . . . . . . . . . . . . . . . . . . . . 171
Infotainment System . . . . . . . . . . 181
Climate Controls . . . . . . . . . . . . . . 237
Driving and Operating . . . . . . . . . 246
Vehicle Care . . . . . . . . . . . . . . . . . . 350
Service and Maintenance . . . . . 451
Te c h n i c a l D a t a . . . . . . . . . . . . . . . . 4 6 7
Customer Information . . . . . . . . . 472
Reporting Safety Defects . . . . . . 483
OnStar . . . . . . . . . . . . . . . . . . . . . . . . 486
Index . . . . . . . . . . . . . . . . . . . . 496

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
2 Introduction
Introduction
The names, logos, emblems,slogans, vehicle model names, andvehicle body designs appearing inthis manual including, but not limitedto, GM, the GM logo, CHEVROLET,the CHEVROLET Emblem,SILVERADO, and Z71 aretrademarks and/or service marks ofGeneral Motors LLC, itssubsidiaries, affiliates, or licensors.
For vehicles first sold in Canada,substitute the name“GeneralMotors of Canada Company”forChevrolet Motor Division wherever itappears in this manual.
This manual describes features thatmay or may not be on the vehiclebecause of optional equipment thatwas not purchased on the vehicle,model variants, countryspecifications, features/applicationsthat may not be available in yourregion, or changes subsequent tothe printing of this owner manual.
If the vehicle has the Duramax®
diesel engine, see the Duramaxdiesel supplement for additional andspecific information on this engine.
If the vehicle has the bi-fuel engine,see the Silverado/Sierra Bi-Fuelsupplement for additional andspecific information on this engine.
For an eAssist vehicle, see theSilverado/Sierra eAssistsupplement.
Refer to the purchasedocumentation relating to yourspecific vehicle to confirm thefeatures.
Keep this manual in the vehicle forquick reference.
Canadian Vehicle Owners
AFrenchlanguagemanualcanbeobtained from your dealer, atwww.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire dece guide en français auprès duconcessionnaire ou à l'adressesuivante:
Helm, IncorporatedAttention: Customer Service47911 Halyard DrivePlymouth, MI 48170USA
Litho in U.S.A.Part No. 23476161 A First Printing©2016 General Motors LLC. All Rights Reserved.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Introduction 3
Using this Manual
To q u i c k l y l o c a t e i n f o r m a t i o n a b o u tthe vehicle, use the Index in theback of the manual. It is analphabetical list of what is in themanual and the page number whereit can be found.
Danger, Warning, and
Caution
Warning messages found on vehiclelabels and in this manual describehazards and what to do to avoid orreduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
Acirclewithaslashthroughitisasafety symbol which means“DoNot,”“Do not do this,”or“Do not letthis happen.”
Symbols
The vehicle has components andlabels that use symbols instead oftext. Symbols are shown along withthe text describing the operation orinformation relating to a specificcomponent, control, message,gauge, or indicator.
M:Shown when the ownermanual has additional instructionsor information.
*:Shown when the servicemanual has additional instructionsor information.
0:Shown when there is moreinformation on another page—“see page.”

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
4 Introduction
Vehicle Symbol Chart
Here are some additional symbolsthat may be found on the vehicleand what they mean. For moreinformation on the symbol, refer tothe Index.
0:Adjustable Pedals
9:Airbag Readiness Light
!:Antilock Brake System (ABS)
g:Audio Steering Wheel Controlsor OnStar®(if equipped)
$:Brake System Warning Light
":Charging System
I:Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_:Flame/Fire Prohibited
#:Fog Lamps
.:Fuel Gauge
+:Fuses
3:Headlamp High/Low-BeamChanger
(:Heated Steering Wheel
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
g:Outside Power FoldawayMirrors
O:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
_:To w / H a u l M o d e
d:Traction Control/StabiliTrak®
a:Under Pressure
M:Windshield Washer Fluid

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . 8Remote Vehicle Start . . . . . . . . . . . 9Door Locks . . . . . . . . . . . . . . . . . . . . . 9Windows . . . . . . . . . . . . . . . . . . . . . . . 10Seat Adjustment . . . . . . . . . . . . . . . 11Memory Features . . . . . . . . . . . . . . 13Heated and Ventilated Seats . . . 13Head Restraint Adjustment . . . . 14Safety Belts . . . . . . . . . . . . . . . . . . . . 14Passenger Sensing System . . . 14Mirror Adjustment . . . . . . . . . . . . . . 15Steering Wheel Adjustment . . . . 16Interior Lighting . . . . . . . . . . . . . . . . 17Exterior Lighting . . . . . . . . . . . . . . . 18Windshield Wiper/Washer . . . . . . 18Climate Controls . . . . . . . . . . . . . . . 19Transmission . . . . . . . . . . . . . . . . . . 21Four-Wheel Drive . . . . . . . . . . . . . . 22
Vehicle Features
Infotainment System . . . . . . . . . . . 23Radio(s) . . . . . . . . . . . . . . . . . . . . . . . 23Satellite Radio . . . . . . . . . . . . . . . . . 24Portable Audio Devices . . . . . . . . 24Bluetooth®..................... 24Steering Wheel Controls . . . . . . . 25Cruise Control . . . . . . . . . . . . . . . . . 26Driver InformationCenter (DIC) . . . . . . . . . . . . . . . . . 26Forward Collision Alert (FCA)System . . . . . . . . . . . . . . . . . . . . . . . 27Forward AutomaticBraking (FAB) . . . . . . . . . . . . . . . . 27Lane DepartureWarning (LDW) . . . . . . . . . . . . . . . 27Lane Keep Assist (LKA) . . . . . . . 27Rear Vision Camera (RVC) . . . . 27Parking Assist . . . . . . . . . . . . . . . . . 28Power Outlets . . . . . . . . . . . . . . . . . 28Universal Remote System . . . . . 28Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 29
Performance and Maintenance
Traction Control/ElectronicStability Control . . . . . . . . . . . . . . 29Tire Pressure Monitor . . . . . . . . . . 30Fuel (Except L86 6.2LEngine) . . . . . . . . . . . . . . . . . . . . . . . 30Fuel (L86 6.2L Engine) . . . . . . . . 30E85 or FlexFuel . . . . . . . . . . . . . . . . 31Engine Oil Life System . . . . . . . . 31Driving for Better FuelEconomy . . . . . . . . . . . . . . . . . . . . . 31Roadside AssistanceProgram . . . . . . . . . . . . . . . . . . . . . . 32

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
6 In Brief

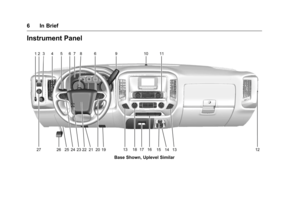

Instrument Panel
Base Shown, Uplevel Similar

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 7
1.Instrument Panel IlluminationControl0177.
2. Integrated Trailer Brake Control(ITBC) System (If Equipped).SeeTo w i n g E q u i p m e n t0335.
3.Exterior Lamp Controls0171.
Fog Lamps0176(IfEquipped).
4.Air Vents0243.
5. Turn Signal Lever. SeeTu r nand Lane-ChangeSignals0175.
Windshield Wiper/Washer0122.
6. Favorite Switches (Out ofView). SeeSteering WheelControls0121.
Volume Switches (Out of View).SeeSteering WheelControls0121.
7.Instrument Cluster0128.
8.Hazard WarningFlashers0175.
9. Shift Lever. SeeAutomaticTr a n s m i s s i o n0277.
To w / H a u l S e l e c t o r B u t t o n ( I fEquipped). SeeTo w / H a u lMode0282.
Range Selection Mode (IfEquipped). SeeManualMode0280.
10. Light Sensor. SeeAutomaticHeadlamp System0174.
11 .Infotainment0181.
12. Passenger Airbag On-OffSwitch (If Equipped) (Out ofView). SeeAirbag On-OffSwitch080.
13.Heated and Ventilated Seats013(If Equipped).
14. Power Outlet 110/120 VoltAlternating Current (IfEquipped). SeePowerOutlets0124.
15.Power Outlets0124(IfEquipped).
16.gTr a c t i o n C o n t r o l / E l e c t r o n i c
Stability Control0295.
0Pedal Adjust Switch (If
Equipped). SeeAdjustableThrottle and BrakePedal0267.
{Cargo Lamp0177.
XParking Assist Button (If
Equipped). SeeAssistanceSystems for Parking orBacking0302.
ALane Keep Assist (LKA)
(1500 Series)0309(IfEquipped).
@Lane Departure Warning
(LDW) (2500/3500 Series)0307(If Equipped).
5Hill Descent Control Switch
(If Equipped). SeeHill DescentControl (HDC)0297.
qExhaust Brake (If
Equipped). See“ExhaustBrake”in the Duramax dieselsupplement.
gPower Take Off (PTO)
Switch (If Equipped). See theDuramax diesel supplement.
