2017 BMW X1 Owners Manual

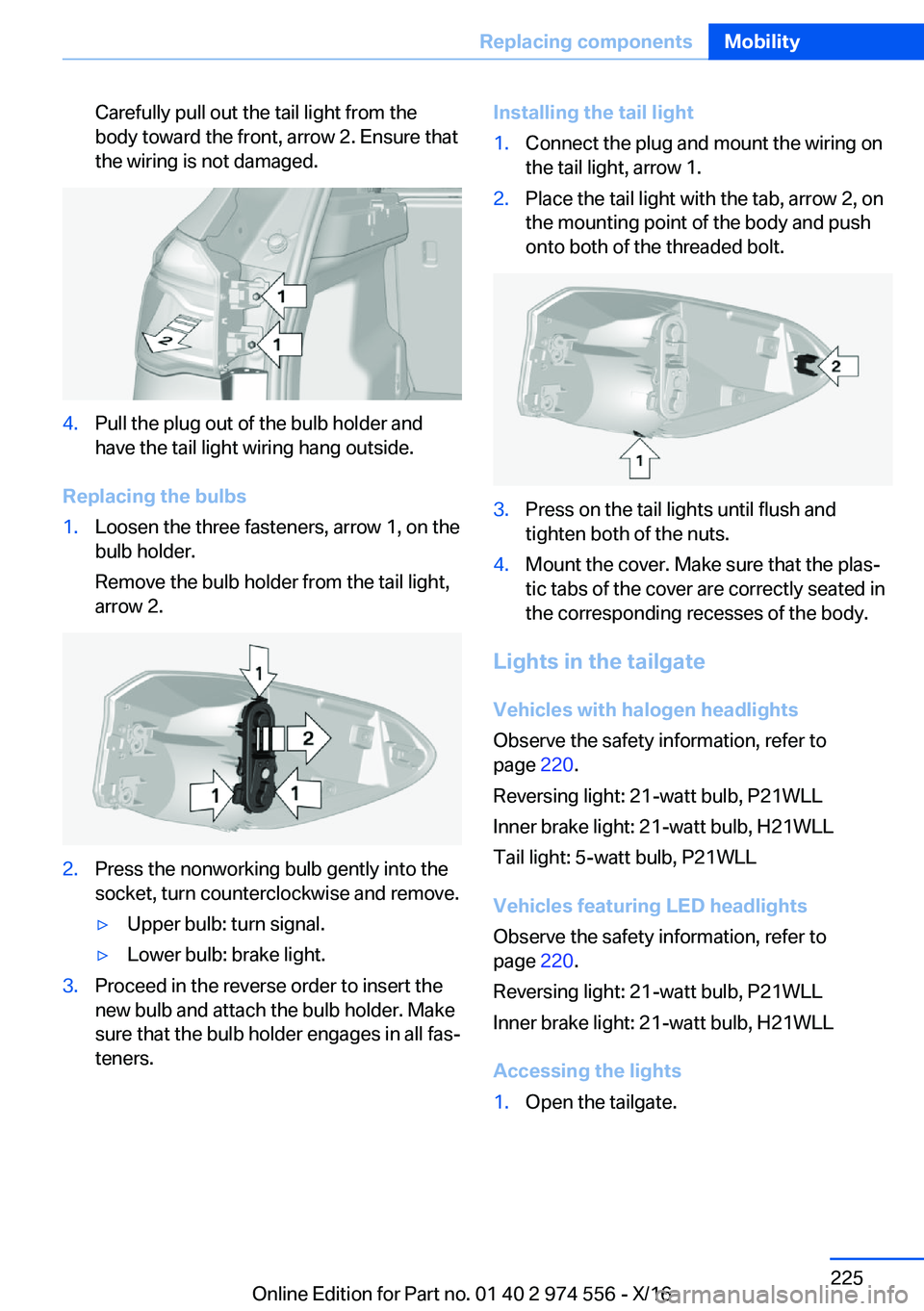

Carefully pull out the tail light from the
body toward the front, arrow 2. Ensure that the wiring is not damaged.4.Pull the plug out of the bulb holder andhave the tail light wiring hang outside.
Replacing
the
bulbs
1.Loosen the three fasteners, arrow 1, on the
bulb holder.
Remove the bulb holder from the tail light, arrow 2.2.Press the nonworking bulb gently into thesocket, turn counterclockwise and remove.'yUpper bulb: turn signal.'yLower bulb: brake light.3.Proceed in the reverse order to insert thenew bulb and attach the bulb holder. Make
sure that the bulb holder engages in all fasj
teners.Installing
the
tail
light1.Connect the plug and mount the wiring on
the tail light, arrow 1.2.Place the tail light with the tab, arrow 2, on
the mounting point of the body and push
onto both of the threaded bolt.3.Press on the tail lights until flush and tighten both of the nuts.4.Mount the cover. Make sure that the plasjtic tabs of the cover are correctly seated in
the corresponding recesses of the body.
Lights
in
the
tailgate
Vehicles
with
halogen
headlightsObserve the safety information, refer topage 220.
Reversing light: 21-watt bulb, P21WLL
Inner brake light: 21-watt bulb, H21WLL Tail light: 5-watt bulb, P21WLL
Vehicles
featuring
LED
headlights
Observe the safety information, refer to page 220.
Reversing light: 21-watt bulb, P21WLL
Inner brake light: 21-watt bulb, H21WLL
Accessing
the
lights
1.Open the tailgate.Seite 225Replacing
componentsMobility225
Online Edition for Part no. 01 40 2 974 556 - X/16

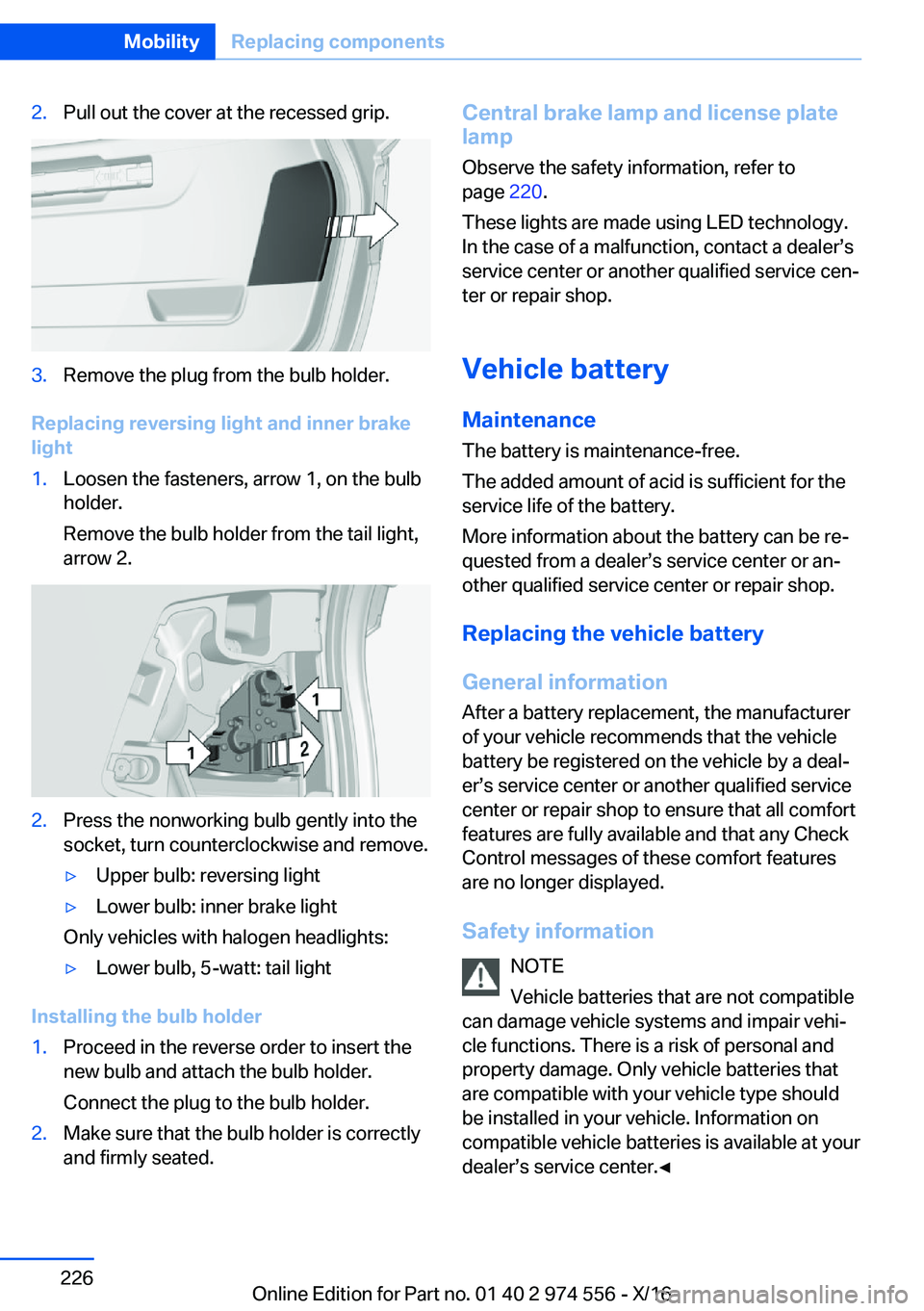

2.Pull out the cover at the recessed grip.3.Remove the plug from the bulb holder.
Replacing
reversing
light
and
inner
brake
light
1.Loosen the fasteners, arrow 1, on the bulb
holder.
Remove the bulb holder from the tail light, arrow 2.2.Press the nonworking bulb gently into the socket, turn counterclockwise and remove.'yUpper bulb: reversing light'yLower bulb: inner brake light
Only vehicles with halogen headlights:
'yLower bulb, 5-watt: tail light
Installing
the
bulb
holder
1.Proceed in the reverse order to insert thenew bulb and attach the bulb holder.
Connect the plug to the bulb holder.2.Make sure that the bulb holder is correctlyand firmly seated.Central
brake
lamp
and
license
plate
lamp
Observe the safety information, refer topage 220.
These lights are made using LED technology.
In the case of a malfunction, contact a dealerss service center or another qualified service cenj
ter or repair shop.
Vehicle
battery Maintenance
The battery is maintenance-free.
The added amount of acid is sufficient for the
service life of the battery.
More information about the battery can be rej quested from a dealerss service center or anjother qualified service center or repair shop.
Replacing
the
vehicle
battery
General
information
After a battery replacement, the manufacturer
of your vehicle recommends that the vehicle battery be registered on the vehicle by a dealj
erss service center or another qualified service center or repair shop to ensure that all comfortfeatures are fully available and that any Check
Control messages of these comfort features
are no longer displayed.
Safety
information NOTE
Vehicle batteries that are not compatible
can damage vehicle systems and impair vehij
cle functions. There is a risk of personal and
property damage. Only vehicle batteries that are compatible with your vehicle type should
be installed in your vehicle. Information on
compatible vehicle batteries is available at your
dealerss service center.'

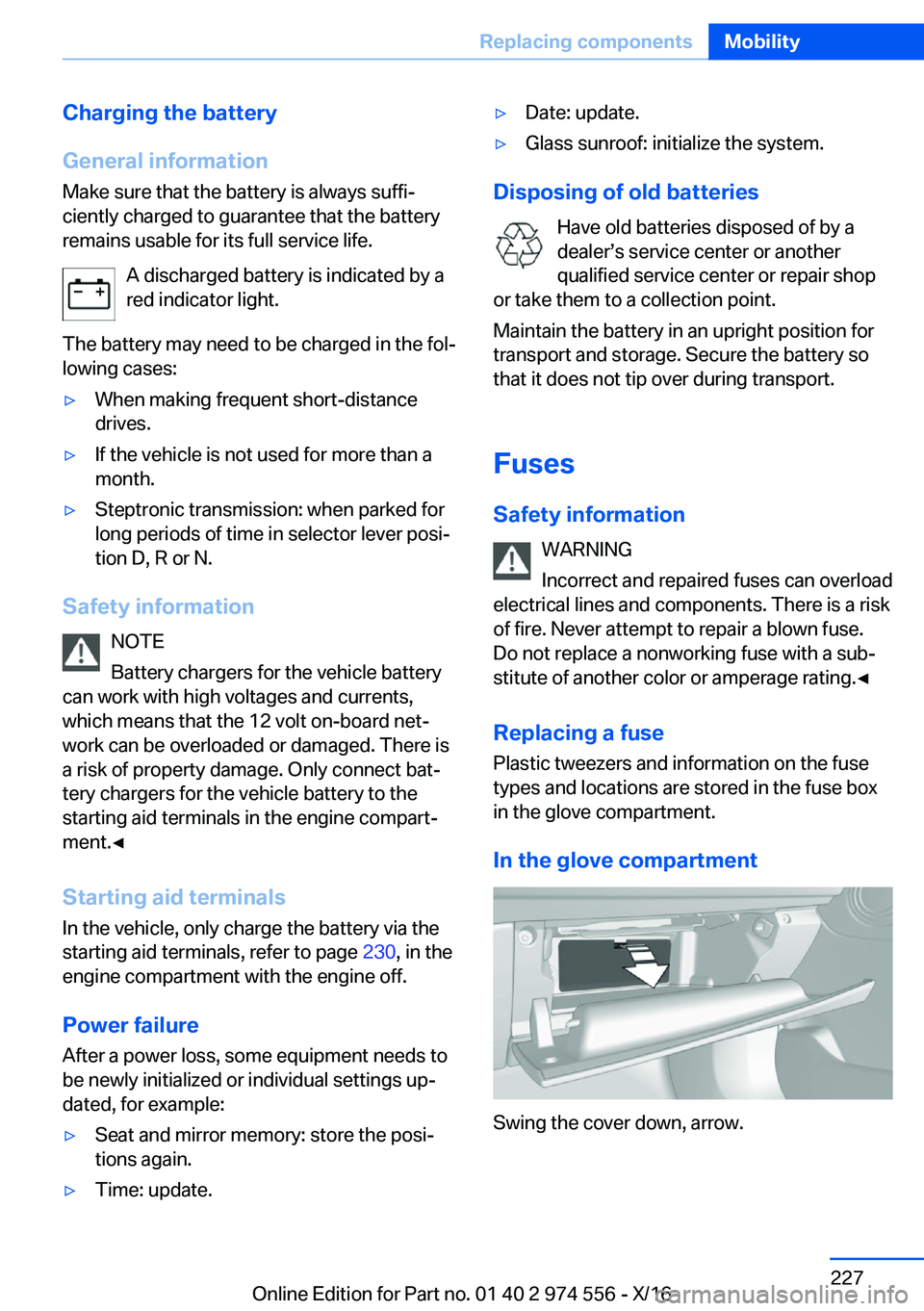

Charging
the
battery
General
information
Make sure that the battery is always suffij
ciently charged to guarantee that the battery
remains usable for its full service life.
A discharged battery is indicated by a
red indicator light.
The battery may need to be charged in the folj
lowing cases:'yWhen making frequent short-distance
drives.'yIf the vehicle is not used for more than a month.'ySteptronic transmission: when parked for
long periods of time in selector lever posij
tion D, R or N.
Safety
information
NOTE
Battery chargers for the vehicle battery
can work with high voltages and currents,
which means that the 12 volt on-board netj work can be overloaded or damaged. There is
a risk of property damage. Only connect batj tery chargers for the vehicle battery to the
starting aid terminals in the engine compartj
ment.'

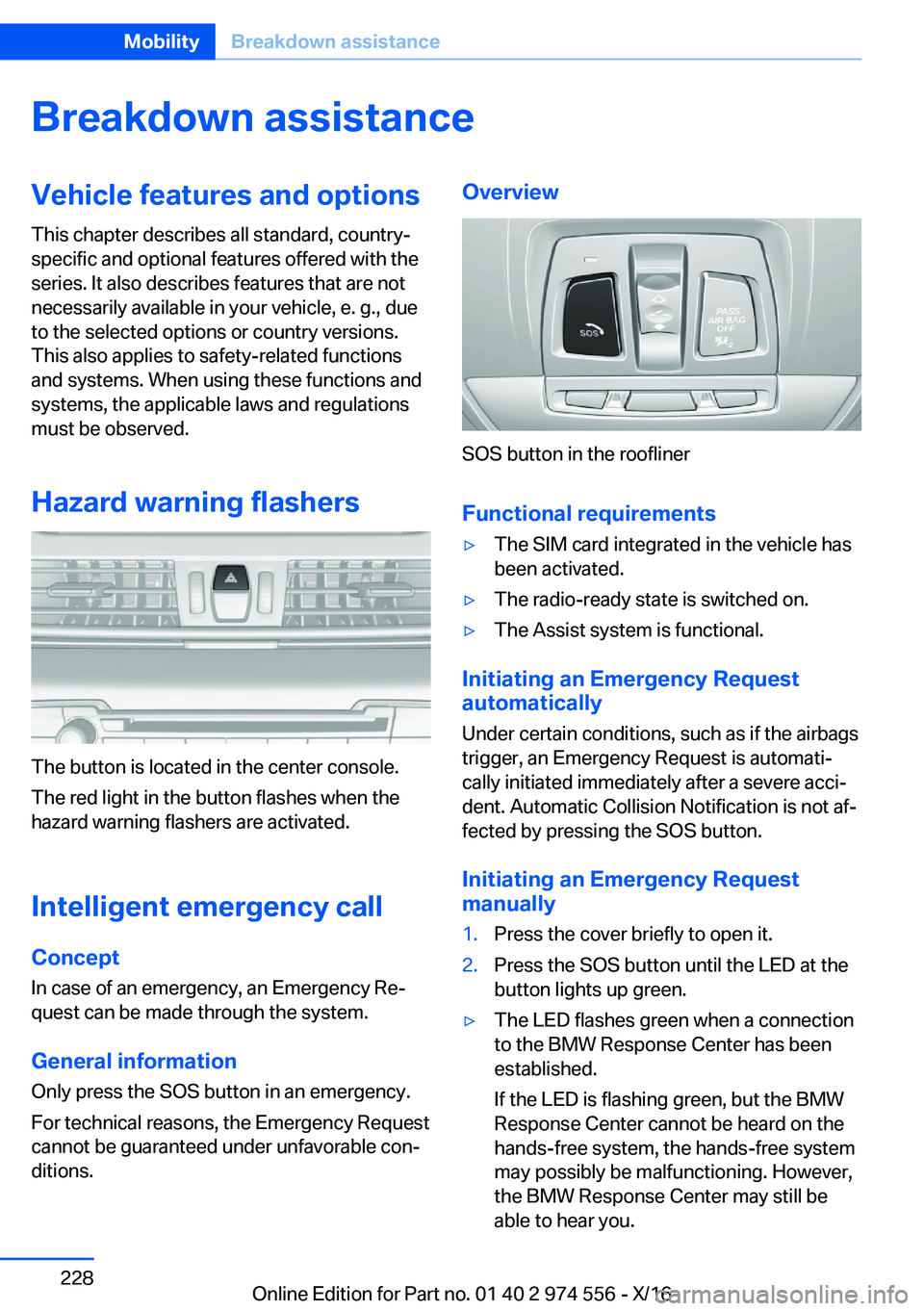

Breakdown
assistanceVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Hazard
warning
flashers
The button is located in the center console.
The red light in the button flashes when the
hazard warning flashers are activated.
Intelligent
emergency
call
Concept
In case of an emergency, an Emergency Rej
quest can be made through the system.
General
information Only press the SOS button in an emergency.
For technical reasons, the Emergency Request cannot be guaranteed under unfavorable conj
ditions.
Overview
SOS button in the roofliner
Functional
requirements
'yThe SIM card integrated in the vehicle hasbeen activated.'yThe radio-ready state is switched on.'yThe Assist system is functional.
Initiating
an
Emergency
Request
automatically
Under certain conditions, such as if the airbags
trigger, an Emergency Request is automatij
cally initiated immediately after a severe accij
dent. Automatic Collision Notification is not afj
fected by pressing the SOS button.
Initiating
an
Emergency
Request
manually
1.Press the cover briefly to open it.2.Press the SOS button until the LED at the button lights up green.'yThe LED flashes green when a connectionto the BMW Response Center has been
established.
If the LED is flashing green, but the BMW Response Center cannot be heard on the
hands-free system, the hands-free system
may possibly be malfunctioning. However,
the BMW Response Center may still be
able to hear you.Seite 228MobilityBreakdown
assistance228
Online Edition for Part no. 01 40 2 974 556 - X/16

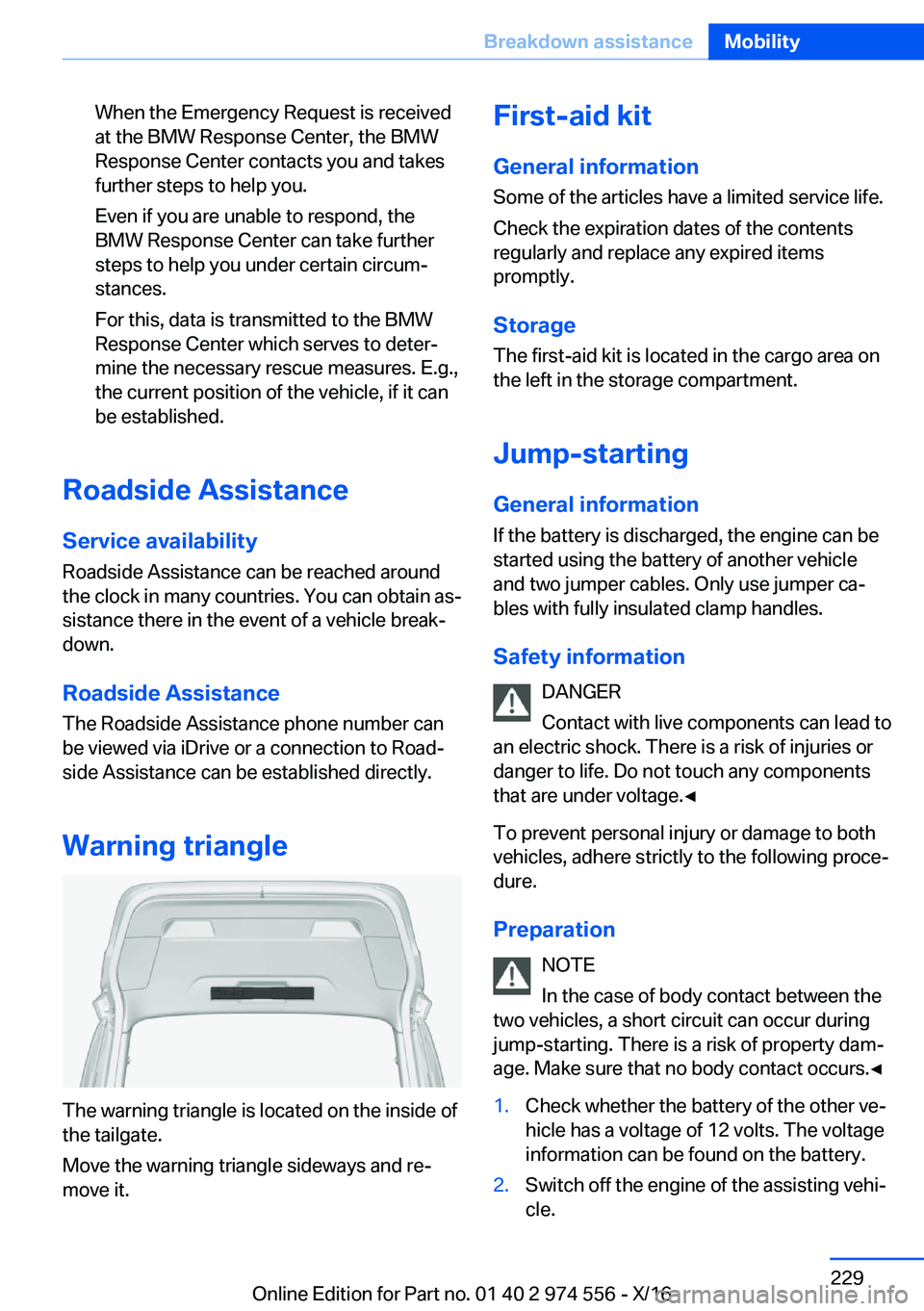

When the Emergency Request is received
at the BMW Response Center, the BMW
Response Center contacts you and takes
further steps to help you.
Even if you are unable to respond, the
BMW Response Center can take further steps to help you under certain circumj
stances.
For this, data is transmitted to the BMW
Response Center which serves to deterj
mine the necessary rescue measures. E.g., the current position of the vehicle, if it canbe established.
Roadside
Assistance
Service
availability Roadside Assistance can be reached aroundthe clock in many countries. You can obtain asj
sistance there in the event of a vehicle breakj
down.
Roadside
Assistance The Roadside Assistance phone number can
be viewed via iDrive or a connection to Roadj
side Assistance can be established directly.
Warning
triangle
The warning triangle is located on the inside of the tailgate.
Move the warning triangle sideways and rej move it.
First-aid
kit
General
information
Some of the articles have a limited service life.
Check the expiration dates of the contentsregularly and replace any expired items
promptly.
Storage
The first-aid kit is located in the cargo area on the left in the storage compartment.
Jump-starting
General
information
If the battery is discharged, the engine can be
started using the battery of another vehicle and two jumper cables. Only use jumper caj
bles with fully insulated clamp handles.
Safety
information DANGER
Contact with live components can lead to
an electric shock. There is a risk of injuries or danger to life. Do not touch any componentsthat are under voltage.'

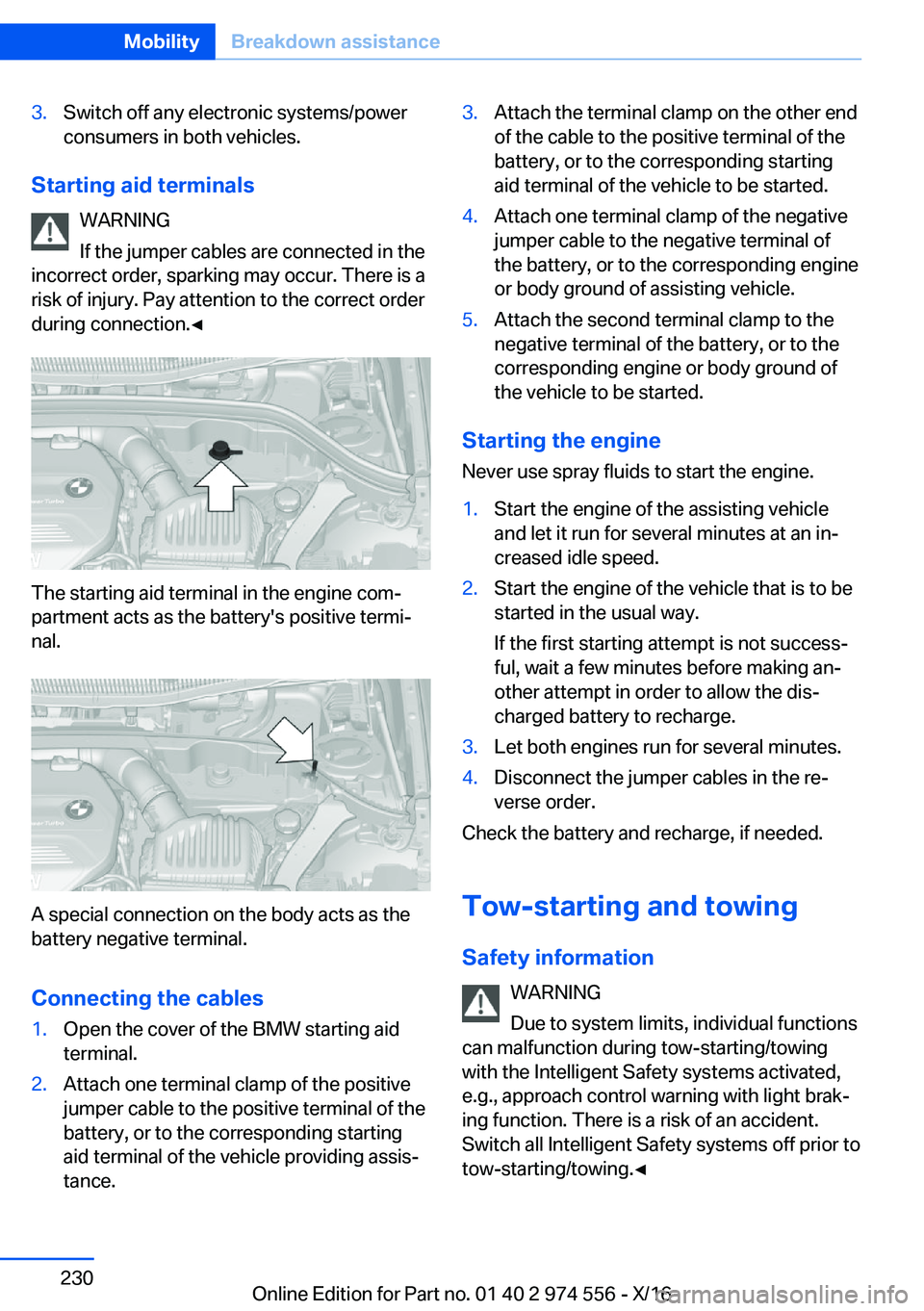

3.Switch off any electronic systems/powerconsumers in both vehicles.
Starting
aid
terminals
WARNING
If the jumper cables are connected in the
incorrect order, sparking may occur. There is a
risk of injury. Pay attention to the correct order during connection.'

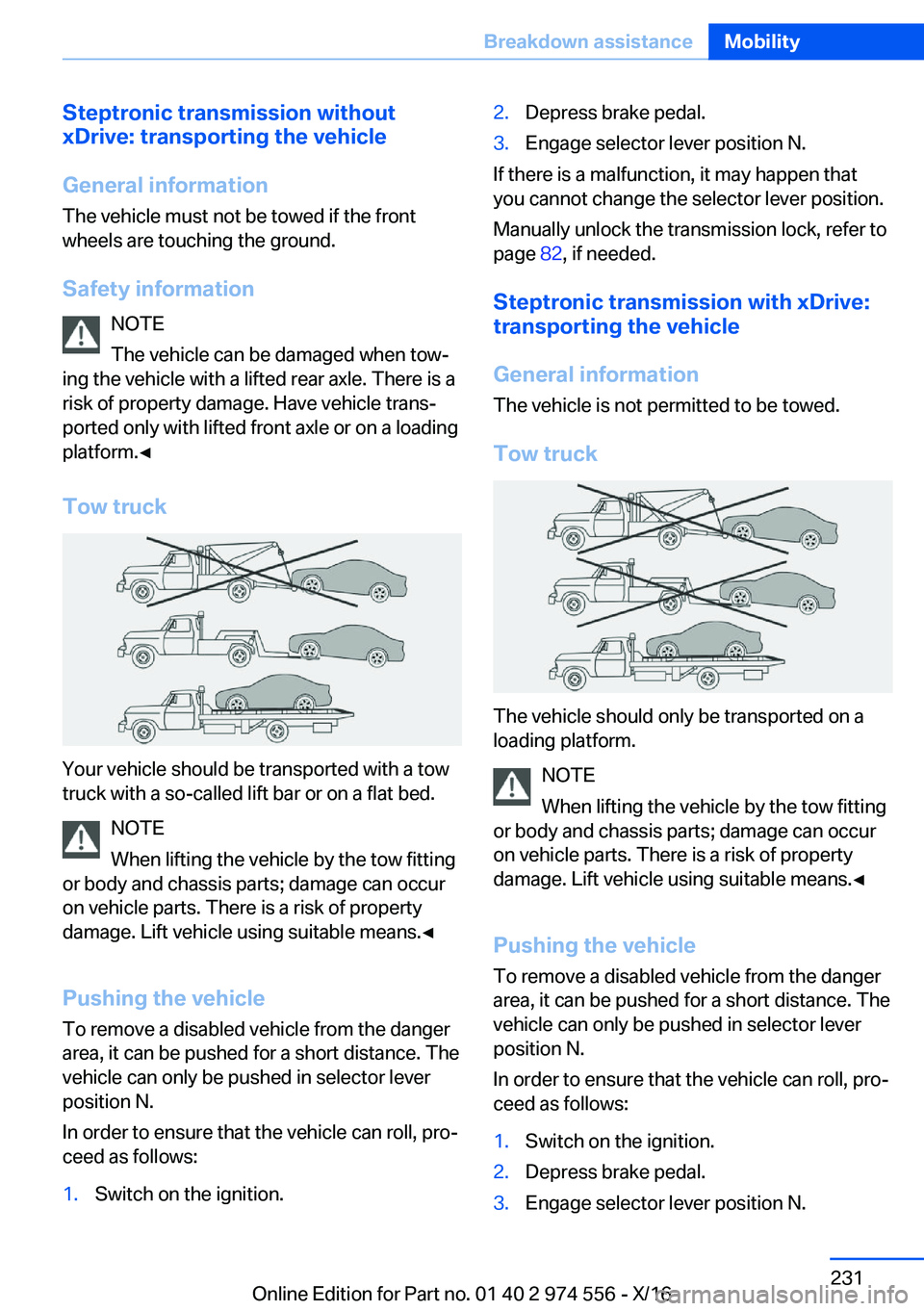

Steptronic
transmission
without
xDrive:
transporting
the
vehicle
General
information
The vehicle must not be towed if the front wheels are touching the ground.
Safety
information NOTE
The vehicle can be damaged when towj
ing the vehicle with a lifted rear axle. There is a risk of property damage. Have vehicle transjported only with lifted front axle or on a loading
platform.'

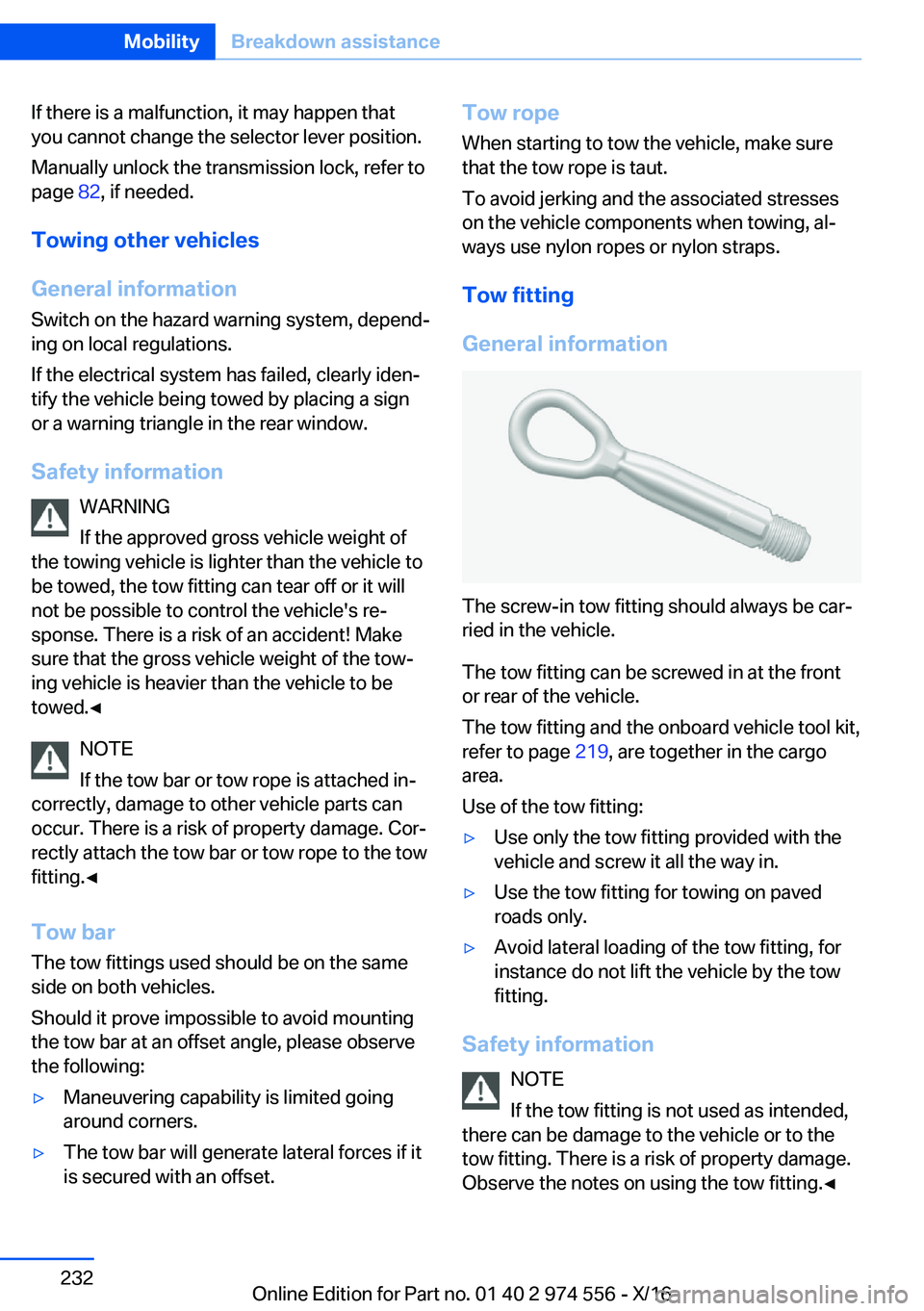

If there is a malfunction, it may happen thatyou cannot change the selector lever position.
Manually unlock the transmission lock, refer to
page 82, if needed.
Towing
other
vehicles
General
information
Switch on the hazard warning system, dependj ing on local regulations.
If the electrical system has failed, clearly idenj
tify the vehicle being towed by placing a sign or a warning triangle in the rear window.
Safety
information WARNING
If the approved gross vehicle weight of
the towing vehicle is lighter than the vehicle to be towed, the tow fitting can tear off or it willnot be possible to control the vehicle's rej
sponse. There is a risk of an accident! Make
sure that the gross vehicle weight of the towj
ing vehicle is heavier than the vehicle to be towed.'
