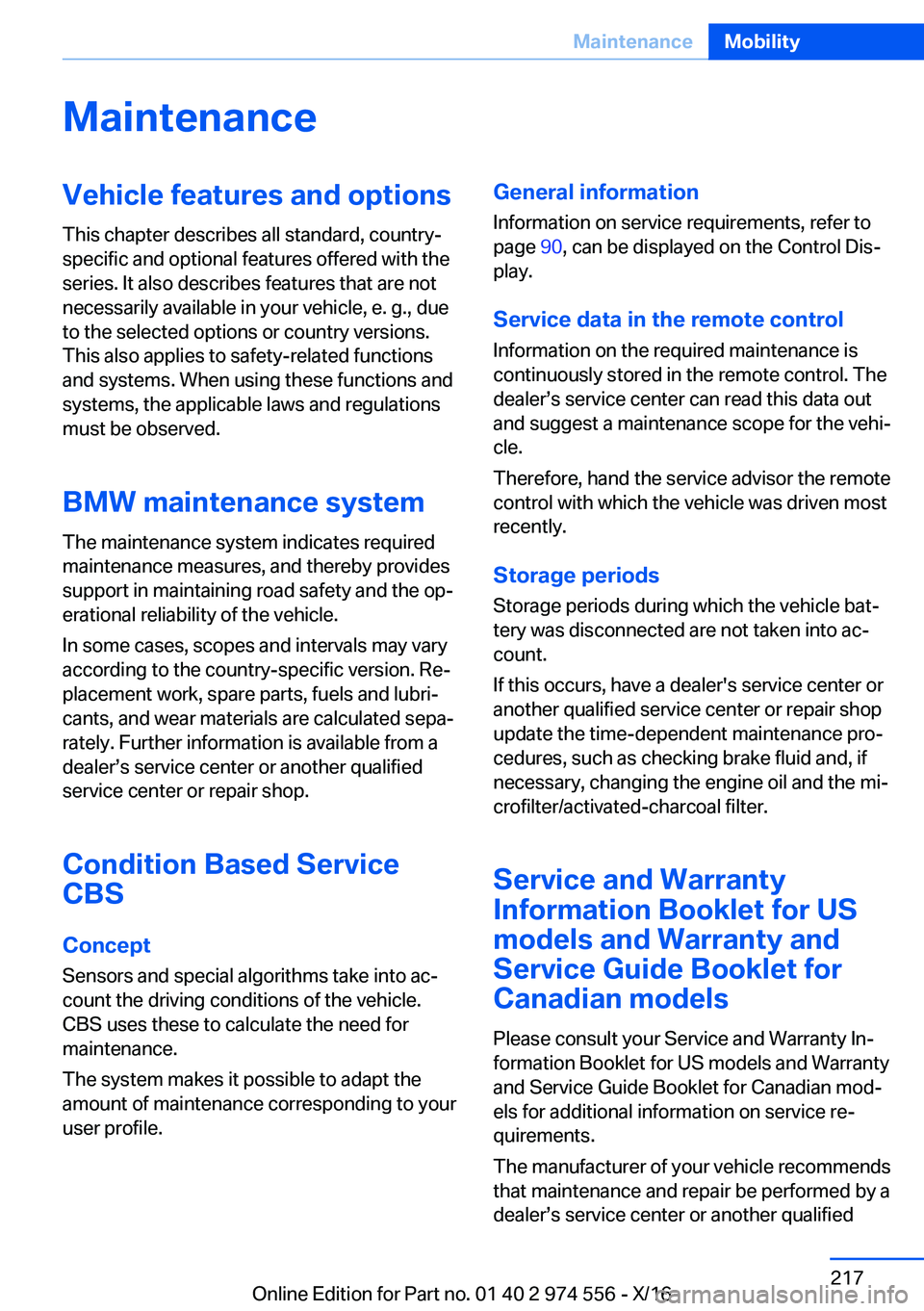

2017 BMW X1 Owners Manual

MaintenanceVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
BMW
maintenance
system The maintenance system indicates requiredmaintenance measures, and thereby provides
support in maintaining road safety and the opj erational reliability of the vehicle.
In some cases, scopes and intervals may vary
according to the country-specific version. Rej
placement work, spare parts, fuels and lubrij
cants, and wear materials are calculated sepaj rately. Further information is available from a
dealerss service center or another qualified service center or repair shop.
Condition
Based
Service
CBS
Concept
Sensors and special algorithms take into acj
count the driving conditions of the vehicle.
CBS uses these to calculate the need for
maintenance.
The system makes it possible to adapt the amount of maintenance corresponding to your user profile.General
information
Information on service requirements, refer to page 90, can be displayed on the Control Disj
play.
Service
data
in
the
remote
control Information on the required maintenance iscontinuously stored in the remote control. Thedealerss service center can read this data outand suggest a maintenance scope for the vehijcle.
Therefore, hand the service advisor the remote
control with which the vehicle was driven most
recently.
Storage
periods Storage periods during which the vehicle batj
tery was disconnected are not taken into acj count.
If this occurs, have a dealer's service center or another qualified service center or repair shop update the time-dependent maintenance projcedures, such as checking brake fluid and, if
necessary, changing the engine oil and the mij
crofilter/activated-charcoal filter.
Service
and
Warranty
Information
Booklet
for
US
models
and
Warranty
and
Service
Guide
Booklet
for
Canadian
models
Please consult your Service and Warranty Inj
formation Booklet for US models and Warranty
and Service Guide Booklet for Canadian modj els for additional information on service rejquirements.
The manufacturer of your vehicle recommends that maintenance and repair be performed by a
dealerss service center or another qualifiedSeite 217MaintenanceMobility217
Online Edition for Part no. 01 40 2 974 556 - X/16

service center or repair shop. Records of reguj
lar maintenance and repair work should be rej
tained.

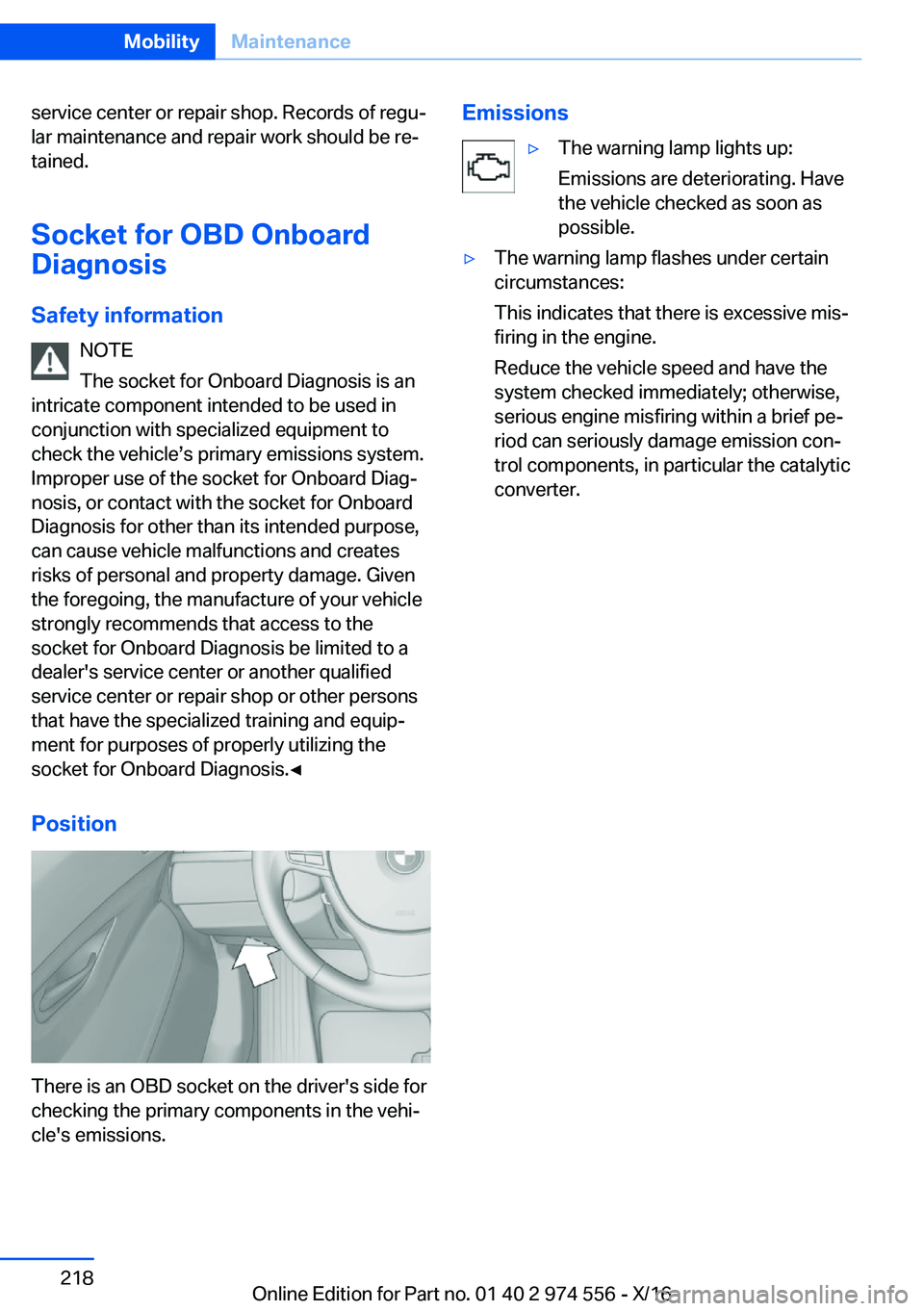

Socket
for
OBD
Onboard
Diagnosis
Safety
information NOTE
The socket for Onboard Diagnosis is an
intricate component intended to be used in
conjunction with specialized equipment to check the vehicless primary emissions system.Improper use of the socket for Onboard Diagjnosis, or contact with the socket for Onboard
Diagnosis for other than its intended purpose,
can cause vehicle malfunctions and creates risks of personal and property damage. Given
the foregoing, the manufacture of your vehicle
strongly recommends that access to the socket for Onboard Diagnosis be limited to a
dealer's service center or another qualified service center or repair shop or other persons
that have the specialized training and equipj
ment for purposes of properly utilizing the
socket for Onboard Diagnosis.'

Replacing
componentsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Onboard
vehicle
tool
kit
The onboard vehicle tool kit is located under
the cargo floor panel.
Wiper
blade
replacement Safety
information NOTE
If the wiper arm falls onto the windshield
without the wiper blades installed, the windj shield can be damaged. There is a risk of propjerty damage. Secure the wiper arm when rejplacing the wiper blades and do not fold downthe wipers without the wiper blades installed.'

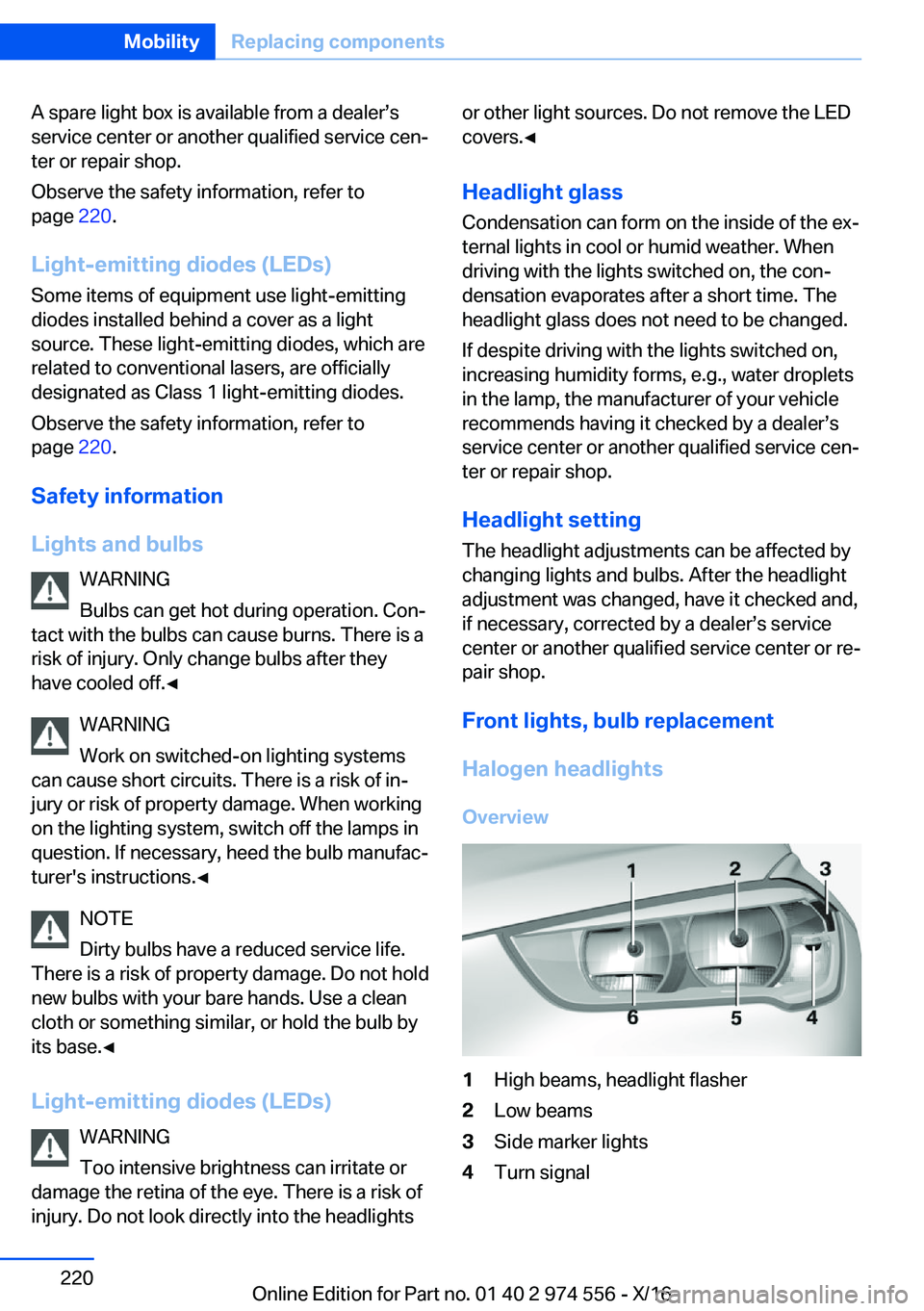

A spare light box is available from a dealerss
service center or another qualified service cenj
ter or repair shop.
Observe the safety information, refer to page 220.
Light-emitting
diodes
(LEDs) Some items of equipment use light-emitting
diodes installed behind a cover as a light
source. These light-emitting diodes, which are
related to conventional lasers, are officially
designated as Class 1 light-emitting diodes.
Observe the safety information, refer to
page 220.
Safety
information
Lights
and
bulbs WARNING
Bulbs can get hot during operation. Conj
tact with the bulbs can cause burns. There is a
risk of injury. Only change bulbs after they
have cooled off.'

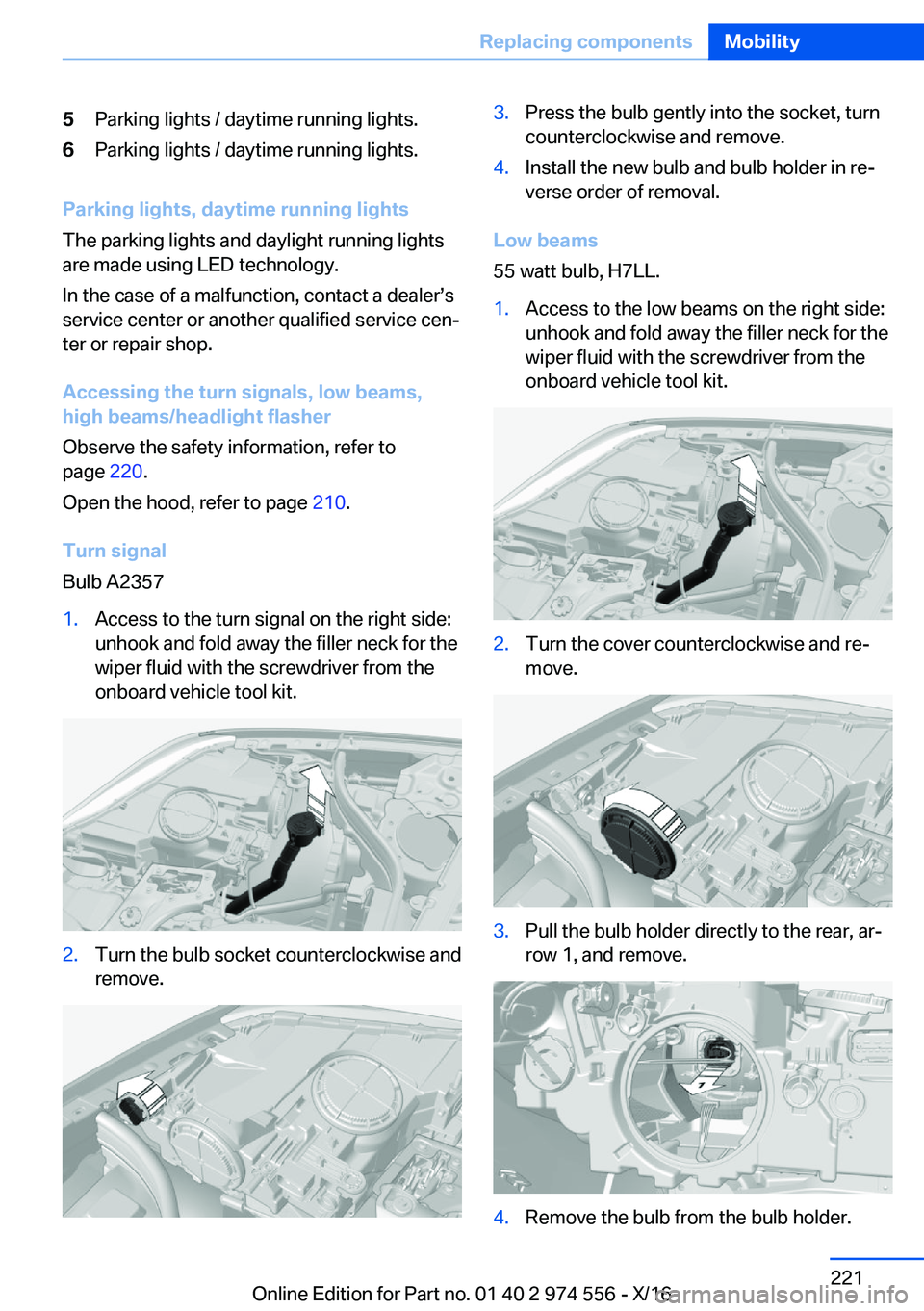

5Parking lights / daytime running lights.6Parking lights / daytime running lights.
Parking
lights,
daytime
running
lights
The parking lights and daylight running lights are made using LED technology.
In the case of a malfunction, contact a dealerss
service center or another qualified service cenj
ter or repair shop.
Accessing
the
turn
signals,
low
beams,
high
beams/headlight
flasher
Observe the safety information, refer to page 220.
Open the hood, refer to page 210.
Turn
signal
Bulb A2357
1.Access to the turn signal on the right side: unhook and fold away the filler neck for the
wiper fluid with the screwdriver from the
onboard vehicle tool kit.2.Turn the bulb socket counterclockwise and remove.3.Press the bulb gently into the socket, turn
counterclockwise and remove.4.Install the new bulb and bulb holder in rej verse order of removal.
Low
beams
55 watt bulb, H7LL.
1.Access to the low beams on the right side:
unhook and fold away the filler neck for the wiper fluid with the screwdriver from the
onboard vehicle tool kit.2.Turn the cover counterclockwise and rej move.3.Pull the bulb holder directly to the rear, arjrow 1, and remove.4.Remove the bulb from the bulb holder.Seite 221Replacing
componentsMobility221
Online Edition for Part no. 01 40 2 974 556 - X/16

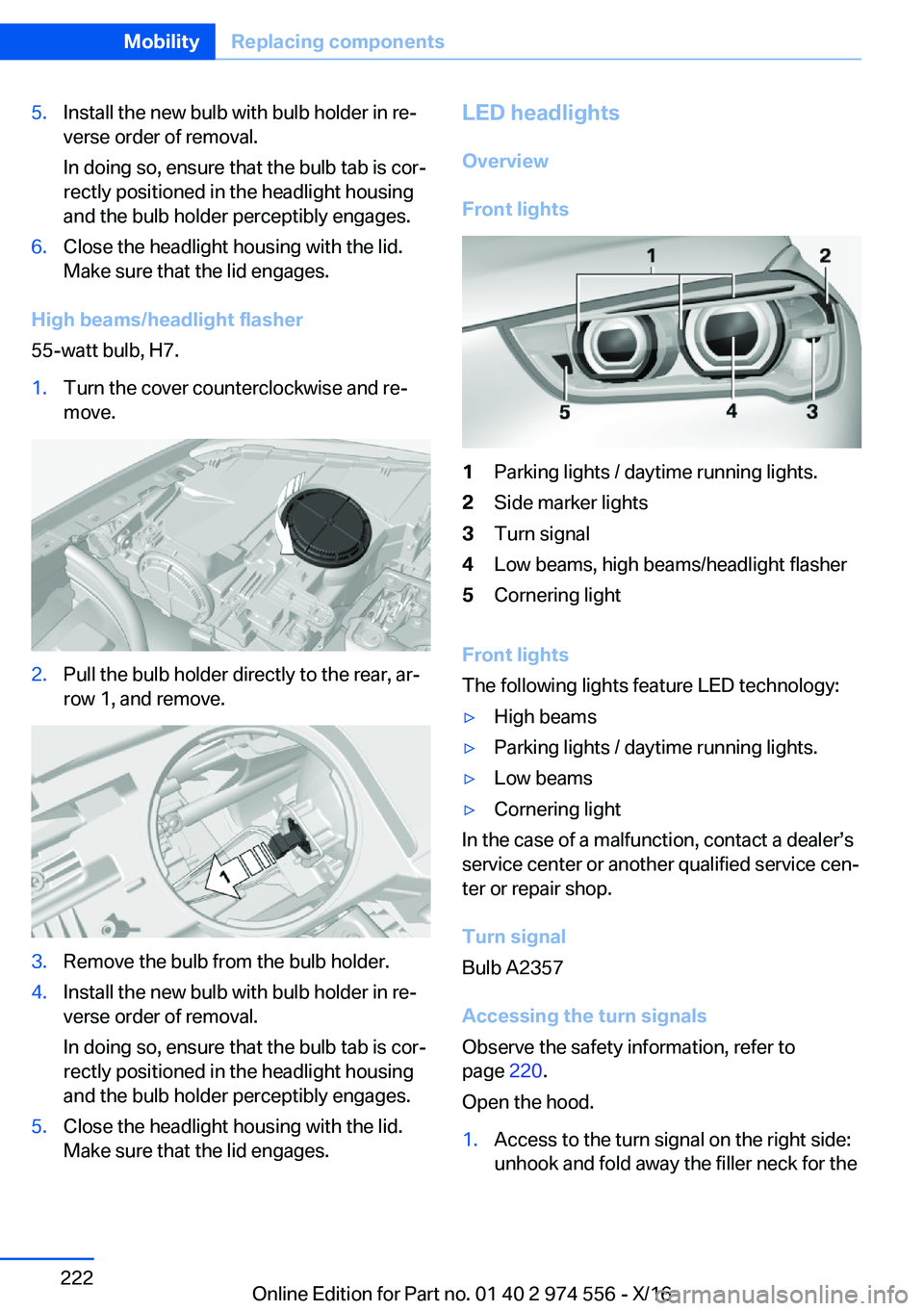

5.Install the new bulb with bulb holder in rejverse order of removal.
In doing so, ensure that the bulb tab is corj
rectly positioned in the headlight housing
and the bulb holder perceptibly engages.6.Close the headlight housing with the lid.
Make sure that the lid engages.
High
beams/headlight
flasher
55-watt bulb, H7.
1.Turn the cover counterclockwise and rej move.2.Pull the bulb holder directly to the rear, arjrow 1, and remove.3.Remove the bulb from the bulb holder.4.Install the new bulb with bulb holder in rejverse order of removal.
In doing so, ensure that the bulb tab is corj
rectly positioned in the headlight housing
and the bulb holder perceptibly engages.5.Close the headlight housing with the lid.
Make sure that the lid engages.LED
headlights
Overview
Front
lights1Parking lights / daytime running lights.2Side marker lights3Turn signal4Low beams, high beams/headlight flasher5Cornering light
Front
lights
The following lights feature LED technology:
'yHigh beams'yParking lights / daytime running lights.'yLow beams'yCornering light
In the case of a malfunction, contact a dealerss service center or another qualified service cenj
ter or repair shop.
Turn
signal
Bulb A2357
Accessing
the
turn
signals
Observe the safety information, refer to page 220.
Open the hood.
1.Access to the turn signal on the right side: unhook and fold away the filler neck for theSeite 222MobilityReplacing
components222
Online Edition for Part no. 01 40 2 974 556 - X/16

wiper fluid with the screwdriver from theonboard vehicle tool kit.2.Turn the bulb socket counterclockwise andremove.3.Press the bulb gently into the socket, turn
counterclockwise and remove.4.Install the new bulb and bulb holder in rej verse order of removal.
Halogen
front
fog
lights
Observe the safety information, refer to
page 220.
35-watt bulb, H8.1.Insert the screwdriver from the onboard
vehicle tool kit, with the flat side on the clip,
arrow 1.2.Turn the screwdriver by 90p, arrow 2.3.Remove the front fog lamp toward the front.4.Detach the connector.5.Turn the bulb bracket and remove it.6.Remove the bulb and replace it.7.Proceed in reverse order to insert the frontfog lamp. Note the guide rails in doing so.Seite 223Replacing
componentsMobility223
Online Edition for Part no. 01 40 2 974 556 - X/16

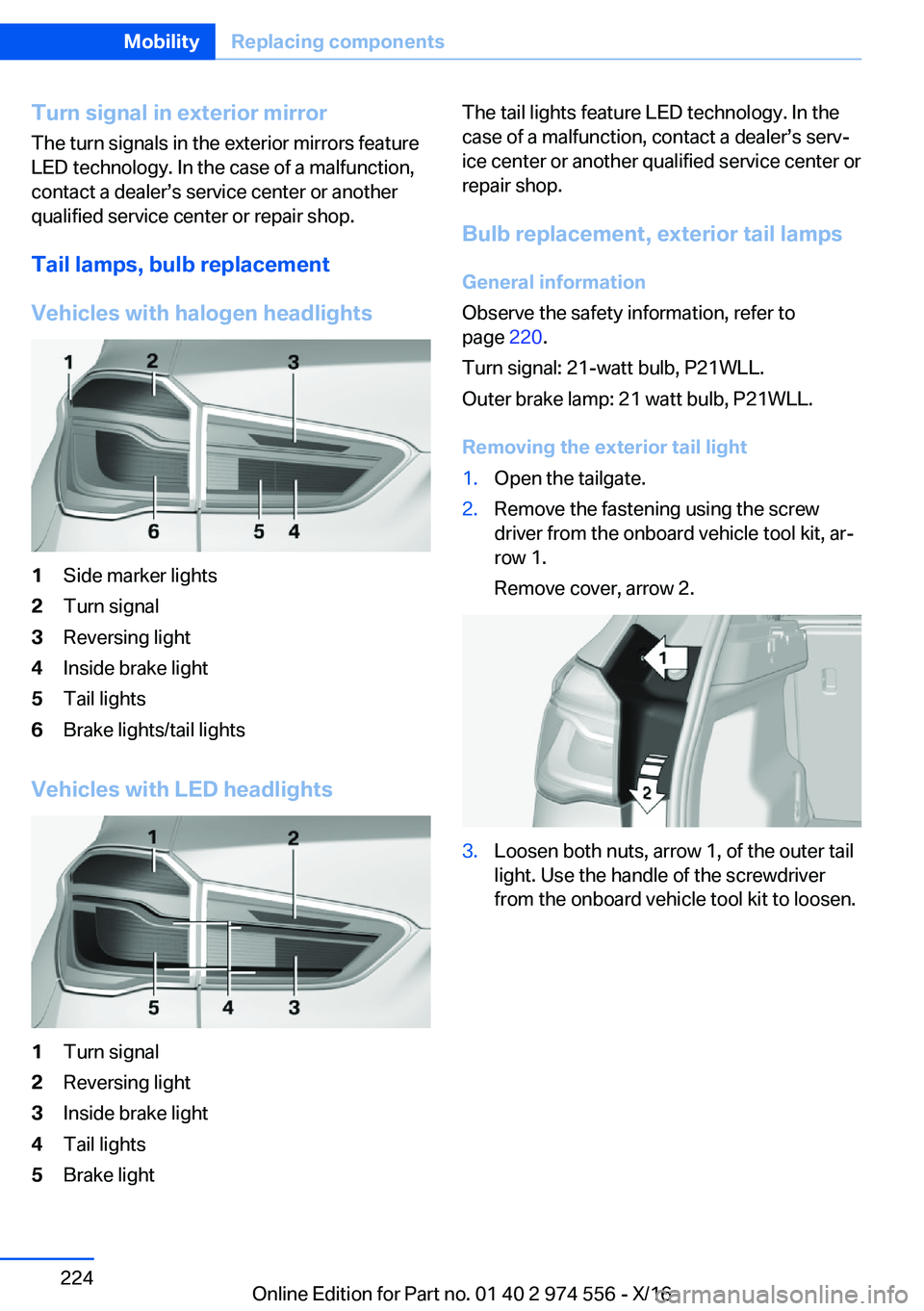

Turn
signal
in
exterior
mirrorThe turn signals in the exterior mirrors feature
LED technology. In the case of a malfunction, contact a dealerss service center or another
qualified service center or repair shop.
Tail
lamps,
bulb
replacement
Vehicles
with
halogen
headlights1Side marker lights2Turn signal3Reversing light4Inside brake light5Tail lights6Brake lights/tail lights
Vehicles
with
LED
headlights
1Turn signal2Reversing light3Inside brake light4Tail lights5Brake lightThe tail lights feature LED technology. In the
case of a malfunction, contact a dealerss servj ice center or another qualified service center or
repair shop.
Bulb
replacement,
exterior
tail
lampsGeneral
information
Observe the safety information, refer to page 220.
Turn signal: 21-watt bulb, P21WLL.
Outer brake lamp: 21 watt bulb, P21WLL.
Removing
the
exterior
tail
light1.Open the tailgate.2.Remove the fastening using the screw
driver from the onboard vehicle tool kit, arj row 1.
Remove cover, arrow 2.3.Loosen both nuts, arrow 1, of the outer tail light. Use the handle of the screwdriver
from the onboard vehicle tool kit to loosen.Seite 224MobilityReplacing
components224
Online Edition for Part no. 01 40 2 974 556 - X/16
