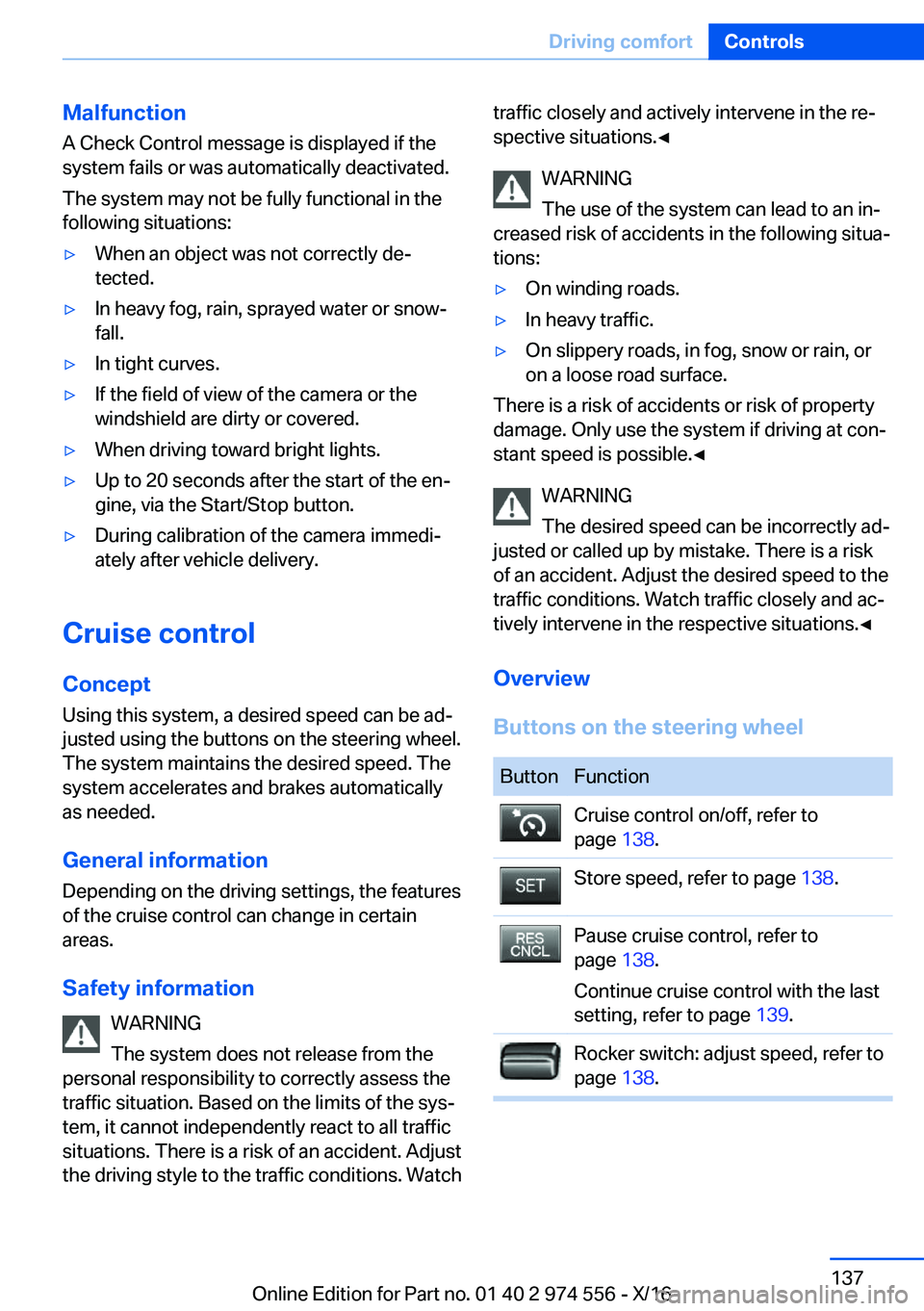

Malfunction
A Check Control message is displayed if the system fails or was automatically deactivated.
The system may not be fully functional in thefollowing situations:'yWhen an object was not correctly dejtected.'yIn heavy fog, rain, sprayed water or snowj
fall.'yIn tight curves.'yIf the field of view of the camera or the
windshield are dirty or covered.'yWhen driving toward bright lights.'yUp to 20 seconds after the start of the enj gine, via the Start/Stop button.'yDuring calibration of the camera immedijately after vehicle delivery.
Cruise
control
Concept
Using this system, a desired speed can be adj justed using the buttons on the steering wheel.
The system maintains the desired speed. The system accelerates and brakes automaticallyas needed.
General
information
Depending on the driving settings, the features
of the cruise control can change in certain areas.
Safety
information WARNING
The system does not release from the
personal responsibility to correctly assess the
traffic situation. Based on the limits of the sysj
tem, it cannot independently react to all traffic situations. There is a risk of an accident. Adjust
the driving style to the traffic conditions. Watch
traffic closely and actively intervene in the rej
spective situations.'

Switching
on/off
and
interruptingcruise
control
Switching
on Press button on the steering wheel.
The marking in the speedometer is set to the
current speed.
Cruise control is active and maintains the set speed.
DSC will be switched on, if needed.
Switching
off Press button on the steering wheel.
The displays go out. The stored desired speed
is deleted.
Interrupting
manually When active, press the button on the
steering wheel.
Interrupting
automatically The system is automatically interrupted in thefollowing situations:'yWhen the driver applies the brakes.'yIf the clutch pedal is depressed for a few
seconds or released while a gear is not enj gaged.'yIf the gear engaged is too high for the curj
rent speed.'yIf selector lever position N is set.'yWhen DTC is activated or DSC is deactij
vated.'yWhen DSC is actively controlling stability.Setting
the
speed
Maintaining/storing
the
speed
Press the rocker switch while the system is inj terrupted.
When the system is switched on, the current
speed is maintained and stored as the desired
speed.
The stored speed is displayed in the speedomj
eter and briefly in the instrument cluster, refer
to page 139.
DSC will be switched on, if needed.
The speed can also be stored by pressing a button.
Press button.
Changing
the
speed
Press the rocker switch up or down repeatedly
until the desired speed is set.
If active, the displayed speed is stored and the vehicle reaches the stored speed when the
road is clear.
Seite 138ControlsDriving
comfort138
Online Edition for Part no. 01 40 2 974 556 - X/16

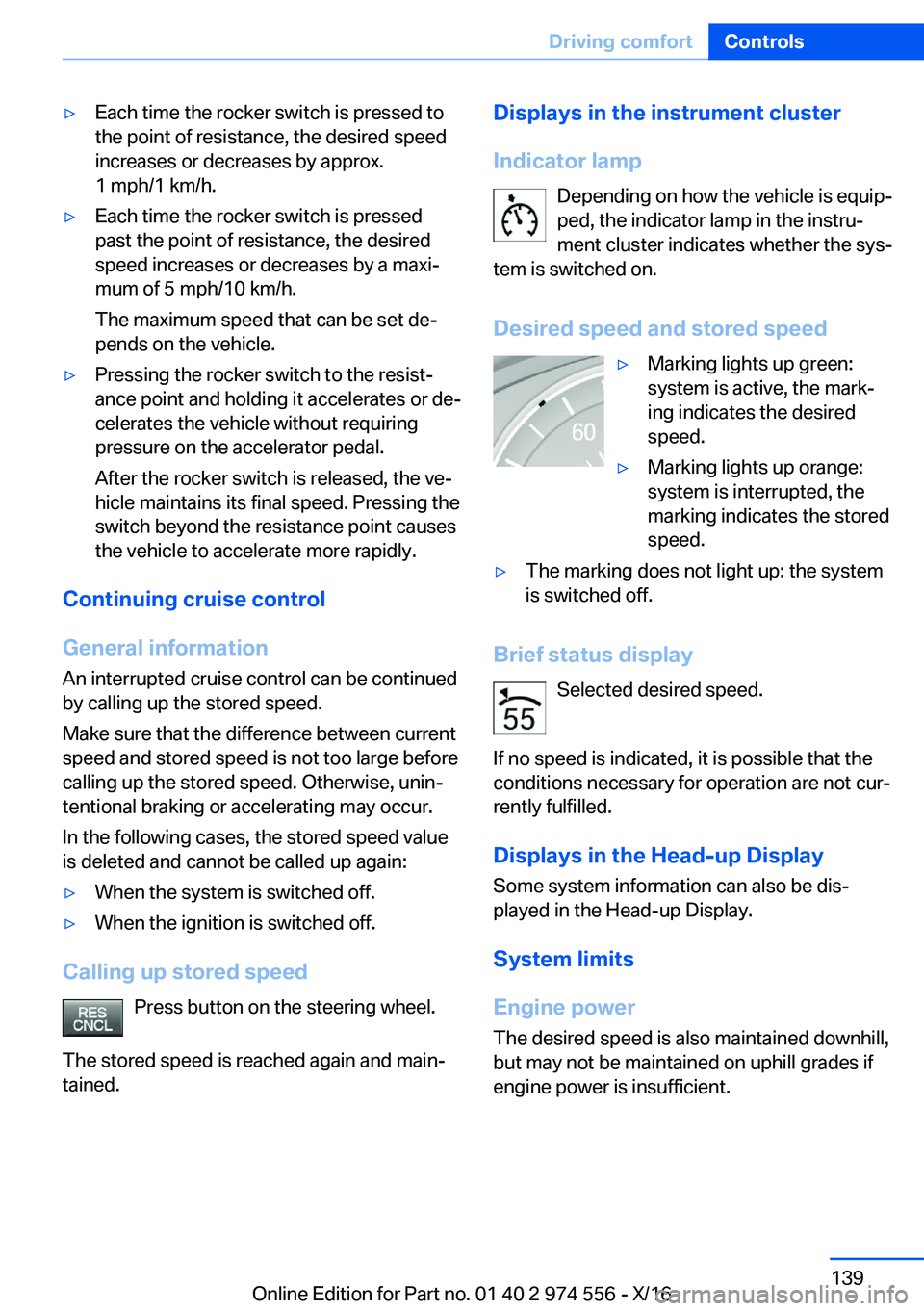

'yEach time the rocker switch is pressed to
the point of resistance, the desired speed increases or decreases by approx.
1 mph/1 km/h.'yEach time the rocker switch is pressed
past the point of resistance, the desired
speed increases or decreases by a maxij
mum of 5 mph/10 km/h.
The maximum speed that can be set dej
pends on the vehicle.'yPressing the rocker switch to the resistj
ance point and holding it accelerates or dej
celerates the vehicle without requiring
pressure on the accelerator pedal.
After the rocker switch is released, the vej
hicle maintains its final speed. Pressing the
switch beyond the resistance point causes
the vehicle to accelerate more rapidly.
Continuing
cruise
control
General
information
An interrupted cruise control can be continued
by calling up the stored speed.
Make sure that the difference between current speed and stored speed is not too large before
calling up the stored speed. Otherwise, uninj
tentional braking or accelerating may occur.
In the following cases, the stored speed value
is deleted and cannot be called up again:
'yWhen the system is switched off.'yWhen the ignition is switched off.
Calling
up
stored
speed
Press button on the steering wheel.
The stored speed is reached again and mainj tained.
Displays
in
the
instrument
cluster
Indicator
lamp Depending on how the vehicle is equipj
ped, the indicator lamp in the instruj
ment cluster indicates whether the sysj
tem is switched on.
Desired
speed
and
stored
speed'yMarking lights up green:
system is active, the markj
ing indicates the desired
speed.'yMarking lights up orange:
system is interrupted, the
marking indicates the stored
speed.'yThe marking does not light up: the system is switched off.
Brief
status
display
Selected desired speed.
If no speed is indicated, it is possible that the
conditions necessary for operation are not curj rently fulfilled.
Displays
in
the
Head-up
Display Some system information can also be disj
played in the Head-up Display.
System
limits
Engine
power The desired speed is also maintained downhill,but may not be maintained on uphill grades if
engine power is insufficient.
Seite 139Driving
comfortControls139
Online Edition for Part no. 01 40 2 974 556 - X/16

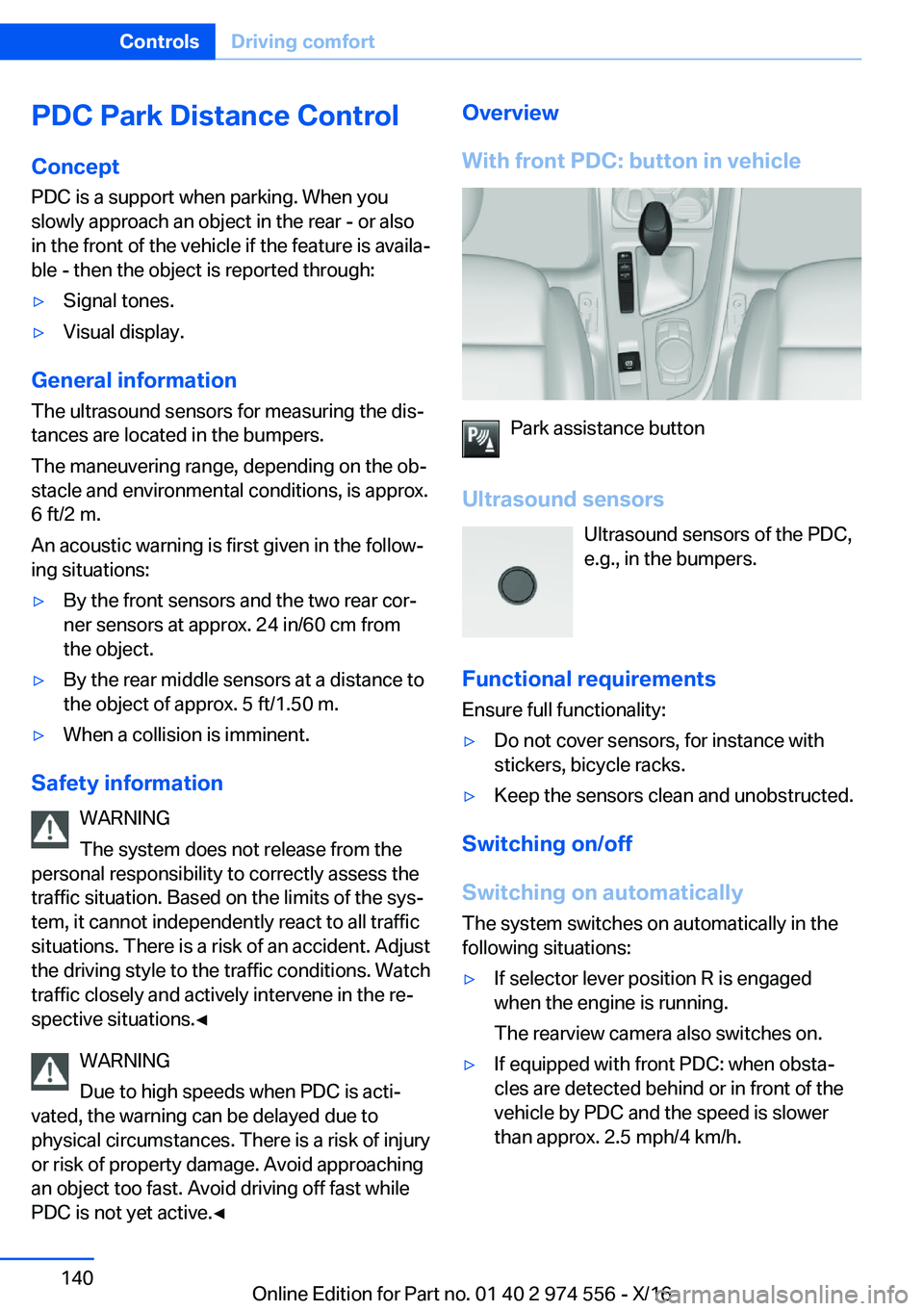

PDC
Park
Distance
ControlConcept
PDC is a support when parking. When you
slowly approach an object in the rear - or also
in the front of the vehicle if the feature is availaj ble - then the object is reported through:'ySignal tones.'yVisual display.
General
information
The ultrasound sensors for measuring the disj
tances are located in the bumpers.
The maneuvering range, depending on the obj
stacle and environmental conditions, is approx.
6 ft/2 m.
An acoustic warning is first given in the followj ing situations:
'yBy the front sensors and the two rear corj
ner sensors at approx. 24 in/60 cm from
the object.'yBy the rear middle sensors at a distance to
the object of approx. 5 ft/1.50 m.'yWhen a collision is imminent.
Safety
information
WARNING
The system does not release from the
personal responsibility to correctly assess the
traffic situation. Based on the limits of the sysj tem, it cannot independently react to all trafficsituations. There is a risk of an accident. Adjust
the driving style to the traffic conditions. Watch
traffic closely and actively intervene in the rej
spective situations.'

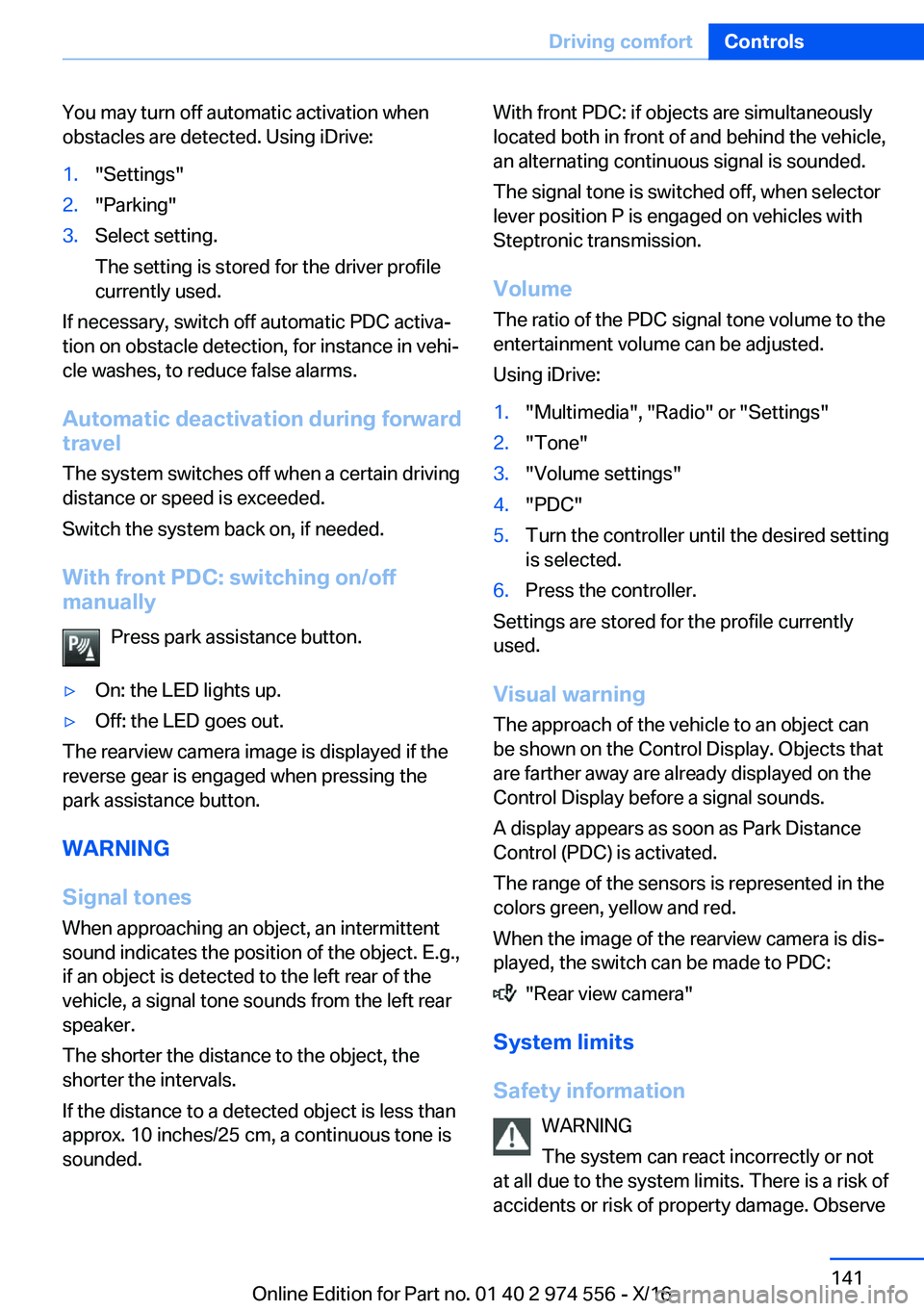

You may turn off automatic activation when
obstacles are detected. Using iDrive:1."Settings"2."Parking"3.Select setting.
The setting is stored for the driver profile
currently used.
If necessary, switch off automatic PDC activaj tion on obstacle detection, for instance in vehij
cle washes, to reduce false alarms.
Automatic
deactivation
during
forward
travel
The system switches off when a certain driving
distance or speed is exceeded.
Switch the system back on, if needed.
With
front
PDC:
switching
on/off
manually
Press park assistance button.
'yOn: the LED lights up.'yOff: the LED goes out.
The rearview camera image is displayed if the
reverse gear is engaged when pressing the
park assistance button.
WARNING
Signal
tones When approaching an object, an intermittentsound indicates the position of the object. E.g.,
if an object is detected to the left rear of the
vehicle, a signal tone sounds from the left rear
speaker.
The shorter the distance to the object, the
shorter the intervals.
If the distance to a detected object is less than
approx. 10 inches/25 cm, a continuous tone is sounded.
With front PDC: if objects are simultaneously
located both in front of and behind the vehicle, an alternating continuous signal is sounded.
The signal tone is switched off, when selector
lever position P is engaged on vehicles with Steptronic transmission.
Volume
The ratio of the PDC signal tone volume to the entertainment volume can be adjusted.
Using iDrive:1."Multimedia", "Radio" or "Settings"2."Tone"3."Volume settings"4."PDC"5.Turn the controller until the desired setting
is selected.6.Press the controller.
Settings are stored for the profile currently used.
Visual
warning
The approach of the vehicle to an object can
be shown on the Control Display. Objects that
are farther away are already displayed on the
Control Display before a signal sounds.
A display appears as soon as Park Distance
Control (PDC) is activated.
The range of the sensors is represented in the
colors green, yellow and red.
When the image of the rearview camera is disj played, the switch can be made to PDC:
"Rear view camera"
System
limits
Safety
information WARNING
The system can react incorrectly or not
at all due to the system limits. There is a risk of
accidents or risk of property damage. Observe
Seite 141Driving
comfortControls141
Online Edition for Part no. 01 40 2 974 556 - X/16

the information regarding the system limits
and actively intervene, if needed.'

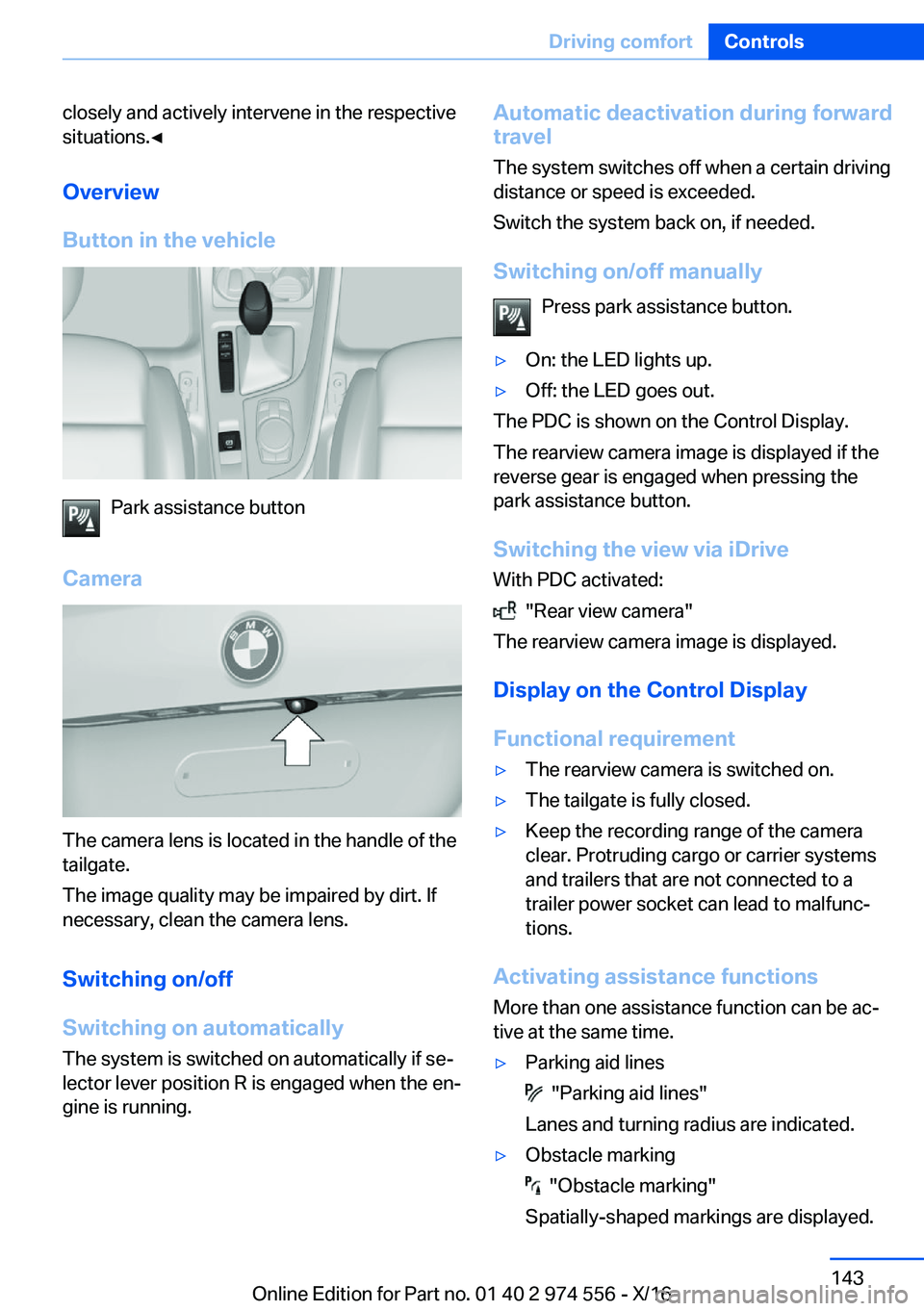

closely and actively intervene in the respective
situations.'

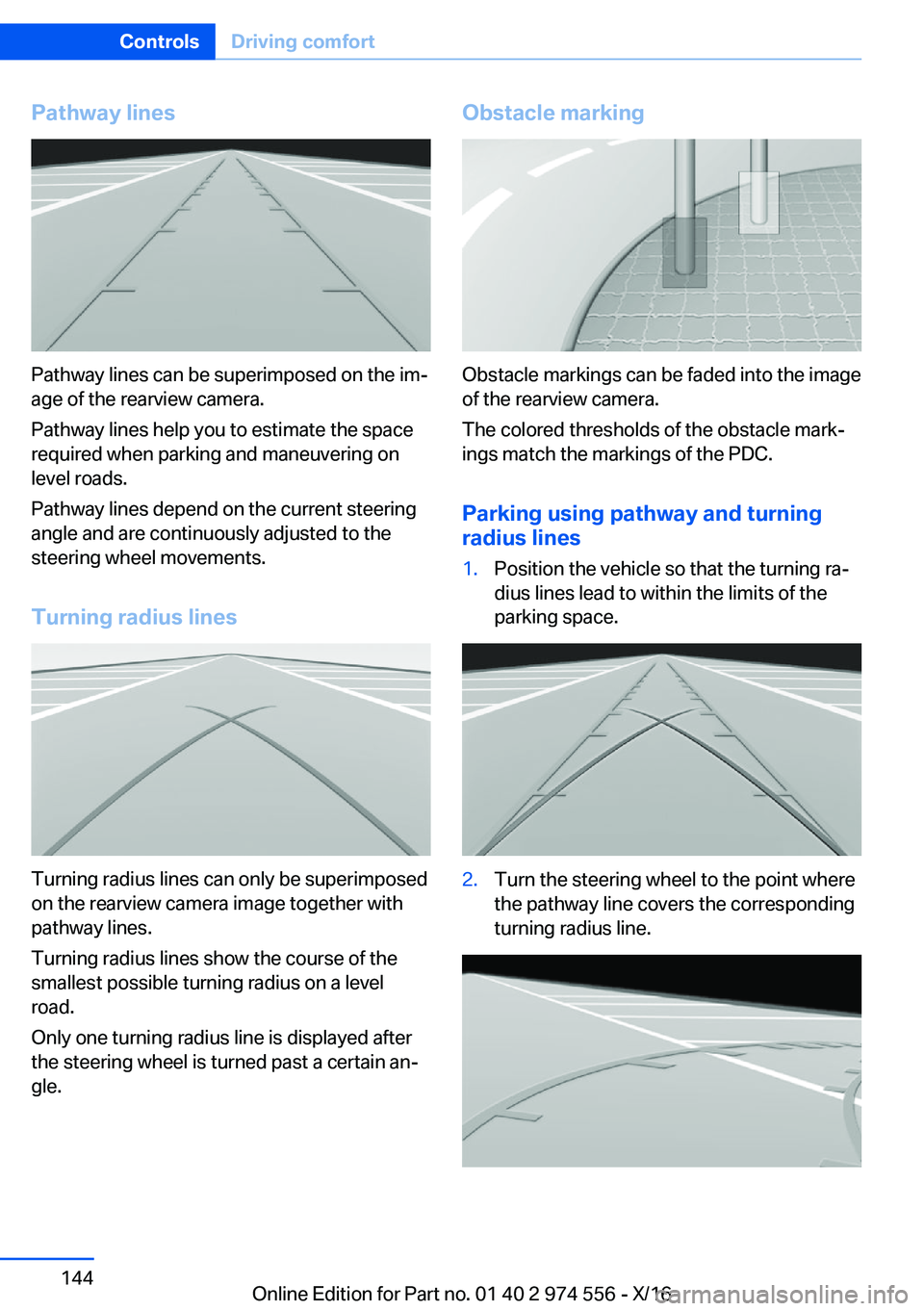

Pathway
lines
Pathway lines can be superimposed on the imj
age of the rearview camera.
Pathway lines help you to estimate the space
required when parking and maneuvering on level roads.
Pathway lines depend on the current steering angle and are continuously adjusted to the
steering wheel movements.
Turning
radius
lines
Turning radius lines can only be superimposed
on the rearview camera image together with pathway lines.
Turning radius lines show the course of the
smallest possible turning radius on a level road.
Only one turning radius line is displayed after
the steering wheel is turned past a certain anj
gle.
Obstacle
marking
Obstacle markings can be faded into the image
of the rearview camera.
The colored thresholds of the obstacle markj
ings match the markings of the PDC.
Parking
using
pathway
and
turning
radius
lines
1.Position the vehicle so that the turning raj dius lines lead to within the limits of the
parking space.2.Turn the steering wheel to the point where
the pathway line covers the corresponding
turning radius line.Seite 144ControlsDriving
