2017 BMW 6 SERIES COUPE Owners Manual

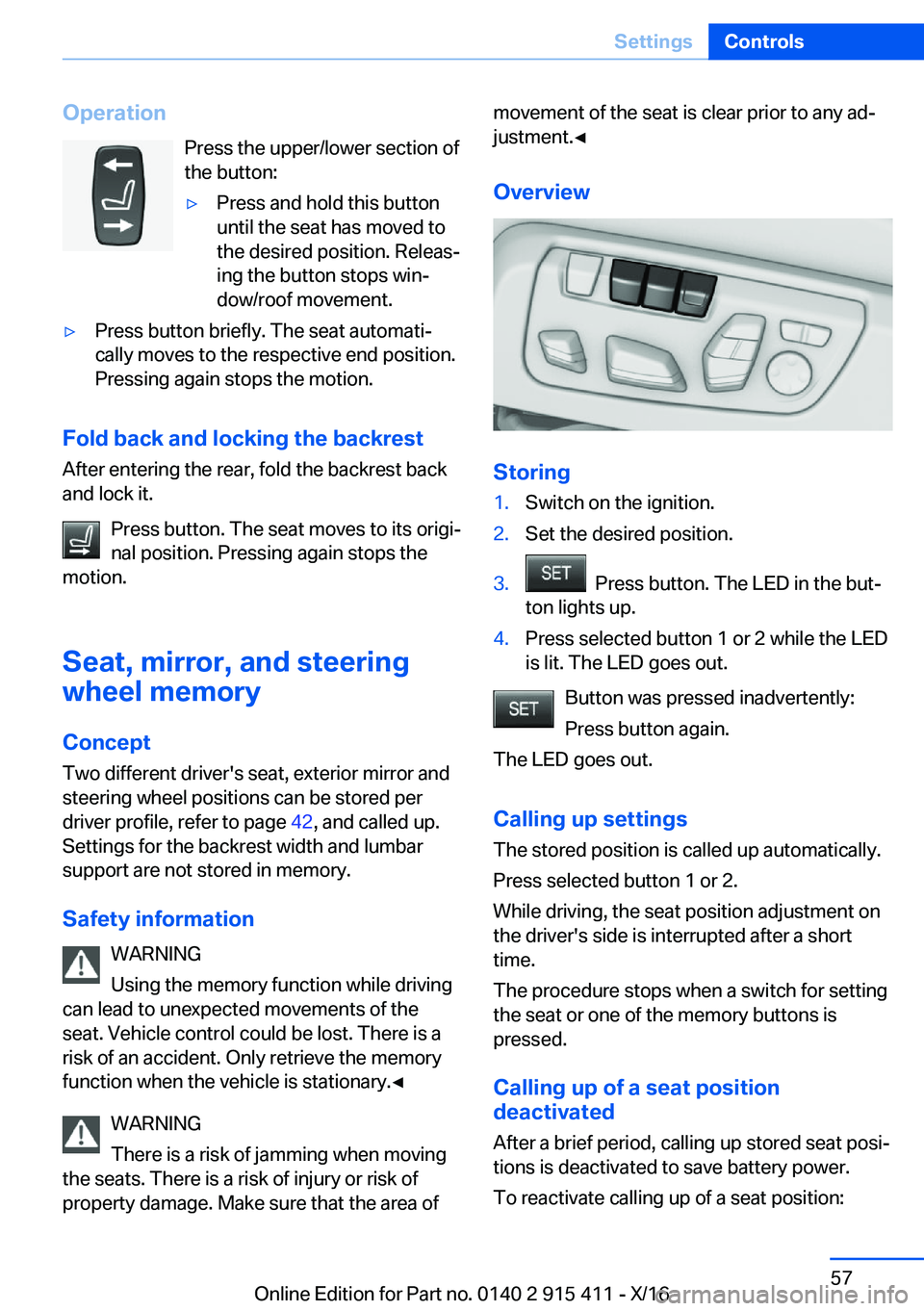

OperationPress the upper/lower section of
the button:'yPress and hold this button
until the seat has moved to
the desired position. Releasj
ing the button stops winj
dow/roof movement.'yPress button briefly. The seat automatij cally moves to the respective end position.Pressing again stops the motion.
Fold
back
and
locking
the
backrest
After entering the rear, fold the backrest back
and lock it.
Press button. The seat moves to its origij
nal position. Pressing again stops the
motion.
Seat,
mirror,
and
steering
wheel
memory
Concept
Two different driver's seat, exterior mirror and steering wheel positions can be stored per driver profile, refer to page 42, and called up.
Settings for the backrest width and lumbar
support are not stored in memory.
Safety
information WARNING
Using the memory function while driving
can lead to unexpected movements of the
seat. Vehicle control could be lost. There is a
risk of an accident. Only retrieve the memory function when the vehicle is stationary.'

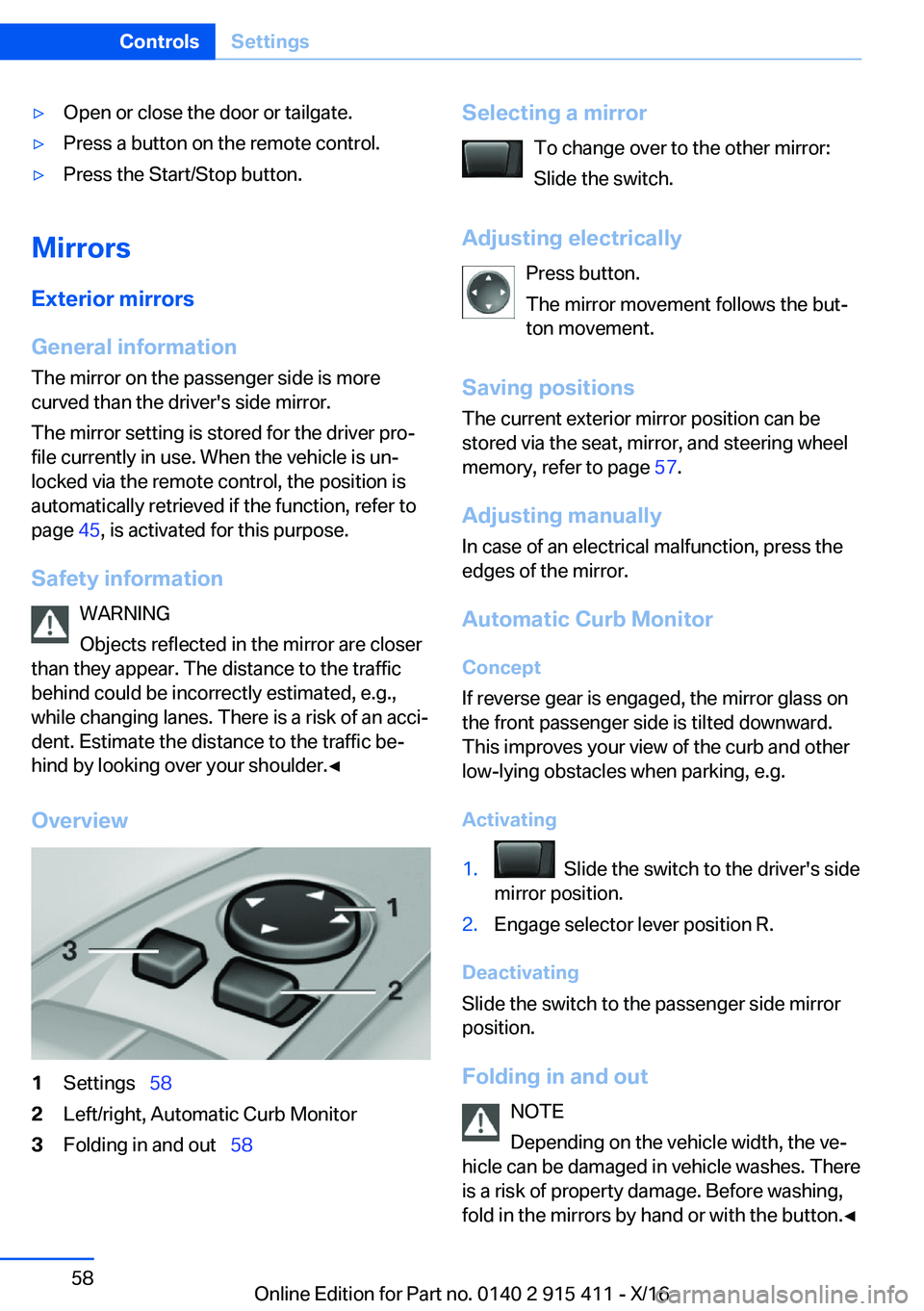

'yOpen or close the door or tailgate.'yPress a button on the remote control.'yPress the Start/Stop button.
Mirrors
Exterior
mirrors
General
information The mirror on the passenger side is more
curved than the driver's side mirror.
The mirror setting is stored for the driver proj
file currently in use. When the vehicle is unj
locked via the remote control, the position is
automatically retrieved if the function, refer to page 45, is activated for this purpose.
Safety
information WARNING
Objects reflected in the mirror are closer
than they appear. The distance to the traffic
behind could be incorrectly estimated, e.g.,
while changing lanes. There is a risk of an accij dent. Estimate the distance to the traffic bej
hind by looking over your shoulder.'

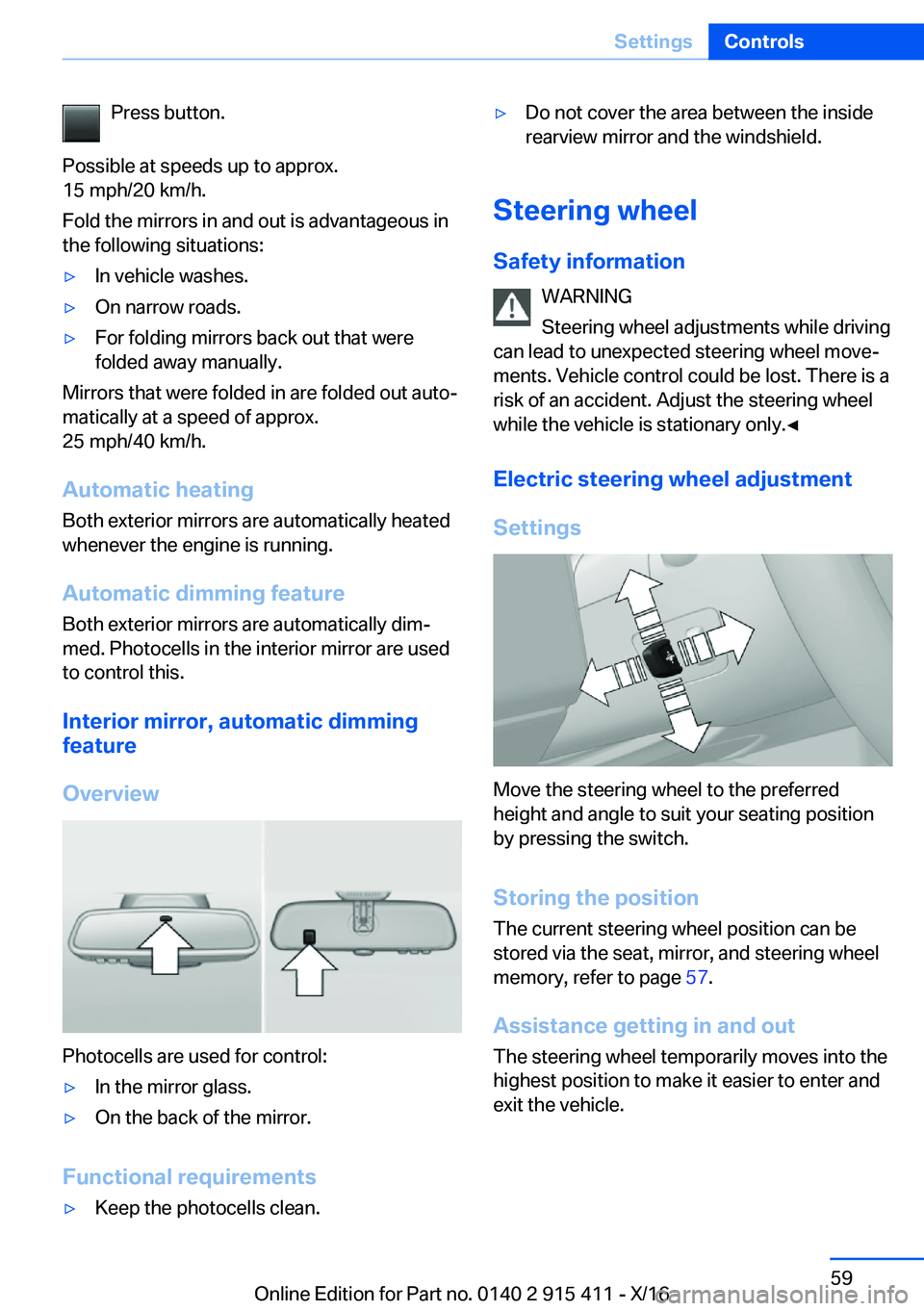

Press button.
Possible at speeds up to approx.
15 mph/20 km/h.
Fold the mirrors in and out is advantageous in the following situations:'yIn vehicle washes.'yOn narrow roads.'yFor folding mirrors back out that werefolded away manually.
Mirrors that were folded in are folded out autoj
matically at a speed of approx.
25 mph/40 km/h.
Automatic
heating Both exterior mirrors are automatically heated
whenever the engine is running.
Automatic
dimming
feature Both exterior mirrors are automatically dimj
med. Photocells in the interior mirror are used
to control this.
Interior
mirror,
automatic
dimming
feature
Overview
Photocells are used for control:
'yIn the mirror glass.'yOn the back of the mirror.
Functional
requirements
'yKeep the photocells clean.'yDo not cover the area between the inside
rearview mirror and the windshield.
Steering
wheel
Safety
information WARNING
Steering wheel adjustments while driving
can lead to unexpected steering wheel movej ments. Vehicle control could be lost. There is arisk of an accident. Adjust the steering wheelwhile the vehicle is stationary only.'

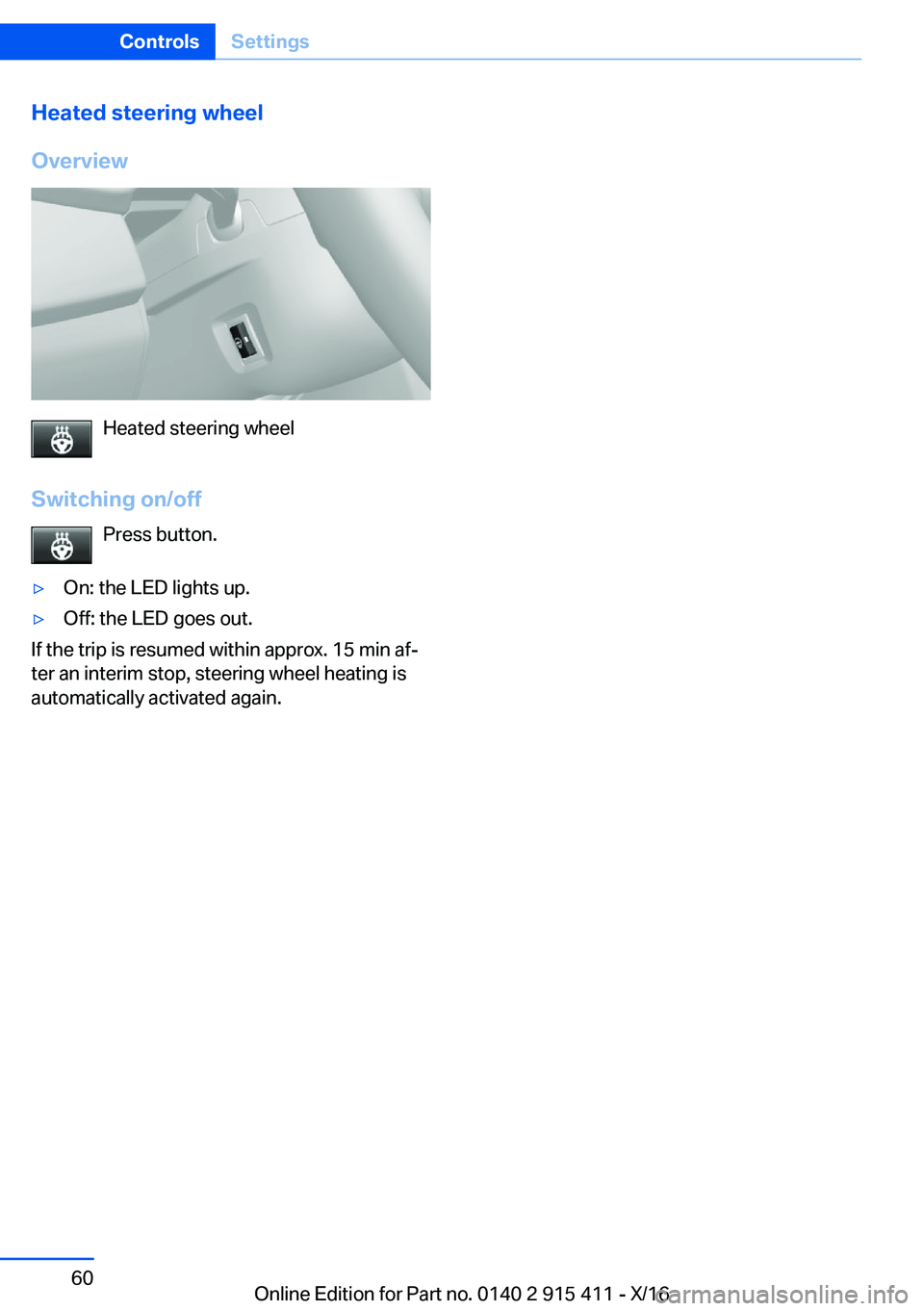

Heated
steering
wheel
Overview
Heated steering wheel
Switching
on/off Press button.
'yOn: the LED lights up.'yOff: the LED goes out.
If the trip is resumed within approx. 15 min afj
ter an interim stop, steering wheel heating is
automatically activated again.
Seite 60ControlsSettings60
Online Edition for Part no. 0140 2 915 411 - X/16

Transporting
children
safelyVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
The
right
place
for
children
Safety
information
WARNING
Unattended children or animals can
cause the vehicle to move and endanger themj selves and traffic, e.g., due to the following acj
tions:'yPressing the Start/Stop button.'yReleasing the parking brake.'yOpening and closing the doors or winj
dows.'yEngaging selector lever position N.'yUsing vehicle equipment.
There is a risk of accidents or injuries. Do not leave children or animals unattended in the vej
hicle. Take the remote control with you when exiting and lock the vehicle.'

Safety
informationWARNING
Active front-seat passenger airbags can
injure a child in a child restraint system when
the airbags are activated. There is a risk of inj
jury. Make sure that the front-seat passenger
airbags are deactivated and that the PASSENj GER AIRBAG OFF indicator lamp lights up.'

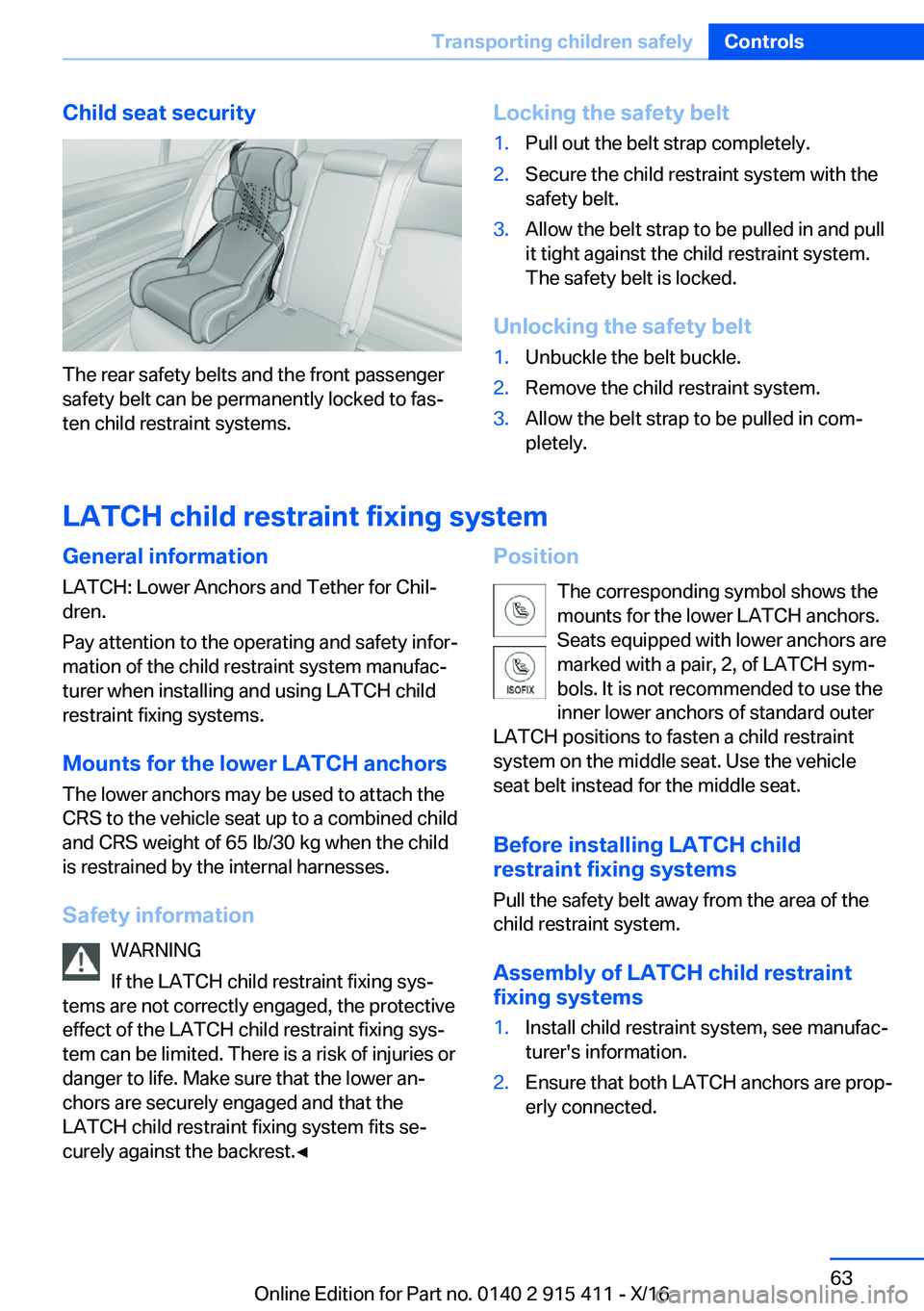

Child
seat
security
The rear safety belts and the front passengersafety belt can be permanently locked to fasjten child restraint systems.
Locking
the
safety
belt1.Pull out the belt strap completely.2.Secure the child restraint system with the
safety belt.3.Allow the belt strap to be pulled in and pull it tight against the child restraint system.
The safety belt is locked.
Unlocking
the
safety
belt
1.Unbuckle the belt buckle.2.Remove the child restraint system.3.Allow the belt strap to be pulled in comj
pletely.
LATCH
child
restraint
fixing
system
General
information
LATCH: Lower Anchors and Tether for Chilj
dren.
Pay attention to the operating and safety inforj mation of the child restraint system manufacjturer when installing and using LATCH child
restraint fixing systems.
Mounts
for
the
lower
LATCH
anchors The lower anchors may be used to attach the
CRS to the vehicle seat up to a combined child and CRS weight of 65 lb/30 kg when the child
is restrained by the internal harnesses.
Safety
information WARNING
If the LATCH child restraint fixing sysj
tems are not correctly engaged, the protective
effect of the LATCH child restraint fixing sysj
tem can be limited. There is a risk of injuries or
danger to life. Make sure that the lower anj
chors are securely engaged and that the
LATCH child restraint fixing system fits sej curely against the backrest.'

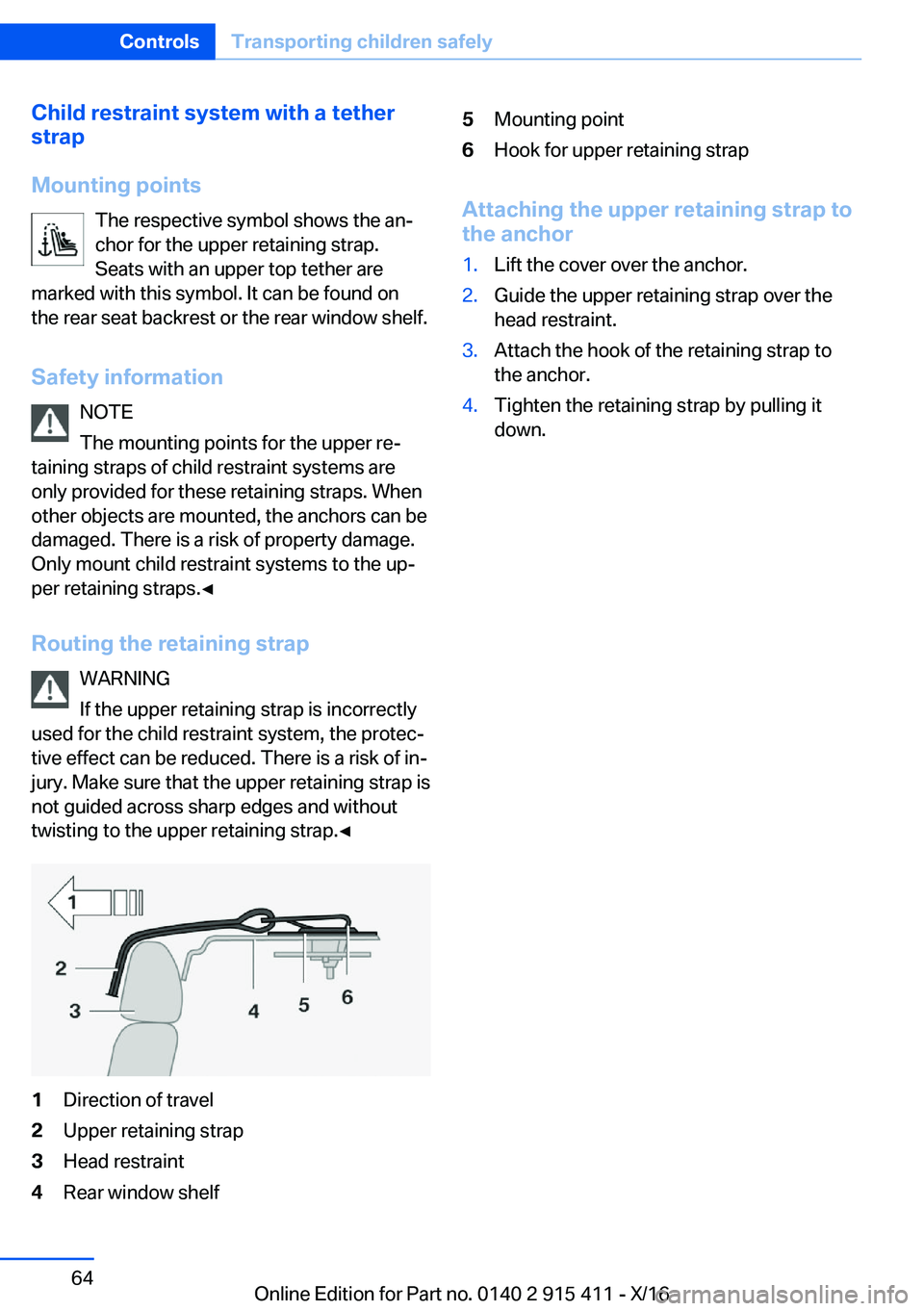

Child
restraint
system
with
a
tether
strap
Mounting
points The respective symbol shows the anjchor for the upper retaining strap.
Seats with an upper top tether are
marked with this symbol. It can be found on
the rear seat backrest or the rear window shelf.
Safety
information NOTE
The mounting points for the upper rej
taining straps of child restraint systems are only provided for these retaining straps. Whenother objects are mounted, the anchors can bedamaged. There is a risk of property damage.
Only mount child restraint systems to the upj per retaining straps.'
