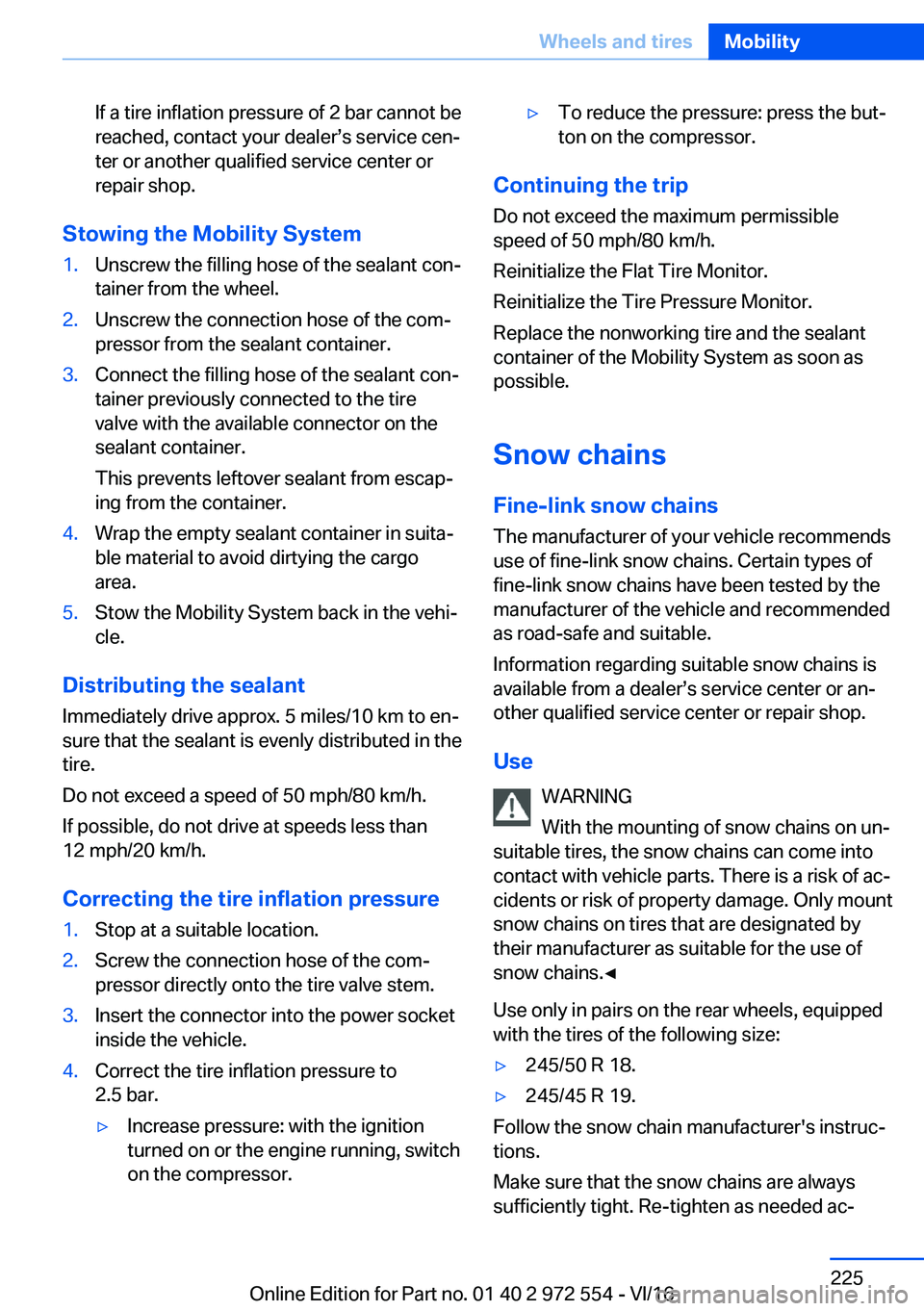

If a tire inflation pressure of 2 bar cannot be
reached, contact your dealerss service cenj ter or another qualified service center orrepair shop.
Stowing
the
Mobility
System
1.Unscrew the filling hose of the sealant conj
tainer from the wheel.2.Unscrew the connection hose of the comj pressor from the sealant container.3.Connect the filling hose of the sealant conj
tainer previously connected to the tire
valve with the available connector on the
sealant container.
This prevents leftover sealant from escapj
ing from the container.4.Wrap the empty sealant container in suitaj ble material to avoid dirtying the cargoarea.5.Stow the Mobility System back in the vehijcle.
Distributing
the
sealant
Immediately drive approx. 5 miles/10 km to enjsure that the sealant is evenly distributed in thetire.
Do not exceed a speed of 50 mph/80 km/h. If possible, do not drive at speeds less than
12 mph/20 km/h.
Correcting
the
tire
inflation
pressure
1.Stop at a suitable location.2.Screw the connection hose of the comj pressor directly onto the tire valve stem.3.Insert the connector into the power socket
inside the vehicle.4.Correct the tire inflation pressure to
2.5 bar.'yIncrease pressure: with the ignition
turned on or the engine running, switch
on the compressor.'yTo reduce the pressure: press the butj ton on the compressor.
Continuing
the
trip
Do not exceed the maximum permissible
speed of 50 mph/80 km/h.
Reinitialize the Flat Tire Monitor.
Reinitialize the Tire Pressure Monitor.
Replace the nonworking tire and the sealant
container of the Mobility System as soon as
possible.
Snow
chains
Fine-link
snow
chains
The manufacturer of your vehicle recommends use of fine-link snow chains. Certain types of
fine-link snow chains have been tested by the
manufacturer of the vehicle and recommended
as road-safe and suitable.
Information regarding suitable snow chains is
available from a dealerss service center or anj
other qualified service center or repair shop.
Use WARNING
With the mounting of snow chains on unj
suitable tires, the snow chains can come into contact with vehicle parts. There is a risk of acj
cidents or risk of property damage. Only mount
snow chains on tires that are designated by
their manufacturer as suitable for the use of
snow chains.'

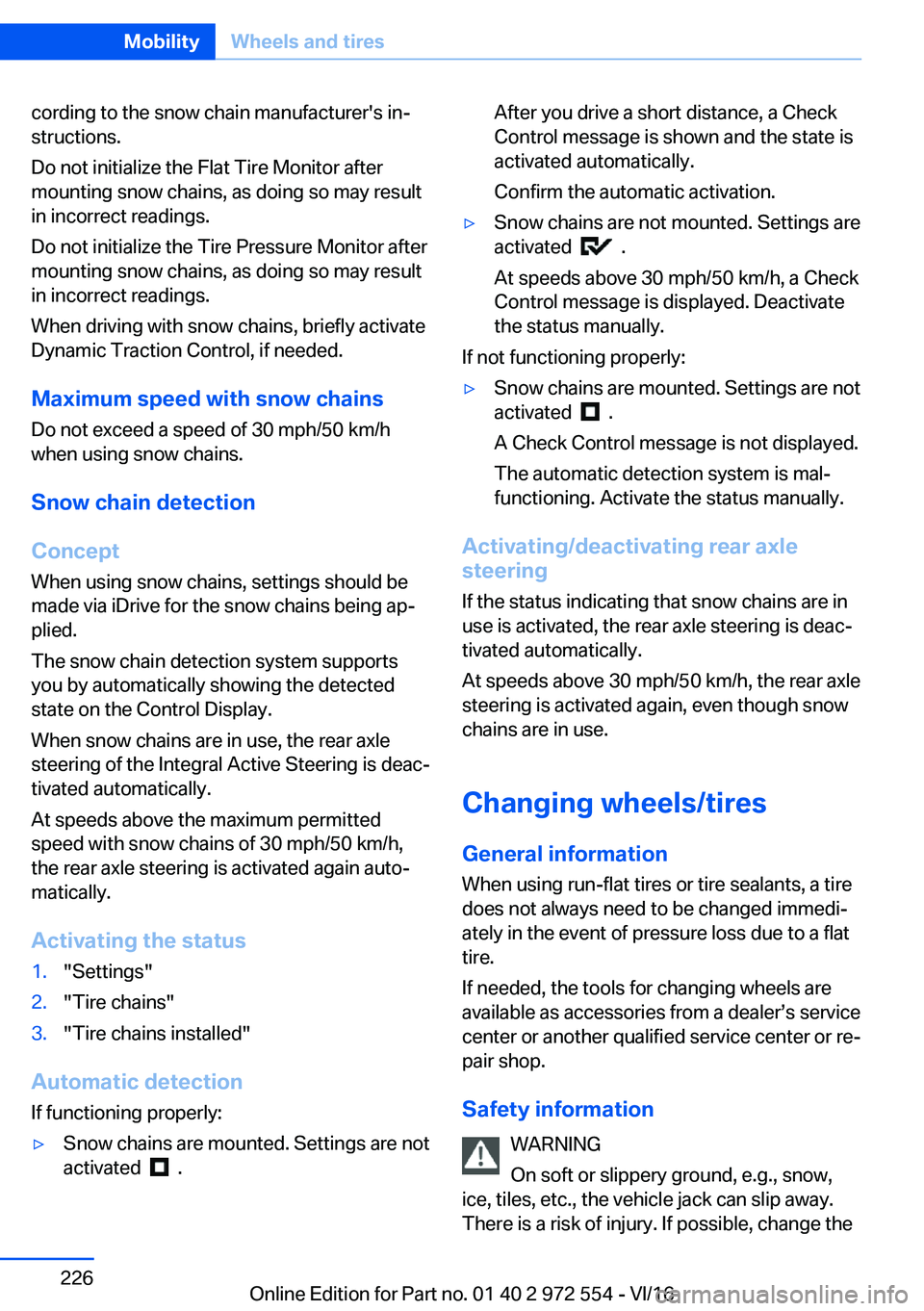

cording to the snow chain manufacturer's inj
structions.
Do not initialize the Flat Tire Monitor after
mounting snow chains, as doing so may result
in incorrect readings.
Do not initialize the Tire Pressure Monitor after mounting snow chains, as doing so may result
in incorrect readings.
When driving with snow chains, briefly activate
Dynamic Traction Control, if needed.
Maximum
speed
with
snow
chains
Do not exceed a speed of 30 mph/50 km/h when using snow chains.
Snow
chain
detection
Concept
When using snow chains, settings should be made via iDrive for the snow chains being apj plied.
The snow chain detection system supports
you by automatically showing the detected
state on the Control Display.
When snow chains are in use, the rear axle
steering of the Integral Active Steering is deacj
tivated automatically.
At speeds above the maximum permitted
speed with snow chains of 30 mph/50 km/h,
the rear axle steering is activated again autoj
matically.
Activating
the
status1."Settings"2."Tire chains"3."Tire chains installed"
Automatic
detection If functioning properly:
'ySnow chains are mounted. Settings are notactivated
.
After you drive a short distance, a CheckControl message is shown and the state is
activated automatically.
Confirm the automatic activation.'ySnow chains are not mounted. Settings are activated
.
At speeds above 30 mph/50 km/h, a Check
Control message is displayed. Deactivate
the status manually.
If not functioning properly:
'ySnow chains are mounted. Settings are not activated
.
A Check Control message is not displayed. The automatic detection system is maljfunctioning. Activate the status manually.
Activating/deactivating
rear
axle
steering
If the status indicating that snow chains are inuse is activated, the rear axle steering is deacj
tivated automatically.
At speeds above 30 mph/50 km/h, the rear axle
steering is activated again, even though snow
chains are in use.
Changing
wheels/tires General
information
When using run-flat tires or tire sealants, a tire
does not always need to be changed immedij ately in the event of pressure loss due to a flat
tire.
If needed, the tools for changing wheels are
available as accessories from a dealerss service
center or another qualified service center or rej pair shop.
Safety
information WARNING
On soft or slippery ground, e.g., snow,
ice, tiles, etc., the vehicle jack can slip away. There is a risk of injury. If possible, change the
Seite 226MobilityWheels
and
tires226
Online Edition for Part no. 01 40 2 972 554 - VI/16

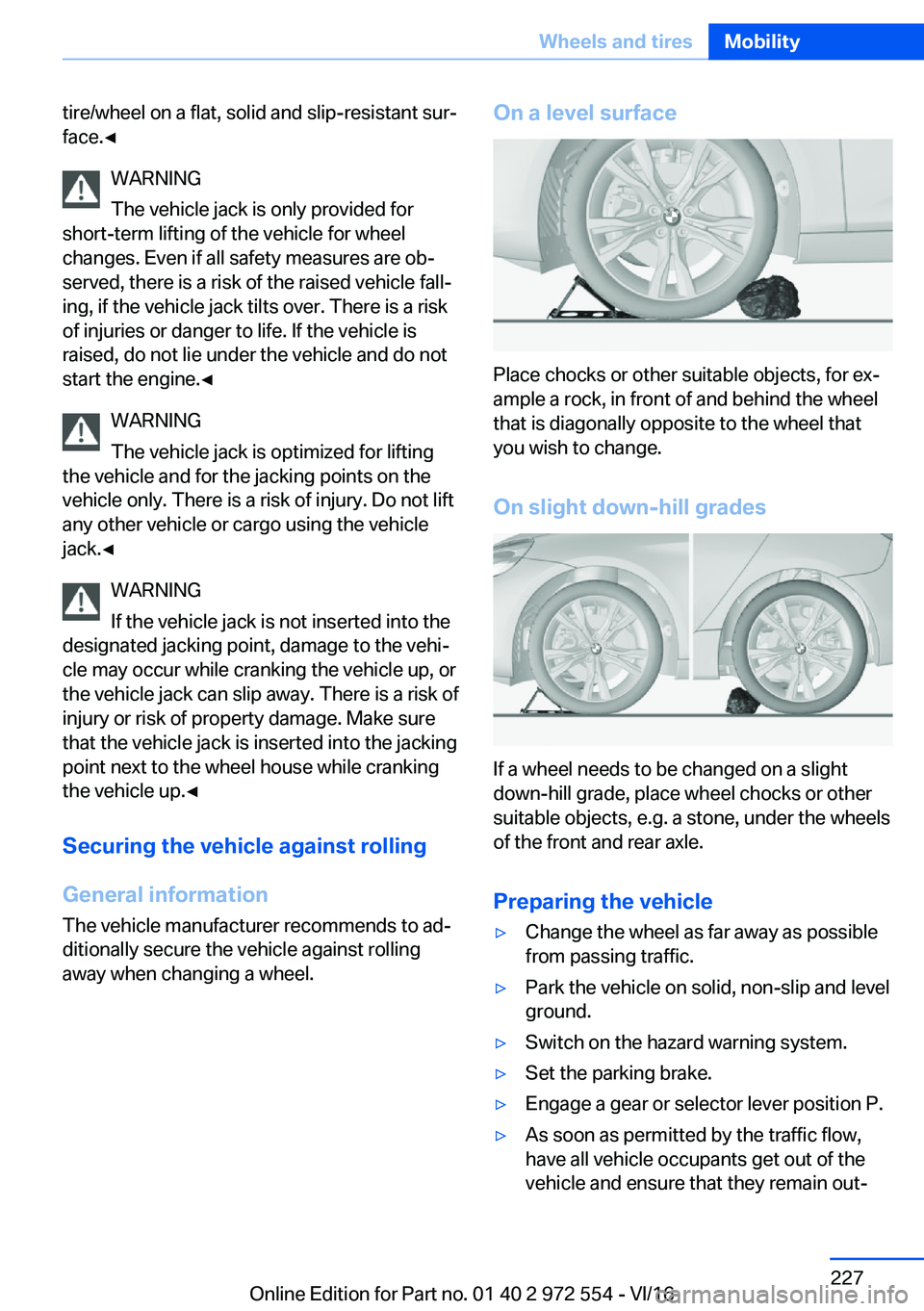

tire/wheel on a flat, solid and slip-resistant surjface.'

side the immediate area in a safe place,
such as behind a guardrail.'yDepending on the equipment version, get tools and the emergency wheel from the
vehicle.'yIf necessary, set up a warning triangle or
portable hazard warning lamp at an approj priate distance.'yDo not place wood blocks or similar itemsunder the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'ySecure the vehicle additionally against rollj
ing.'yLoosen the lug bolts a half turn.

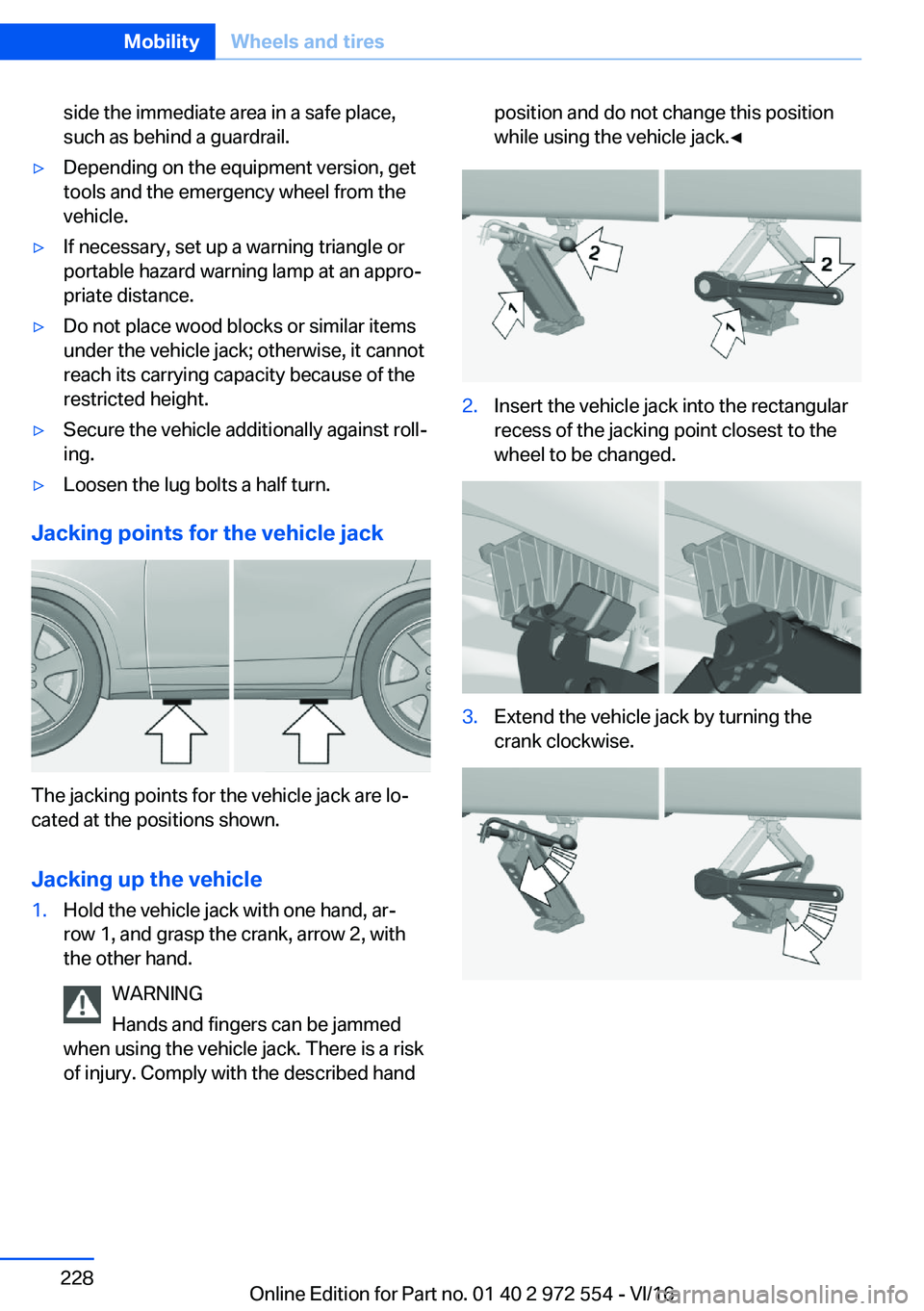

Jacking
points
for
the
vehicle
jack
The jacking points for the vehicle jack are loj cated at the positions shown.
Jacking
up
the
vehicle
1.Hold the vehicle jack with one hand, arj
row 1, and grasp the crank, arrow 2, with
the other hand.
WARNING
Hands and fingers can be jammed
when using the vehicle jack. There is a risk
of injury. Comply with the described handposition and do not change this position
while using the vehicle jack.'

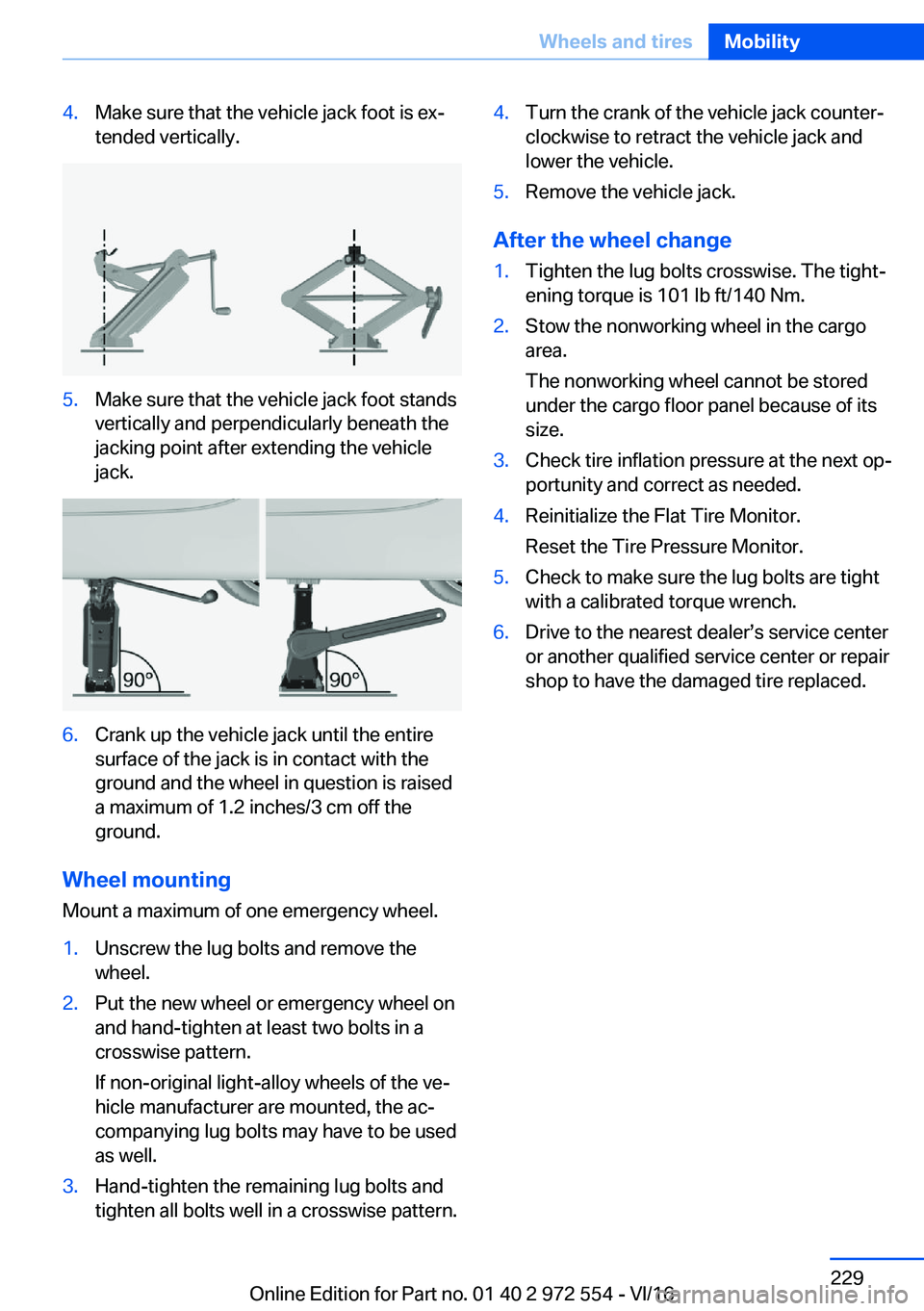

4.Make sure that the vehicle jack foot is exjtended vertically.5.Make sure that the vehicle jack foot stands
vertically and perpendicularly beneath the jacking point after extending the vehicle
jack.6.Crank up the vehicle jack until the entire
surface of the jack is in contact with the
ground and the wheel in question is raised
a maximum of 1.2 inches/3 cm off the ground.
Wheel
mounting
Mount a maximum of one emergency wheel.
1.Unscrew the lug bolts and remove the
wheel.2.Put the new wheel or emergency wheel on and hand-tighten at least two bolts in a
crosswise pattern.
If non-original light-alloy wheels of the vej hicle manufacturer are mounted, the acj
companying lug bolts may have to be used
as well.3.Hand-tighten the remaining lug bolts and tighten all bolts well in a crosswise pattern.4.Turn the crank of the vehicle jack counterj
clockwise to retract the vehicle jack and
lower the vehicle.5.Remove the vehicle jack.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightj ening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the Flat Tire Monitor.
Reset the Tire Pressure Monitor.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Drive to the nearest dealerss service center
or another qualified service center or repair
shop to have the damaged tire replaced.Seite 229Wheels
and
tiresMobility229
Online Edition for Part no. 01 40 2 972 554 - VI/16

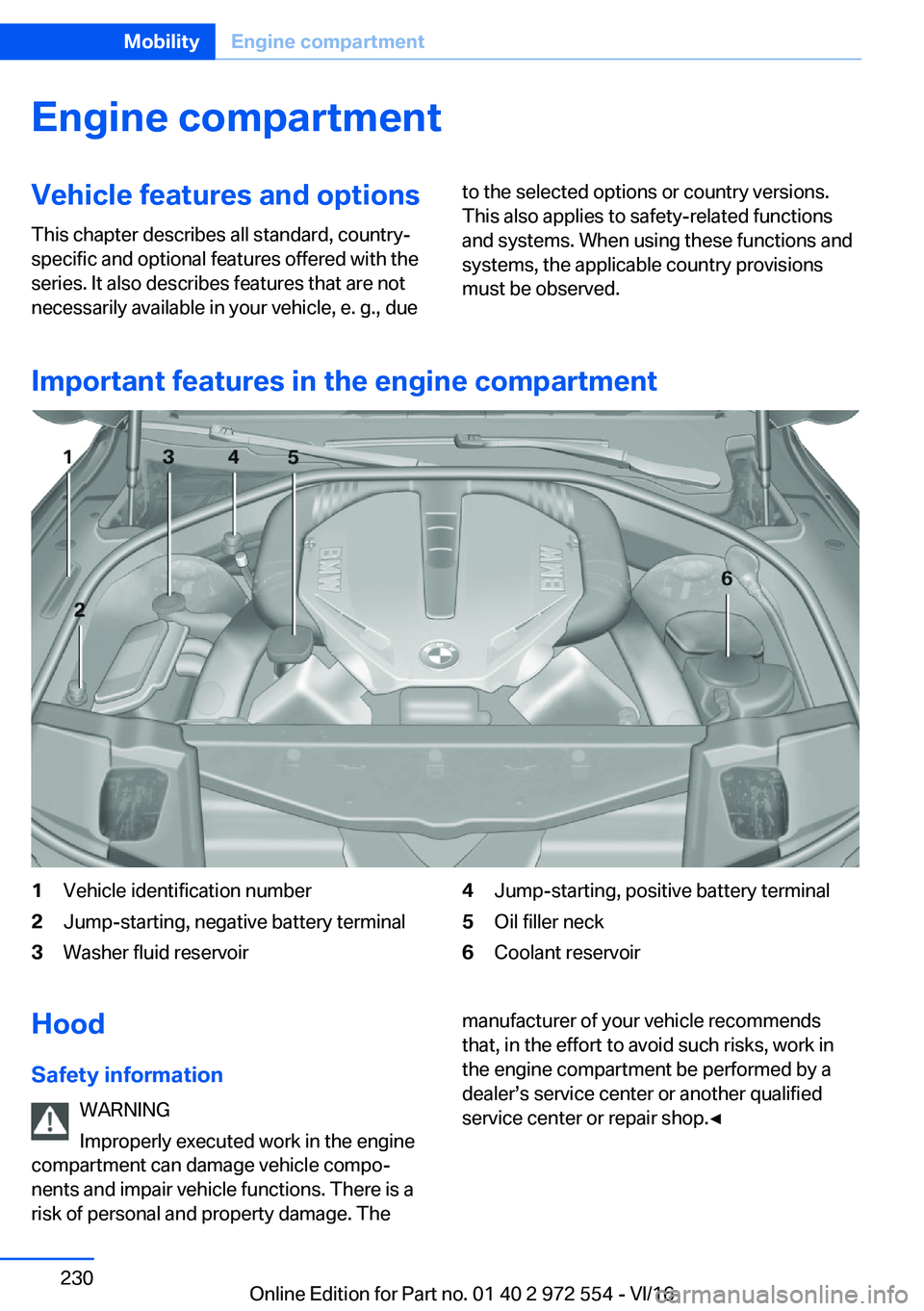

Engine
compartmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Important
features
in
the
engine
compartment
1Vehicle identification number2Jump-starting, negative battery terminal3Washer fluid reservoir4Jump-starting, positive battery terminal5Oil filler neck6Coolant reservoirHood
Safety
information WARNING
Improperly executed work in the engine
compartment can damage vehicle compoj nents and impair vehicle functions. There is a
risk of personal and property damage. Themanufacturer of your vehicle recommends that, in the effort to avoid such risks, work inthe engine compartment be performed by adealerss service center or another qualifiedservice center or repair shop.'

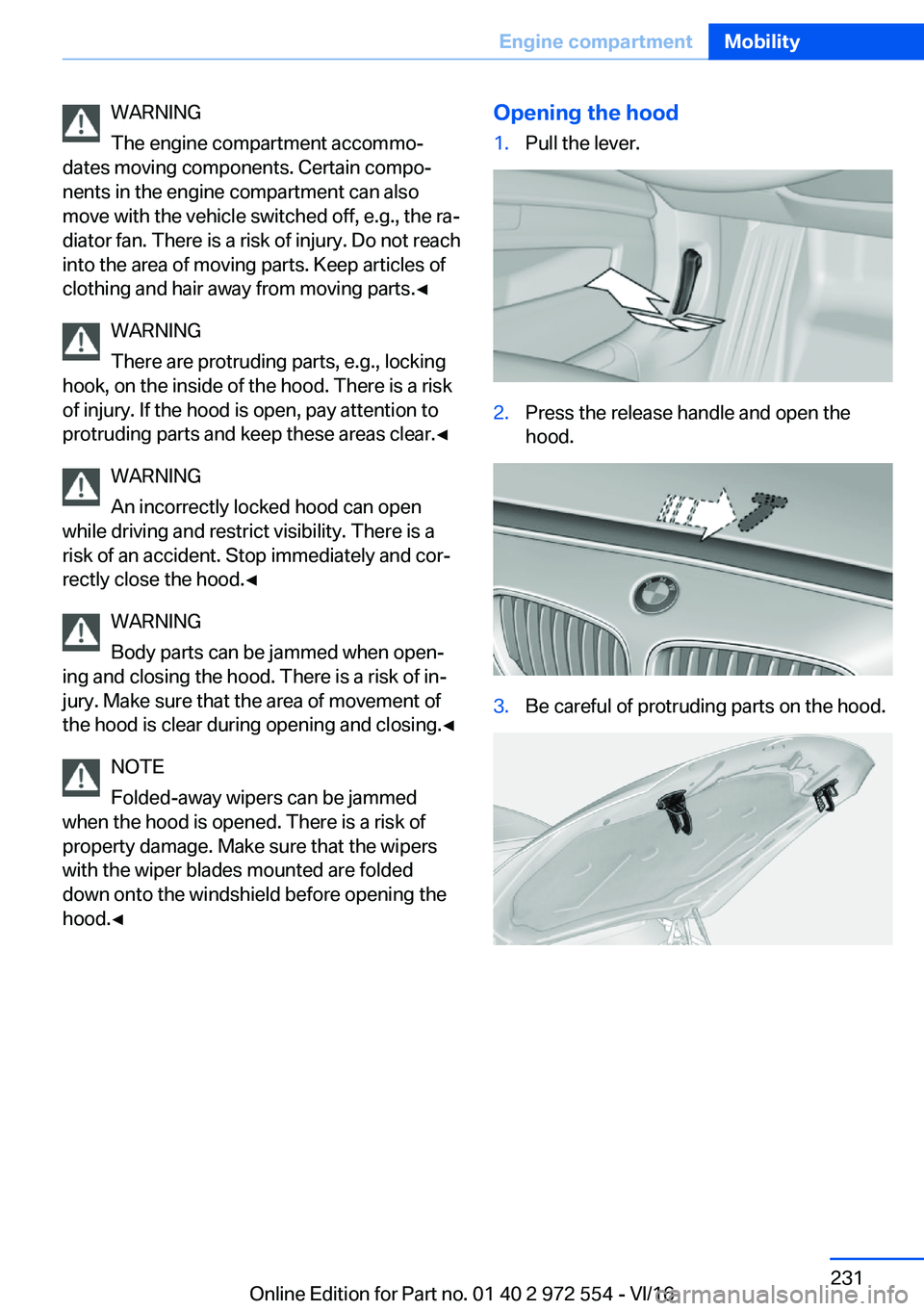

WARNING
The engine compartment accommoj
dates moving components. Certain compoj nents in the engine compartment can also
move with the vehicle switched off, e.g., the raj diator fan. There is a risk of injury. Do not reach
into the area of moving parts. Keep articles of clothing and hair away from moving parts.'

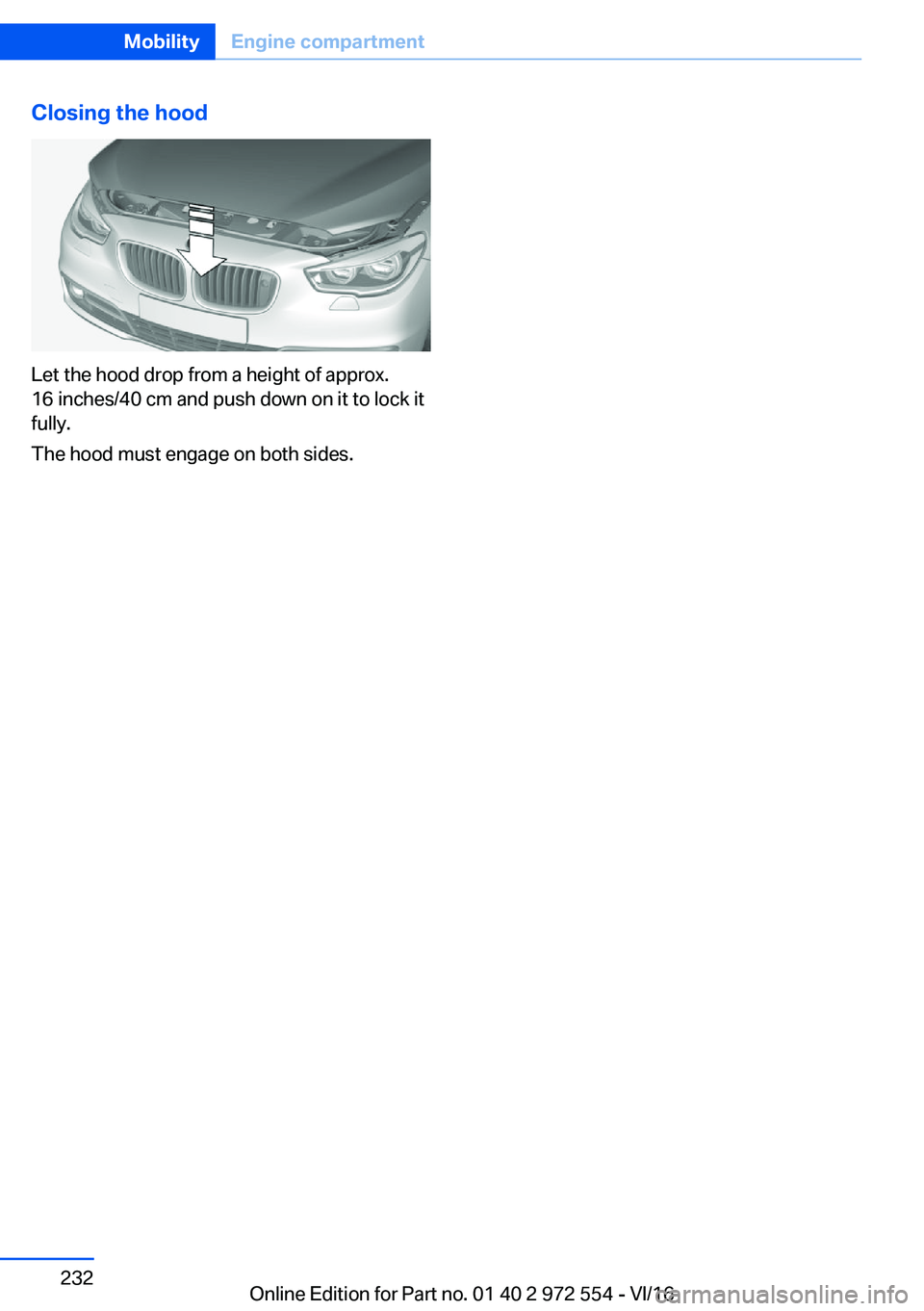

Closing
the
hood
Let the hood drop from a height of approx.
16 inches/40 cm and push down on it to lock it
fully.
The hood must engage on both sides.
