2017 BMW 5 SERIES GRAN TURISMO Owners Manual

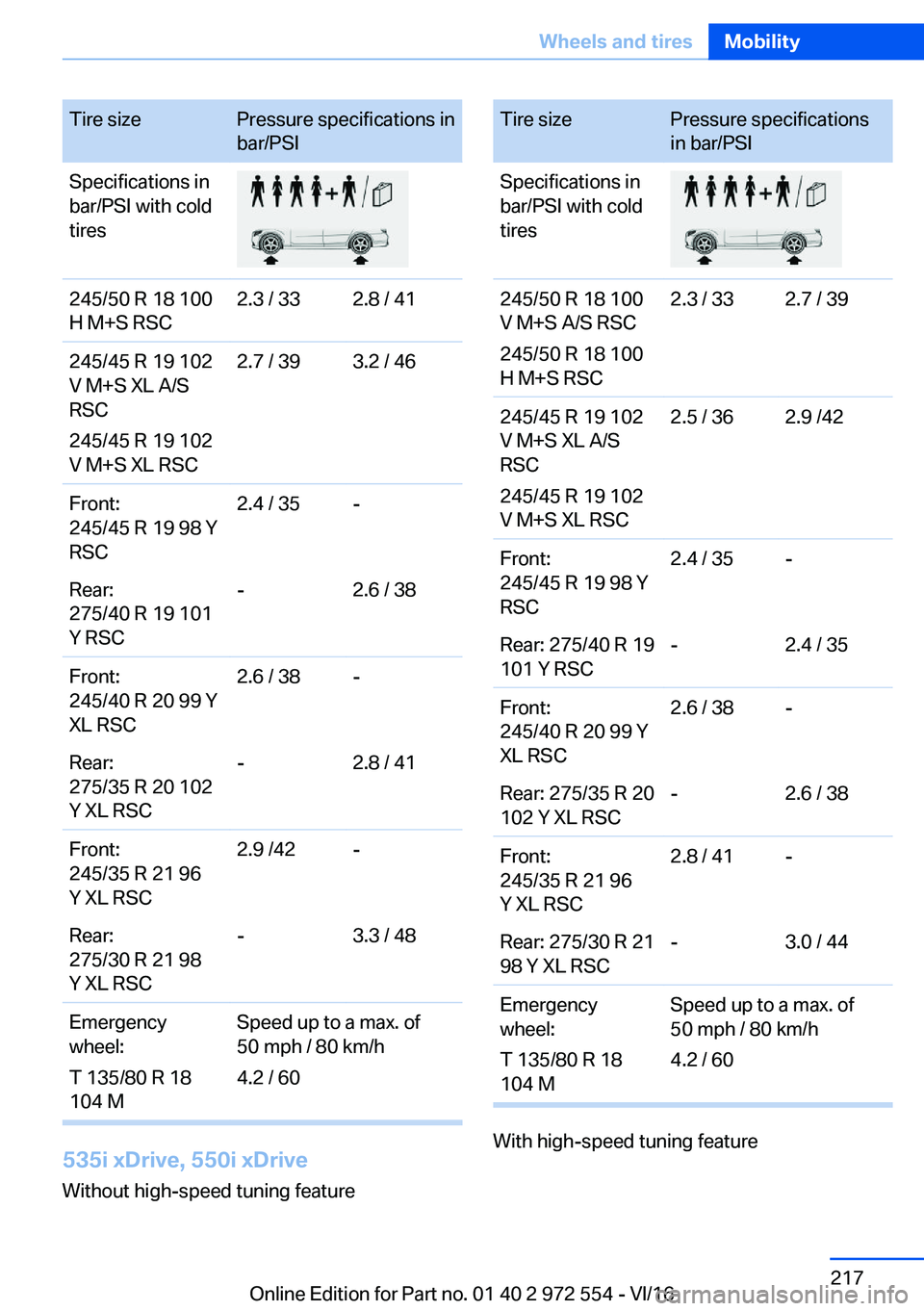

Tire sizePressure specifications in
bar/PSISpecifications in
bar/PSI with cold
tires245/50 R 18 100
H M+S RSC2.3 / 332.8 / 41245/45 R 19 102
V M+S XL A/S
RSC
245/45 R 19 102
V M+S XL RSC2.7 / 393.2 / 46Front:
245/45 R 19 98 Y
RSC2.4 / 35-Rear:
275/40 R 19 101
Y RSC-2.6 / 38Front:
245/40 R 20 99 Y
XL RSC2.6 / 38-Rear:
275/35 R 20 102
Y XL RSC-2.8 / 41Front:
245/35 R 21 96
Y XL RSC2.9 /42-Rear:
275/30 R 21 98
Y XL RSC-3.3 / 48Emergency
wheel:
T 135/80 R 18
104 MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
535i
xDrive,
550i
xDrive
Without high-speed tuning feature
Tire sizePressure specifications
in bar/PSISpecifications in
bar/PSI with cold
tires245/50 R 18 100
V M+S A/S RSC
245/50 R 18 100
H M+S RSC2.3 / 332.7 / 39245/45 R 19 102
V M+S XL A/S
RSC
245/45 R 19 102
V M+S XL RSC2.5 / 362.9 /42Front:
245/45 R 19 98 Y
RSC2.4 / 35-Rear: 275/40 R 19
101 Y RSC-2.4 / 35Front:
245/40 R 20 99 Y
XL RSC2.6 / 38-Rear: 275/35 R 20
102 Y XL RSC-2.6 / 38Front:
245/35 R 21 96
Y XL RSC2.8 / 41-Rear: 275/30 R 21 98 Y XL RSC-3.0 / 44Emergency
wheel:
T 135/80 R 18
104 MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60
With high-speed tuning feature
Seite 217Wheels
and
tiresMobility217
Online Edition for Part no. 01 40 2 972 554 - VI/16

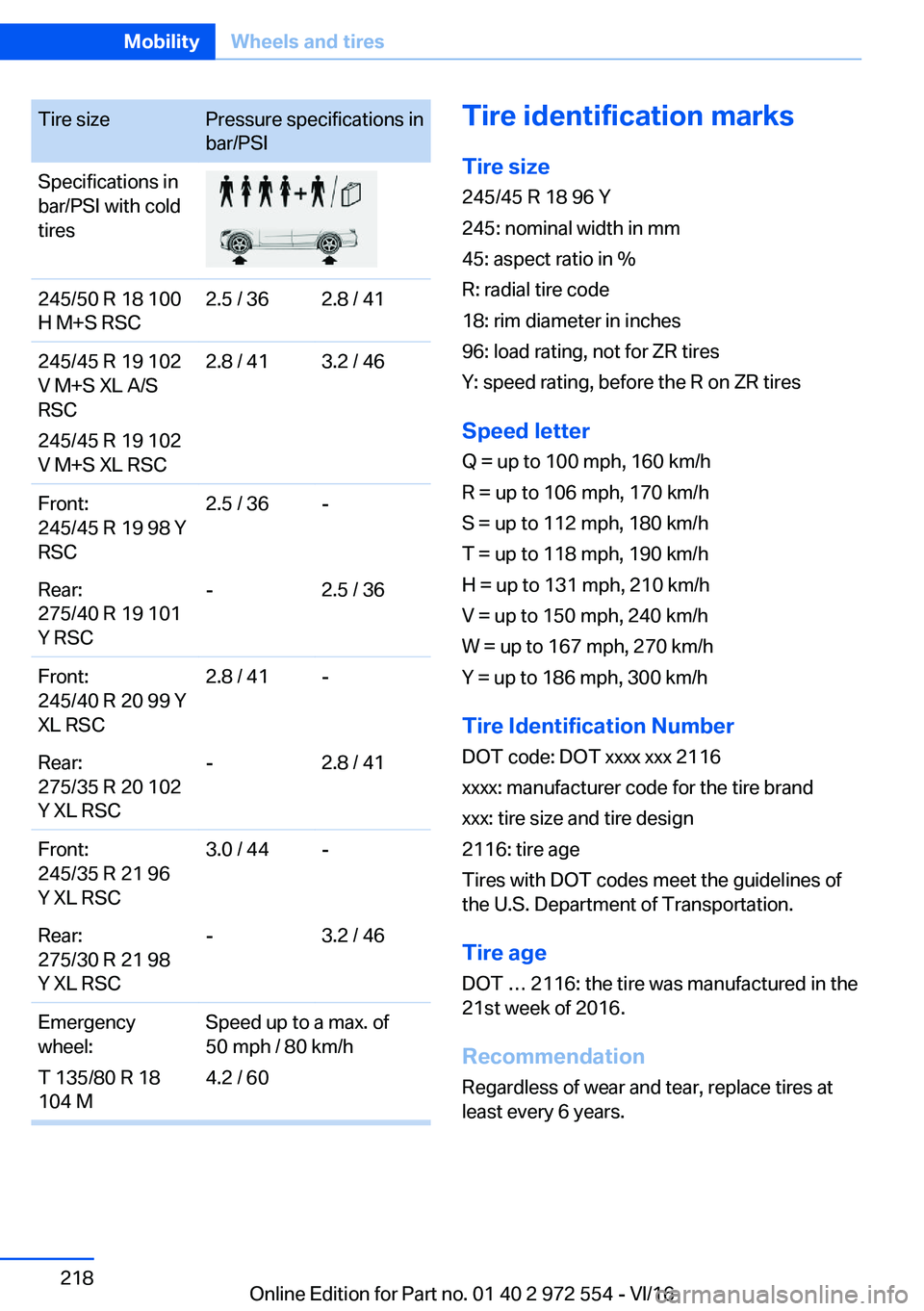

Tire sizePressure specifications in
bar/PSISpecifications in
bar/PSI with cold
tires245/50 R 18 100
H M+S RSC2.5 / 362.8 / 41245/45 R 19 102
V M+S XL A/S
RSC
245/45 R 19 102
V M+S XL RSC2.8 / 413.2 / 46Front:
245/45 R 19 98 Y
RSC2.5 / 36-Rear:
275/40 R 19 101
Y RSC-2.5 / 36Front:
245/40 R 20 99 Y
XL RSC2.8 / 41-Rear:
275/35 R 20 102
Y XL RSC-2.8 / 41Front:
245/35 R 21 96
Y XL RSC3.0 / 44-Rear:
275/30 R 21 98
Y XL RSC-3.2 / 46Emergency
wheel:
T 135/80 R 18
104 MSpeed up to a max. of
50 mph / 80 km/h
4.2 / 60Tire
identification
marks
Tire
size 245/45 R 18 96 Y
245: nominal width in mm
45: aspect ratio in %
R: radial tire code
18: rim diameter in inches 96: load rating, not for ZR tires
Y: speed rating, before the R on ZR tires
Speed
letter
Q  up to 100 mph, 160 km/h
R  up to 106 mph, 170 km/h
S  up to 112 mph, 180 km/h
T  up to 118 mph, 190 km/h
H  up to 131 mph, 210 km/h
V  up to 150 mph, 240 km/h
W  up to 167 mph, 270 km/h
Y  up to 186 mph, 300 km/h
Tire
Identification
Number
DOT code: DOT xxxx xxx 2116
xxxx: manufacturer code for the tire brand
xxx: tire size and tire design
2116: tire age
Tires with DOT codes meet the guidelines of
the U.S. Department of Transportation.
Tire
age
DOT

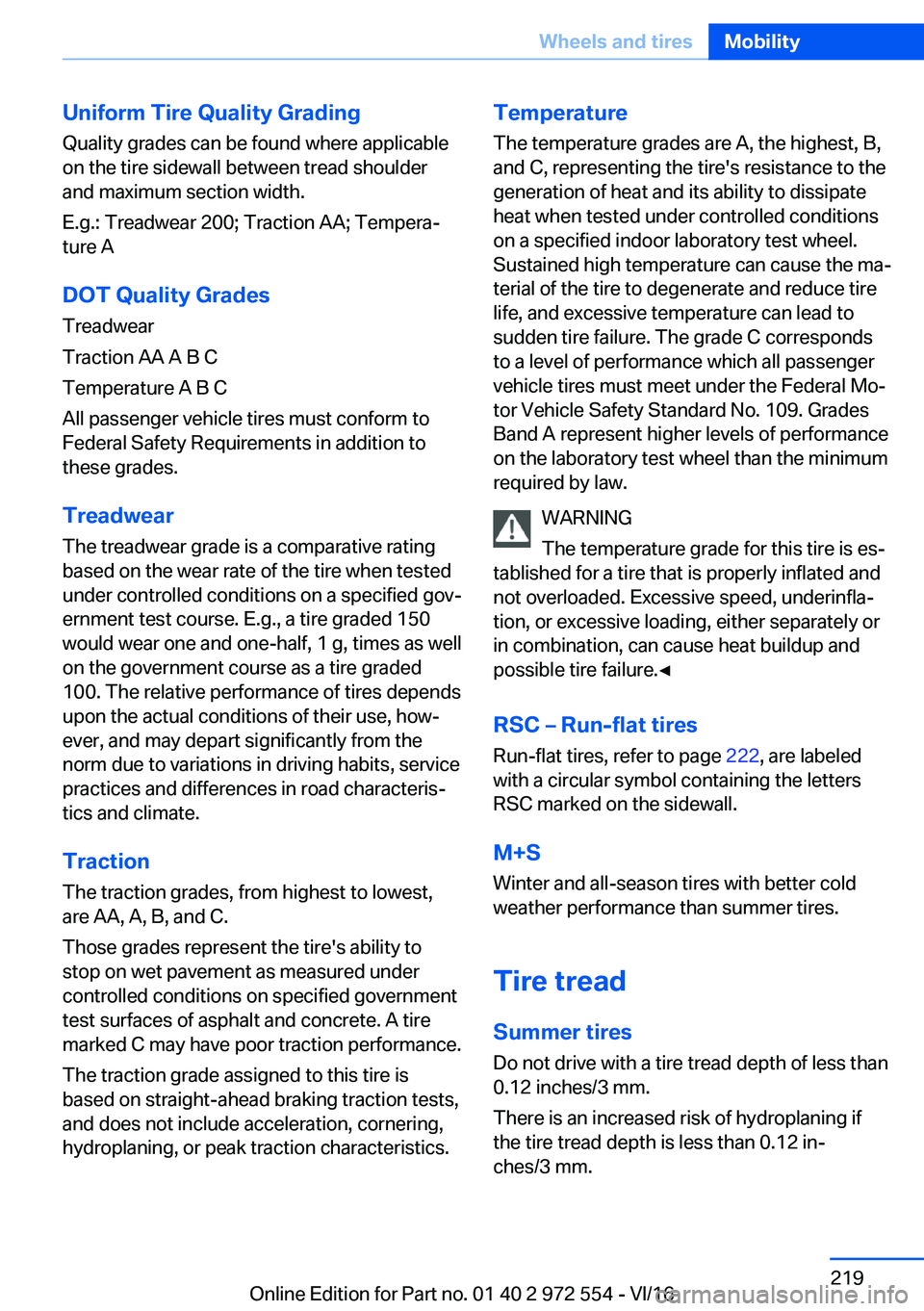

Uniform
Tire
Quality
GradingQuality grades can be found where applicable
on the tire sidewall between tread shoulder and maximum section width.
E.g.: Treadwear 200; Traction AA; Temperaj
ture A
DOT
Quality
Grades Treadwear
Traction AA A B C
Temperature A B C
All passenger vehicle tires must conform to
Federal Safety Requirements in addition to
these grades.
Treadwear The treadwear grade is a comparative ratingbased on the wear rate of the tire when tested under controlled conditions on a specified govjernment test course. E.g., a tire graded 150
would wear one and one-half, 1 g, times as well
on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, howj ever, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characterisj tics and climate.
Traction
The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire's ability to
stop on wet pavement as measured under
controlled conditions on specified government test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction tests,
and does not include acceleration, cornering,
hydroplaning, or peak traction characteristics.Temperature
The temperature grades are A, the highest, B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the maj
terial of the tire to degenerate and reduce tire
life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds
to a level of performance which all passenger
vehicle tires must meet under the Federal Moj
tor Vehicle Safety Standard No. 109. Grades
Band A represent higher levels of performance
on the laboratory test wheel than the minimum
required by law.
WARNING
The temperature grade for this tire is esj
tablished for a tire that is properly inflated and not overloaded. Excessive speed, underinflajtion, or excessive loading, either separately orin combination, can cause heat buildup andpossible tire failure.'

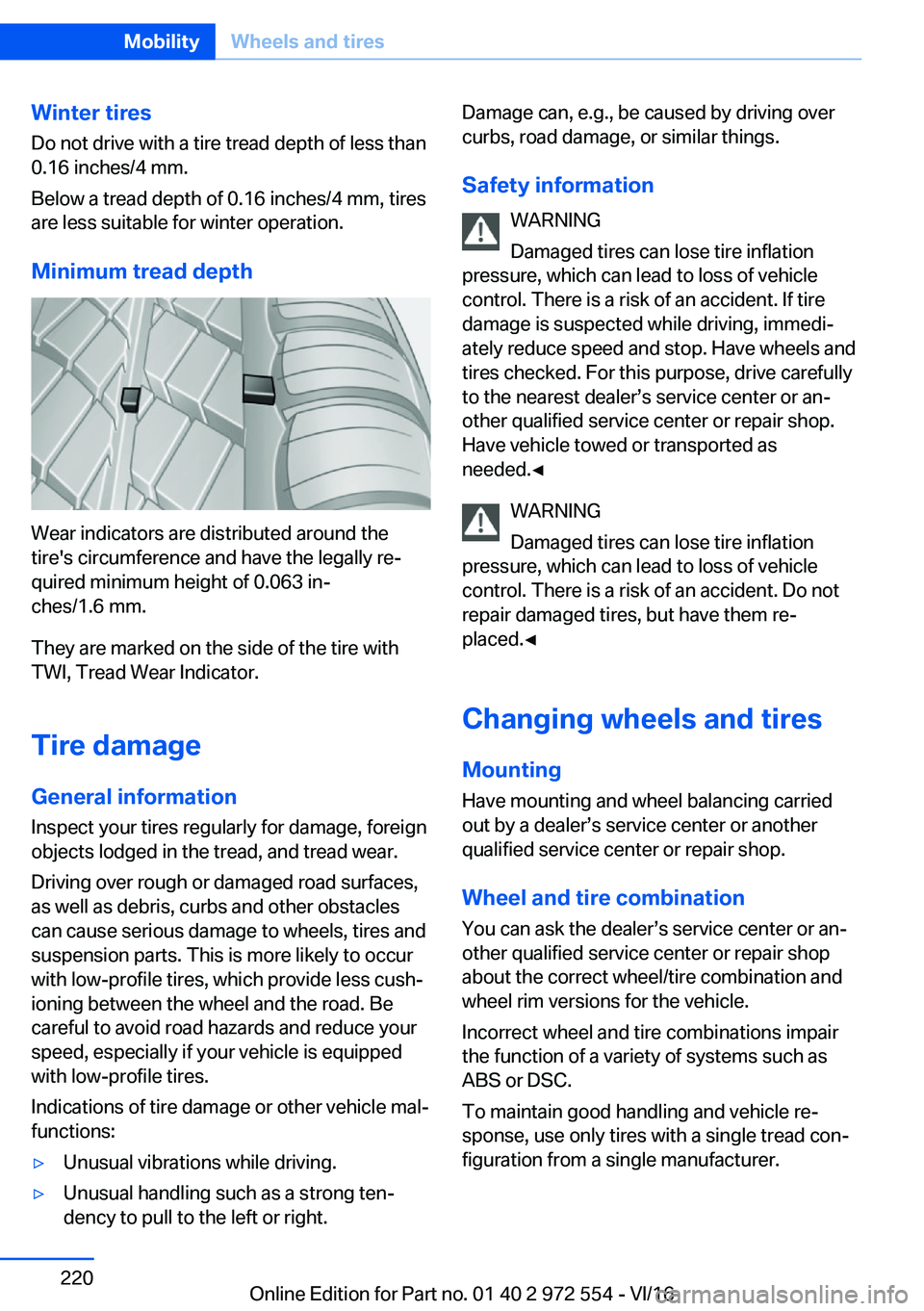

Winter
tires
Do not drive with a tire tread depth of less than
0.16 inches/4 mm.
Below a tread depth of 0.16 inches/4 mm, tires
are less suitable for winter operation.
Minimum
tread
depth
Wear indicators are distributed around thetire's circumference and have the legally rejquired minimum height of 0.063 inj
ches/1.6 mm.
They are marked on the side of the tire with
TWI, Tread Wear Indicator.
Tire
damage
General
information
Inspect your tires regularly for damage, foreign
objects lodged in the tread, and tread wear.
Driving over rough or damaged road surfaces, as well as debris, curbs and other obstaclescan cause serious damage to wheels, tires andsuspension parts. This is more likely to occurwith low-profile tires, which provide less cushj
ioning between the wheel and the road. Be
careful to avoid road hazards and reduce your
speed, especially if your vehicle is equipped
with low-profile tires.
Indications of tire damage or other vehicle malj functions:
'yUnusual vibrations while driving.'yUnusual handling such as a strong tenjdency to pull to the left or right.Damage can, e.g., be caused by driving over
curbs, road damage, or similar things.
Safety
information WARNING
Damaged tires can lose tire inflation
pressure, which can lead to loss of vehicle control. There is a risk of an accident. If tiredamage is suspected while driving, immedijately reduce speed and stop. Have wheels andtires checked. For this purpose, drive carefully
to the nearest dealerss service center or anj
other qualified service center or repair shop.
Have vehicle towed or transported as needed.'

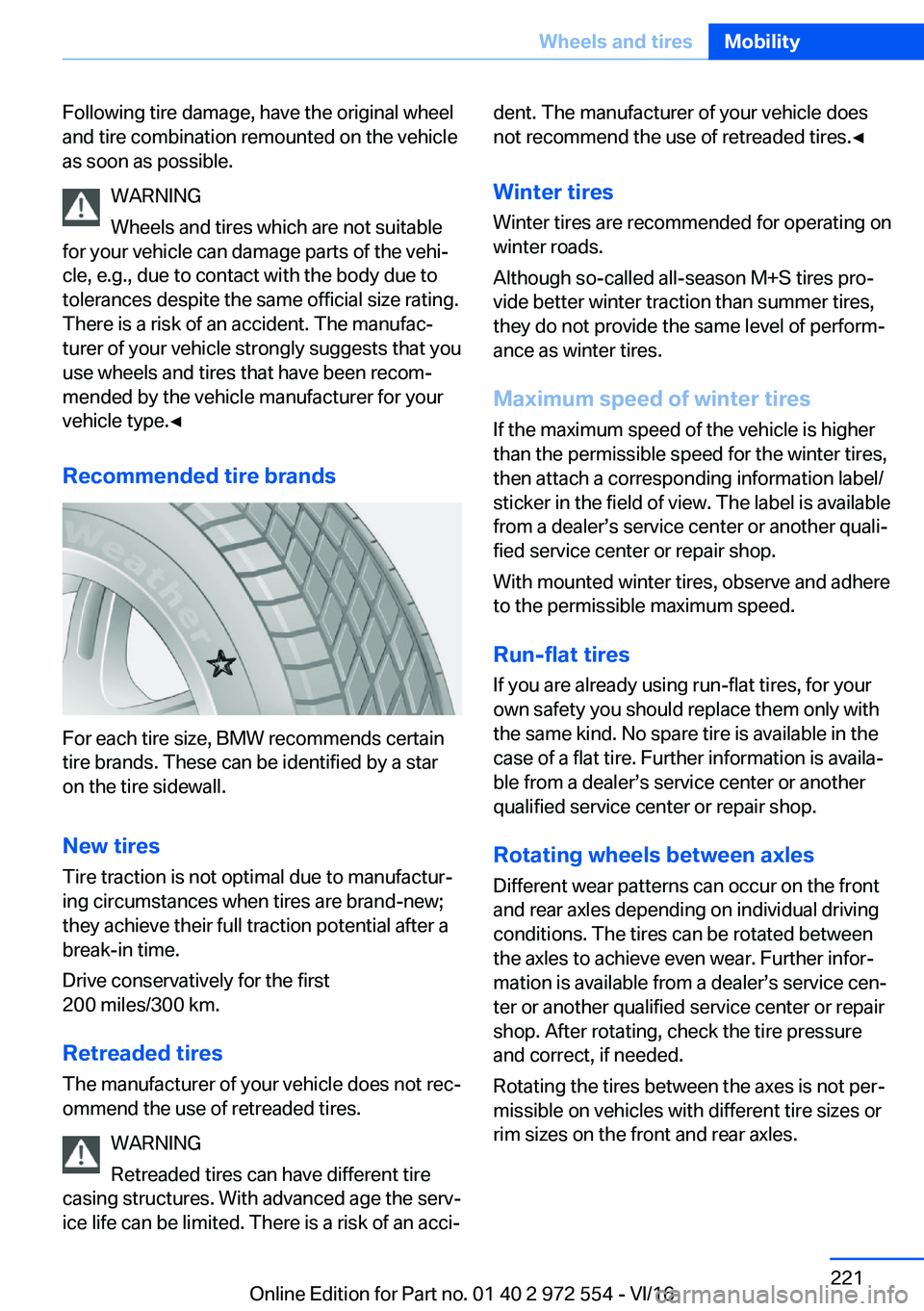

Following tire damage, have the original wheeland tire combination remounted on the vehicleas soon as possible.
WARNING
Wheels and tires which are not suitable
for your vehicle can damage parts of the vehij cle, e.g., due to contact with the body due to
tolerances despite the same official size rating.
There is a risk of an accident. The manufacj
turer of your vehicle strongly suggests that you use wheels and tires that have been recomjmended by the vehicle manufacturer for your
vehicle type.'

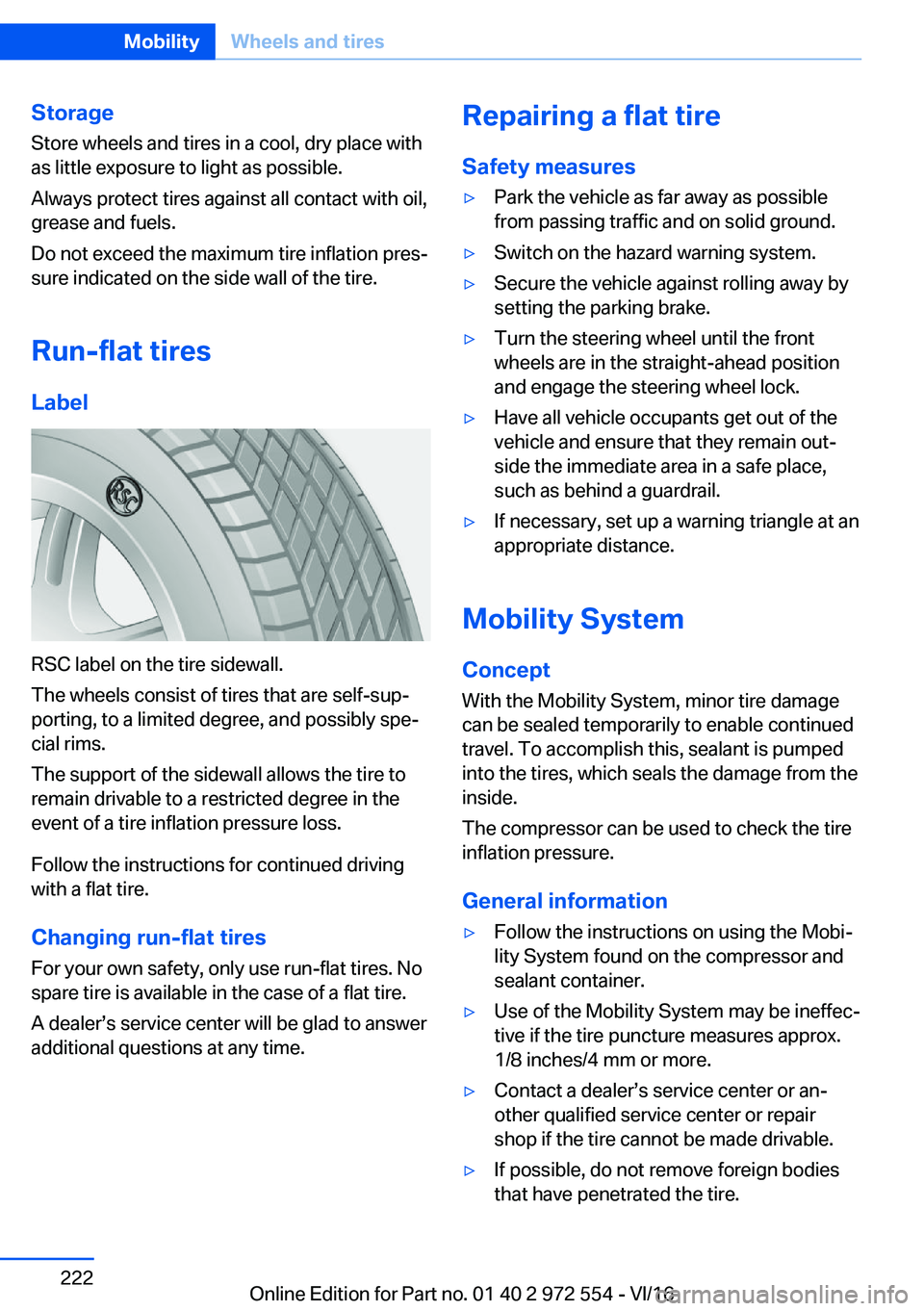

StorageStore wheels and tires in a cool, dry place with
as little exposure to light as possible.
Always protect tires against all contact with oil,
grease and fuels.
Do not exceed the maximum tire inflation presj sure indicated on the side wall of the tire.
Run-flat
tires Label
RSC label on the tire sidewall.
The wheels consist of tires that are self-supj porting, to a limited degree, and possibly spej
cial rims.
The support of the sidewall allows the tire to remain drivable to a restricted degree in the
event of a tire inflation pressure loss.
Follow the instructions for continued driving
with a flat tire.
Changing
run-flat
tires For your own safety, only use run-flat tires. No
spare tire is available in the case of a flat tire.
A dealerss service center will be glad to answeradditional questions at any time.
Repairing
a
flat
tire
Safety
measures'yPark the vehicle as far away as possible
from passing traffic and on solid ground.'ySwitch on the hazard warning system.'ySecure the vehicle against rolling away by setting the parking brake.'yTurn the steering wheel until the frontwheels are in the straight-ahead position
and engage the steering wheel lock.'yHave all vehicle occupants get out of the vehicle and ensure that they remain outjside the immediate area in a safe place,
such as behind a guardrail.'yIf necessary, set up a warning triangle at an
appropriate distance.
Mobility
System
Concept
With the Mobility System, minor tire damage can be sealed temporarily to enable continued
travel. To accomplish this, sealant is pumped
into the tires, which seals the damage from the inside.
The compressor can be used to check the tire inflation pressure.
General
information
'yFollow the instructions on using the Mobij lity System found on the compressor and
sealant container.'yUse of the Mobility System may be ineffecj
tive if the tire puncture measures approx.
1/8 inches/4 mm or more.'yContact a dealerss service center or anj other qualified service center or repair
shop if the tire cannot be made drivable.'yIf possible, do not remove foreign bodies that have penetrated the tire.Seite 222MobilityWheels
and
tires222
Online Edition for Part no. 01 40 2 972 554 - VI/16

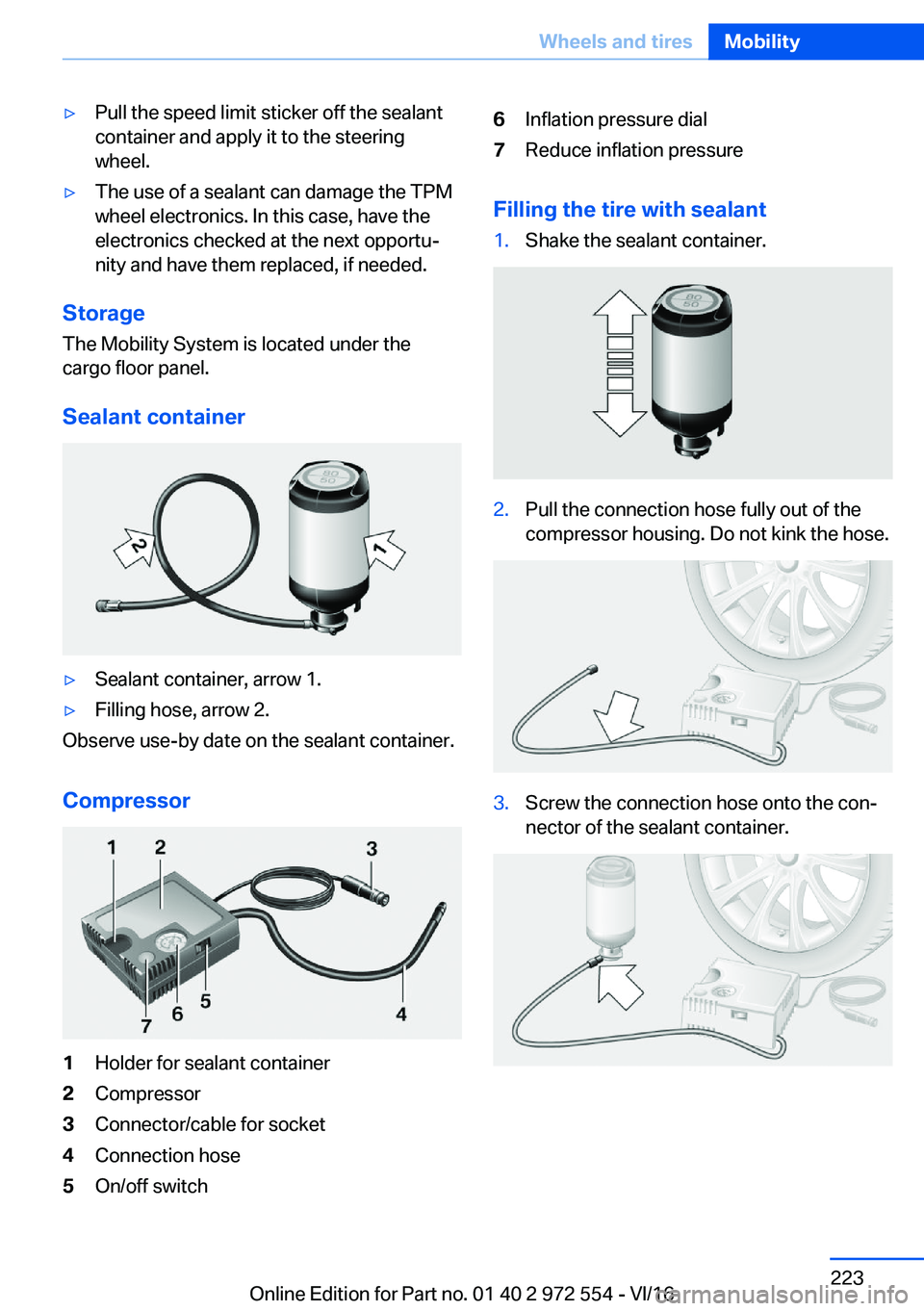

'yPull the speed limit sticker off the sealant
container and apply it to the steering
wheel.'yThe use of a sealant can damage the TPM wheel electronics. In this case, have theelectronics checked at the next opportujnity and have them replaced, if needed.
Storage
The Mobility System is located under thecargo floor panel.
Sealant
container
'ySealant container, arrow 1.'yFilling hose, arrow 2.
Observe use-by date on the sealant container.
Compressor
1Holder for sealant container2Compressor3Connector/cable for socket4Connection hose5On/off switch6Inflation pressure dial7Reduce inflation pressure
Filling
the
tire
with
sealant
1.Shake the sealant container.2.Pull the connection hose fully out of the compressor housing. Do not kink the hose.3.Screw the connection hose onto the conjnector of the sealant container.Seite 223Wheels
and
tiresMobility223
Online Edition for Part no. 01 40 2 972 554 - VI/16

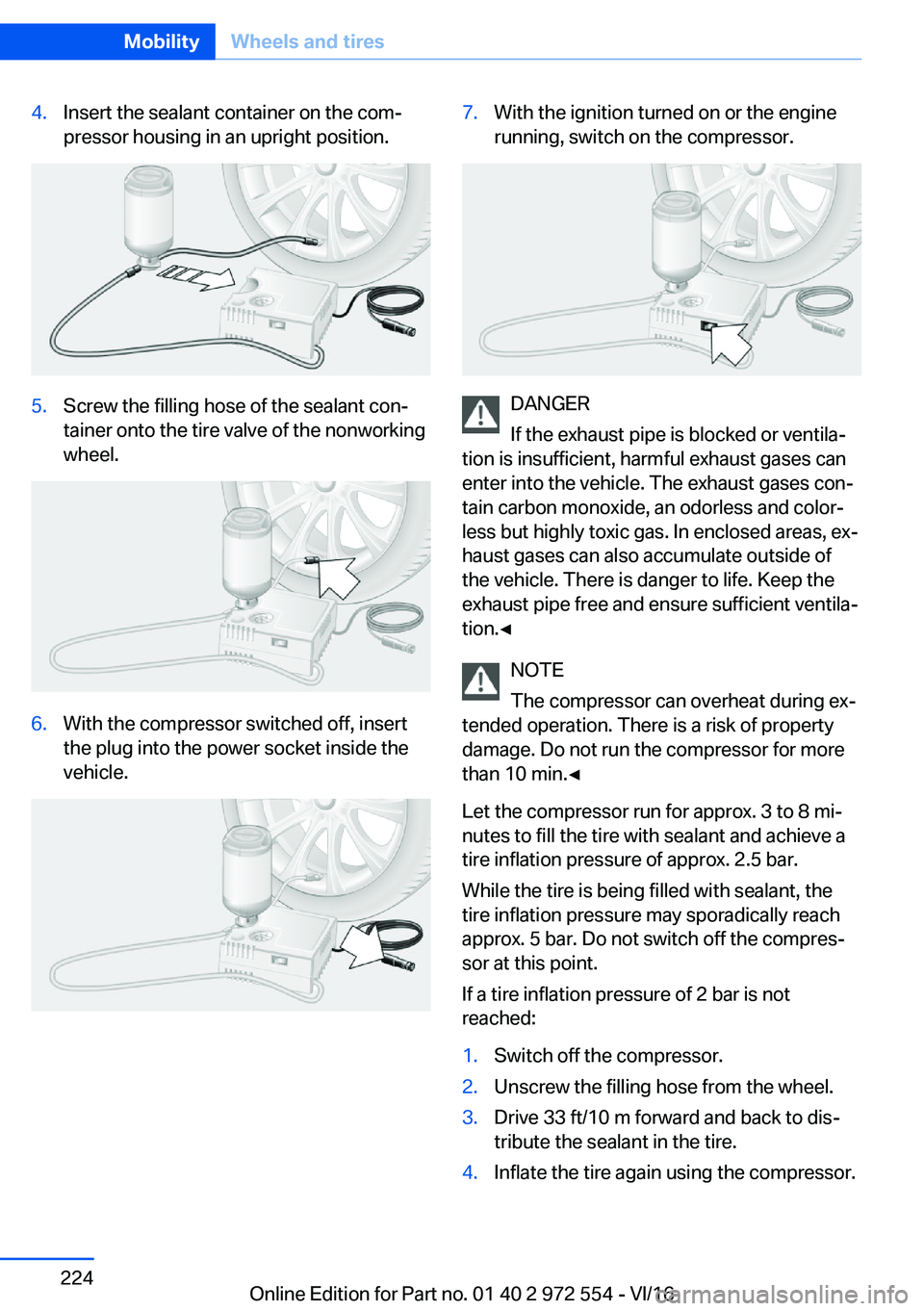

4.Insert the sealant container on the comjpressor housing in an upright position.5.Screw the filling hose of the sealant conjtainer onto the tire valve of the nonworking
wheel.6.With the compressor switched off, insert
the plug into the power socket inside the
vehicle.7.With the ignition turned on or the engine
running, switch on the compressor.
DANGER
If the exhaust pipe is blocked or ventilaj
tion is insufficient, harmful exhaust gases can
enter into the vehicle. The exhaust gases conj tain carbon monoxide, an odorless and colorjless but highly toxic gas. In enclosed areas, exj
haust gases can also accumulate outside of
the vehicle. There is danger to life. Keep the
exhaust pipe free and ensure sufficient ventilaj tion.'
