Airbag syste m
about children and Advanced Airbags
¢page 172 .
Even tho ugh your vehicle is equipped with an Ad­
vanced Airbag System, make certain that all chi l­
dren, especially those 12 years and younger, al­
ways ride in the back seat proper ly restrained for
their age and size. The airbag on the passenger
side makes the front seat a potentially dangerous place for a child to ride. The front seat is not the
safest place for a child in a forward-facing child
seat . It ca n be a very dangerous place for an in­
fant or a c hild in a rearward-fac ing seat.
The Advanced Airbag System in your veh icle has
been cert ified to comply with the requirements
of United States Federal Motor Vehicle Safety
Standard ( FMVSS) 208, as well as Canada Motor
Veh icle Safety Standa rd (CMVSS) 208 as applica­
b le at the time your vehicle was man ufa ct ur ed.
According to requi rements, the front Advanced
Airbag System on the passenger side has been
certified for "suppression" for infants of about 12 month old and younger and for "low risk de­
ployment" for children aged 3 to 6 years o ld (as
defined in the standard) .
The
PAS SENGER AIR BAG O FF light in the instru­
ment panel tells you when the front Advanced
Airbag on the passenger side has been turned off by the electronic control unit.
Each time you switch on the ignition, the
PAS ­
S ENGER AIR BAG OFF
light will come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if the electrical capacitance meas ­
ured by the capacitive passenger detection sys ­
tem for the front passenger seat equals the
combined capacitance of an infant up to about one year of age and one of the rearward-facing
or forward-facing child restraints listed in Fed­
eral Motor Vehicle Safety Standard (FMVSS)
208 with which the Advanced Airbag System in
you r vehicle was ce rt ified. For a listing of the
ch ild rest raints that we re used to certify yo ur
vehicle's compliance with the Safety Standard
¢ page 174 .
150
- will stay on if there is a sma ll child o r chi ld re­
straint on the front passenger seat,
- wi ll go off if the front passenger seat is occu­
pied by an adult as registered by the capacitive
passenger detectio n system
~ page 160, Mon­
itoring the Advanced Airbag System.
The PAS SENGER AIR BAG OFF lig ht comes on
when electrical capacitance registered on the
front passenger seat is equal to or less than the
combined capacitance of a typical 1 year-old in­
fant and one of the rearward-facing or forward­
facing child restraints listed in Federal Motor Ve­ hicle Safety Standard (FMVSS) 208 with which
the Advanced Airbag System in your vehicle was
ce rt ified.
If the total electr ical capacitance registered o n
the front passenger seat is more than that of a
typ ical 1 year-old chi ld but less than the weight
of a sma ll adult, the front airbag on the passen­
ger side can deploy (the
PAS SENGER AIR BAG
OFF
light does not come on).
If the
PASSENGER AIR BAG OFF light does not
come on, the front airbag on the passenger side
has not been t urned off by the electron ic con trol
u nit and can dep loy if the con trol uni t senses an
impact t hat meets the conditions stored in its
memo ry.
For exampl e, the airbag ma y depl oy if:
- a small ch ild that is heav ier than a typ ical 1
year-old child is on the front passenger seat (regard less of whethe r the child is in one of the
child seats listed ¢
page 17 4), or
- a child who has outgrown ch ild restraints is on
the front passenge r seat.
If the front passenger a irbag is turned off, the
PA SSENGER AIR BAG OFF light comes on in the
i nst rument cluster and stays on .
If the front passenger airbag deploys, the Feder­
al Standard requires the airbag to meet the "low
risk" dep loyment criteria to reduce the r isk of in­
ju ry through interaction w ith the airbag . "Low
r isk" dep loyment occurs in those crashes that
take place at lower decelerations as defined in
the e lectronic contro l unit ¢
page 160, PASSEN-
GER AIR BAG OFF light. .,_

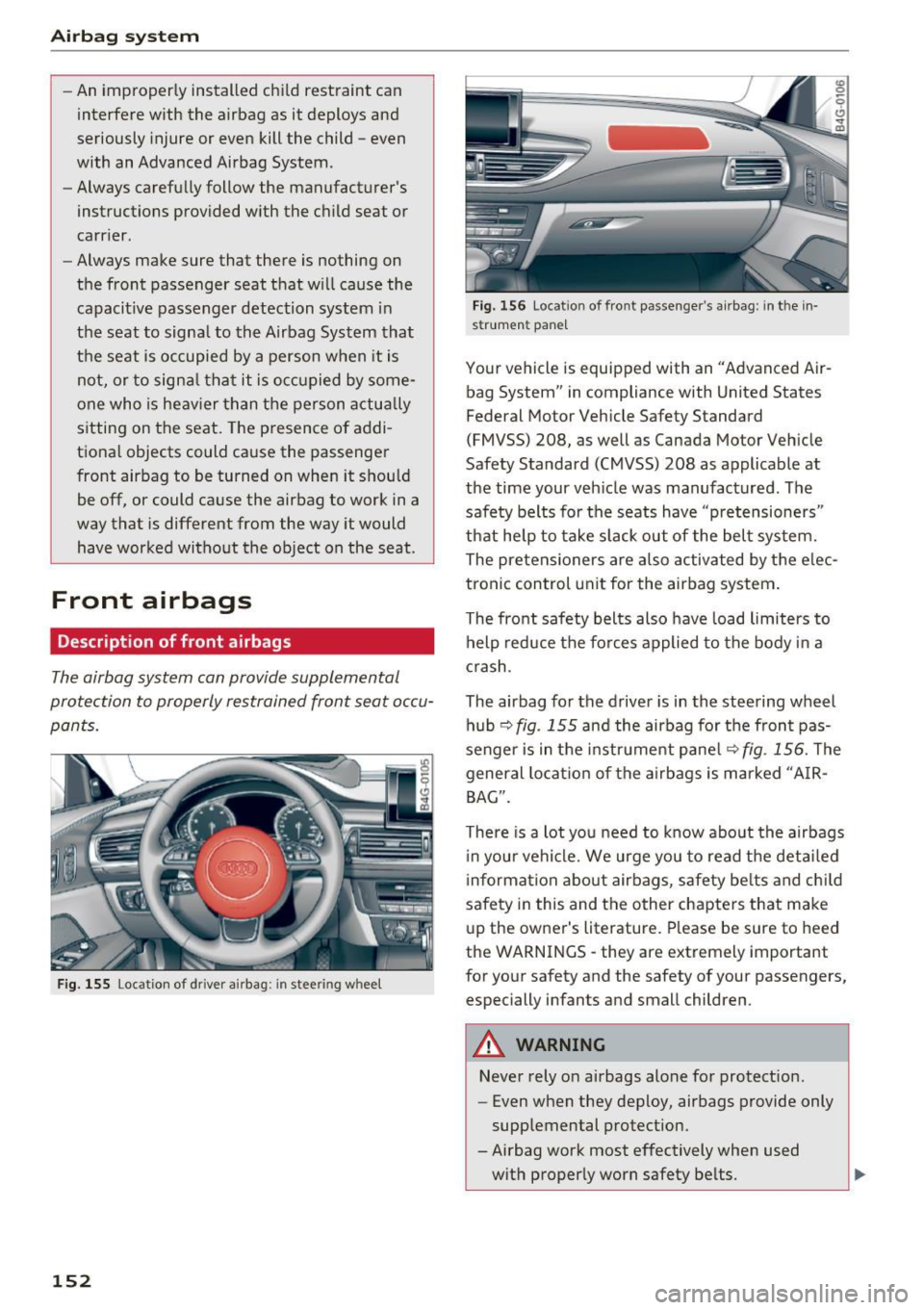

Airbag syste m
-An improper ly installed ch ild restraint can
interfere with the airbag as it deploys and
seriously injure or even kill the child -even
with an Advanced Airbag System .
- Always carefully follow the manufacture r's
instructions provided w ith the ch ild seat or
carr ier .
- Always make sure that there is nothing on
the front passenger seat that w ill cause the
capacit ive passenger detection system in
the seat to signa l to the A irbag System that
the seat is occupied by a person when it is
not, or to signa l that it is oc cupied by some·
one who is heav ier than the person actua lly
sitting on the seat. The presence of addi ·
tiona l objects could ca use the passenger
front airbag to be turned on when it should be off, or could cause the airbag to work in a
way that is different from the way it would have worked witho ut the object on the seat .
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu·
pants.
F ig. 15 5 Location of d river airbag : in stee ring w heel
152
Fig. 156 Locat io n of fro nt passenger 's a irbag : in th e in ­
s trumen t pane l
Your vehicle is equipped with an "Advanced Air·
bag System" in compliance with United States
Federal Motor Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Vehicle
Safety Standard (CMVSS) 208 as applicable at
the time your veh icle was manufactured . The
safe ty belts fo r the seats have "pretensioners"
that help to take slack out of the belt system.
The pretensioners are also activated by the e lec·
tronic control unit for the airbag system .
The front safety belts also have load limiters to help reduce the forces applied to the body i n a
c rash .
The airbag for the driver is in the steering wheel
hub ~
fig. 155 and the airbag for the front pas·
senger is in the instr ument panel~
fig . 156. The
general lo cat io n of the a irbags is marked "AIR·
BAG".
There is a lot you need to know abo ut the a irbags
i n your vehicle. We urge you to read the deta iled
i n forma tion abo ut airbags, safety be lts and ch ild
safety in this and the other chapte rs that make
u p the owner's literature. P lease be sure to heed
the WARNINGS· they are extremely important
for your safety and the safety of your passengers,
especially infants and small children.
A WARNING -
Never rely on airbags alone for protect ion.
- Even when they deploy, airbags provide only
supp lemental protection.
- Airbag work most effectively when used
wit h proper ly worn safety belts.

co
co
.... N
" N .... 0
00
\.J ' -Therefore, always wear your safety belts and
make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o'clock and 3:00 o'clock po­
sitions to help reduce the risk of personal in­
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
& WARNING
Objects between you and the airbag will in ­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your
lap when the vehicle is in use.
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked ,,AIRBAG" on
the steering wheel, instrument panel or the seat backrests; never place them between
these areas and you or any other person in
the vehicle .
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music
players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
Airbag system
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­
den maneuver. Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury, particularly
when the seat is reclined and the airbags in­
flate.
& WARNING
= -
A person on the front passenger seat, espe­
cially infants and small children, will receive
serious injuries and can even be killed by be­ ing too close to the airbag when it inflates.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
= The Advanced Airbag System can deploy in
accordance with the .,low risk" opt ion for 3-
and 6-year-old children under the U.S. Fed­
eral Standard if a child with electrical capac­ itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
ward-facing child seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seat ing pos ition.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age
and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard ..,.
153

Airbag syste m
switched on and turns the airbag indicator light
on when a malfunction in the one of the system
components is detected ¢
page 160. Because
the front passenger seat contains important
parts of the Advanced Airbag System, you must
take care to prevent it from being damaged .
Damage to the seat may prevent the Advanced
A irbag System for the front passenger seat from
doi ng its job in a c rash.
The front Ad vanced Airb ag Sy stem con sis ts
of the following:
- Crash sensors in the front of the vehicle that
measure vehicle acceleration/decelerat ion to
provide info rmation to the Advanced Airbag
System about t he severity of the crash.
- An electron ic control un it, with integrated
c rash sensors fo r front and side impacts. The
contro l unit "decides" whethe r to fire the front
airbags based on the information received from
the crash sensors . The control unit a lso "de ­
cides" whether the safety be lt pretensioners
shou ld be activated.
- An Advanced Airbag with gas generator and
control valve for the driver ins ide the steer ing
wheel hub.
- An Advanced Airbag with gas gene rator and
control valve inside the instrument pane l for
the front passenger.
- A capacitive passenger detect ion system under­
neath the front passenger seat cover. This sys­
tem measures the electrical capac itance of the
person in the seat . T he information registe red
is sent continuous ly to the e lectron ic cont rol
unit to regula te deployment of the front Ad­
vanced Airbag on the passenge r si de.
- An airbag monitoring system and indicator
l igh t in the inst rumen t cluster¢
page 160.
- A sensor in each front seat registers the dis­
tance between the respect ive seat and the
stee ring wheel or instr ume nt pane l. The infor­
ma tion reg istered is sent contin uously to the
electronic control un it to regulate deployment
of the front Advanced Ai rbags.
- The
PASSENGER AIR BAG OFF lig ht comes on
and stays on in the center of the instrument
panel ¢
page 160, fig. 158 and tells you when
156
the front Advanced Airbag on the passenger
side has been turned
off.
-A sensor in the safety be lt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and transmits this information to the electronic
control un it.
A WARNING
Damage to the front passenger seat can pre­
vent the front airbag from work ing properly.
- Improper repair or disassembly of the front
passenger and driver seat will prevent the
Advanced A irbag Sys tem from f unction ing
proper ly.
- Repairs to the front passenger seat must be
performed by qualified and prope rly train ed
wo rkshop personne l.
- Never remove the front passenger or driver
seat from the vehicle .
- Never remove the upholstery from the front
passenger sea t.
- Never d isassemble or remove parts from the
seat or disconnect w ires from
it.
- Never carry sharp objects in your pockets or
put them on the seat . The capacit ive pas ­
senger de tect io n mat in the front passenger
seat will not function p roperly if it is punc­
tured.
- Never car ry things on your lap or carry ob­
jects on the front passenge r seat. Such ob­
jects ca n influen ce the capaci tan ce regis­
t ered by the capaci tive passenger detection
sys tem, so tha t incorrect in format ion is pro ­
vided to the airbag control unit.
- Never store i tems under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, preventing them and the airbag sys­
tem from working properly.
- Never p lace seat covers or replacement up­
holstery that have not been specifically ap­ proved by Audi on the front seats.
- Seat covers can prevent the Advanced A ir­
bag System from recogni zing child re­
straints or occupants on the front passenger
seat and prevent the side airbag in the seat
backrest from deploying prope rly .

co
co
.... N
" N .... 0
00
\.J ' A WARNING
A child in a rearward-facing child seat instal­
led on the front passenger seat will be seri ­
ously injured and can be killed if the front air­
bag inflates - even with an Advanced Airbag
System .
- The inflating airbag will hit the child seat or
infant carrier with great force and will
smash the child seat and child against the backrest , center armrest, door or roof.
- Always install rear-facing child seats on the
rear seat.
- If you must install a rearward facing child
seat on the front passenger seat because of
exceptional circumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately install the rear­
facing child seat in a rear seating position and have the a irbag system inspected by
your Audi dealer.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds or by be­
ing pushed into you as the airbag inflates .
- Never hold things in your hands or on your
lap when the vehicle is in use .
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags dur­
ing braking or other sudden maneuvers and
become dangerous projectiles that can
cause serious personal injury if the airbags
inflate.
- Never place or attach accessories or other
objects (such as cup holders, telephone
brackets , large, heavy or bulky objects) on
the doors, over or near the area marked "AIRBAG" on the steering wheel, instru­
ment panel, seat backrests or between
those areas and yourself . These objects
could cause injury in a crash, especially
when the airbags inflate .
- Never recline the front passenger 's seat to
transport objects . Items can also move into
the area of the side airbag or the front air-
-
Airbag system
bag during braking or in a sudden maneu ­
ver. Objects near the airbags can become
projectiles and cause injury, particularly
when the seat is reclined.
- Never place or transport objects on the
front passenger seat. Objects on the front
passenger seat could cause the capacitive
sensor in the seat to signal to airbag system
that the seat is occupied by a person when it
in fact is not, or that the person on the seat
is heavier than he or she actually is . The
change in electric capacitance because of
such objects can cause the passenger front
airbag to be turned on when it should be
off, or can cause the airbag to work in a way
that is different from the way it would have
worked without objects on the seat.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occupied by a person when it is
not , or to signal that it is occupied by some­
one who is heavier than the person actually
sitting on the seat. The presence of an ob ­
ject could cause the passenger front airbag to be turned on when it should be off, or
could cause the airbag to work in a way that is different from the way it would have
worked without the object on the seat.
A WARNING
-The fine dust created when airbags deploy can
cause breathing problems for people with a history of asthma or other breathing condi­
tions .
- To reduce the risk of breathing problems,
those with asthma or other respiratory con­
ditions should get fresh air right away by
getting out of the vehicle or opening win­
dows or doors.
- If you are in a collision in which airbags de­
ploy, wash your hands and face with mild
soap and water before eating.
- Be careful not to get the dust into your eyes,
or into any cuts or scratches.
- If the residue should get into your eyes,
flush them with water .
159

Airbag system
If the PASSENGER AIR BAG light still does
not come on ...
If the PASSENGER AIR BAG OFF light still does
not come on and does not stay on continuously
(when the ignition is switched on),
- take the child restraint off the front passenger
seat and install it properly at one of the rear
seat positions. Have the airbag system inspect­
ed by your Audi dealer immediately .
- move the chi ld to a rear seat position and make
sure that the child is properly restrained in a
child restraint that is appropriate for its size
and age .
The PASSENGER AIR BAG light should NOT
come on ...
The PASSENGER AIR BAG OFF light should NOT
come on when the ignition is on and an adult is
sitting in a proper seating position on the front
passenger seat. If the
PASSENGER AIR BAG OFF
light comes on and stays on or flashes for about
S seconds while driving, under these circumstan­
ces, make s ure that:
- the adult on the front passenger seat is proper­
ly seated on the center of the seat cushion with
his or her back up against the backrest and the
backres t is not recl ined,
- the adu lt is not taking weight off the seat by
holding on to the passenger assist handle
above the front passenger door or supporting
their weight on the armrest,
- the safety belt is being properly worn and that
there is not a lot of slack in the safety belt web­
bing,
- there are no aftermarket seat covers or cush­
ions or other things (such as blankets) on the
front passenger seat that might cause the ca­
pacitive passenger detection system to miscal­
culate electrical capacitance.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
- If the status of the Adv a need Airbag System
has changed while the vehicle is moving, the
PASSENGER AIR BAG OFF light blinks for
162
about S seconds to catch the driver's atten­
tion. If this happens, always stop as soon as
it is safe to do so and check the steps descri­
bed above .
- If the
PASSENGER AIR BAG OFF light does
not go off when an adult who is not very
small is sitting on the front passenger seat
after taking the steps described above, make sure the adult is properly seated and
restrained at one of the rear seating posi­
tions. Have the airbag system inspected by
your authorized Audi dealer befo re trans­
porting anyone on the front passenger seat.
A WARNING
An airbag system that is not functioning prop­
erly cannot provide supplemental protection in a fronta l crash.
- If the airbag indicator light~
page 17
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer.
It is possible that
the airbag will inflate when it is not sup­
posed to, or wi ll not inflate when it should.
A WARNING
If the front airbag inflates, a ch ild without a
chi ld restraint, or in a rearward-facing child
safety seat, or in a forward-fac ing ch ild re­
straint that has not been properly insta lled
will be seriously injured and can be killed.
- Even though you r vehicle is equipped with
an Advanced A irbag System, make certain
that a ll children, especially 12 years and
younger, always ride on the back seat prop­
erly restrained for their age and size.
-Always install forward or rear-facing child seats on the rear seat -even with an Ad­
vanced Airbag System.
- If you must install a rearward-facing child
seat on the front passenger seat because of
except ional circumstances and the
PASSEN·
GER AIR BAG OFF
light does not appear and
stay on, immediately install the rear-facing
child seat in a rear seat ing position and have
the airbag system inspected by your Audi
dea le r.
~

co
co
.... N r-­N .... 0
00
\.J - -If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the
seat into its rearmost position in the seat 's
fore and aft adjustment range, as far away
from the airbag as possible . The backrest
must be adjusted to an upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
_& WARNING
- If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after taking the steps
described above, make sure the adult is
properly seated and restrained at one of the
rear seating positions .
- Have the airbag system inspected by your
Audi dealer before transporting anyone on
the front passenger seat .
(D Tips
If the capacitive passenger detection system
determines that the front passenger seat is
empty, the frontal airbag on the passenger
side will be turned off, and the
PASSENGER
AIR BAG OFF
light will stay on.
Repair , care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing , remov­
ing , servicing or repairing a part in an area of the
vehicle can damage a part of an airbag system
and prevent that system from working properly
in a collision.
There are some important things you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
_& WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de-
-
Airbag system
ploying when needed or deploying an airbag
unexpectedly :
- Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way.
- Never attach any objects such as cup holders
or telephone mountings to the surfaces cov­
ering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners
could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect properly.
- Never repair, adjust, or change any parts of
the airbag system.
-All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios , etc.)
must be performed by a qualified technician
who has the training and special equipment
necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify the front bumper or parts of
the vehicle body.
- Always make sure that the side airbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi .
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
- The airbag system can deploy only once. Af­
ter an airbag has been deployed, it must be
replaced with new replacement parts de­
signed and approved especially for your
Audi model version. Replacement of com­ plete airbag systems or airbag components
163

Airbag syste m
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
he lp to reduce the risk of injury to the lower ex­
tremities .
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the airbags have deployed. The a irbags also inflate
with a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Fully inflated airbags in comb ination with proper­
ly worn safety belts slow down and limit the oc­
cupant's forward movement and help to reduce
the risk of inju ry.
Important safety instructions on the knee
airbag system
App lies to : ve hicles w ith knee a irbags
Airbags are only supplemental restraints . Always
wear safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to provide supplemental protection .
,&. WARNING
An inflating knee airbag can cause ser ious in ­
jury. Wearing safety bel ts incorrectly and im­
proper seating positions increase the r isk of
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you properly if you are seated too close to any of
the airbag locat ions. When adjusting their
seat positions, it is important that both the driver and the front passenger keep their
upper bodies and knees at the following
min imum safe distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instrument panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­ ment panel.
- The risk of persona l injury increases if you
lean forward or to the s ide, or if the seat is
166 improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
- Always make sure that the knee a irbag can
inflate w ithout interference. Objects be­
tween you and the airbag can increase the
r isk of injury in an accident by interfering
w ith the way the airbag deploys or by being
pushed i nto you as the a irbag deploys.
- Never let anybody, especia lly children or
anima ls ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal injuries .
- Never carry objects of any kind in the foot ­
well area in front of the driver's or pas­ senger's seat. Bulky objects (shopp ing
bags, for example) can interfere with or
prevent proper dep loyment of the a irbag.
Small objects can be thrown through the
vehicle if the airbag deploys and injure you
or your passengers.
- Ma ke sure there are no crac ks, deep scratch­
es o r other damage in the area of the i nst ru­
ment panel where the knee airbags are lo ­
cated .
- If children are incorrec tly seated, their risk
of injury increases in a coll is ion
c:::> page 172, Child safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants .
Fig. 161 S ide a irbag locatio n in th e driver 's seat
