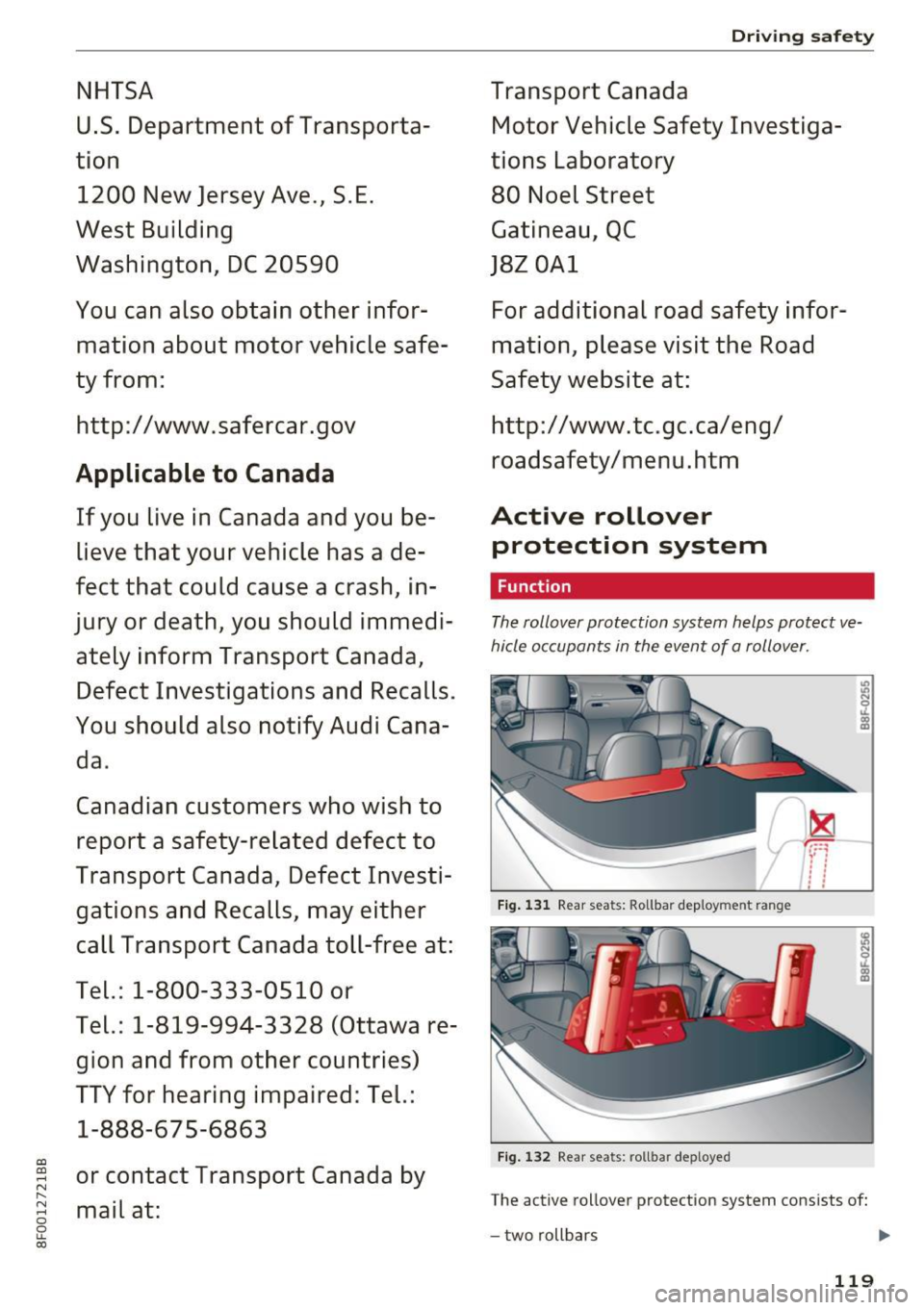

NHTSA
U.S. Department of Transporta­
tion 1200 New Jersey Ave., S.E.
West Building
Washington, DC 20590
You can also obtain other infor­
mation about motor vehicle safe­
ty from:
http: / /www.safercar.gov
Applicable to Canada
If you live in Canada and you be­
lieve that your vehicle has a de­
fect that could cause a crash, in­
jury or death, you should immedi­
ately inform Transport Canada,
Defect Investigations and Recalls.
You should also notify Audi Cana­
da.
Canadian customers who wish to
report a safety-related defect to
Transport Canada, Defect Investi­ gations and Recalls, may either
call Transport Canada toll-free at:
Tel. : 1-800-333-0510 or
Tel.: 1-819-994-3328 (Ottawa re­
gion and from other countries)
TTY for hearing impaired: Tel.: 1-888-6 7 5-6863
or contact Transport Canada by
mail at:
Driving safety
Transport Canada
Motor Vehicle Safety Investiga­
tions Laboratory 80 Noel Street
Gatineau, QC
J8Z 0Al
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
roadsafety/menu.htm
Active rollover protection system
Function
The rollover protection system helps protect ve­
hicle occupants in the event of a rollover.
Fig. 131 Rear seats: Rollbar deployment range
Fig. 132 Rear seats: rollbar deployed
~ ,,-.... . ...,
I ,.
' ' ' ' ' ' ' ' ' ' ' '
The active rollover protection system consists of:
- two rollbars
Ill>
119

Driving safety
-the safety belts with belt tensioners
- the windshield frame
- the rollover sensors
The active rollover protection system provides
additional safety in the event of a rollover. With­
in milliseconds, sensors deploy two rollbars lo­
cated behind the headrests in the rear seats
¢fig. 132 .
The rollbars, reinforced windshield frame and
belt tensioners help protect front and rear pas­
sengers in the event of a rollover.
The rollover protection system functions when
the power top is both open and closed.
A WARNING
Do not use the area behind the rear seat
headrests
¢fig. 131 as a storage area. This is
the area where the rollbars deploy.
If the roll­
over protection system is triggered, objects
placed there can be propelled through the ve­
hicle and make it more difficult for the roll­
bars to deploy. This increases the risk for seri­
ous or life-threatening injuries.
When is rollover protection deployed?
Rollover protection deploys in o collision or roll­
over.
Depending on the collision, sensors throughout
the vehicle and the control module trigger the
ro llov er system to deploy.
Fo r safety reasons, rollover protection also de­
ploys during front, side and rear collisions above
a certain level of severity.
120
Retracting rollover protection
Fig. 133 Deployed rollbar wit h release loop.
Fig. 134 Deployed rollbar wit h power top frame facing up­
ward .
If the rollover protection has triggered but the
vehicle was not involved in an accident, you can
retract the rollover protection yourself in an
emergency. Drive to your authorized Audi dealer
or qualified repair facility immediately to have
the malfunction corrected.
With the power top open
... Pull the loop upward in the direction of the ar­
row and hold it in place~
fig. 133.
... Slide the rollbar down.
... Release the loop just before the rollbar reaches
its end position by approximately 1-2 in. (3-5
cm) .
.,. Press the rollbar down until it stops .
.,. Make sure the rollbar is secure before releasing
it .
.,. Close the cover @¢
fig. 134 .
.,. Repeat the procedure on the other rollbar.
With the power top closed
... Switch the ignition on .
.,. Press the convertible switch to adjust the con-
vertible frame until it is vertical¢
fig. 134. .,._

a:,
a:,
...... N r--. N ...... 0
0
LL 00
~ Pull the loop upward in the direction of the ar­
row and hold it in place¢
fig. 133.
~ Slide the rollbar down.
~ Release the loop just before the rollbar reaches
its end position (3-5 cm).
~ Press the rollbar down until it stops.
~ Make sure the rollbar is secure before releasing
it.
~ Close the cover@¢ fig. 134 .
~ Repeat the procedure on the other rollbar .
~ You can now close the power top again.
& WARNING
-Make sure your head or other parts of your
body are not located in the area above the
rollbar when pressing the rollbar down. If
the rollbar is not secured correctly, it could
deploy again as soon as you release it and
cause injuries.
- Have the rollover protection system checked
by your authorized Audi dealer if it is faulty.
Otherwise, the system may not deploy cor­
rectly in a collision.
-Modifying the rollover protection system or
indiv idual components is not permitted.
- Work on the rollover protection system
should only be performed by your author­
ized Audi dealer or qualified workshop. Oth­
erwise the system may not funct ion correct ­
ly in a collision or it could deploy unexpect­
edly.
- Have the system inspected at service inter­
vals. This ensures the system w ill always be
ready for use . Have your authorized Audi
dealer check the rollover protection system
every two years at the latest .
Driving safety
121

Safety belt s
Safety belts
General information
Always wear safety belts!
Wearing safe ty belts correctly saves lives!
This chapte r explains why safety be lts a re neces­
sary, how they work and how to adjust and wear
them correct ly.
.. Read all the information that follows and heed
all of the instructions and WARNINGS.
&_ WARNING
Not wea ring safety belts or wearing them im­
properly increases the risk of ser ious personal
injury and dea th .
- Safety belts are the s ingle most effective
mea ns ava ilab le to reduce the risk of serious
injury and dea th in automob ile accidents .
For yo ur protect ion and that of your passe n­
gers, alw ays co rre ctly wea r sa fety be lt s
when the veh icle is moving .
- Pregnant wom en, in ju re d, o r physically i m­
paired persons mus t also use s afety be lts.
L ik e all vehi cle o ccu pants, they are mo re
li kely to be serio usly injure d if th ey do no t
wea r safety be lts. The best way to protect a
fetus is to protect the mothe r -th roughout
the ent ire pregnancy .
Number of seats
Your Audi has a total of four seating positions:
two in the front and two in the rear. Each seat ing
position has a safety belt.
&_ WARNING
N ot wea ring safety bel ts or weari ng them im­
properly increases th e r isk of ser ious personal
inju ry and dea th.
- N ever st rap more tha n one perso n, includ­
ing small ch ildren, into a ny be lt .
It is espe­
ci ally dan gerous to pla ce a sa fety bel t over a
c hild s itting on you r lap.
- N ever le t mo re people ride in t he vehicle
t h an t he re are s afety bel ts availab le.
122
-Be sure everyone riding in the vehicle is
properly restrained with a separate safety
be lt or ch ild restraint.
Safety belt warning light
Your vehicle has a warning system for the driver
and (on USA models only) front seat passenger
to remind you about the importance of buckling­
up .
Fig. 135 Safety belt wa rning lig ht in th e in st rument clu s­
ter -enl arged
Before driv ing off , alway s:
.. Fasten your sa fety belt and make sure you are
wearing it prope rly.
(0
"'
"' 0 N .. Make sure that your passengers a lso buc kle up
and proper ly wea r th eir safety belts .
.. Protec t your ch ildren with a ch ild rest raint sys­
tem app ropr iate for the size and age of the chil­
dren .
The . war ning light i n the instrument cluste r
l ights up when the ig nition is swi tched on as a re­
minde r to fas ten t he safety be lts. In addition,
yo u w ill hea r a wa rn ing tone for a ce rt ain per io d
of time.
Fasten your safety belt now and make sure that
your passengers also properly put on their safe­
ty belts.

Why use safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for peo­
ple riding in vehicles .
Fig. 136 Unbelted occupants in a vehicle heading for a wall
Fig . 137 The vehicle crashes into the wall
CD
~ ± The physical principles are simple. Both the vehi­
cle and the passengers possess energy which var ­
ies with vehicle speed and body weight. Engi­
neers call this energy "kinetic energy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Veh icle speed is the most significant factor.
If
the speed doubles from 15 to 30 mph (25 to
50 km/h), the energy increases 4 times!
Because the passengers of this vehicle are not us­
ing safety belts ¢
fig. 136, they will keep mov ing
at the same speed the vehicle was moving just
before the crash, until something stops them -
here, the wall
¢fig . 137.
The same principles apply to people sitting in a
~ vehicle that is involved in a frontal collision. Even ......
~ at city speeds of 20 to 30 mph (30 to 50 km/h), N
8 the forces acting on the body can reach one ton 0 LL co
Safety belts
(2,000 lbs. o r 1,000 kg) or more . At greater
speeds, these forces are even higher.
People who do not use safety belts are also not
attached to their vehicle. In a frontal collision
they will also keep moving forward at the speed
their vehicle was travelling just before the crash.
Of course, the laws of physics don't just apply to
frontal collisions, they determine what happens in all kinds of accidents and collisions.
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop
themselves from flying forward and being in­
jured or killed . Always wear your safety belts!
Fig. 138 A driver not wea ring a safe ty belt is violen tly
throw n forwa rd
Fig . 139 A rear passe nge r not wea ring a safety belt will fly
forward and str ike t he driver
Unbelted occupants are not ab le to resist the tre­
mendous forces of impact by holding tight or
bracing themselves. W ithout the benefit of safe­
ty restraint systems, the unrestrained occupant
will slam v iolently into the steering wheel, in­
strument panel, windshield, or whatever else is i n the way ¢
fig. 138. This impact w ith the vehi­
cle inter io r has all the energy they had just be-
fore the crash . .,.
123

Safe ty belts
Never rely o n airbags alone for protection . Even
when they deploy, airbags provide only additional
protection. A irbags are not supposed to dep loy in
all kinds of accidents. A lthough your Audi is
equipped w ith airbags, all vehicle occupants, in­
cluding the driver, must wear safety belts cor ­
rectly in order to minimize the risk of severe in­
jury or death in a crash .
Remember too, that airbags will deploy only
once and that your safety belts are a lways there
to offer protect ion in those accidents in wh ic h
airbags are not supposed to deploy or when they
have a lready dep loyed. Unbel ted occupants can
a lso be thrown o ut of the veh icle where eve n
mo re severe or fatal injur ies can occur .
It is also important for the rear pass enge rs to
wear safety belts co rrectly. Unbelted passengers
i n t he rea r seats endanger no t on ly themse lves
but also the drive r and other passengers
~ fig . 139. In a frontal collision they will be
thrown forward violently, where they can hit and
in jure the driver and/or front seat passenger.
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision . It's simply
not true!

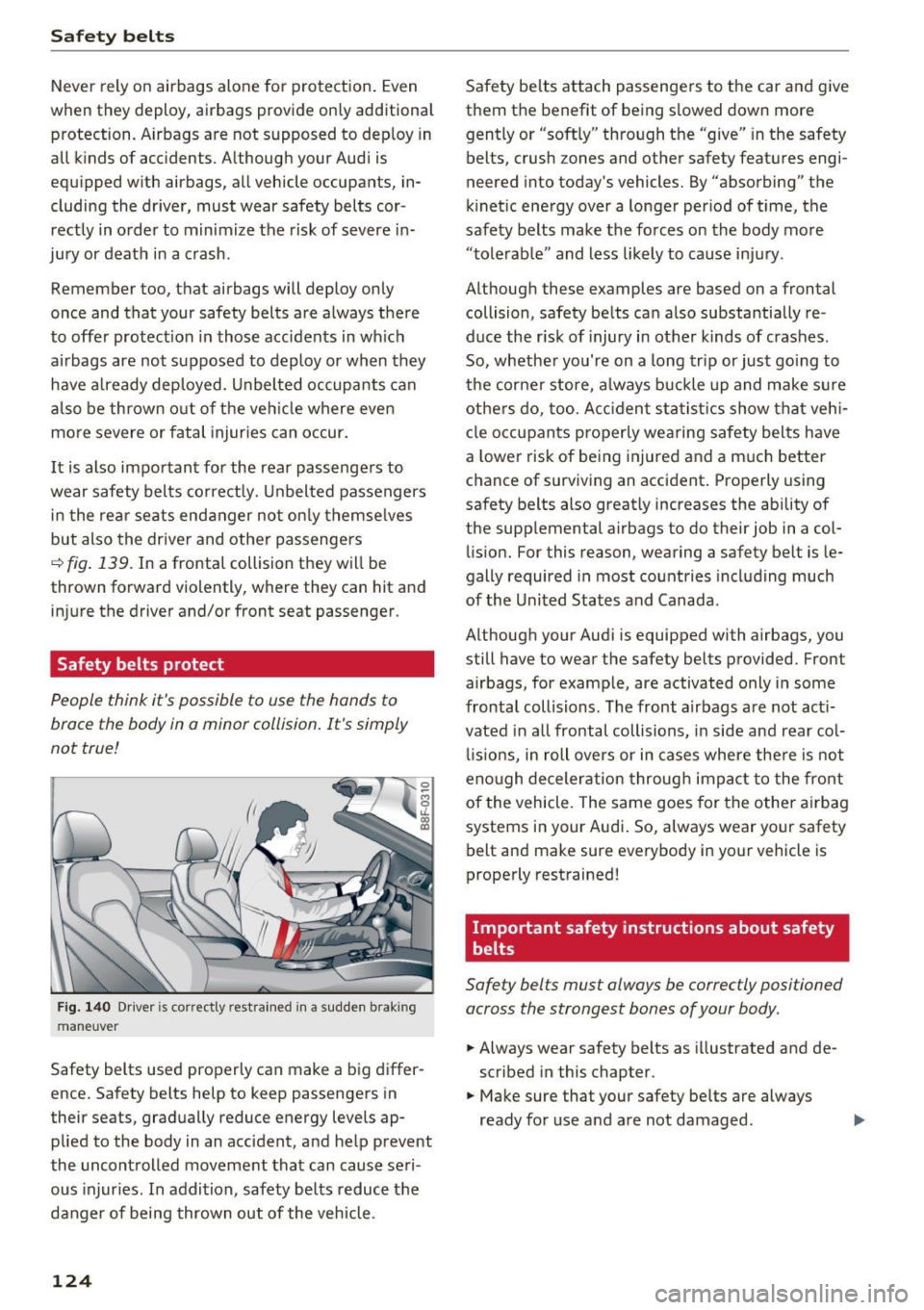

F ig . 14 0 Driver is correctly restrai ned in a sudde n braking
m aneuver
Safety belts used properly can make a b ig d iffer­
ence. Safety belts help to keep passengers in
their seats, gradually reduce energy levels ap­
plied to the body in an accident, and he lp prevent
the uncont rolled moveme nt that can cause seri­
ous injur ies. In addition, safety belts reduce the
danger of being thrown out of the veh icle .
124
Safety be lts attach passengers to the car an d give
them the benefit of being s lowed down more
gently or "soft ly" thro ugh the "give" in the safety
belts, crush zones and other safety feat ures engi­
neered into today's vehicles. By "absorbing" the
k inet ic energy over a longer per iod of t ime, the
safety belts make the forces on the body more
"tole rab le" and less likely to cause inj ury.
Although these examples are based on a frontal
collision, safety be lts ca n also substantially re ­
duce the r isk o f injury in ot her kinds of crashes.
So, whethe r yo u're on a long trip or just going to
the cor ne r store, a lways b uckle up and make s ure
othe rs do, too. Ac ciden t stat ist ics show that veh i­
cl e o ccupants prope rly wearing safety bel ts have
a lowe r risk of being injured and a m uch better
chance of surviving an acc ident . Properly using
safety be lts also great ly increases the ability of
the supp lemental airbags to do their job in a col­
li sion. For this reason, wearing a safety belt is le­
gally required in most countries including much
of the United States and Canada .
Although your Aud i is equipped with airbags, you
still have to wear the safety belts provided. Front
airbags, for examp le, are activated only in some
frontal collisions. The front airbags are not act i­
vated in all frontal collisions, in side and rear co l­
li sions, in roll overs or in cases where the re is not
eno ugh deceleration throug h impa ct to the front
of the vehicle. The same goes for the other a irbag
systems in your Audi. So, always wear your safety
belt and make sure everybody in your vehicle is
properly rest rained!
Important safety instructions about safety
belts
Safety belts must always be correctly positioned
across the strongest bones of your body.
.,. Always wear safety belts as illustrated and de ­
scribed in this chapter.
.,. Make sure that your safety be lts are always
ready fo r use a nd are not damaged .

a:,
a:,
...... N
" N ...... 0
0
LL co
A WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death . Safety belts can work only
when used correct ly.
-Always fasten your safety belts correctly be­ fore driving off and make sure all passen­
gers are cor rect ly restrained.
- For maximum protection, safety belts must
always be posit ioned properly on the body .
- Never strap more than one person, includ­ ing small ch ildren, into any belt .
- Never place a safety belt over a child sitt ing
on your lap.
- Always keep feet in the footwell in front of
the seat wh ile the vehicle is being driven.
- Never let any person ride w ith their feet on
the instrument panel or sticking out the
window or on the seat .
- Never remove a safety belt while the vehicle
is moving . Do ing so will increase your risk of
being injured or k illed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable ob-
jects in or on your clothing, such as eye
glasses, pens, keys, etc., as these may cause
injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware.
- Do not wear the shoulder part of the belt
under your arm or otherwise out of position .
- Several layers of heavy clothing may inter­
fere with correct positioning of belts and re­
duce the overall effectiveness of the system.
- Always keep belt buckles free of anything
that may prevent the buckle from latching
securely .
- Never use comfort clips or devices that cre­ ate slack in the shoulder be lt . However, spe­
cial clips may be requ ired for the proper use
of some child restraint systems.
- Torn or frayed safety belts can tear, and
damaged belt ha rdware can break in an acc i­
dent. Inspect belts regularly.
If webbing,
bind ings, buckles, or re tractors are dam-
Safet y bel ts
aged, have belts rep laced by an authorized
Aud i dea ler .
- Safety belts that have been worn and loaded
in an accident must be replaced with the
correct replacement safety belt by an au­
thorized Audi dealer. Replacement may be
necessary even if damage cannot be clearly
seen. Anchorages that were loaded must al­
so be inspected.
- Never remove, mod ify, d isassemble, or try
to repair the safety belts yourse lf.
-Always keep the belts clean . Dirty belts may
not work properly and can impair the func­
tion of the inert ia reel~
page 182.
Safety belts
Belt positioner
The driver and front passenger seats are equip­
ped with belt positioners.
F ig. 141 Driv er's seat: Belt pos it ioner
The front seats are equipped with belt position­
ers so it is easier to fasten the safety belts . The
belt positioners automatically extend when the
door closes and the ignit ion sw itches on
~ fig . 141.
The belt positioner returns to its start ing posi­
tion aga in when
- the tongue in the belt latch engages or the belt
was not fastened within 60 seconds.
-you switch the ignition off.
- you open the door .
125

Safe ty belts
_& WARNING
-Only your authorized Audi dealer shou ld
work on the system or remove and installing
system components when perform ing other
work.
- The belt pos itioners could cause injury or
damage if they pinch peop le or objects
when extending or ret ract ing.
Fastening safety belts
Safety first -everybody buckle up!
F ig. 1 42 Belt buckle a nd tong ue o n the dr iver's seat
To prov ide max imum protection, safe ty belts
must always be posit ioned correctly on the wear ­
er's body .
.,. Adjust the fro nt sea t an d head restra int proper­
ly ¢
page 57, Seats and storage .
.,. Make s ure the seatback of the rear seat bench
is in an upright position and sec ure ly latched in
place before using the belt¢.&_ .
.,. Pull the safety belt evenly across the chest and
pelvis
¢ fig. 142, ¢ .&_ .
.,. Insert the tongue into the correct buckle of
your seat until you hear it latch securely .
.,. Pull on the be lt to make sure that it is securely
latched in the buck le.
Autom atic safety belt retractors
Every safety belt is equipped with an automatic
belt retractor on the shoulder belt . This feature
locks the belt when the belt is pulled out fast,
du ring hard b raking and in an accident . The belt
may a lso lock when you drive up or down a steep
h ill or th rough a s harp c urve. Dur ing no rmal driv­
ing the belt lets you move freely.
126
Safety belt pr etensioners
The safety belts are eq uipped w ith a bel t preten­
s ioner that he lps to tighten the safety be lt and
remove slack when the pretensione r is activated.
The function of the pretens ioner is monitored by
a warn ing light ¢
page 17.
Convertible locking retractor
Every safety belt except the o ne on the driver
seat is equipped with a convertib le locking retrac­
tor that
mu st be used when the safety be lt is
used to attach a child safety seat . Be sure to read
the important information about this feature
¢ page 159.
_& WARNING
Improperly positioned safety belts can cause
serious i nju ry in an accident
¢page 127,
Safety belt position.
- Safety belts offer optimum protection only
when t he seatback is up right and belts a re
properly positioned on the body .
- Never attach the safety belt to the buckle
for another seat . Attach ing the be lt to the
w rong buckle will reduce safety be lt effec ­
tiveness and can cau se serio us pe rsonal in­
jury .
- A passenge r who is not prope rly rest rained
can be ser iously injured by the safety belt i t­
self when it moves from the st ronger parts
of the body into c ritical areas like the abdo­
men.
- Always lock the co nver tible locking retractor
when yo u are securing a c hild safety seat in
the vehicle
¢ page 161.
